HCOF-5A High-Density Aquaculture Oxygen System: 93% Purity | 24/7 Stable Supply

Operating a high-density aquaculture farm means thousands of fish depend on a stable oxygen supply every single second. In intensive systems, oxygen consumption increases dramatically—especially during hot weather, feeding peaks, or critical nighttime hours.

When dissolved oxygen suddenly drops, fish become stressed, stop feeding, and in severe cases, mass mortality can occur within hours. Traditional aeration methods are no longer sufficient for modern high-density farming; they frequently fail to deliver enough oxygen efficiently, leading to unstable water quality, ammonia buildup, and a sharp increase in disease risk.

The HCOF-5A High-Density Aquaculture Oxygen System is engineered to eliminate these risks. By delivering a continuous, high-purity oxygen supply (93%±3%), it ensures optimal dissolved oxygen levels at all times, securing your yield and protecting your investment.

Ideal Applications for the HCOF-5A

Engineered specifically for intensive aquaculture environments where oxygen demand vastly exceeds the capabilities of standard aeration equipment, the HCOF-5A is the ideal solution for:

• High-density fish farming ponds (tilapia, catfish, bass, etc.)

• Intensive shrimp farming systems

• Recirculating Aquaculture Systems (RAS)

• Indoor tank aquaculture facilities

• Hatcheries and breeding farms

As stocking density increases, oxygen demand rises exponentially. The HCOF-5A provides a reliable, continuous industrial-grade oxygen source, ensuring stable conditions even under extreme farming densities.

Why Reliable Oxygen Matters in High-Density Farming

In aquaculture, oxygen is the single most critical factor affecting survival and growth rates. When dissolved oxygen levels drop:

• Fish metabolism slows down

• Feeding activity decreases

• Stress levels increase

• Disease risk rises dramatically

• Mortality can occur rapidly

During nighttime and early morning hours, dissolved oxygen reaches its absolute lowest point due to aquatic plant respiration and the absence of photosynthesis. This is the critical window when most fish kills occur. A stable, mechanical oxygen generation system is not optional—it is a mandatory infrastructure component for profitable high-density farming.

Technical Advantages & Core Technology

(Recommended placement for a 2D vector schematic illustrating the internal flow from the air compressor through the PSA molecular sieves)

Advanced PSA Oxygen Generation Technology

• Operating Principle: Built on advanced PSA (Pressure Swing Adsorption) molecular sieve technology.

• Raw Material Efficiency: Utilizes ambient air as the raw material to consistently produce 93%±3% high-purity oxygen.

• Scalability: Features a modular multi-oxygen unit design, allowing for flexible capacity expansion as your facility grows.

• Deployment Flexibility: Fully supports both centralized oxygen supply networks and independent unit control.

Industrial-Grade Stable Hardware

• Filtration: Equipped with a high-efficiency lithium molecular sieve for maximum nitrogen adsorption.

• Drive Mechanism: Features a heavy-duty, oil-free compressor engineered with high and low-temperature resistance for continuous, reliable fluid handling.

• Control: Integrated intelligent electronic control system ensures unwavering operational stability.

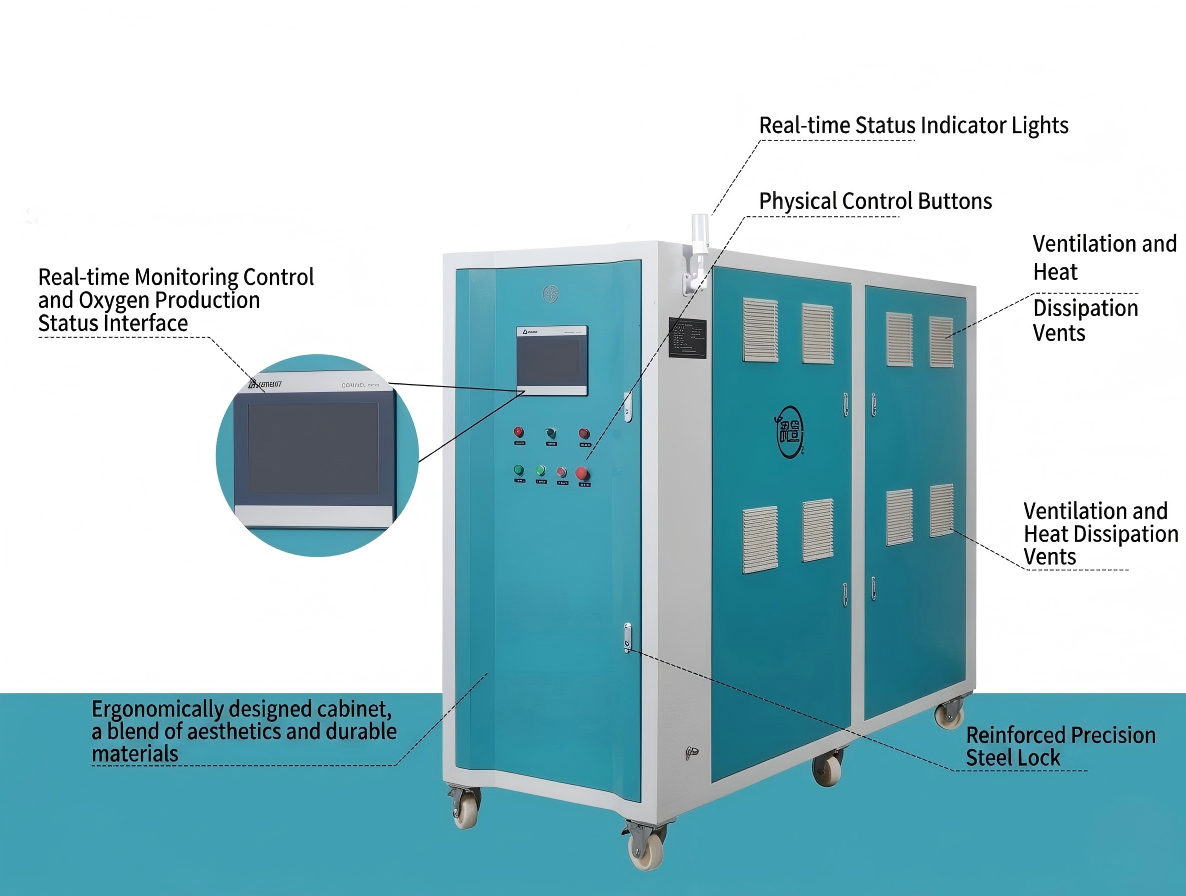

Smart Operation System

• Automation: Automatic pressure start/stop control maintains system equilibrium without manual intervention.

• Monitoring: Real-time tracking and display of critical system parameters.

• Safety: Built-in fault warning system alerts operators instantly, ensuring safer continuous operation.

• Interface: User-friendly operation design tailored for rapid deployment and minimal training.

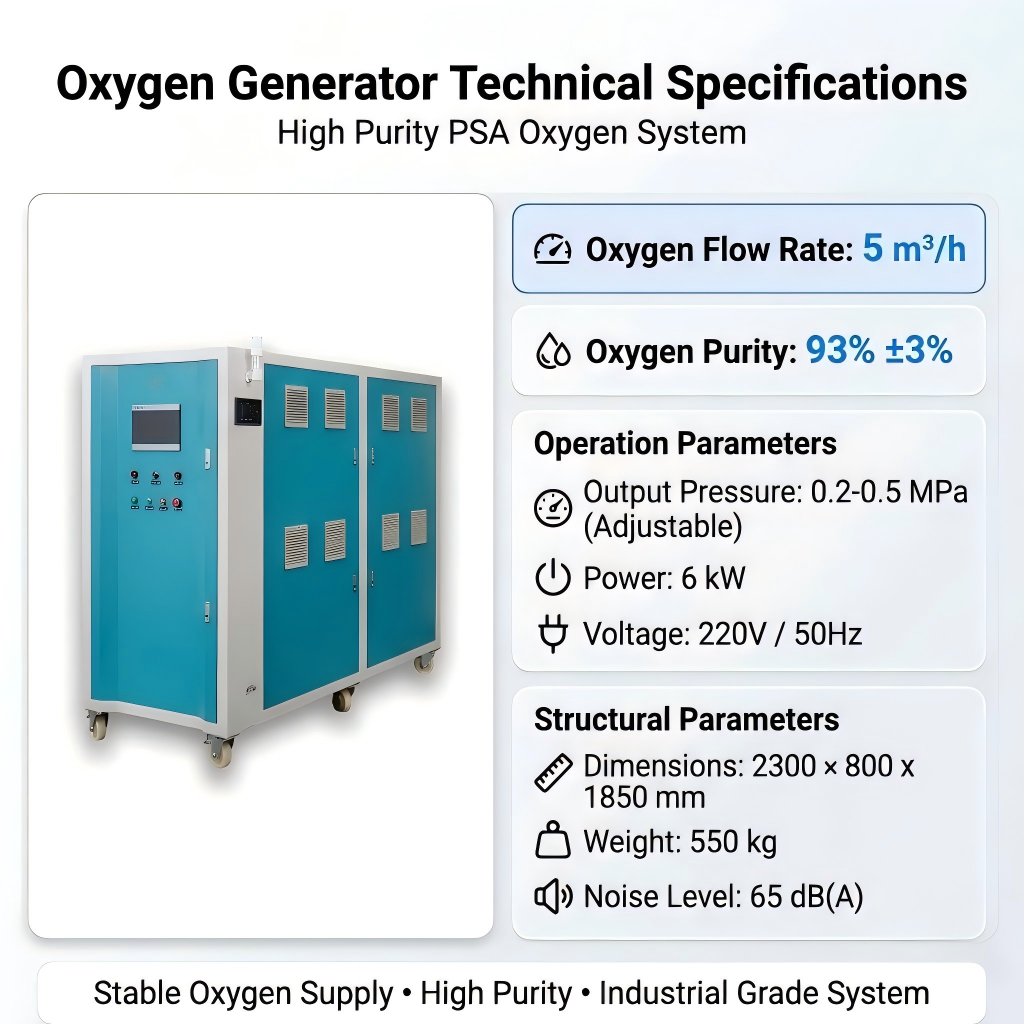

Series Technical Specifications

Below are the nominal performance specifications for the broader HCOF series range. (Note: All test values are nominal and for reference only. They are not guaranteed maximum or minimum limits, nor do they imply mean or median).

Model No.	Overall Dimensions	Weight	Rated Voltage	Power	Outlet Pressure	Oxygen Concentration	Oxygen Flow Rate	Noise Level	Aeration Discs	Suitable Water Volume
HCOF-120LS	230 x 80 x 185 CM	600 Kgs	220V 50Hz	8 KW	0.1-0.3Mpa (Adjustable, external booster)	93%±3%	5 M³/h	65 db(A)	70 pcs	700 tons
HCOF-80LN	110 x 80 x 130 CM	480 Kgs	220V 50Hz	6 KW	0.1-0.3Mpa (Adjustable, external booster)	93%±3%	4 M³/h	65 db(A)	50 pcs	500 tons
HCOF-10LN	78 x 35 x 67 CM	60 Kgs	220V 50Hz	900 W	0.1-0.3Mpa (Adjustable, integrated booster)	93%±3%	10 L/min	65 db(A)	10 pcs	50 tons

Frequently Asked Questions (FAQ)

Q1: What is high-density aquaculture and why is it needed?

High-density aquaculture means increasing the number of fish or shrimp raised in a limited water area. It is utilized to drastically improve production efficiency and maximize the yield per unit of land. However, it requires a highly stable oxygen supply to maintain water quality and overall fish health.

Q2: What is the biggest challenge in high-density farming?

The primary challenge is oxygen supply stability. As stocking density increases, oxygen consumption rises sharply, particularly at night and during periods of high temperatures. Without proper industrial-grade oxygen support, fish will suffer from stress, stunted growth, or sudden mass mortality.

Q3: How does an oxygen system improve high-density aquaculture?

A dedicated oxygen system provides continuous high-purity oxygen (93%±3%), ensuring stable dissolved oxygen levels throughout the water column. This maintains high fish activity, improves feeding efficiency, and heavily reduces mortality rates, ultimately making high-density farming safe and highly profitable.

Q4: What benefits can farmers get from high-density aquaculture systems?

With a properly engineered oxygen supply system, farm operators can achieve:

• 3–5 times higher stocking density

• Faster overall fish and shrimp growth cycles

• Up to 20% improvement in feed conversion efficiency

• 20–30% higher survival rates

• Reduced energy and long-term operational costs

Q5: Is high-density aquaculture suitable for all ponds or farms?

Yes, but the specific system configuration depends entirely on farm size and total water volume. It can be successfully applied in fish ponds, shrimp farms, hatcheries, and RAS systems. We recommend customized oxygen solutions to ensure optimal mechanical performance for your specific farming conditions.
