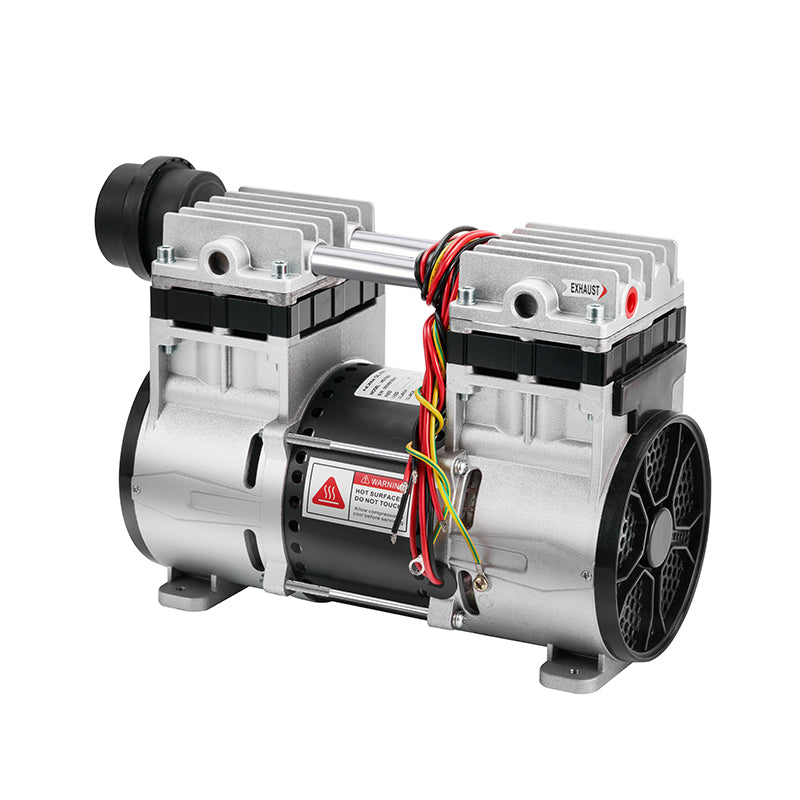

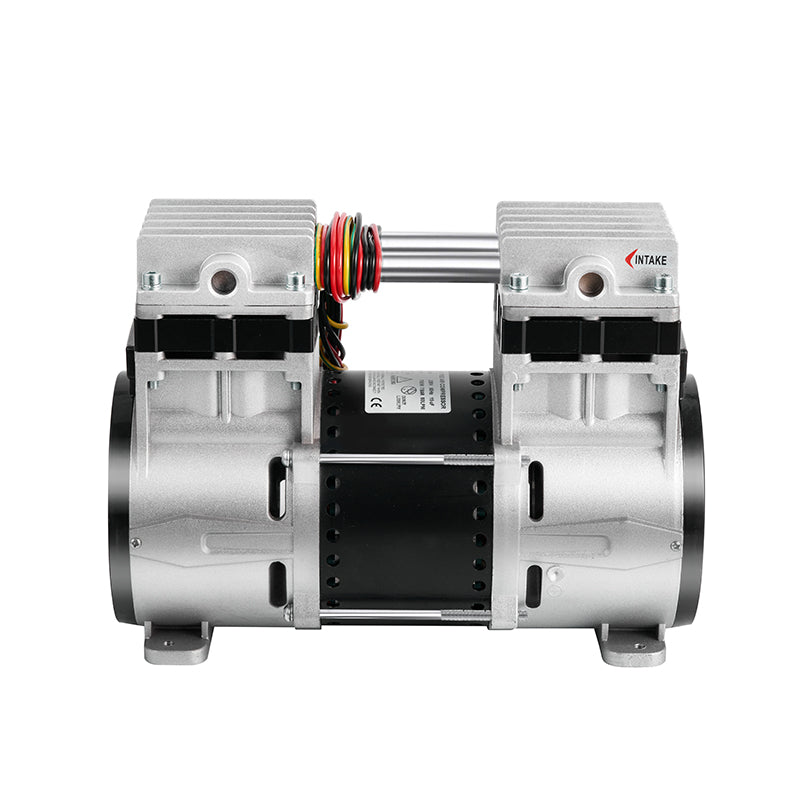

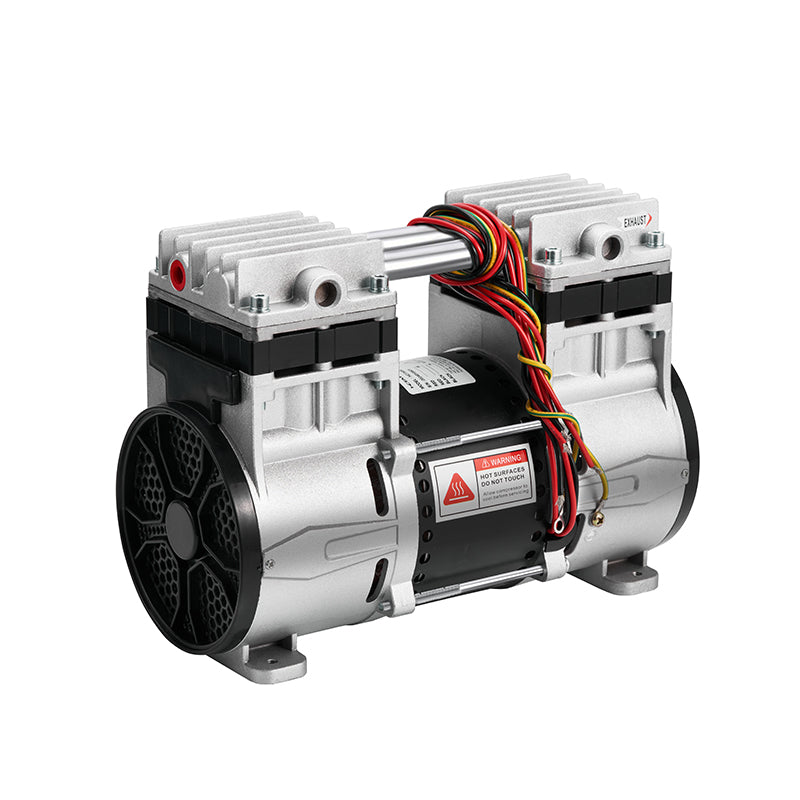

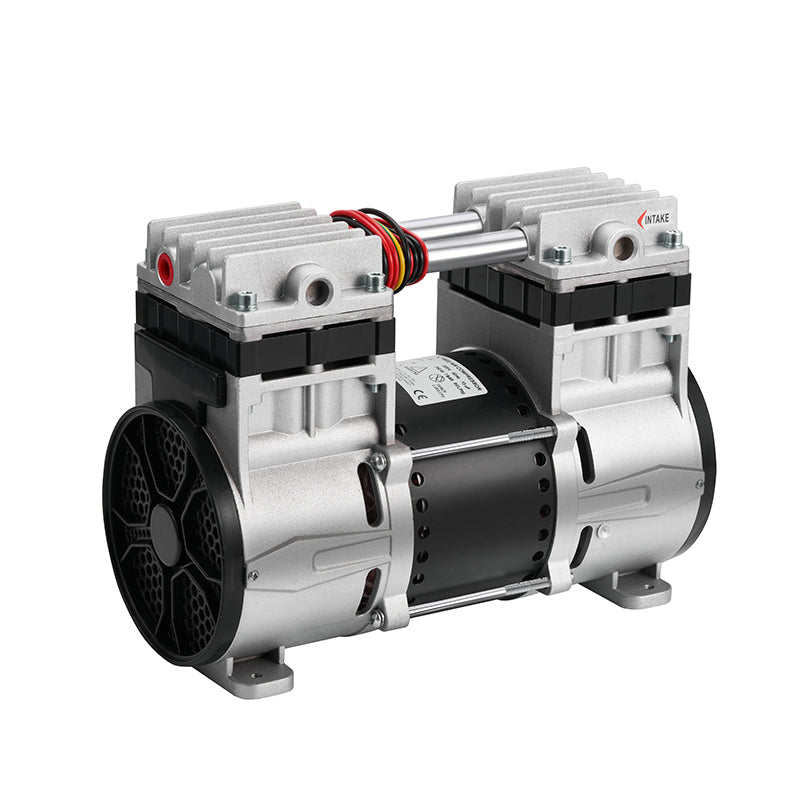

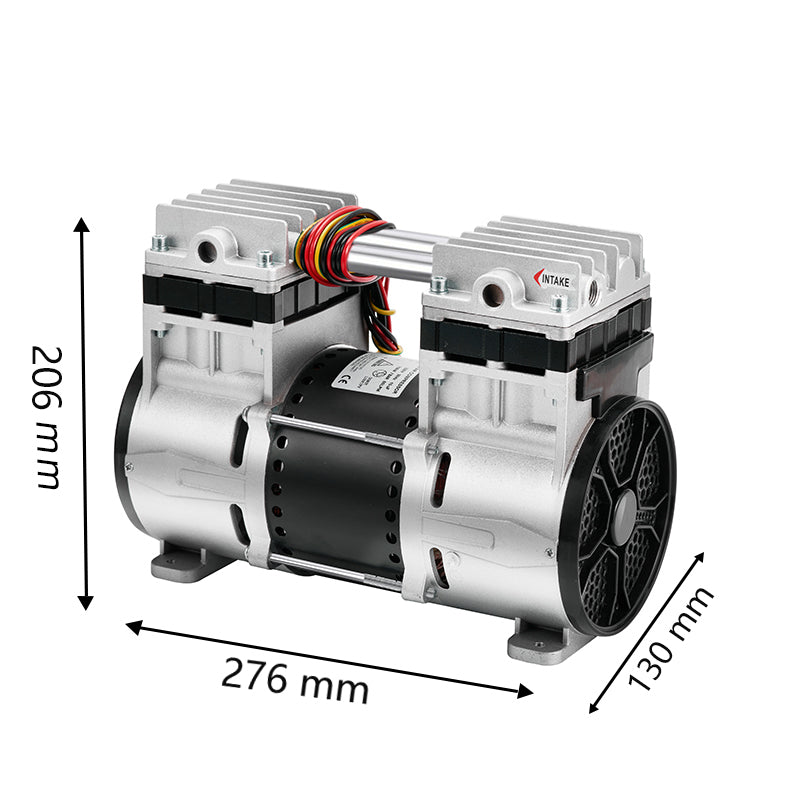

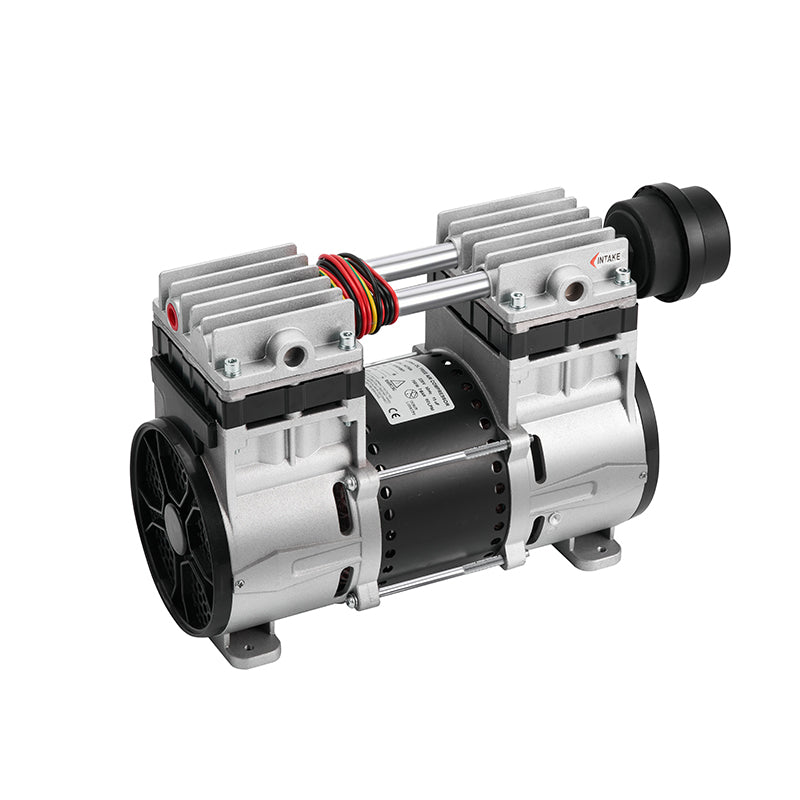

HC680A Oilless Vacuum Pump | 340W, 165 L/min, -92Kpa, CE Certified

Why Choose the HC680A Oilless Vacuum Pump

When a lab technician prepares samples for sensitive chromatography, introducing hydrocarbon contamination from a traditional lubricated pump can compromise an entire batch of results. Contaminated samples lead to false readings, ruined materials, and expensive downtime. The HC680A oilless vacuum pump eliminates this risk entirely by providing a completely dry, clean vacuum source. By utilizing advanced oil-free technology, this pump ensures that no oil mist or vapor is introduced into the vacuum lines or exhausted into the ambient laboratory air. Designed for continuous duty without the need for lubrication, this unit ensures stable pressure and flow while significantly reducing maintenance schedules for busy technical teams.

Operating with a highly efficient 340W motor, the HC680A delivers consistent pneumatic power to demanding industrial and clinical systems. The pump achieves a maximum flow rate of 165 L/min and pulls a deep vacuum of -92Kpa, providing the precise control required for critical applications. Procurement engineers and technical managers rely on this specific model because it combines high performance with low maintenance requirements, ultimately reducing the total cost of ownership for OEM equipment. Whether integrated into a standalone medical device or a massive automated assembly line, the HC680A offers dependable, continuous operation.

• Power Consumption: 340W motor designed for high efficiency and stable, continuous operation across varying loads.
• Maximum Flow Rate: 165 L/min capacity to handle demanding suction tasks and rapid evacuation requirements.
• Vacuum Pressure: -92Kpa capability, providing the deep, stable vacuum performance necessary for sensitive processes.
• Lubrication: 100% oil-free operation, ensuring a clean vacuum output and zero hydrocarbon emissions.
• Duty Cycle: Rated for continuous duty, allowing machinery to run without mandated cool-down periods.
• Certifications: Fully CE, RoHS, and ISO 9001 compliant for immediate integration into global supply chains.
• Maintenance: Low maintenance design eliminates oil changes, reducing operational downtime and service costs.

Key Technical Specifications

Applications & Industries

The HC680A oilless vacuum pump is explicitly engineered for critical laboratory and medical environments where air purity is strictly regulated. In laboratory settings, it serves as the primary vacuum source for rotary evaporators, vacuum filtration units, mass spectrometry equipment, and chromatography sample preparation. In these scenarios, the -92Kpa vacuum depth ensures efficient solvent removal and degassing without the risk of oil backstreaming into the samples. For medical suction applications, the 165 L/min flow rate provides the rapid, reliable suction required for surgical aspirators, dental vacuum systems, and wound drainage devices. The oil-free nature of the pump ensures patient safety and maintains sterile clinical environments by preventing the exhaust of lubricating mists into the surrounding air.

Beyond clinical and research settings, this pump is highly effective in industrial packaging and high-speed manufacturing environments. In commercial packaging facilities, the 340W motor provides consistent vacuum pressure for vacuum sealing machines, blister packaging lines, and modified atmosphere packaging (MAP) systems. The high flow rate ensures that air is evacuated quickly from packaging chambers, allowing production lines to maintain high throughput rates while ensuring airtight seals for perishable food items and sensitive pharmaceutical products.

For pick-and-place automation, the HC680A powers robotic end-of-arm tooling (EOAT) and industrial suction cups. The continuous duty rating guarantees that high-speed automated assembly lines in electronics, semiconductor manufacturing, or automotive assembly maintain their precise cycle times. A stable -92Kpa vacuum ensures that heavy or delicate components are gripped securely during rapid transit. By utilizing an oilless vacuum pump, automation engineers prevent oil residue from contaminating delicate circuit boards or optical components during the handling process, thereby increasing overall product yield and reducing defect rates.

Certifications & Compliance

For OEM buyers, technical managers, and procurement engineers, strict regulatory compliance is a mandatory requirement when selecting internal components for commercial machinery. The HC680A oilless vacuum pump is manufactured in an ISO 9001-certified facility. This internationally recognized standard guarantees consistent production quality, rigorous testing protocols, and full traceability of all internal components. By adhering to ISO 9001 quality management systems, HCEM Pump ensures that every single unit delivered to your facility meets the exact stated specifications of 165 L/min flow and -92Kpa vacuum right out of the box, eliminating variations in performance across large procurement orders.

Furthermore, the HC680A pump carries essential CE and RoHS certifications, facilitating smooth market access across multiple global regions. The CE mark indicates full compliance with European health, safety, and environmental protection standards. This includes adherence to relevant machinery and low voltage directives, allowing for unrestricted equipment distribution and legal operation within the European Economic Area. The RoHS certification ensures the product is completely free from dangerous heavy metals and chemicals, such as lead, mercury, and cadmium. Meeting these critical environmental directives is absolutely required by electronics manufacturers and medical device integrators operating in North America, Europe, and Southeast Asia, ensuring your final product passes all regional compliance audits.

Frequently Asked Questions

What is the duty cycle capability of the HC680A model?

The HC680A is specifically rated for continuous duty operation. Its efficient 340W motor and advanced oil-free design allow the pump to run continuously for extended periods without the need for thermal cool-down cycles. This makes it an ideal component for 24/7 automation systems, continuous packaging lines, and medical facilities that require uninterrupted suction capabilities.

Is the HC680A suitable for integration into medical suction devices?

Yes, the HC680A is highly suitable and frequently specified for medical suction applications. Because it is a completely oilless vacuum pump, it provides a clean vacuum that will not exhaust hazardous oil mist into sterile clinical environments. Furthermore, the 165 L/min flow rate and -92Kpa vacuum pressure easily meet the rigorous suction demands of surgical aspirators and central medical vacuum systems.

Does this pump meet the import requirements for European OEM equipment?

Absolutely. The HC680A pump is fully CE and RoHS certified. These certifications ensure that the pump meets all necessary safety, electrical, health, and environmental regulations required for integration into machinery destined for the European market. It is also manufactured under strict ISO 9001 quality management standards, which is often a prerequisite for European procurement contracts.

What specific maintenance is required for this oilless vacuum pump?

As an oilless design, the HC680A requires absolutely zero lubrication. This eliminates the need for daily oil level checks, frequent oil changes, and the costly disposal of hazardous waste oil. Maintenance is typically limited to the periodic inspection and cleaning of the intake filters, and eventually replacing internal wear components, such as piston cups or diaphragms, only after thousands of hours of continuous duty operation.
