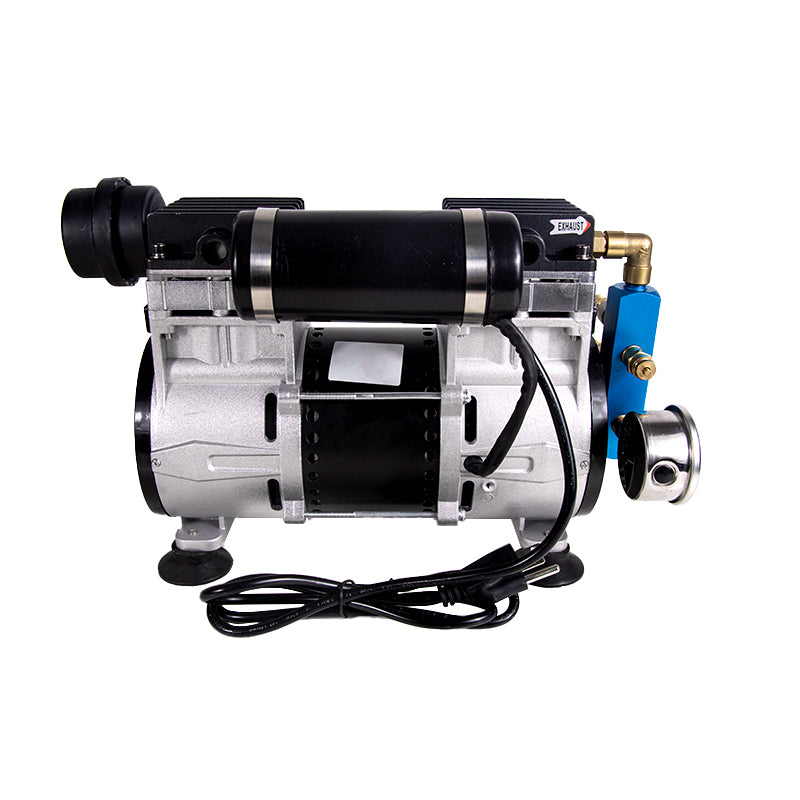

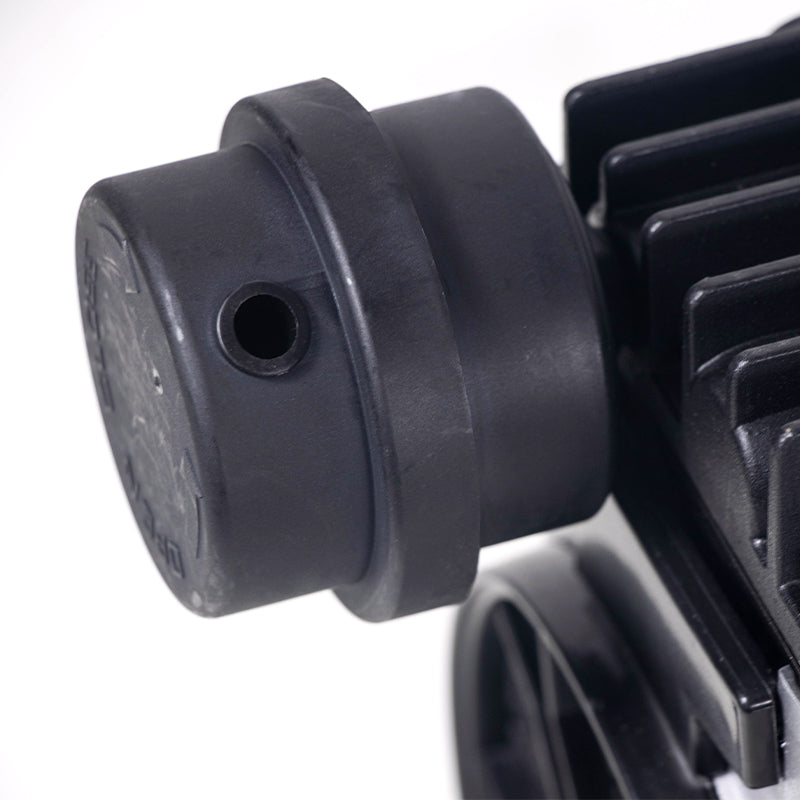

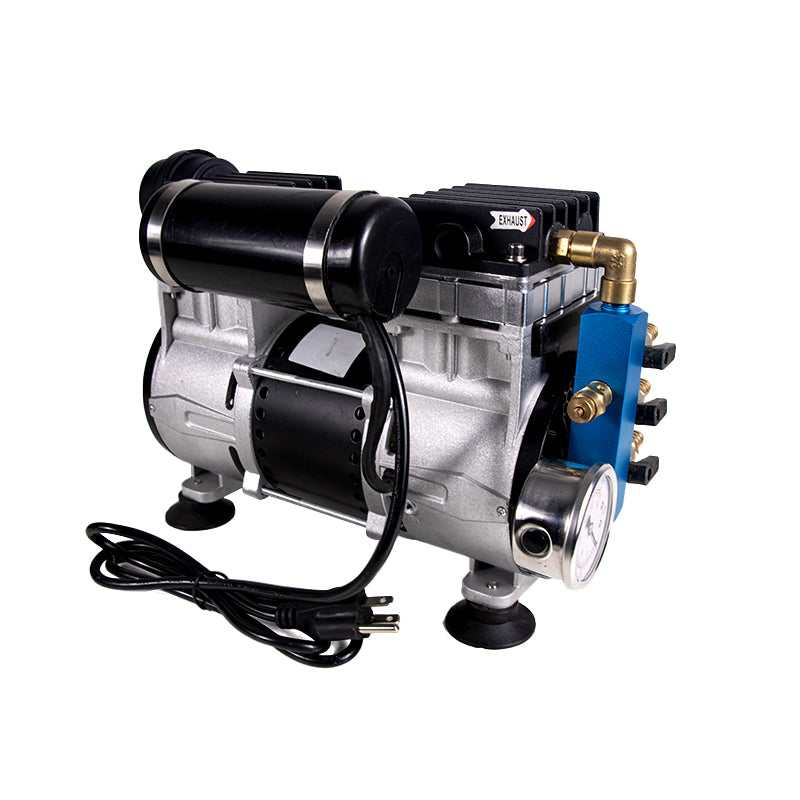

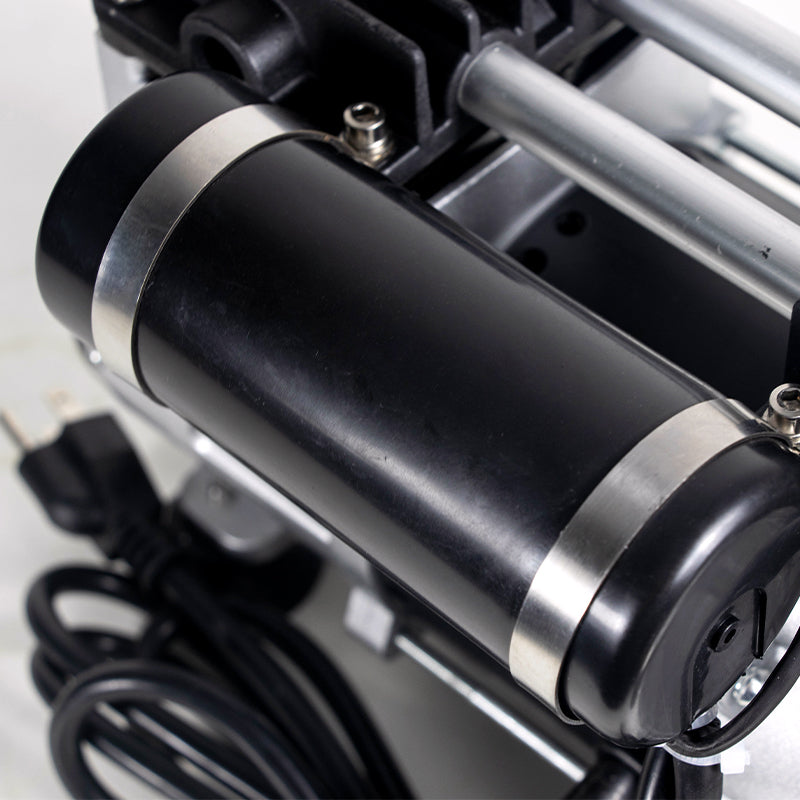

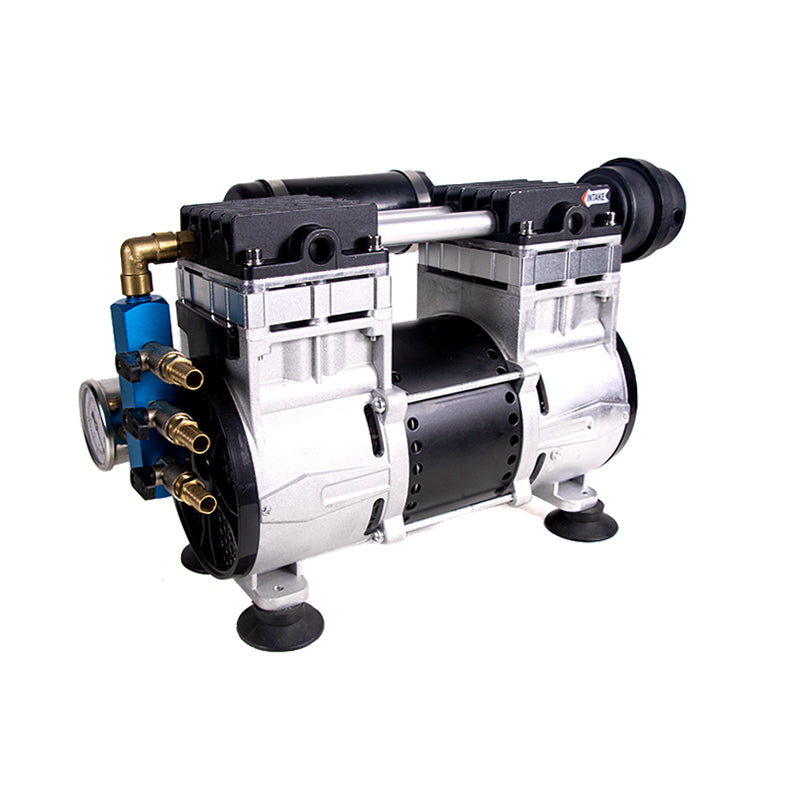

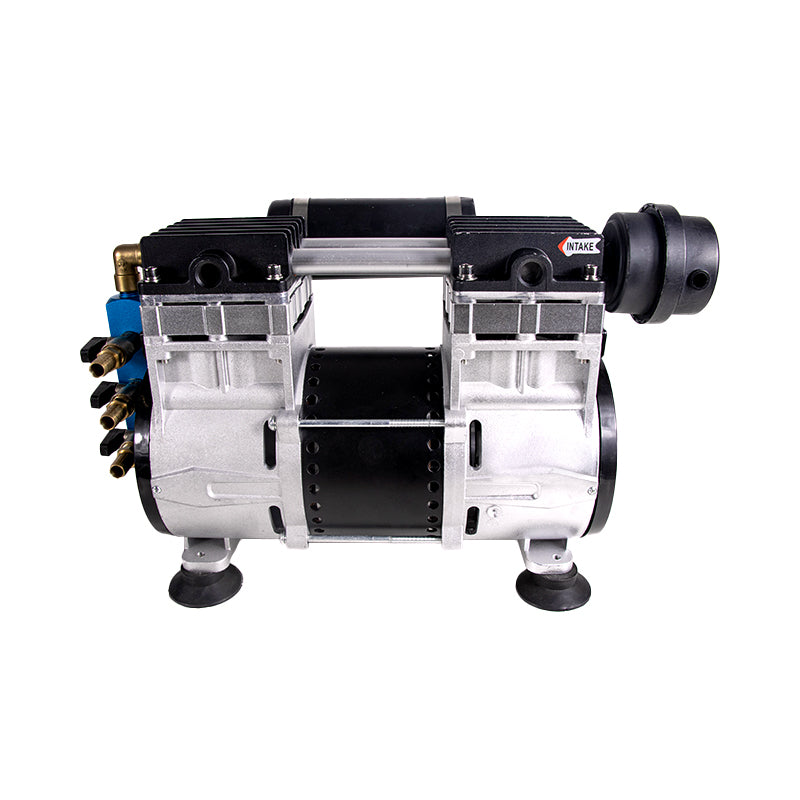

HC680A-1 Pond Aerator Pump | 600W AC, 3-Acre Coverage

A fish hatchery needing precise DO control to maximize juvenile survival rates cannot afford fluctuations in water quality. When dissolved oxygen drops, juvenile fish become stressed, vulnerable to disease, and mortality rates spike dramatically. Surface agitation alone is entirely insufficient for deep breeding tanks or large commercial holding ponds. You need an industrial-grade solution that forces vital oxygen down to the lowest depths, ensuring consistent water chemistry from the bottom up. The HC680A-1 is built specifically to handle these high-stakes aquatic demands, protecting your investment and ensuring healthy growth cycles.

Why Choose the HC680A-1

• Massive 3-Acre Capacity: Effectively circulates and oxygenates large water bodies up to 3 acres, preventing stagnation and dead zones.
• Deep Water Operation: Capable of pushing air down to a maximum diffuser depth of 65 feet, ideal for deep lakes and commercial aquaculture.
• Six-Diffuser Network: Includes 6 diffusers to spread micro-bubbles evenly across wide areas, maximizing oxygen transfer efficiency.
• Powerful 600W AC Motor: Available in 110V/60Hz (5.45 A) and 220V/50Hz (2.73 A) models to suit standard mains power connections globally.
• Built-in Thermal Protection: Engineered with a 145±5℃ thermal shut-off and Class F motor insulation for continuous, safe operation.

How Bottom Aeration Works

Bottom aeration relies on a powerful air compressor pushing high volumes of air through weighted tubing to submerged diffusers placed directly on the pond floor. As millions of tiny micro-bubbles are released, they rise rapidly to the surface, creating a lifting effect that disrupts the thermocline. This process mixes cold, oxygen-depleted bottom water with oxygen-rich surface water, equalizing temperatures throughout the entire water column. This constant vertical circulation allows beneficial aerobic bacteria to thrive and efficiently digest organic muck accumulating at the bottom. Simultaneously, the upward water movement carries toxic, naturally occurring gases like ammonia and hydrogen sulfide to the surface, where they safely vent into the atmosphere, creating a significantly healthier habitat for aquatic life.

Ideal Applications for the HC680A-1

The HC680A-1 is engineered for demanding aquatic environments requiring high-volume oxygenation and dependable performance. With its impressive 3-acre capacity and 65-foot depth rating, it is perfectly suited for commercial fish hatcheries, large koi breeding facilities, and expansive recreational lakes that suffer from seasonal stratification. The comprehensive six-diffuser setup provides excellent, customizable coverage for irregularly shaped ponds, long and narrow aquaculture raceways, or lakes with uneven bottom contours. Because it runs on reliable AC power (available in 110V or 220V configurations), it is ideal for properties with standard grid access where constant, around-the-clock aeration is necessary to maintain water quality. During winter months in colder climates, keeping this continuous circulation active maintains an essential open hole in the ice, allowing toxic gases to escape and ensuring your fish population survives safely until spring arrives.

Technical Specifications

Frequently Asked Questions

Can I run the HC680A-1 continuously through the winter?

Yes, the 600W motor features Class F insulation and built-in thermal protection, making it safe for 24/7 continuous operation. Running it through winter is highly recommended, as the rising bubbles from the 6 diffusers will keep a section of the ice open, allowing harmful gases to vent and fresh oxygen to enter. The 145±5℃ thermal protection ensures the unit will automatically shut off if it ever gets too hot, protecting your investment during long-term use.

How do I position the 6 diffusers in a 3-acre lake?

For optimal circulation, space the 6 diffusers evenly throughout the deepest sections of your 3-acre lake. Avoid placing them all in one spot; instead, map out the lake's contours and position them to ensure the rising micro-bubbles disrupt the thermocline across the entire water body. If your lake has a unique shape, such as an L-shape or multiple coves, placing a diffuser in each distinct zone will yield the best water quality improvements.

Will this pump work in a 65-foot deep commercial holding pond?

Absolutely. The HC680A-1 is specifically rated for a maximum diffuser depth of 65 feet. The pressure parallel flow configuration ensures the compressor can easily push air down to that depth, providing critical bottom-to-surface circulation for deep aquaculture setups. Its powerful 600W motor generates enough pressure to overcome the immense water weight at 65 feet, ensuring your deep-water fish receive the dissolved oxygen they need to survive and grow.
