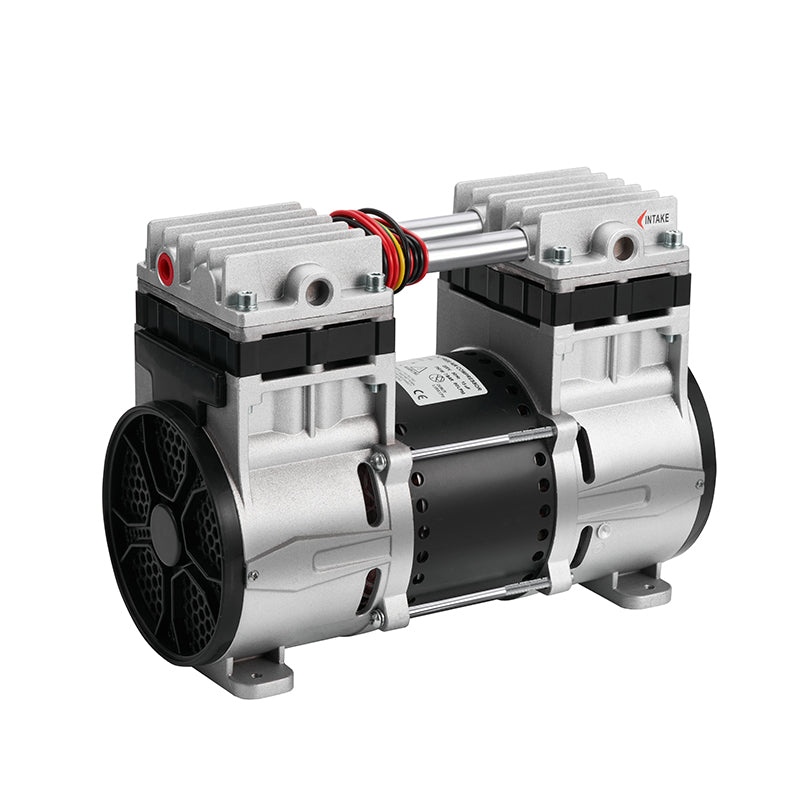

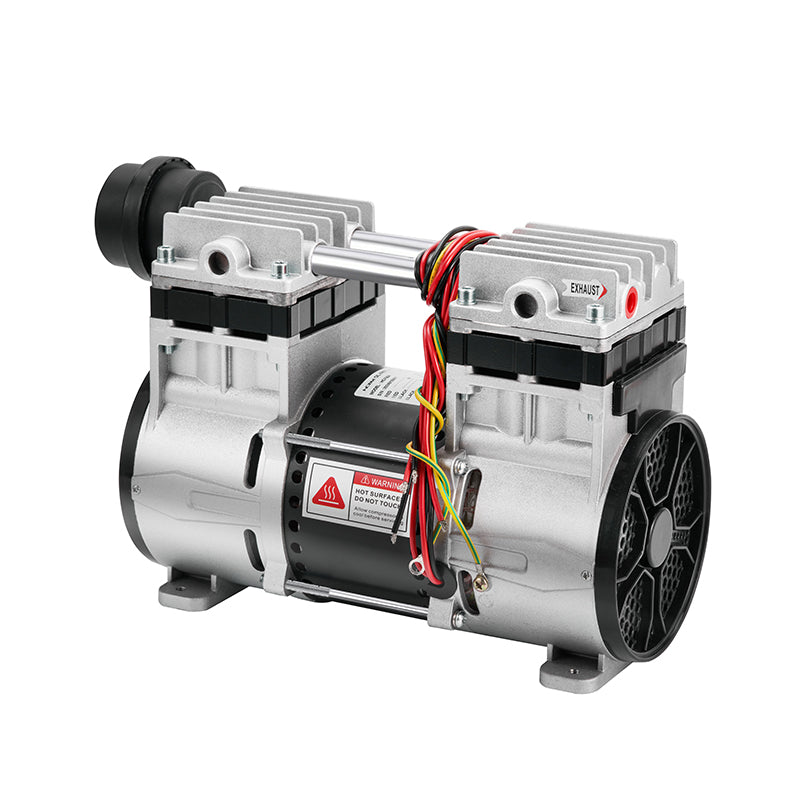

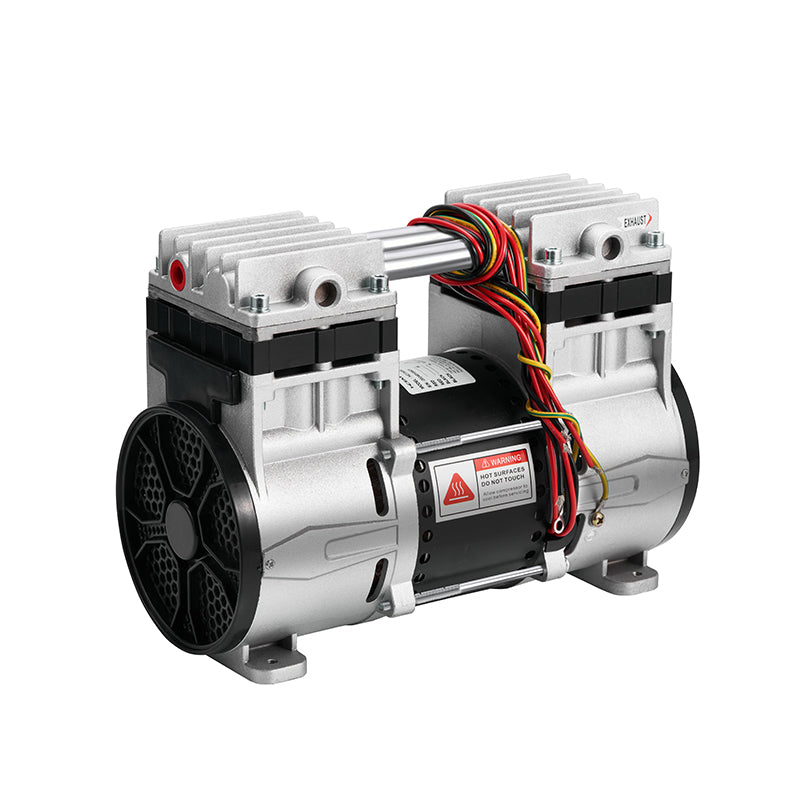

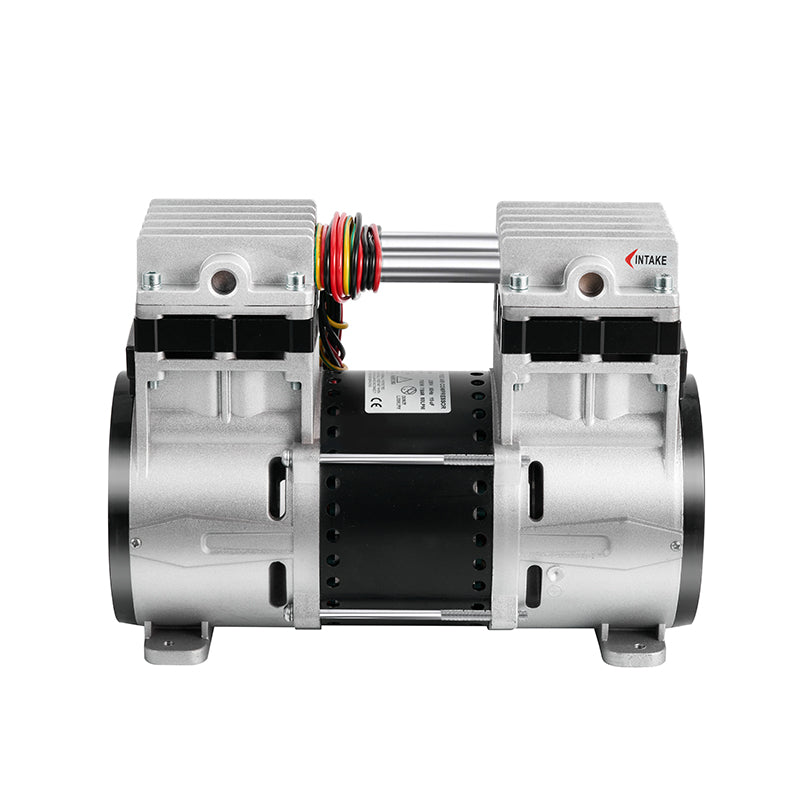

The HC680 medical oxygenation pump delivers 100L/min oil-free airflow for oxygen concentrators, respiratory equipment, and sterile air systems. As a medical oxygen pump manufacturer, HC Pump supports OEM customization, wholesale supply, and compliance-focused production.
Technical Specifications
| Parameter | 220V/50Hz | 110V/60Hz |
|---|---|---|
| Model Number | HC680A-130/2 | HC680B-130/2 |
| Head Configuration | Pressure parallel flow | Pressure parallel flow |
| Nominal Voltage | 220V/50Hz/1 | 110V/60Hz/1 |
| Noise | ≤63dB(A) | ≤63dB(A) |
| Power Consumption | ≤600W | ≤600W |
| Air Flow Rate | ≥130L/min@200kPa | ≥130L/min@200kPa |
| Nominal Speed | 1400 rpm | 1700 rpm |

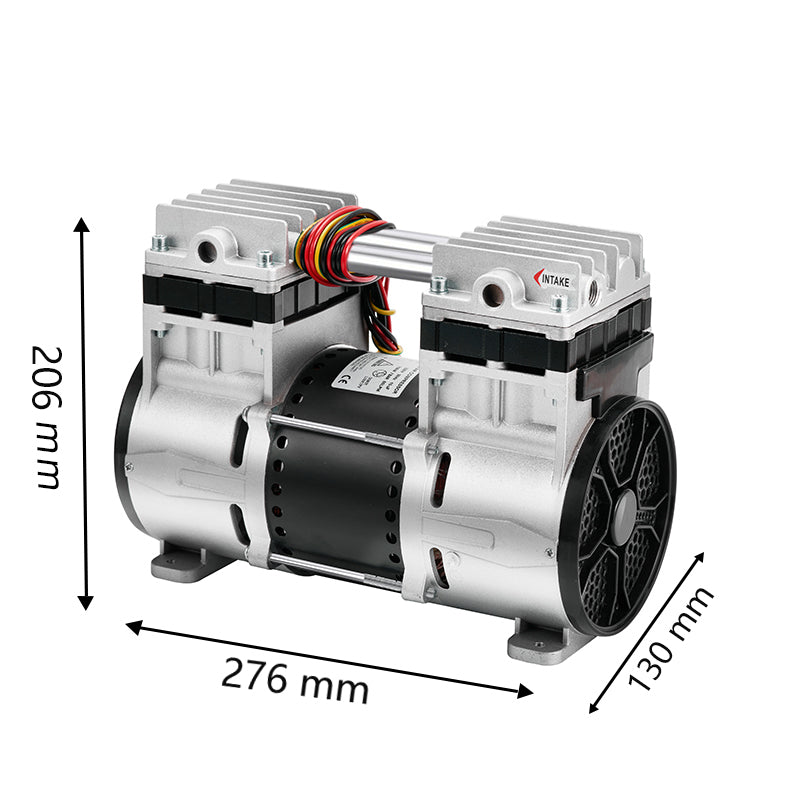

| Dimensions (L×W×H) | 275×130×206mm | 275×130×206mm |
| Installation Size | 223×89mm | 223×89mm |
| Net Weight | 9.6 kg | 9.6 kg |
| Ambient Temperature | -5 to 40°C | -5 to 40°C |
| Thermal Switch | 145±5°C | 145±5°C |
| Motor Insulation Class | F | F |
| Capacitor Value | 15μF | 60μF |
Download the complete technical datasheet for specifications and performance curves.
