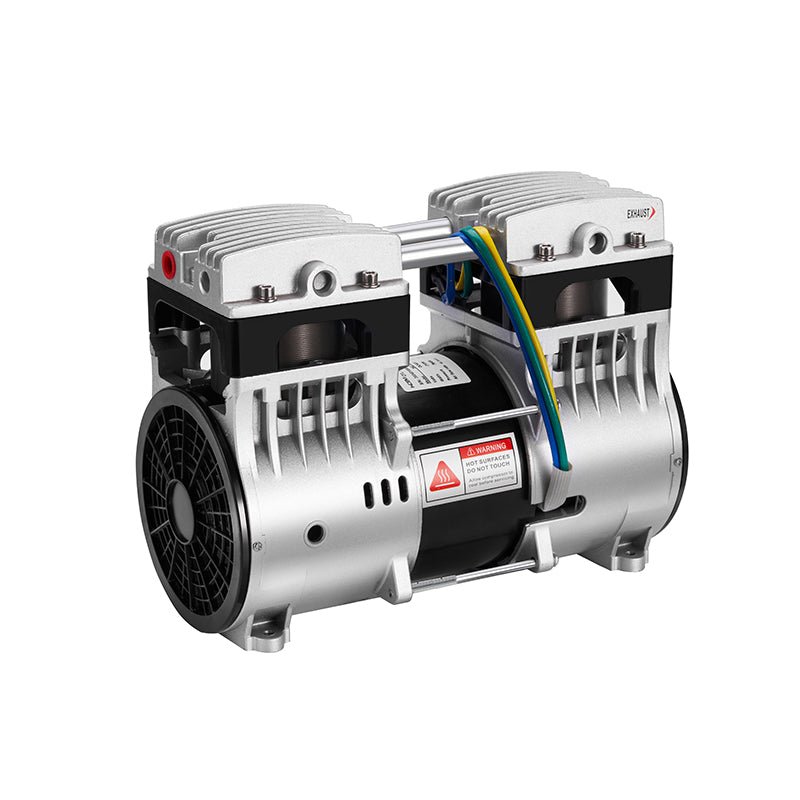

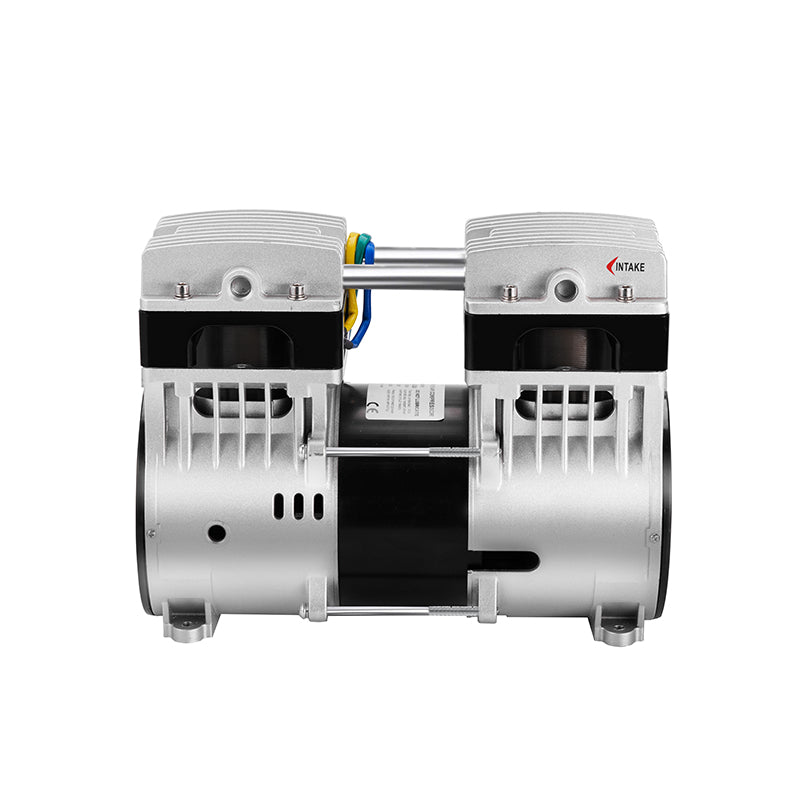

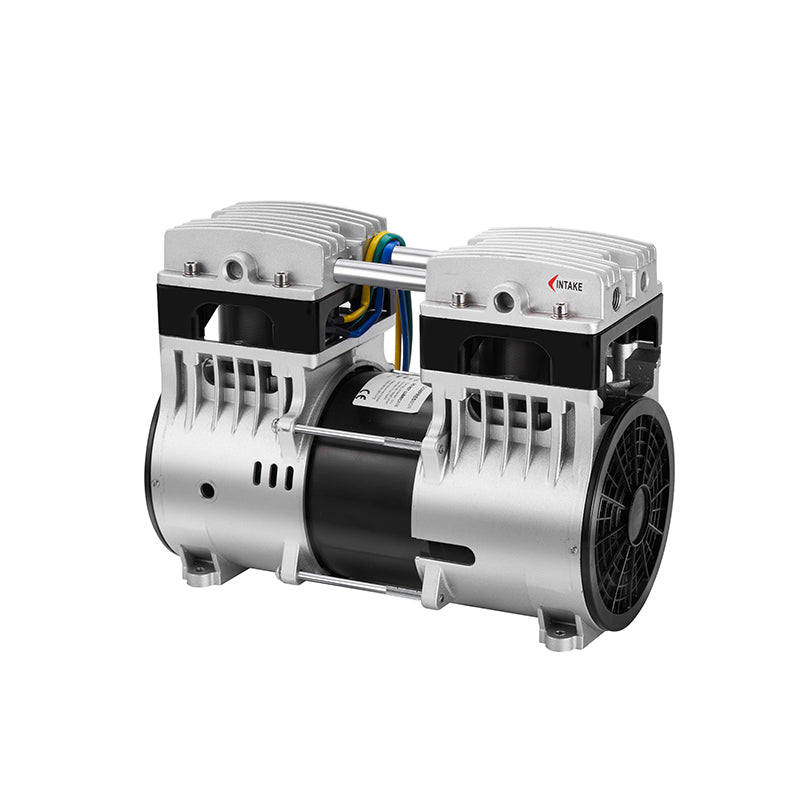

HC580DC Medical Oxygenation Pump | 650W, 140L/min, CE MDR

Why Choose the HC580DC Medical Oxygenation Pump

Consider a respiratory therapy device OEM needing pumps with 20,000h MTBF for critical care applications. When patient outcomes depend on continuous, uninterrupted airflow, engineers require components that guarantee absolute reliability without introducing oil or particulate contamination. The HC580DC medical oxygenation pump fulfills this critical requirement by combining a continuous 24-hour duty cycle with medical-grade air purity, ensuring life-supporting equipment operates predictably across its entire service life.

• High-Volume Output: Delivers a consistent air flow rate of ≥140L/min at a rated pressure of 200Kpa.
• Optimized Power Consumption: Operates at ≤650W at rated pressure, maximizing energy efficiency for continuous-use medical systems.
• Acoustic Control: Maintains a low noise profile of ≤66dB(A), essential for patient comfort in clinical and home care environments.
• Extended Lifespan: Engineered for a 20,000h MTBF and capable of a continuous 24h duty cycle for round-the-clock operation.
• Strict Compliance: Fully certified to CE MDR 2017/745 and ISO 13485 standards for immediate integration into regulated medical devices.

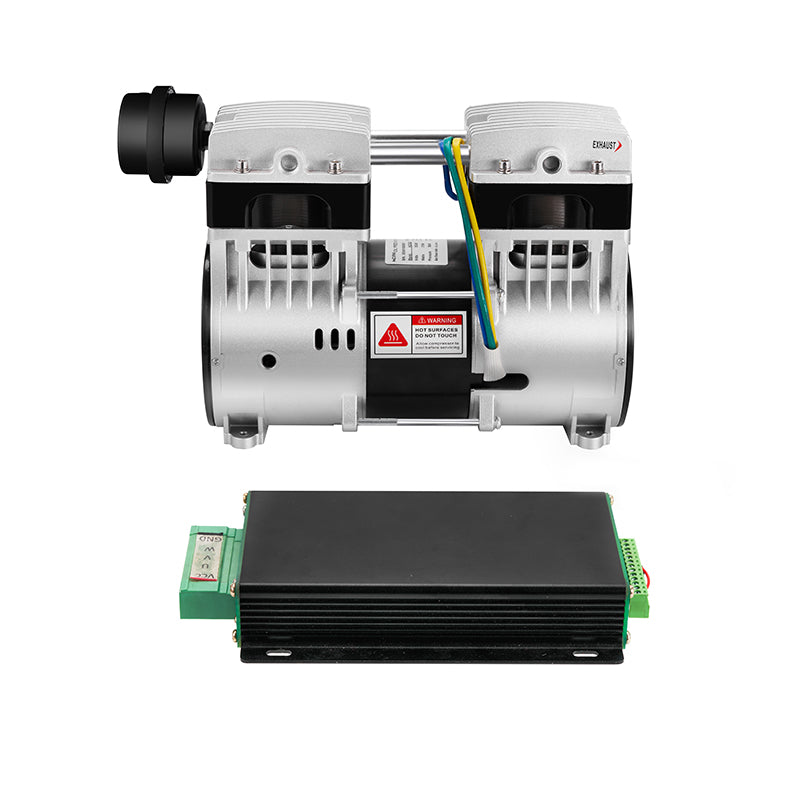

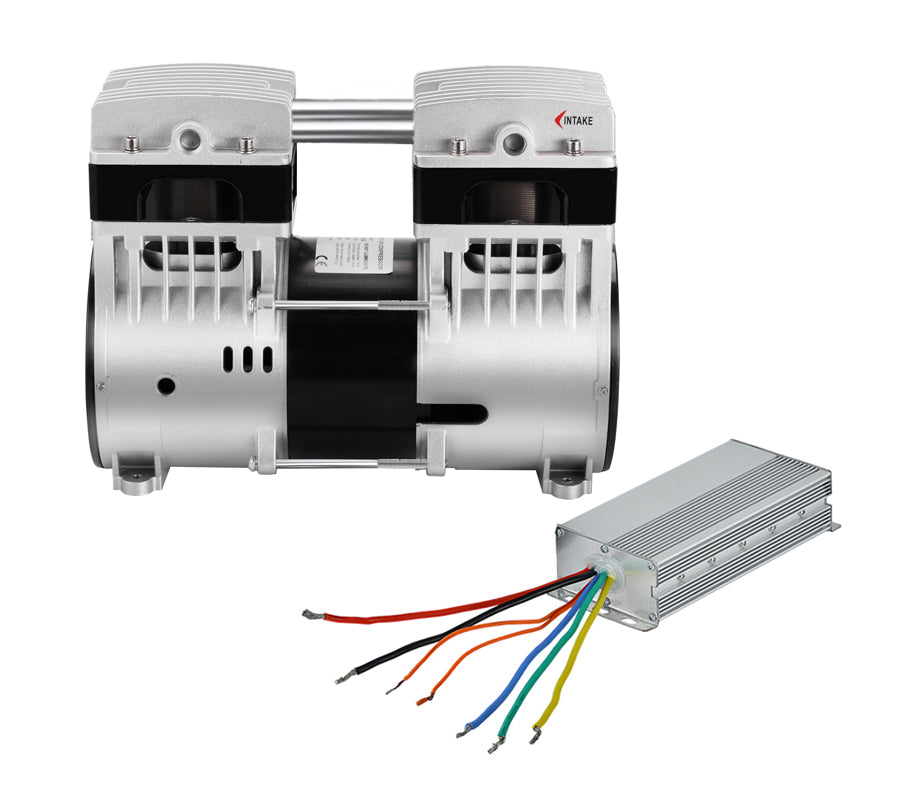

• Versatile DC Power Integration: Available in 12V, 24V, and 48V configurations to match various OEM electrical architectures.

Key Technical Specifications

Applications & Industries

The HC580DC medical oxygenation pump is engineered primarily for manufacturers of high-capacity oxygen concentrators and hospital respiratory equipment. In oxygen generation systems, the pump forces ambient air through zeolite sieve beds at 200Kpa to separate nitrogen from oxygen. The high flow rate of ≥140L/min allows OEMs to design multi-patient oxygen delivery systems or high-output industrial medical-grade air supply units. Because the compressor is completely oil-free, it prevents hydrocarbon contamination, ensuring the final oxygen output meets strict medical purity standards.

Beyond oxygen generation, this DC oil-free air compressor serves as a highly effective central vacuum or pressure source for dental clinics. The specifications explicitly support powering 5 to 6 dental chairs simultaneously. The ≤66dB(A) noise level ensures that it can be installed within clinical environments without causing auditory fatigue for dental practitioners or anxiety for patients. The compact 276x133x202 mm dimensions and 223x89 mm installation footprint allow it to be integrated into standard utility rooms or directly inside large-scale medical device housings.

Additionally, the availability of 12V, 24V, and 48V DC models makes the HC580DC highly adaptable for portable or battery-backed hospital respiratory equipment. During power outages or patient transport, medical-grade air supply systems must rely on DC battery power. The efficient ≤650W power draw at 1700rpm operating speed helps preserve battery life while maintaining the critical 200Kpa pressure required for ventilators and continuous positive airway pressure systems.

Certifications & Compliance

For B2B procurement engineers and compliance officers, the regulatory standing of a medical component is just as critical as its physical specifications. The HC580DC is manufactured in an ISO 13485-certified facility, which guarantees that HCEM Pump adheres to a comprehensive quality management system specific to the design and manufacture of medical devices. This certification simplifies supplier audits for OEMs and ensures complete traceability, risk management, and consistent manufacturing quality across all production batches.

Furthermore, the pump complies with the CE Medical Device Regulation (MDR) 2017/745. This certification is mandatory for any medical equipment sold within the European Economic Area (EEA). By sourcing a pump that already meets CE MDR 2017/745 standards, respiratory equipment manufacturers can significantly reduce the time, cost, and complexity of certifying their final assembled products for the European market. It provides documented proof of the pump's safety, clinical efficacy, and adherence to stringent European health and safety directives.

Frequently Asked Questions

What are the installation and spatial requirements for the HC580DC pump?

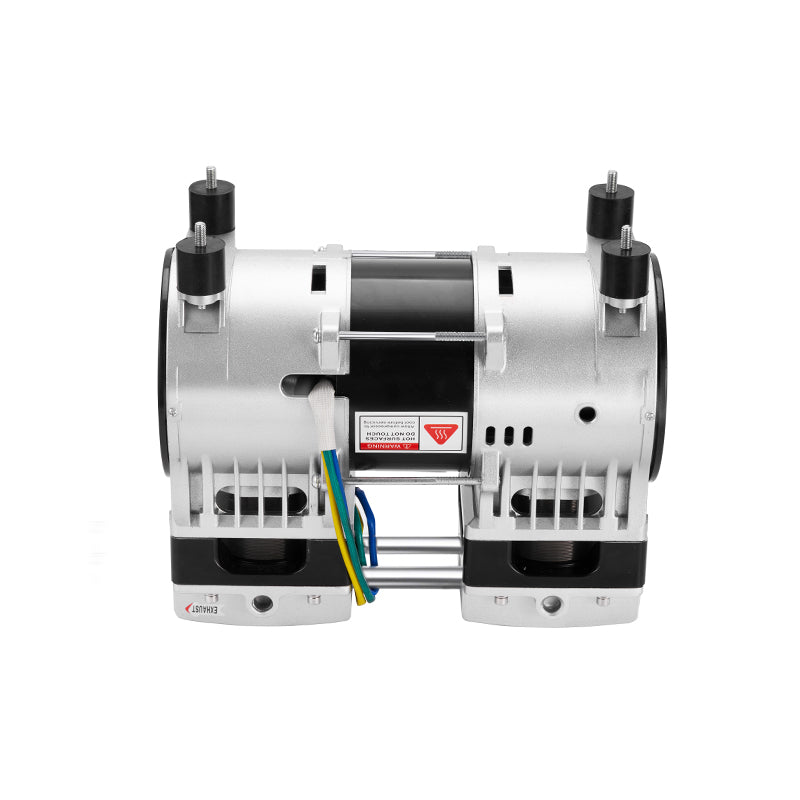

The HC580DC features a compact physical dimension of 276 mm in length, 133 mm in width, and 202 mm in height. For mounting, the installation size requires a footprint of 223 mm by 89 mm. Weighing 7.3 kg, the unit is stable enough for fixed installations in hospital utility rooms while remaining light enough for integration into mobile medical carts. The pressure parallel flow head configuration simplifies pneumatic plumbing during the assembly process.

Is the HC580DC suitable for centralized dental air systems?

Yes, the HC580DC is specifically rated to support 5 to 6 dental chairs simultaneously. Its output of ≥140L/min at 200Kpa ensures that multiple pneumatic dental tools can operate concurrently without experiencing a drop in air pressure. Furthermore, its oil-free design ensures that the air supplied to the dental handpieces remains clean, protecting both patient health and the internal mechanisms of the dental equipment.

How do the different model numbers correspond to electrical requirements?

The HC580DC series is available in three distinct voltage configurations to match your system's power architecture. The HC580C1-140/2 operates on a 12V DC supply, the HC580D1-140/2 is designed for 24V DC systems, and the HC580E1-140/2 requires a 48V DC input. Regardless of the voltage selected, all three models maintain the same performance metrics: ≤650W power consumption, 1700rpm speed, and ≥140L/min flow rate at 200Kpa.
