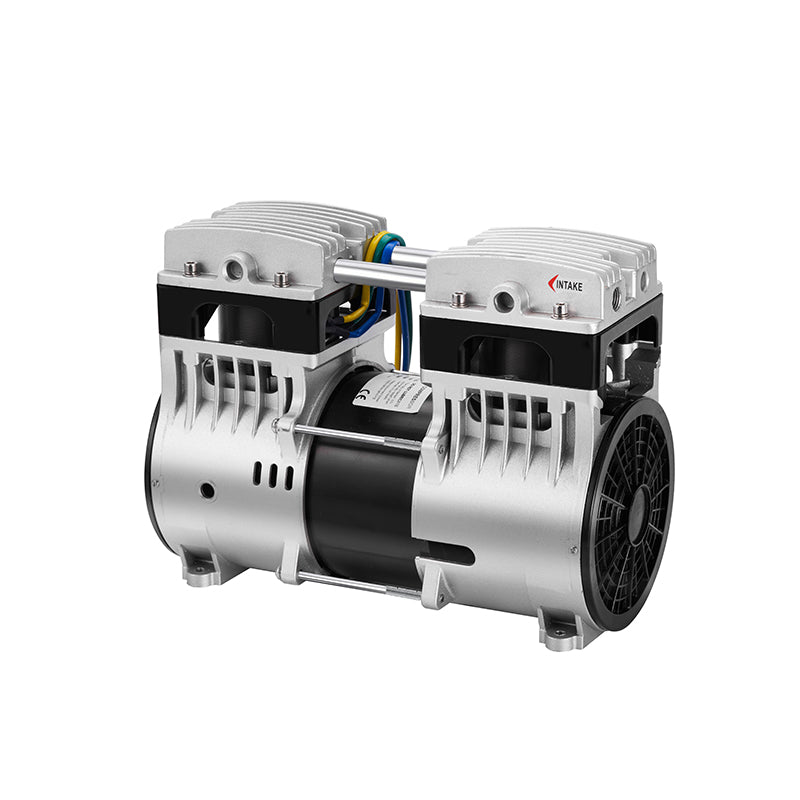

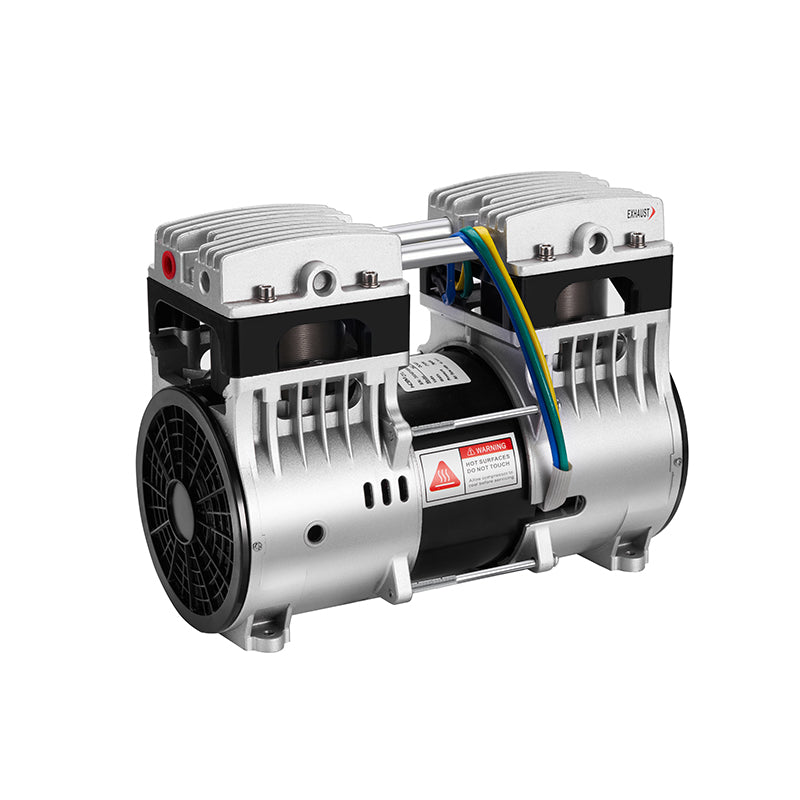

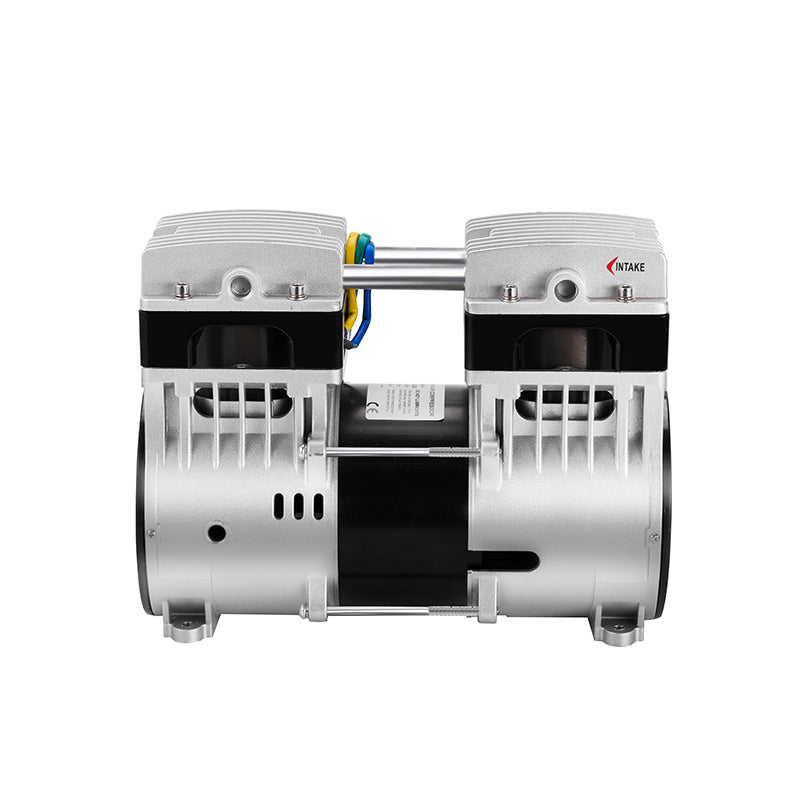

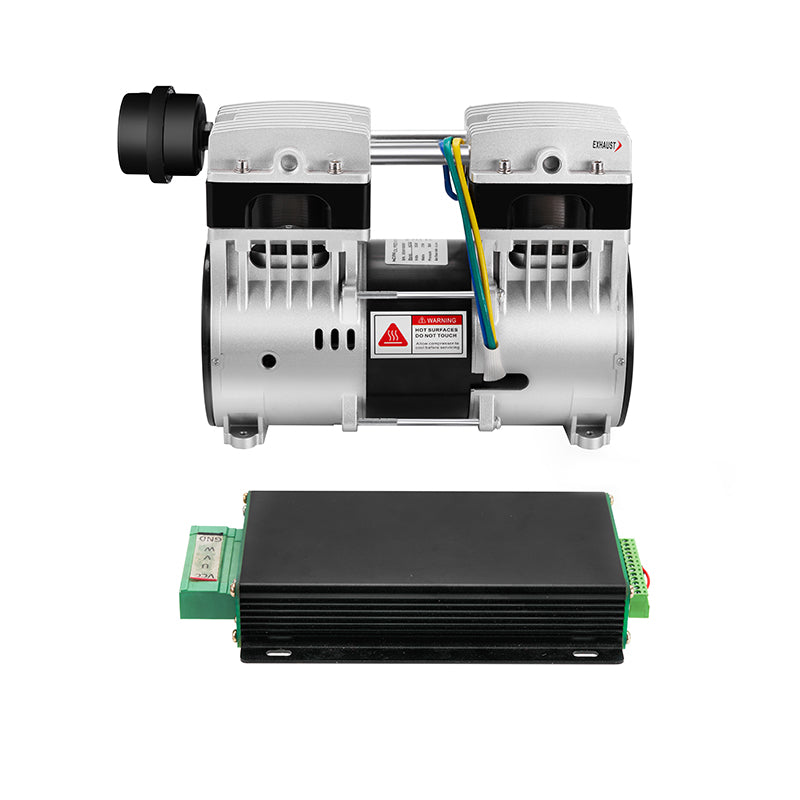

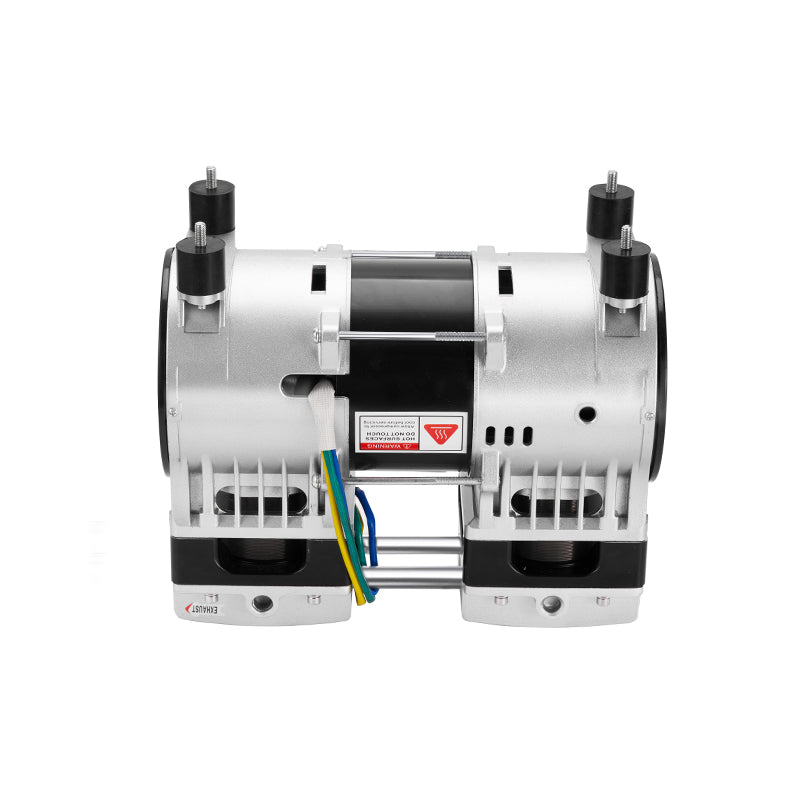

HC580D Oilless DC Air Pump is a compact DC air pump for automotive, vehicles, solar systems, and off-grid equipment. As a trusted 12V air pump manufacturer, HC Pump supports OEM and wholesale buyers with CE and RoHS compliance.
| Technical Specifications | |||
|---|---|---|---|
| Specification | HC580C-60/7 | HC580D-60/7 | HC580E-60/7 |
| Voltage | DC12V | DC24V | DC48V |
| Current at rated pressure | 57.5 A | 28.7 A | 14.3 A |
| Power at rated pressure | ≤690W | ≤690W | ≤690W |
| Air flow rate at rated pressure | 60 L/min @ 700Kpa | 60 L/min @ 700Kpa | 60 L/min @ 700Kpa |

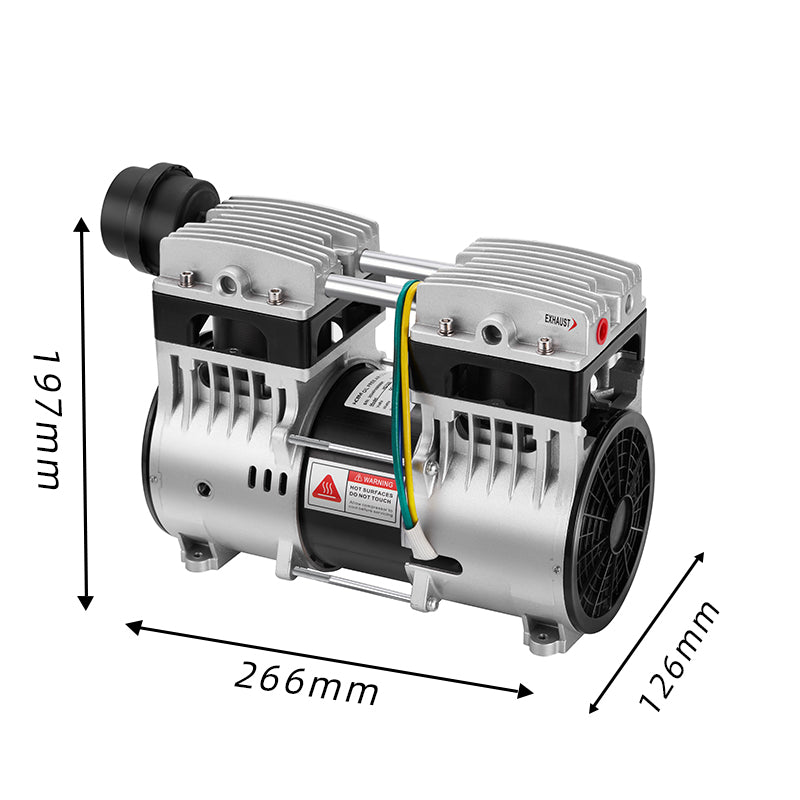

| Dimension | 276*133*202 mm | 276*133*202 mm | 276*133*202 mm |
| Installation size | 89*223 mm(4xM6) | 89*223 mm(4xM6) | 89*223 mm(4xM6) |
| Rated speed | 1700rpm | 1700rpm | 1700rpm |
| Net weight | 7.3 kg | 7.3 kg | 7.3 kg |
| Noise | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) |
Download the complete technical datasheet for specifications and performance curves.
