HC580D-CAB Pond Aerator Pump | 600W DC, 3-Acre Coverage

Every spring, the familiar problem of a 1-acre backyard koi pond turning green from algae overgrowth can turn a beautiful landscape feature into a source of constant stress. When the weather warms up, stagnant water layers trap harmful gases and deplete the dissolved oxygen your fish need to survive. The resulting muck accumulation and foul odors mean more maintenance, lower water quality, and higher risks for your valuable aquatic life. To break this cycle, you need a heavy-duty system that attacks the root of the problem by circulating and oxygenating the entire water column from the bottom up. The HC580D-CAB is engineered to handle exactly this kind of demanding environment, ensuring your water remains healthy and balanced.

Why Choose the HC580D-CAB

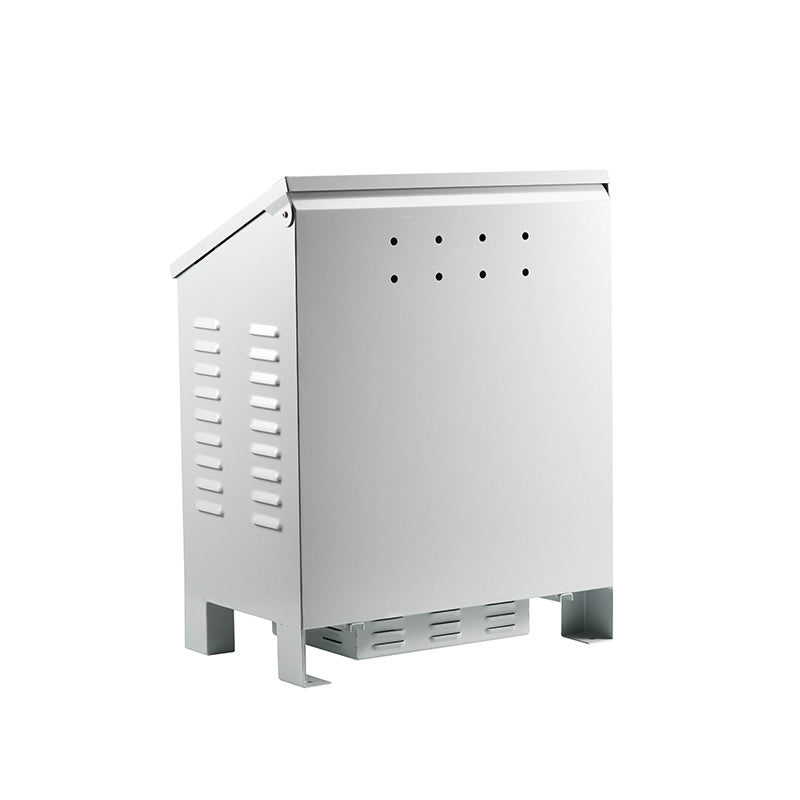

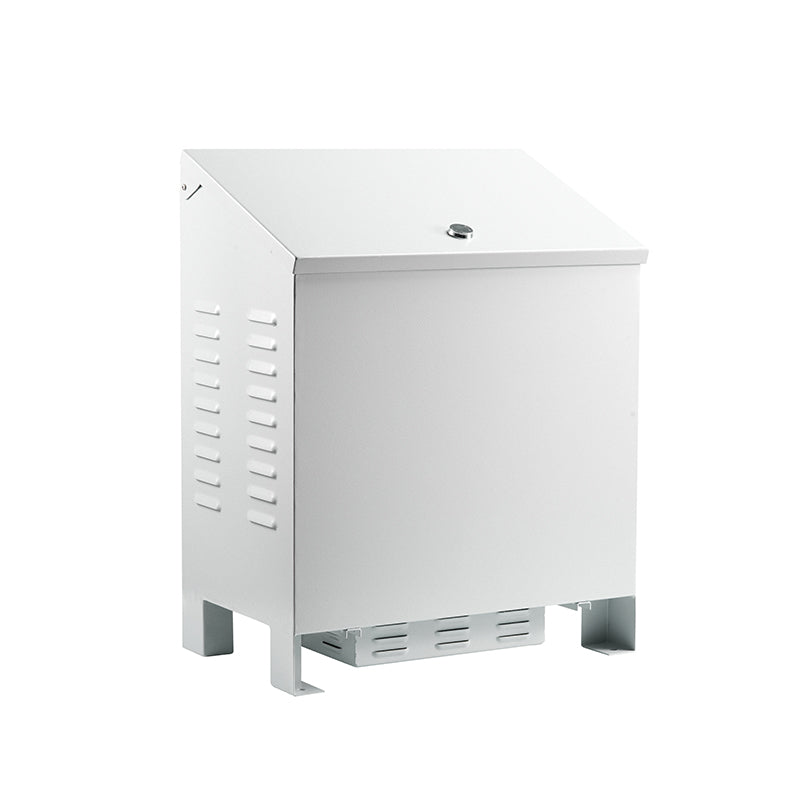

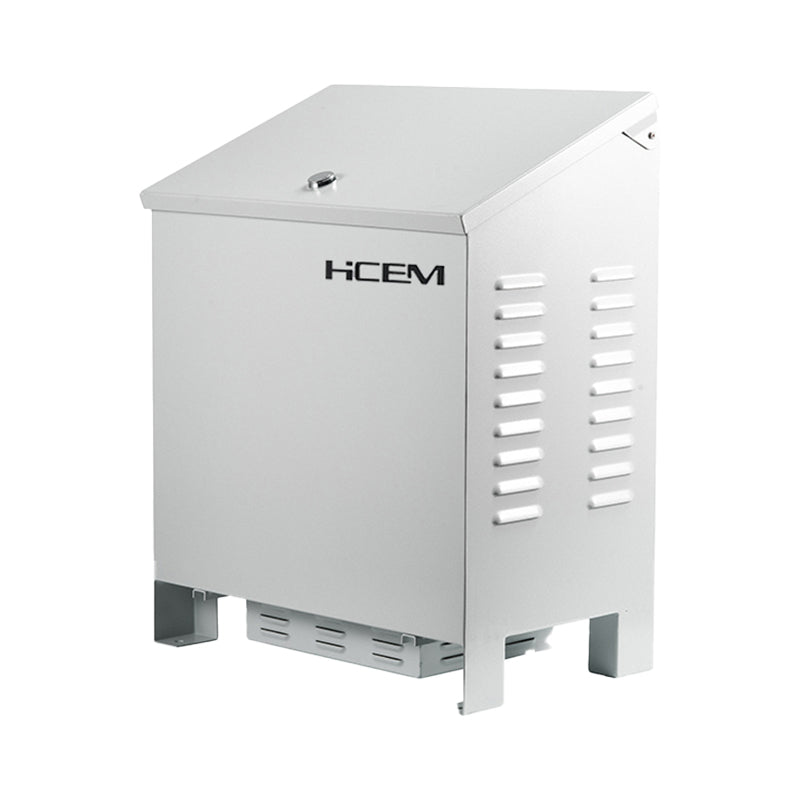

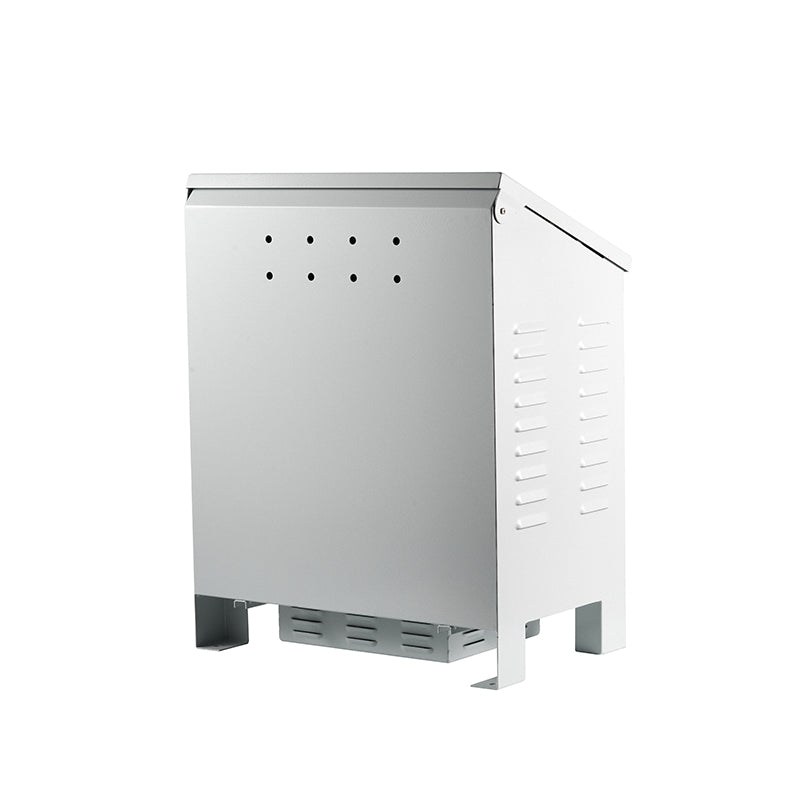

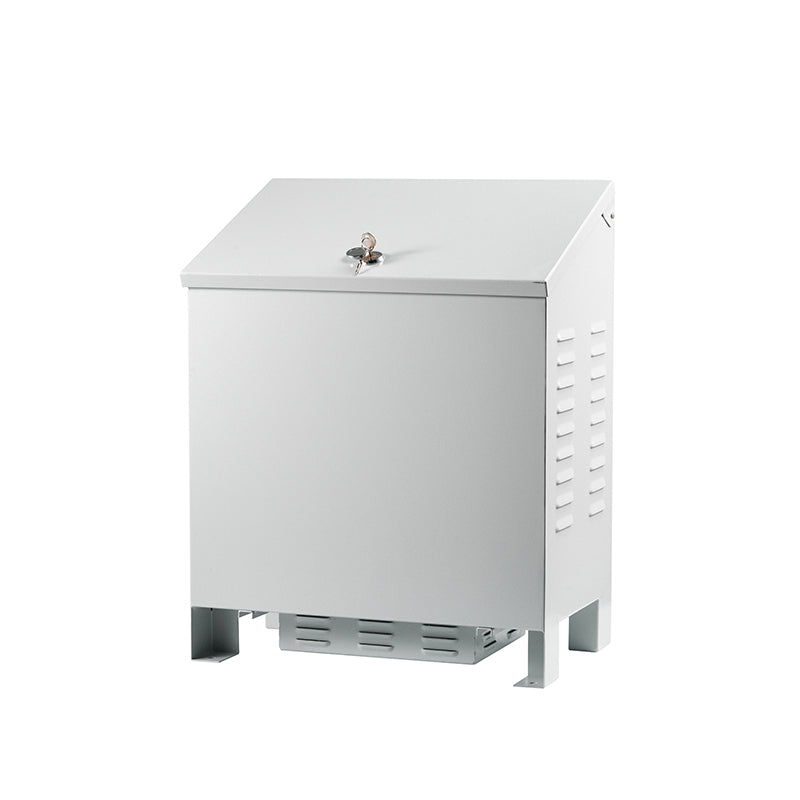

• Complete Cabinet System: Arrives pre-mounted in a weatherproof protective cabinet for safe, immediate outdoor installation.
• High-Capacity Coverage: Effectively aerates large water bodies up to 3 acres in size.
• Deep Water Reach: Capable of pushing air to a maximum diffuser depth of 65 feet.
• Six-Diffuser Output: Includes 6 diffusers to ensure widespread, even oxygen distribution across the pond floor.
• Off-Grid Ready Power: Runs on an energy-efficient DC24V motor pulling up to 600W, perfect for direct solar panel connection.
• High-Volume Airflow: Operates at 1700 rpm to deliver consistent pressure and parallel flow for demanding applications.

How Bottom Aeration Works

The HC580D-CAB disrupts the natural thermocline by sending compressed air down through weighted tubing to the diffusers resting on the pond floor. As the EPDM rubber membranes release millions of micro-bubbles, this powerful upward column of air pulls cold, dense bottom water toward the surface. This constant, high-volume mixing prevents stagnation, allowing harmful trapped gases like ammonia and hydrogen sulfide to vent harmlessly into the atmosphere. Simultaneously, the massive influx of dissolved oxygen stimulates beneficial aerobic bacteria, which actively digest organic muck and bottom sludge. The result is a naturally balanced ecosystem that naturally resists nutrient loading, prevents foul odors, and supports thriving fish populations year-round without the need for harsh chemicals.

Ideal Applications for the HC580D-CAB

This specific cabinet model is engineered for large-scale residential and commercial water bodies, easily managing up to 3 acres of surface area. Because it utilizes a DC24V power supply, it is the perfect match for remote ponds, golf course water hazards, or off-grid agricultural lakes where running standard AC electrical lines is simply too expensive or logistically impossible. Aquaculture farms raising high-density fish populations will benefit immensely from the 6-diffuser setup, ensuring no low-oxygen dead zones exist across expansive layouts. Furthermore, the heavy-duty weatherproof cabinet allows for permanent outdoor placement in various climates. This makes it an excellent choice for maintaining an open hole in the ice during freezing winter months, allowing toxic gases to escape and protecting overwintering koi, trout, and other sport fish.

Technical Specifications

Frequently Asked Questions

Can I connect this 600W DC model directly to an off-grid solar panel system?

Yes, the HC580D-CAB operates entirely on a DC24V system, making it highly compatible with off-grid solar setups. Because the compressor pulls up to 600W of power at its rated pressure, you will need to size your solar array, charge controller, and battery bank accordingly to ensure consistent operation. A properly sized battery bank is especially important if you plan to run the aeration system overnight or during extended cloudy periods to maintain steady oxygen levels.

Is the protective cabinet fully weatherproof for year-round outdoor use?

Absolutely. The pre-mounted metal enclosure is specifically designed to protect the internal compressor from rain, snow, dirt, and direct sun exposure. You can install it directly next to your 3-acre lake or remote pond without needing to build an additional shed or shelter. However, placing the cabinet in a shaded area can help optimize the operating ambient temperature (which ranges from -5 to 40 degrees Celsius), ensuring the motor runs efficiently during peak summer heat.

How do I position the 6 diffusers for maximum efficiency in a 3-acre lake?

For optimal coverage in a 3-acre lake, you should space the 6 diffusers evenly across the deepest sections of the water body to ensure maximum upward lift and water circulation. The compressor is powerful enough to push air down to a maximum depth of 65 feet. Avoid grouping the diffusers too closely together; spreading them out guarantees that the entire water column is mixed effectively, preventing isolated dead zones where organic muck and sludge can accumulate over time.
