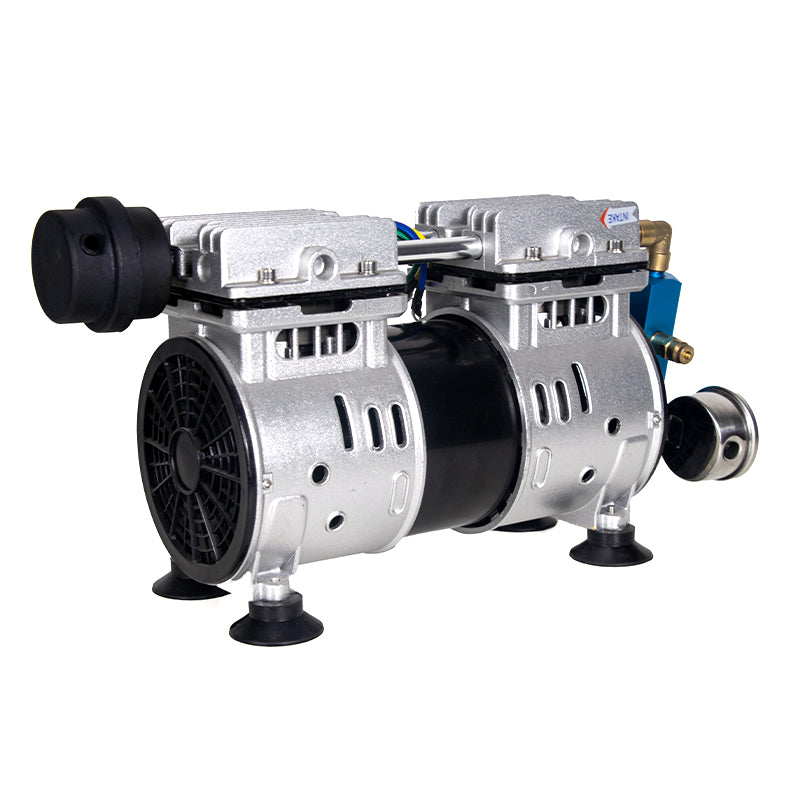

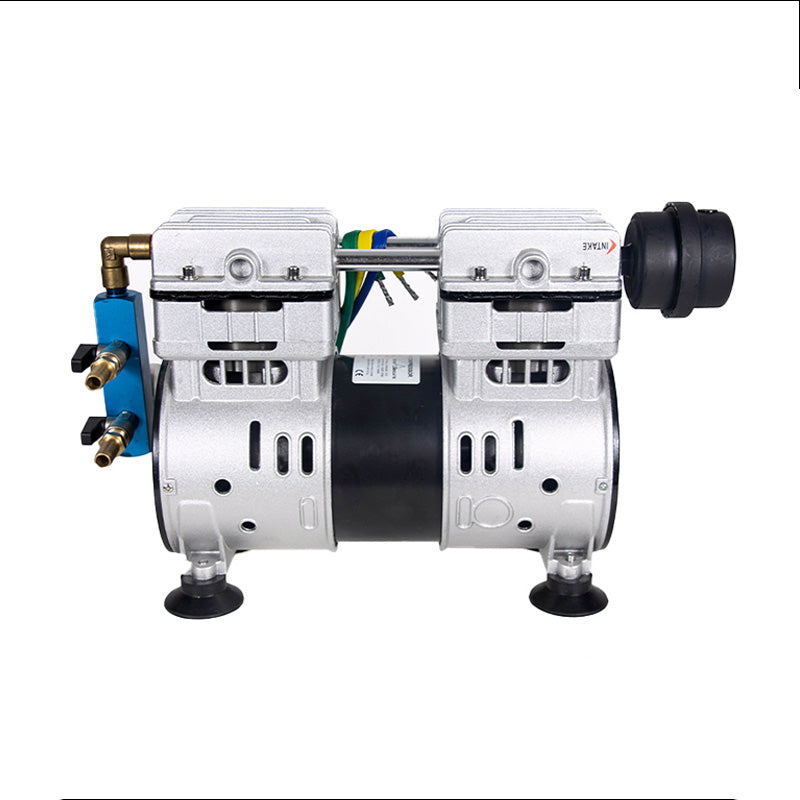

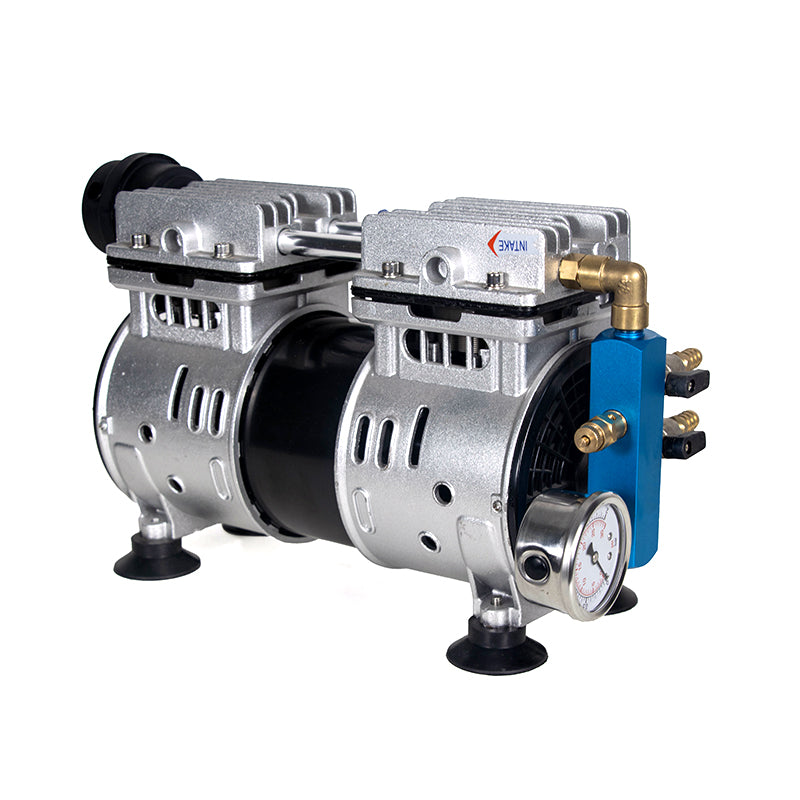

HC580D-1 Pond Aerator Pump | 600W 24V DC, 3-Acre Coverage

Thick black muck accumulating on a pond bottom over years creates more than just an unsightly mess; it generates dangerous hydrogen sulfide odors that smell like rotten eggs and signals a dying aquatic ecosystem. As leaves, fish waste, and organic debris sink and decompose without oxygen, this toxic sludge builds up, suffocating beneficial bacteria and threatening your fish with sudden oxygen crashes. For remote ponds, agricultural reservoirs, and off-grid fish farms, tackling this decay is especially difficult without access to standard electrical utility lines. Allowing the water to remain stagnant guarantees an increase in mosquito breeding, foul smells, and poor water quality. The HC580D-1 offers a reliable, solar-compatible aeration solution to reverse this stagnation. By forcing air down to the pond floor, it breaks down bottom muck, digests organic waste, and restores a healthy oxygen balance to your water, all without needing an AC power source.

Why Choose the HC580D-1

• Off-Grid Solar Compatibility: Operates on a 24V DC system, drawing 25A and up to 600W, making it perfect for pairing with 12V/24V solar panels in remote locations.
• Massive 3-Acre Coverage: Engineered to circulate and oxygenate large ponds and lakes up to 3 acres in size.
• Deep Water Reach: Capable of pushing air to a maximum diffuser depth of 65 feet, ensuring oxygen reaches the deepest thermoclines.
• Complete Oxygenation: Powers 6 EPDM rubber diffusers simultaneously, spreading micro-bubbles evenly across the pond floor.
• Durable Thermal Protection: Built-in thermal overload protection (145±5℃) and Class F motor insulation ensure safe, continuous operation in ambient temperatures from -5 to 40℃.

How Bottom Aeration Works

This system utilizes a high-efficiency compressor to push compressed air through flexible, weighted tubing down to EPDM rubber membrane diffusers resting on the pond floor. As air is forced through the membrane discs, millions of micro-bubbles are created. As these tiny bubbles rise to the surface, they create a powerful upward current that completely disrupts the pond's thermocline, mixing cold, oxygen-depleted bottom water with warmer, oxygen-rich surface water. This continuous, full-column circulation actively vents harmful gases like ammonia, carbon dioxide, and hydrogen sulfide out of the water column and into the atmosphere. Furthermore, the massive influx of dissolved oxygen supercharges aerobic bacteria populations. These beneficial bacteria require high oxygen levels to thrive and rapidly digest organic muck, fish waste, and suspended nutrients, naturally starving out toxic algae and preventing future sludge accumulation.

Ideal Applications for the HC580D-1

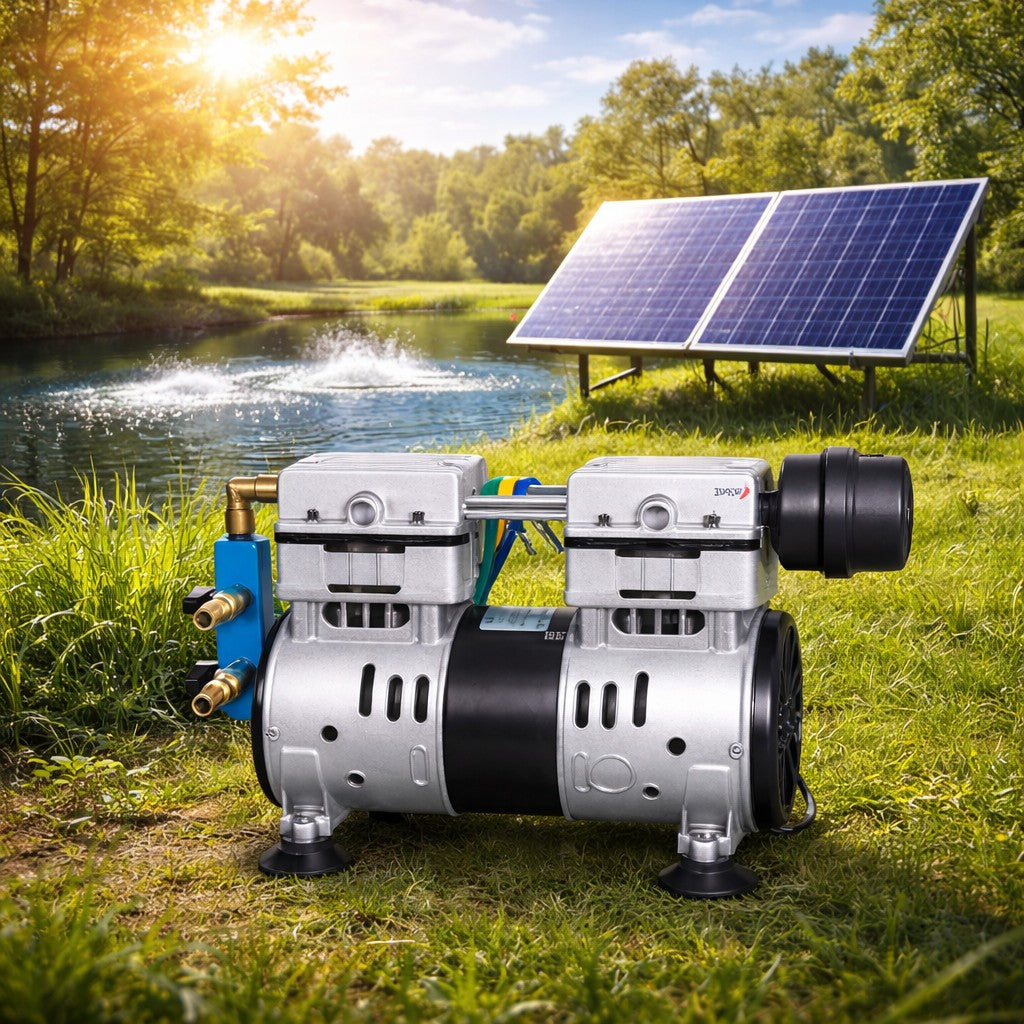

Because the HC580D-1 runs entirely on a 24V DC power supply, it stands out as the ultimate aeration system for remote, off-grid applications where trenching a 110V/220V utility line is too expensive, highly impractical, or physically impossible. It is highly recommended for 3-acre aquaculture operations, remote catfish farms, and large agricultural irrigation reservoirs that also serve as vital fish habitats. The included 6-diffuser setup provides excellent, customizable coverage for irregularly shaped lakes, long narrow water bodies, or ponds with multiple deep zones and coves. Additionally, this solar-compatible unit serves as a critical winter aeration tool in colder climates. The continuous rising bubbles keep a hole open in the surface ice, which allows toxic gases to escape and ensures your fish survive harsh freezing temperatures safely without relying on a vulnerable grid power connection.

Technical Specifications

Frequently Asked Questions

Q: Can I connect this 24V DC compressor directly to a standard wall outlet?

A: No, the HC580D-1 is specifically designed for 24V DC power sources, such as solar panel arrays or deep-cycle battery banks. If you need to plug an aerator into a standard 110V or 220V AC wall outlet, you will need to look at our AC-powered compressor models or use an appropriately sized AC-to-DC power converter that can handle the 25A continuous draw.

Q: How do I arrange the 6 diffusers in a 3-acre pond?

A: For optimal oxygenation, the 6 diffusers should be spaced evenly throughout the deepest sections of your 3-acre pond. If your lake has an irregular shape, place diffusers in isolated coves, bays, or separated deep zones to ensure complete circulation and prevent dead zones where muck can accumulate.

Q: Will this 600W pump push air down to the 65-foot maximum depth without losing efficiency?

A: Yes, the HC580D1-130/2 model features a pressure parallel flow head configuration that generates enough PSI to overcome the hydrostatic pressure of deep water. It will effectively push high volumes of air through the weighted tubing and out of the diffusers even at extreme depths of 65 feet.
