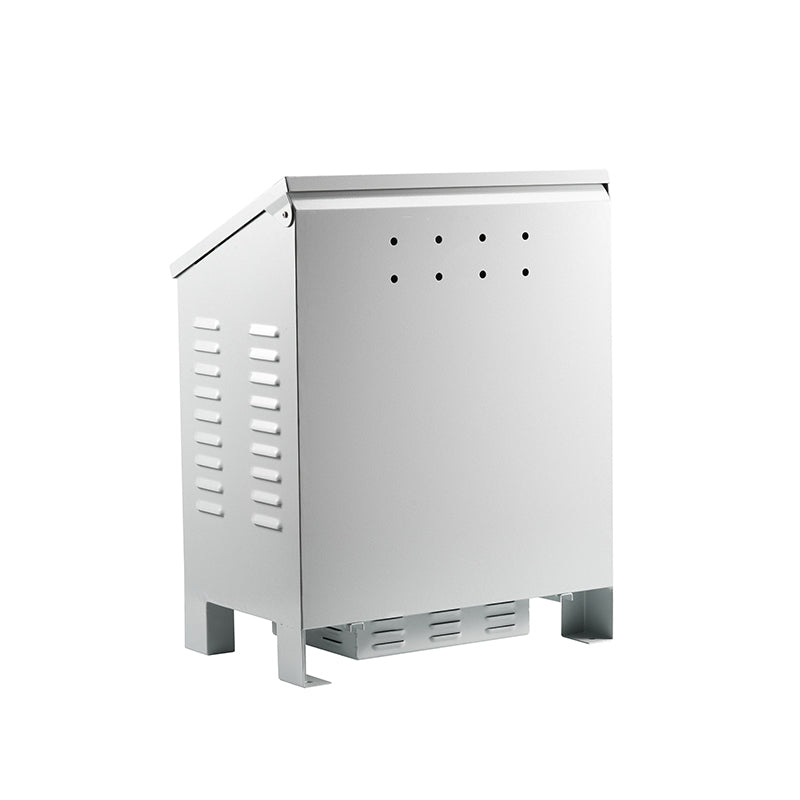

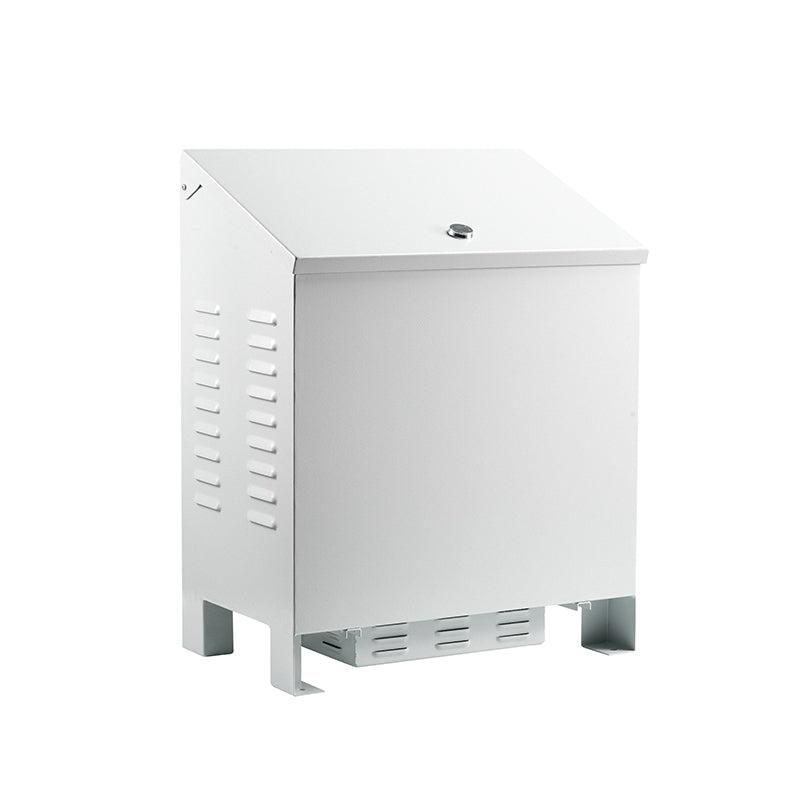

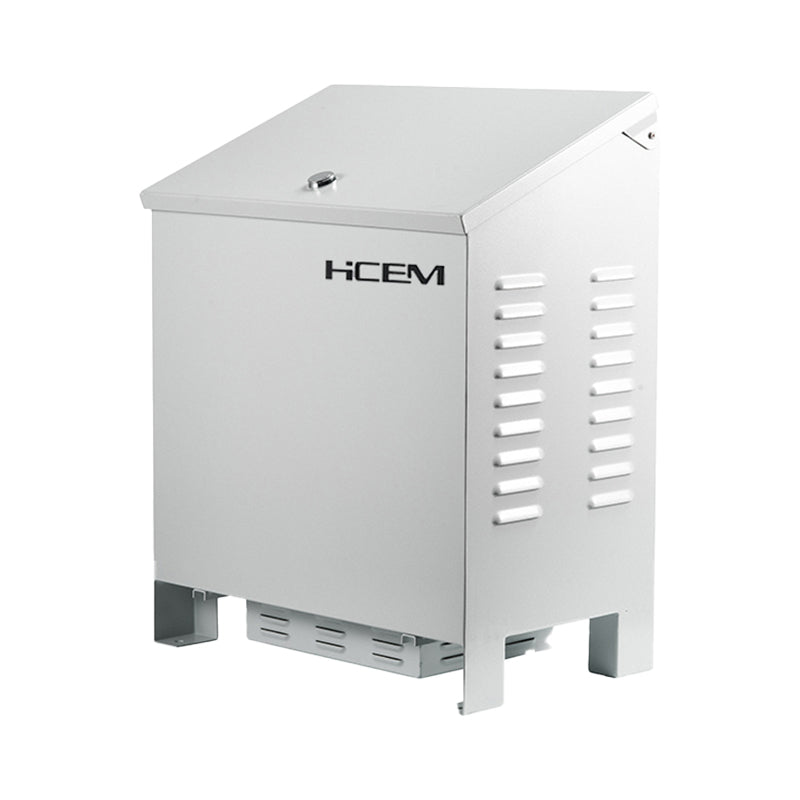

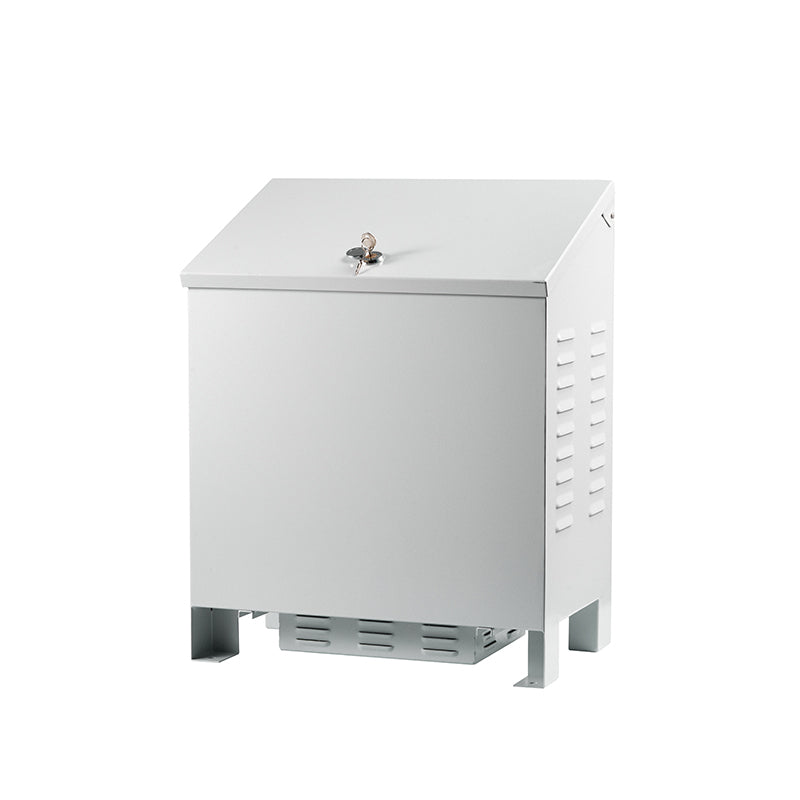

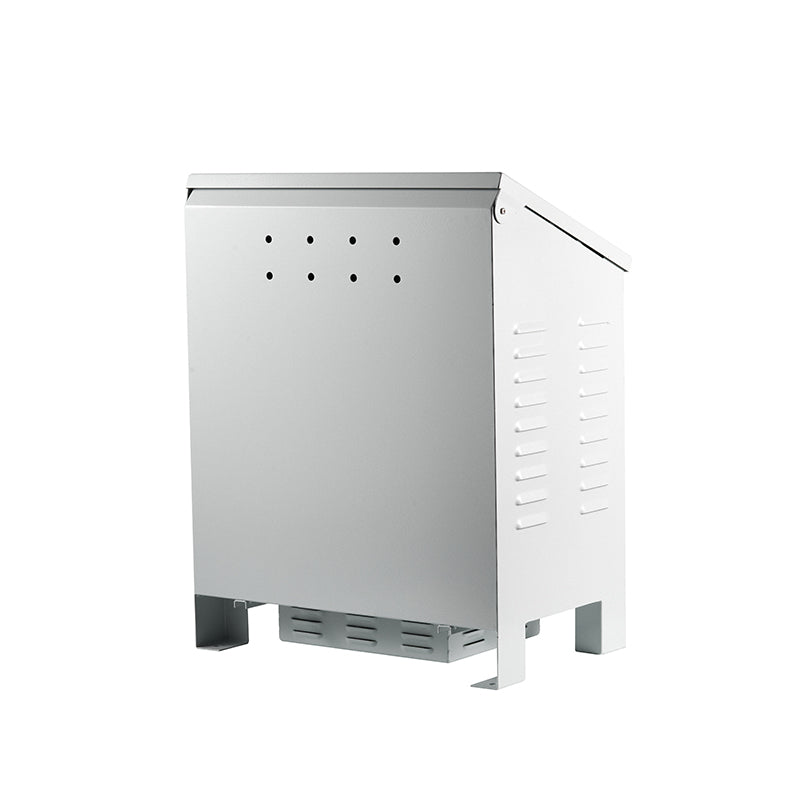

HC580A-CAB Pond Aerator Pump | 600W AC, 3-Acre Coverage

Operating an irrigation reservoir that doubles as a fish habitat presents unique challenges, particularly when balancing water draw-downs with the oxygen needs of aquatic life. When these agricultural water sources are located far from standard electrical grids, stagnant water quickly leads to dangerous ammonia spikes, foul odors, and thick muck accumulation. The HC580A-CAB cabinet aeration system provides an adaptable, high-efficiency answer to these challenges. By housing the compressor within a weatherproof, protective enclosure, this system is ready for immediate outdoor placement. Whether you run the standard AC setup or connect solar panels to a compatible DC model, you ensure continuous, deep-water circulation that protects your fish and improves overall water quality.

Why Choose the HC580A-CAB

• High-capacity ≤600W motor available in both 110V/60Hz and 220V/50Hz configurations for consistent, reliable performance.
• Expansive coverage treating water bodies up to 3 acres, ensuring oxygen reaches every zone of your reservoir or lake.
• Includes 6 EPDM rubber membrane diffusers designed to release millions of fine micro-bubbles for maximum gas exchange.
• Powerful pressure parallel flow configuration pushes air to impressive maximum diffuser depths of 65 feet.

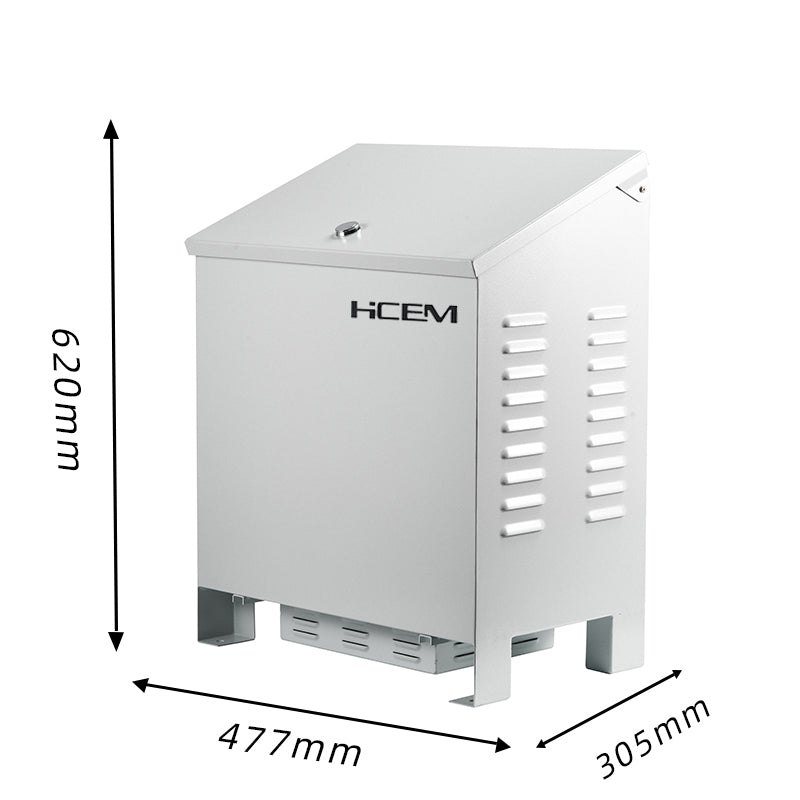

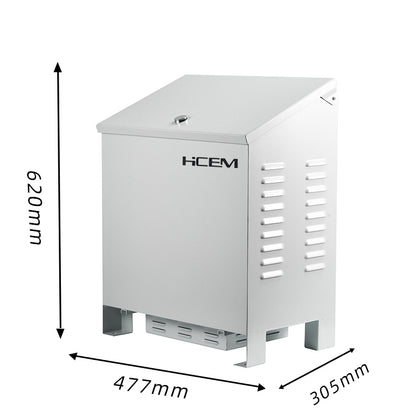

• Pre-installed in a durable, weatherproof cabinet measuring 477x305x620mm, protecting the compressor from harsh outdoor elements.
• Built-in thermal protection (145±5℃) and Class F motor insulation guarantee safe operation in ambient temperatures ranging from -5 to 40℃.

How Bottom Aeration Works

Effective bottom aeration fundamentally changes the health of your water body by breaking the thermocline—the invisible barrier that separates warm surface water from cold, oxygen-depleted bottom water. As compressed air travels down to the weighted diffusers, it escapes through the rubber membranes as millions of tiny micro-bubbles. These bubbles rise rapidly, lifting heavy bottom water to the surface where harmful gases like ammonia and hydrogen sulfide are safely vented into the atmosphere. This continuous mixing process dramatically increases dissolved oxygen levels throughout the entire water column, accelerating the natural digestion of bottom muck by aerobic bacteria and eliminating foul odors.

Ideal Applications for the HC580A-CAB

The HC580A-CAB is specifically engineered for large-scale applications requiring dependable, heavy-duty aeration. With its 3-acre coverage capacity and 6-diffuser setup, it is highly effective for commercial aquaculture ponds, large recreational fishing lakes, and agricultural irrigation reservoirs stocked with bass, bluegill, or catfish. Because the compressor is shielded by a weatherproof cabinet, it is perfect for exposed, outdoor environments where building a separate pump house is impractical. Furthermore, the system's ability to integrate with solar panels makes it an excellent choice for remote, off-grid locations where running long electrical cables is too expensive or logistically impossible.

Technical Specifications

Frequently Asked Questions

Q: Can I leave the HC580A-CAB cabinet exposed to the rain and weather year-round?

A: Yes, the system comes pre-mounted in a specialized weatherproof protective cabinet. This enclosure is designed to shield the 600W compressor from rain, snow, and direct sunlight, allowing for safe outdoor installation without the need to build an additional pump house.

Q: Will this system work for a deep 3-acre lake, or will the water pressure be too high?

A: The HC580A-CAB utilizes a pressure parallel flow configuration specifically built for deep water applications. It can effectively push air to a maximum diffuser depth of 65 feet, making it highly capable of oxygenating deep, 3-acre lakes or reservoirs without overworking the motor.

Q: How do I arrange the 6 diffusers for optimal coverage in an irregularly shaped pond?

A: For a 3-acre water body, the 6 EPDM rubber membrane diffusers should be spaced evenly in the deepest sections of the pond. Because this kit includes weighted tubing that stays securely on the bottom, you can easily route the air lines to separate coves or isolated bays, ensuring the entire water column is mixed and no stagnant zones remain.
