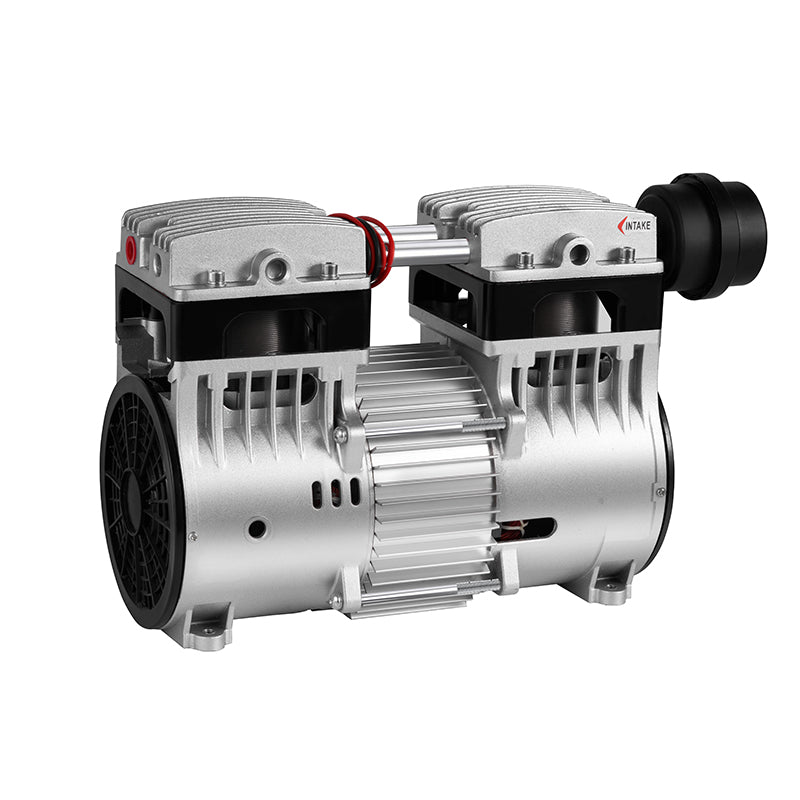

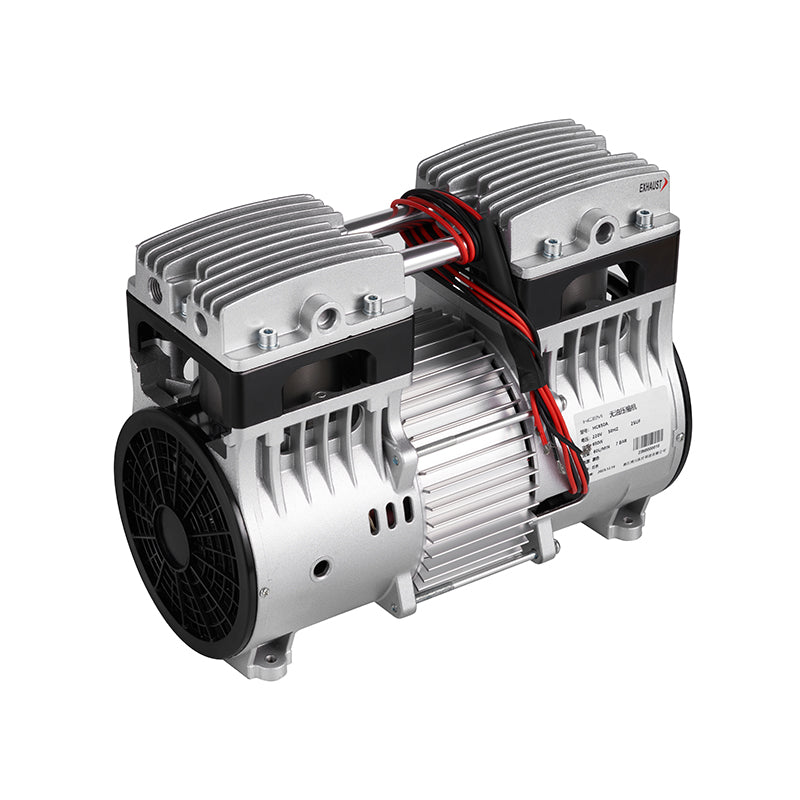

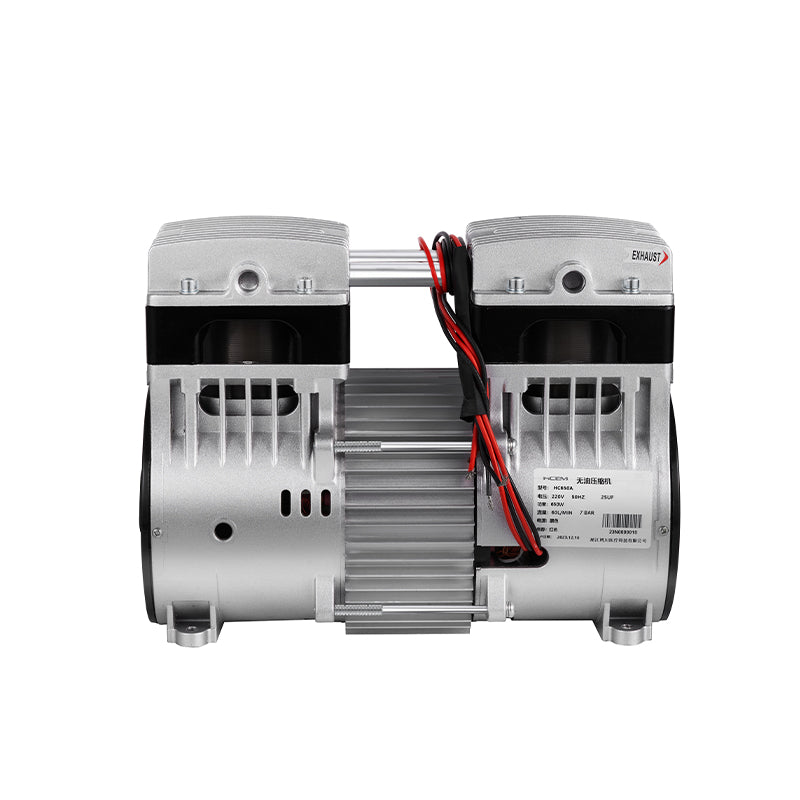

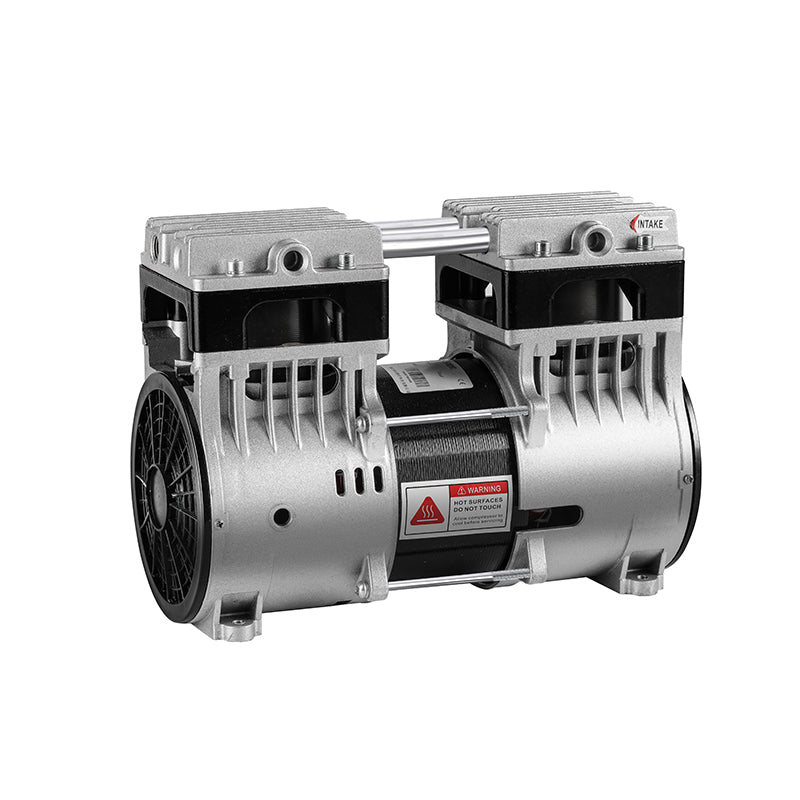

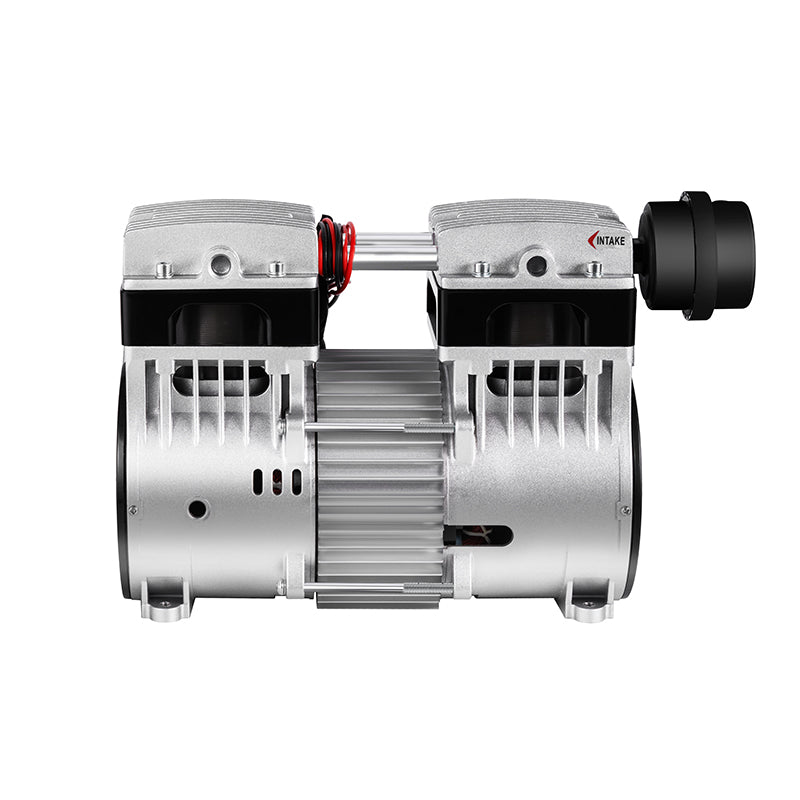

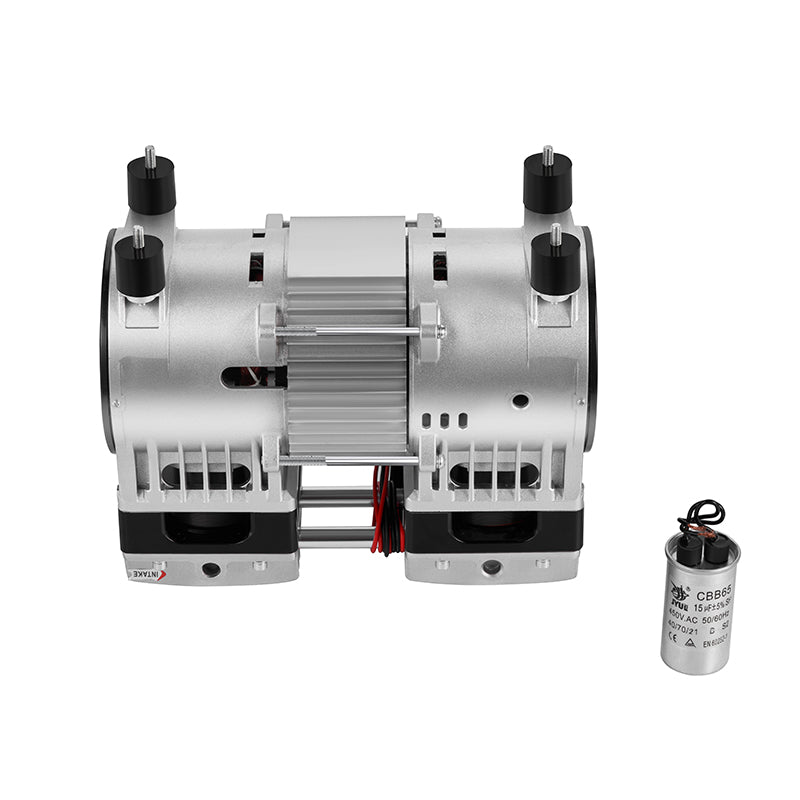

The HC580 medical oxygenation pump delivers 85L/min oil-free airflow with low noise for reliable oxygen concentrator and hospital equipment integration. As a medical air pump manufacturer, HC Pump supports OEM customization and wholesale supply for global B2B buyers.
| Technical Specifications | ||
|---|---|---|
| Specification | HC580A-120/2 | HC580B-120/2 |
| Head Configuration | Pressure parallel flow | Pressure parallel flow |
| Voltage | 220V/50Hz/1 | 110V/60Hz/1 |
| Noise | ≤62dB(A) | ≤62dB(A) |
| Power at rated pressure | ≤580W | ≤580W |
| Air flow rate at rated pressure | ≥120L/min @ 200Kpa | ≥140L/min @ 200Kpa |
| Speed at rated pressure | 1400 rpm | 1700 rpm |
| Dimension | 276*133*202 mm | 276*133*202 mm |
| Installation size | 233*89mm | 233*89mm |
| Net Weight | 10.8 kg | 10.8 kg |
| Operating ambient temperature | -5 to 40℃ | -5 to 40℃ |
| Thermal protection | 145±5℃ | 145±5℃ |
| Motor insulation class | F | F |
| Capacitor value | 20μF | 60μF |
Download the complete technical datasheet for specifications and performance curves.
