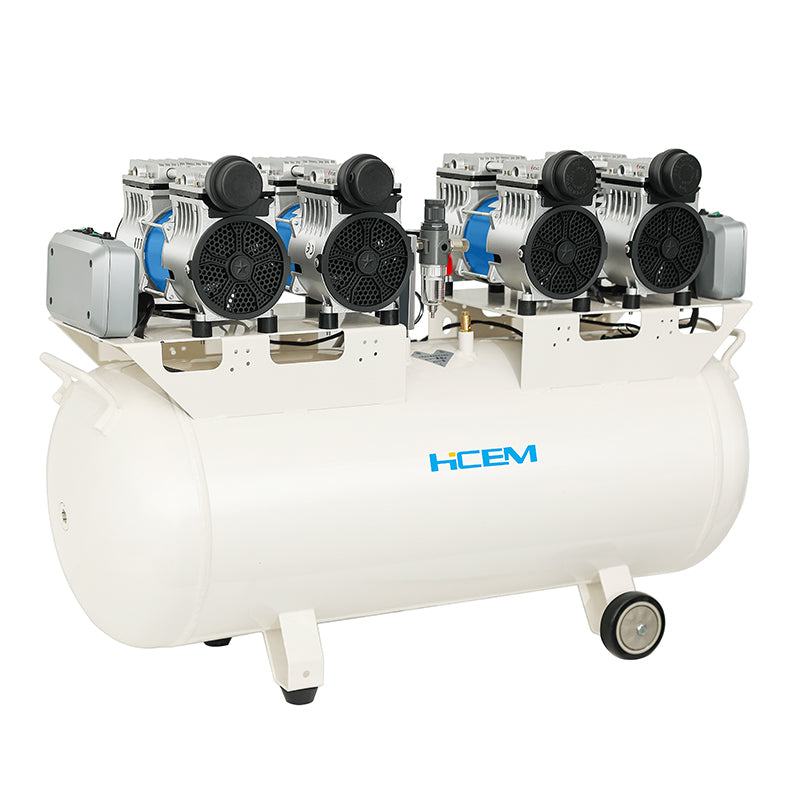

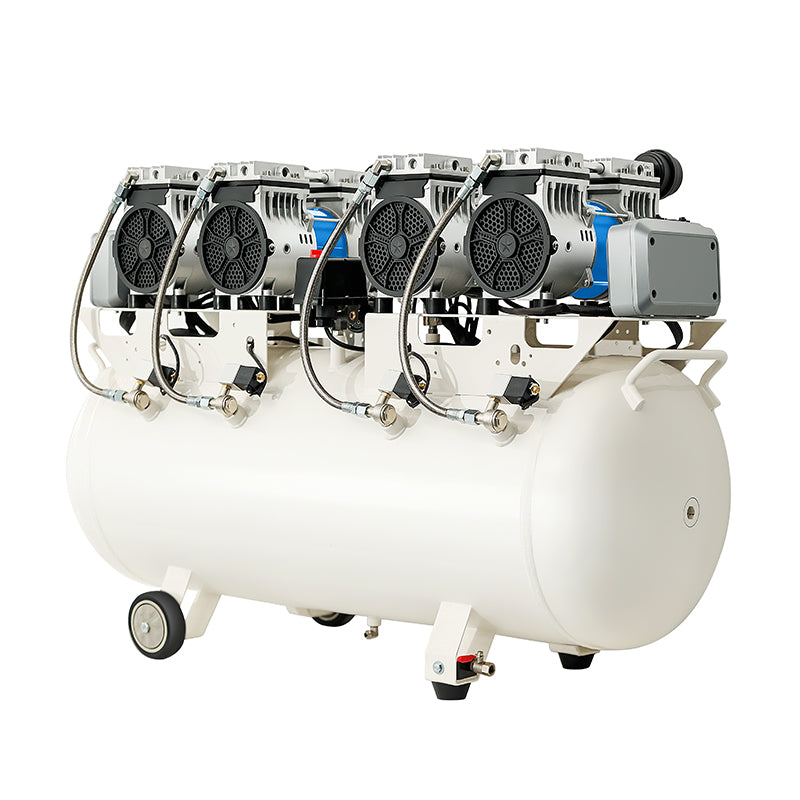

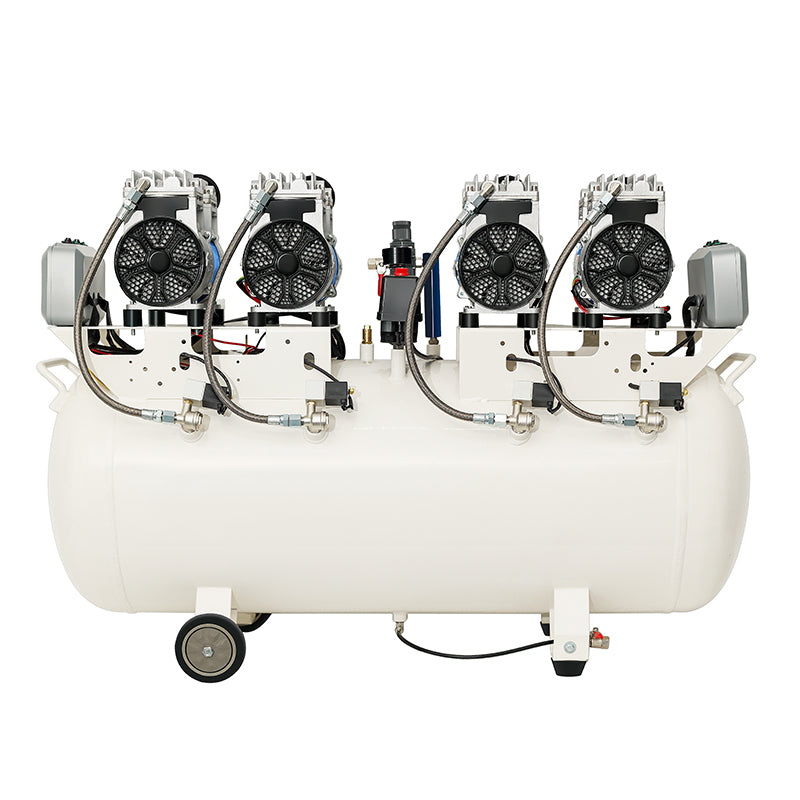

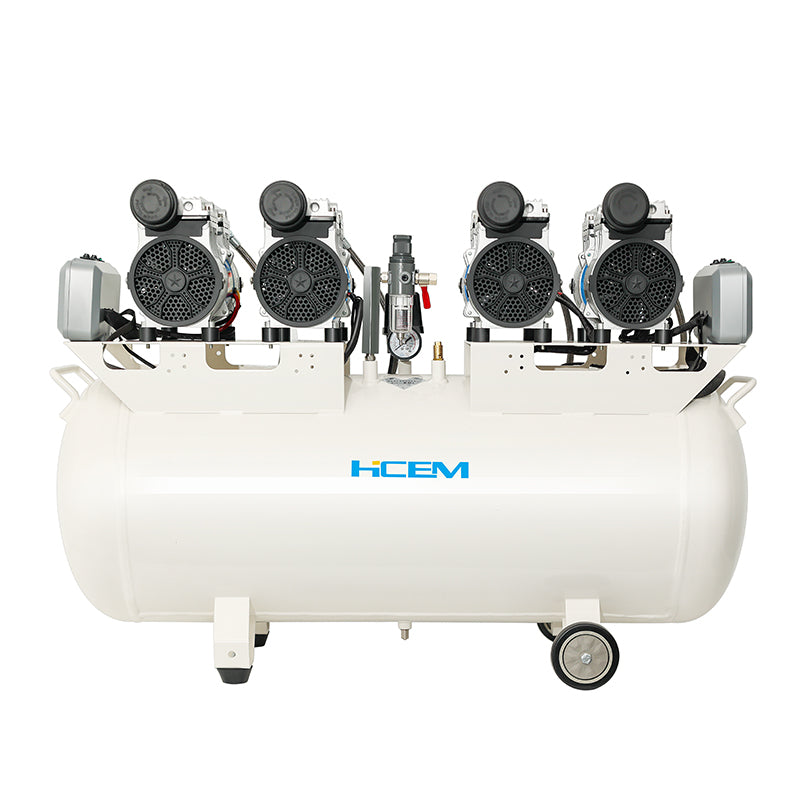

HC5504-HC6804

Why Choose the HC5504-HC6804

A German packaging machinery OEM was designing a new high-speed blister packaging line for pharmaceutical customers. Their specification required the air supply to be fully integrated within the machine frame — no external compressor room, no distribution piping, no customer-side installation complexity. The HC5504-HC6804 four-cylinder unit fit inside the machine's utility compartment, delivered enough flow for all 14 pneumatic actuators simultaneously, and met pharmaceutical GMP requirements for oil-free air without additional filtration stages. The OEM now specifies this unit as standard across their entire product range, ordering 200+ units annually.

Why This Model — Not Another

The HC5504-HC6804 is the highest-capacity unit in the HC55/HC68 series, designed specifically for OEM integration where maximum airflow must come from a single compact package. Four cylinders at 90-degree intervals deliver the smoothest output and highest sustained flow in the lineup — enough to power complex multi-actuator machines without external air supply. For OEMs, this means their end customers need only electrical power and a drain connection, dramatically simplifying installation and eliminating the most common source of commissioning delays (inadequate customer-supplied compressed air). The unit's standardized mounting dimensions and electrical interface make it a drop-in component for machine builders.

Frequently Asked Questions

What makes the HC5504-HC6804 suitable for OEM integration vs. standalone use?

OEM integration demands specific characteristics: standardized mounting bolt pattern (4x M10 on 200x300mm centers), 24V control interface for machine PLC integration, compact height (under 400mm for under-frame mounting), and certification packages (CE, UL, CSA) that transfer to the finished machine without additional testing. The HC5504-HC6804 provides all of these as standard, unlike general-purpose compressors that require custom brackets, relay interfaces, and separate certification.

How many pneumatic actuators can one unit support simultaneously?

At standard industrial actuator consumption (5-15 L/min per actuator depending on bore size and cycle rate), the HC5504-HC6804 supports 12-16 simultaneously active actuators. For machines with higher actuator counts, the unit supports duty-cycling strategies where not all actuators fire in the same machine cycle — common in sequential packaging operations.

What is the lead time and MOQ for OEM volume orders?

Standard lead time is 4-6 weeks for orders of 50+ units. For annual volume commitments of 200+ units, we offer dedicated production scheduling with 2-week lead time, custom color/branding options, and engineering support for integration including 3D models, vibration analysis data, and thermal dissipation calculations for enclosed mounting.

Under normal operating conditions, the HC5504-HC6804 delivers 10,000 to 50,000 hours of service life depending on ambient conditions and duty cycle. The oil-free design eliminates carbon buildup that typically shortens the life of oiled compressors.
