HC5503-HC6803

Why Choose the HC5503-HC6803

An SMT (Surface Mount Technology) contract manufacturer in Shenzhen was failing audits from a major smartphone OEM because their compressed air system couldn't meet the required ISO 8573-1 Class 2 particulate standard at point of use. The existing central oiled compressor met spec at the outlet, but 80 meters of aging galvanized pipe between the compressor room and the SMT floor introduced rust particles and residual oil condensate. Installing HC5503-HC6803 units directly at each SMT line eliminated the distribution contamination entirely — the next audit passed with Class 1 readings at every test point.

Why This Model — Not Another

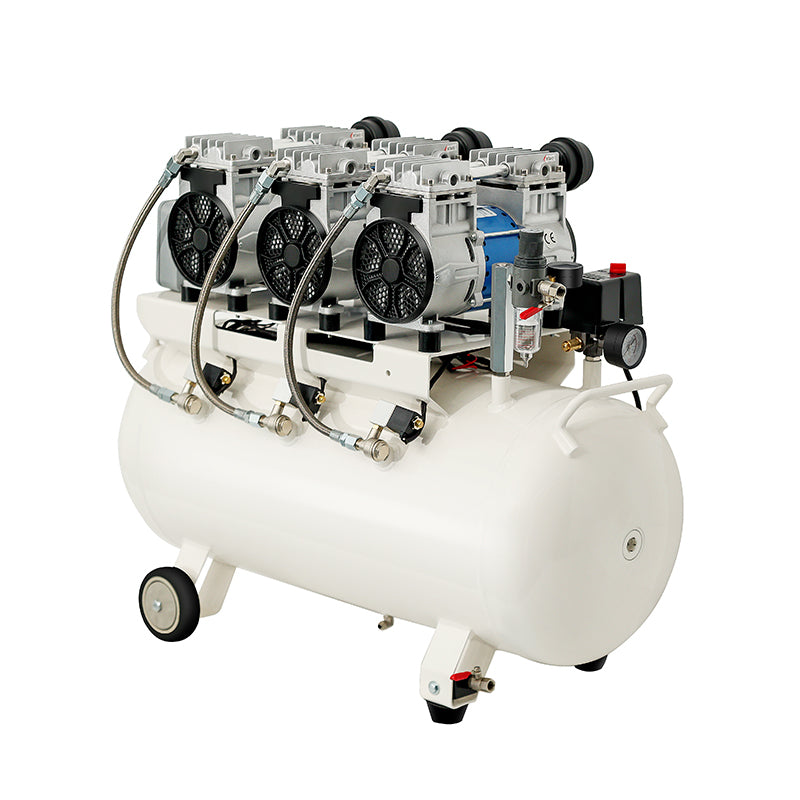

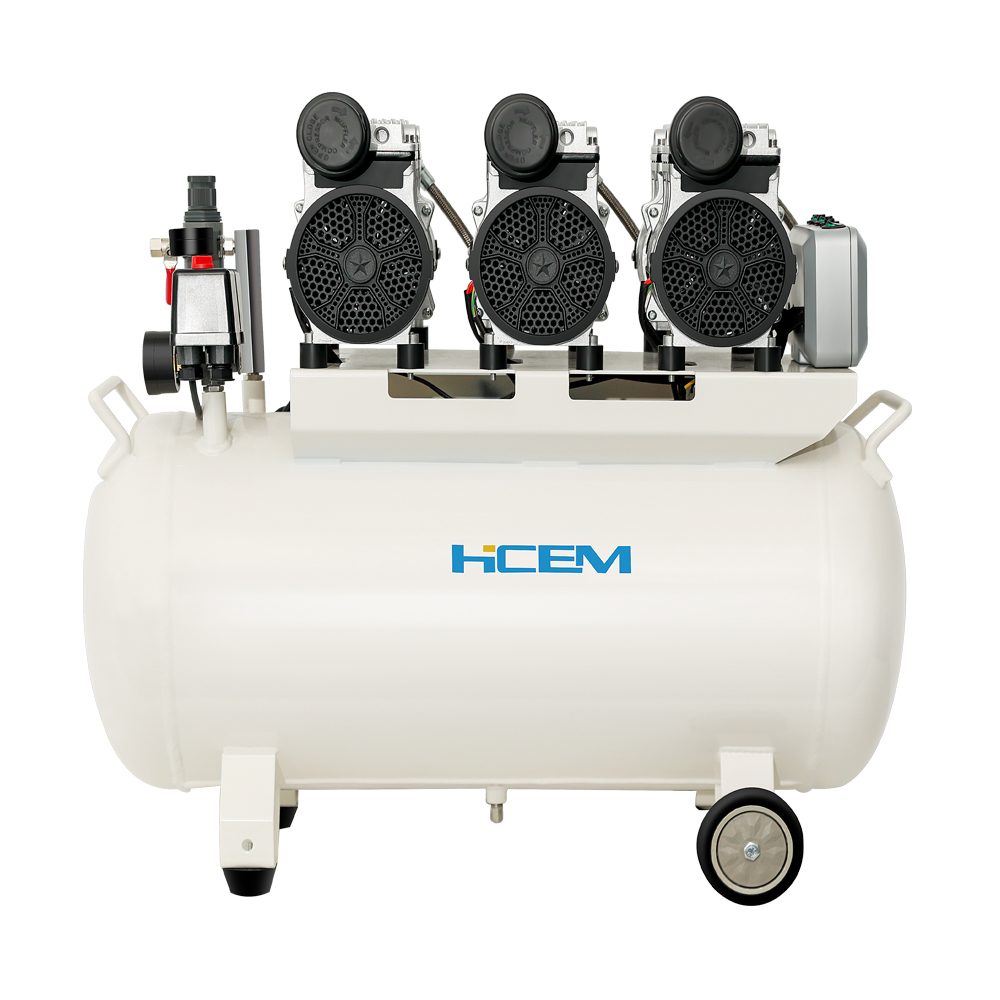

The three-cylinder HC5503-HC6803 provides the flow capacity needed for a complete SMT line: pick-and-place heads (pneumatic vacuum and blow-off), solder paste printer (squeegee pressure and stencil cleaning), and reflow oven cooling (board exit air knives). These three consumers operate simultaneously and continuously during production, requiring sustained flow that single or dual-cylinder units cannot maintain without pressure sag. The triple-cylinder 120-degree firing pattern delivers this flow with less than 1% pressure ripple — critical for pick-and-place vacuum generators where pressure variation translates directly to component placement accuracy.

Frequently Asked Questions

What air quality does the HC5503-HC6803 achieve for SMT use?

Direct output meets ISO 8573-1 Class 2.4.1 without additional filtration. Adding a single 0.01-micron point-of-use filter (standard practice in SMT) achieves Class 1.2.1 — exceeding requirements for all major EMS and OEM audit standards including IPC-A-610 Class 3 environments.

Can one unit support a full SMT line including reflow?

Yes. A typical SMT line (printer + pick-and-place + reflow + AOI) consumes 120-180 L/min total. The HC5503-HC6803 rated output covers this with 15-25% headroom. For dual-lane lines or lines with multiple pick-and-place modules, add a second unit or upgrade to the HC5504-HC6804.

How does point-of-use supply improve placement accuracy?

Pick-and-place nozzle vacuum is generated from compressed air via venturi generators. Pressure variation of 0.1 bar changes vacuum level by approximately 8%, which at high-speed placement (>30,000 CPH) causes intermittent component drops. The HC5503-HC6803 three-phase output maintains pressure within 0.03 bar, reducing nozzle-related defects by 60-80% compared to long-pipe central supply systems.

Under normal operating conditions, the HC5503-HC6803 delivers 10,000 to 50,000 hours of service life depending on ambient conditions and duty cycle. The oil-free design eliminates carbon buildup that typically shortens the life of oiled compressors.
