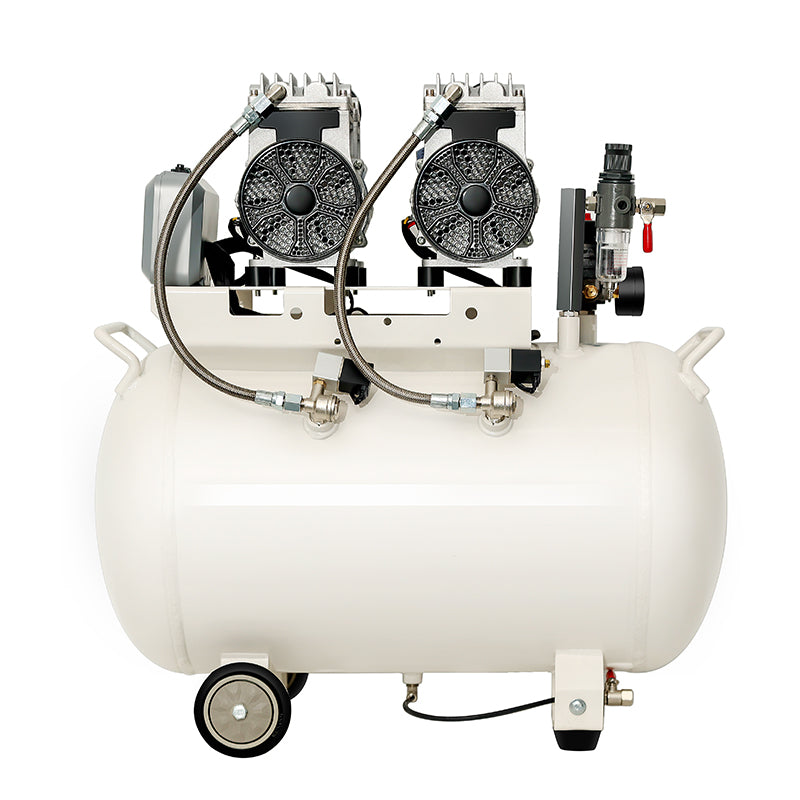

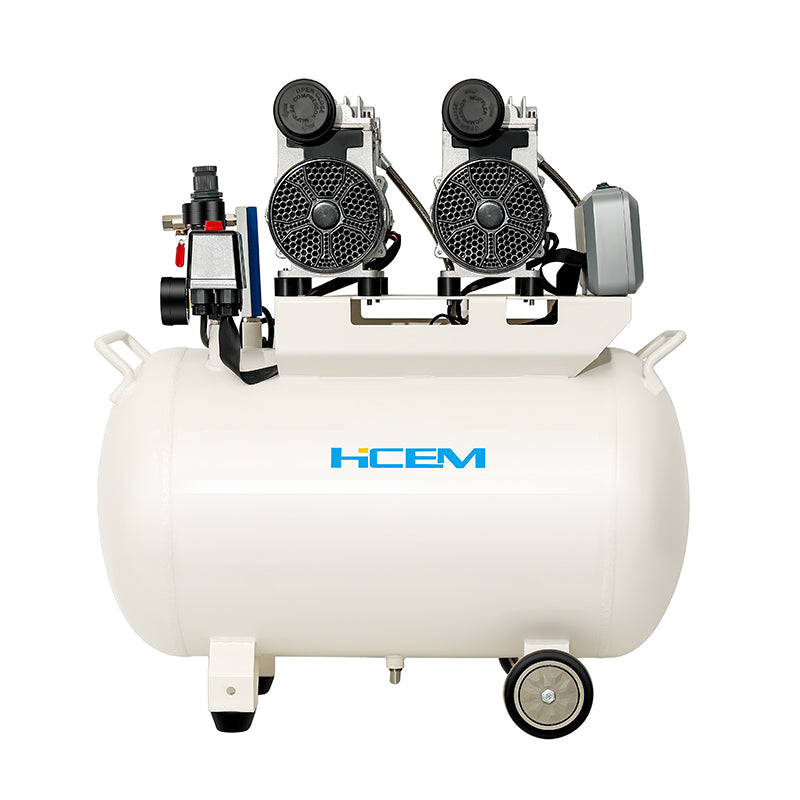

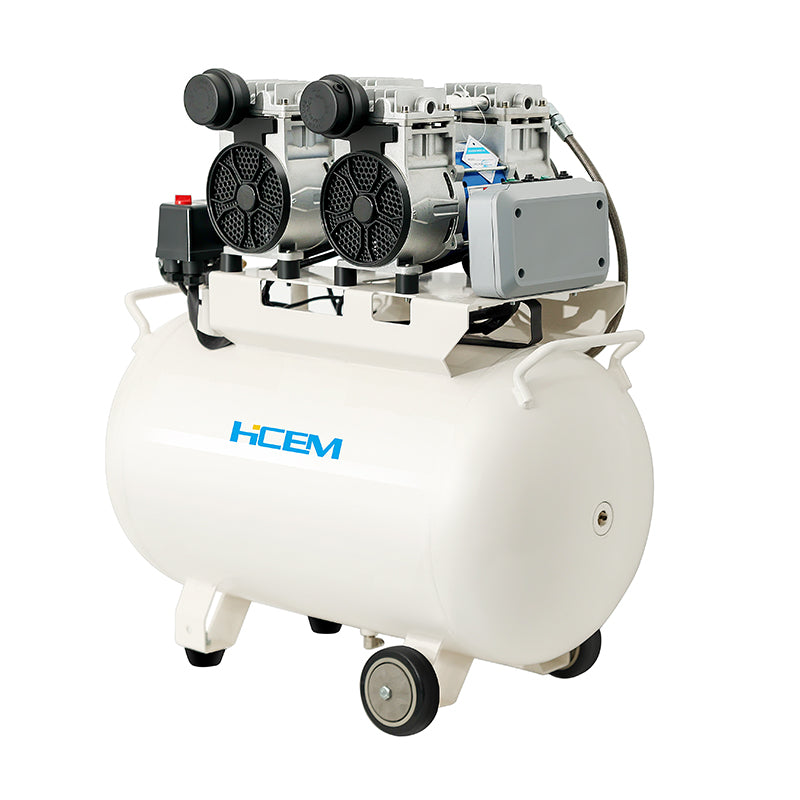

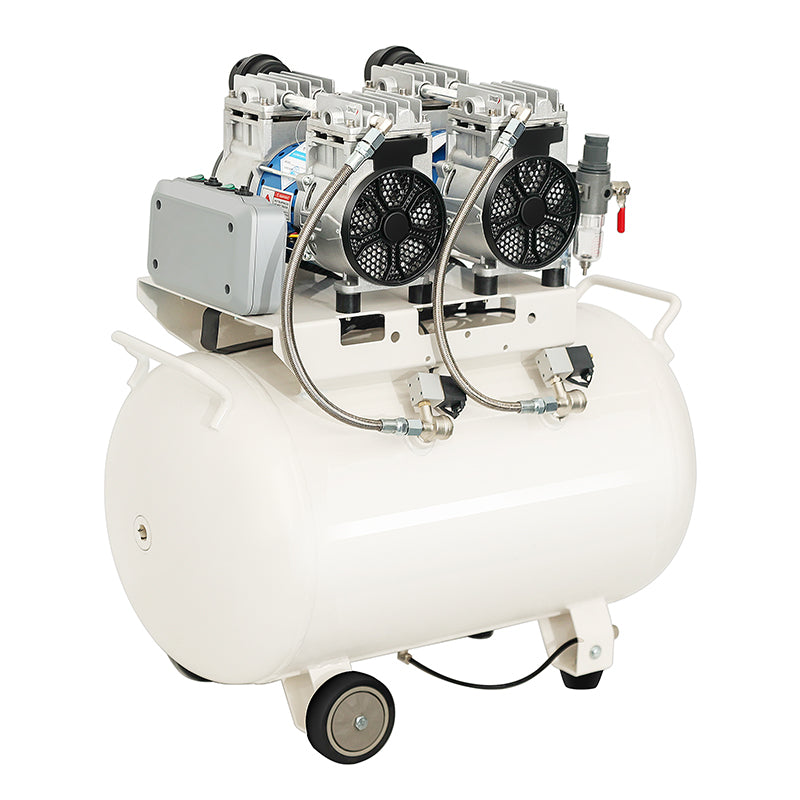

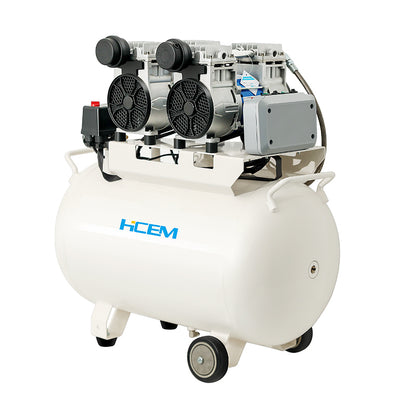

HC5502-HC6802

Why Choose the HC5502-HC6802

A denim manufacturer in Shaoxing was losing 3% of production to pneumatic loom stoppages caused by moisture in their compressed air lines. The old oiled compressor's aftercooler couldn't keep up with the humid factory environment, and water slugs were jamming the solenoid valves on their 24 rapier looms. Each stoppage meant a visible weave defect that downgraded the fabric from first-quality to seconds. After installing HC5502-HC6802 units — one per 12-loom bank — the inherently dry output of the oilless design eliminated moisture problems without requiring refrigerated dryers, saving both the capital cost and 2.4 kW of continuous power draw per dryer.

Why This Model — Not Another

The HC5502-HC6802 dual-cylinder model hits the sweet spot for medium-scale textile operations: enough sustained flow to feed 10-12 pneumatic looms continuously, compact enough to mount above the loom bank (keeping floor space clear for material handling), and oil-free output that won't contaminate fabric if a pneumatic line develops a pinhole leak near the weaving zone. The dual-cylinder 180-degree configuration also provides the pressure stability that rapier loom timing mechanisms demand — a pressure drop of even 0.3 bar during the rapier insertion phase causes missed picks and visible defects.

Frequently Asked Questions

How many looms can one HC5502-HC6802 support?

At standard rapier loom air consumption (15-20 L/min per loom for weft insertion and selvedge tucking), one HC5502-HC6802 comfortably supports 10-12 looms with 20% reserve capacity. For air-jet looms consuming 80-120 L/min each, one unit supports 1-2 looms — air-jet installations typically require the HC5504-HC6804 four-cylinder model.

Why mount compressors locally instead of using a central plant?

Textile mills are long buildings — 100-200 meters from end to end. Central compressed air systems lose 0.5-1.0 bar in distribution piping over these distances, and pressure drop varies with total demand. Local HC5502-HC6802 units mounted at each loom bank deliver consistent pressure regardless of what other sections of the mill are doing, eliminating the cross-talk that causes simultaneous multi-loom faults during shift changes.

What happens if one unit fails in a local-supply configuration?

Each HC5502-HC6802 serves an independent loom bank. A failure affects only those 10-12 looms, not the entire mill. With a spare unit on standby (recommended), swap time is under 15 minutes. Compare this to a central plant failure that stops all 200+ looms simultaneously and requires specialized technician response.

Under normal operating conditions, the HC5502-HC6802 delivers 10,000 to 50,000 hours of service life depending on ambient conditions and duty cycle. The oil-free design eliminates carbon buildup that typically shortens the life of oiled compressors.
