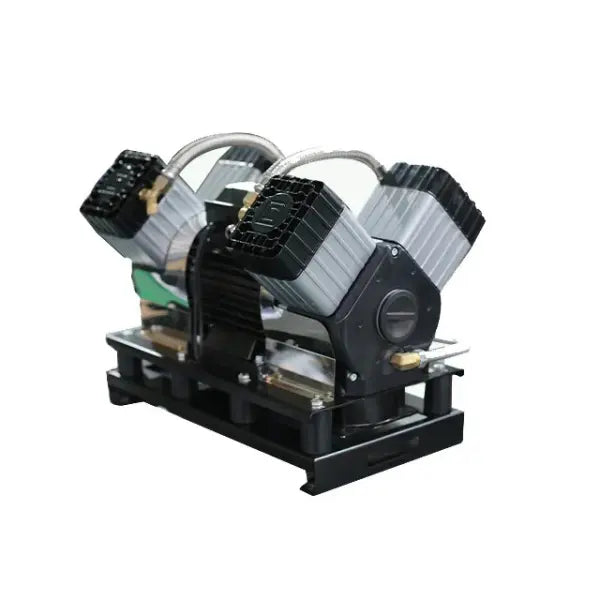

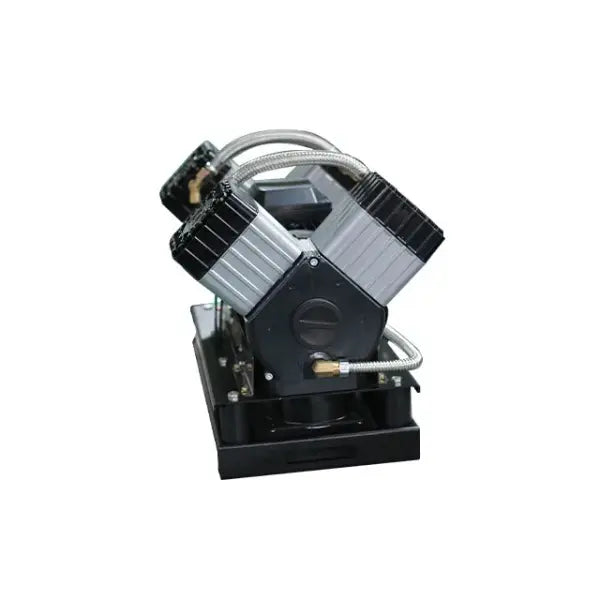

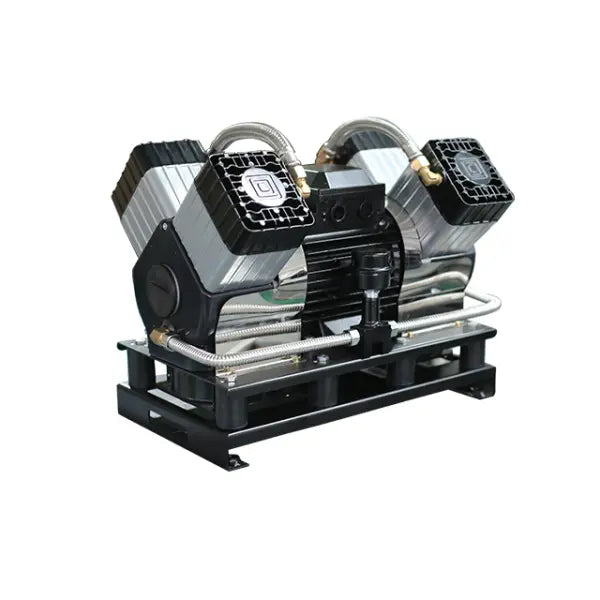

HC504VA-2.2KW Oilless Air Pump | 1000Kpa, ≤70dB, CE, 24h Duty

HC504VA-2.2KW Oilless Air Pump | 1000Kpa, ≤70dB, CE, 24h Duty

AC AIR COMPRESSOR PUMP Request a Quote

Oil-Free Design

Zero oil contamination for clean air output

Continuous Duty

24/7 operation rated for industrial use

CE Certified

Complies with international safety standards

OEM/ODM Available

Customization for your specific requirements

View full details

Why Choose the HC504VA-2.2KW Oilless AC Air Pump

Nothing disrupts a critical testing schedule faster than a lab manager frustrated by oil contamination shutting down a sensitive analytical instrument. When microscopic oil vapor enters precision pneumatic systems, it compromises test results, damages internal sensors, and forces costly emergency maintenance. The HC504VA-2.2KW oilless air pump removes this variable entirely, providing a clean, continuous air supply that protects your high-value equipment and ensures consistent operational uptime. Engineered by HCEM Pump, this heavy-duty AC compressor is designed specifically for demanding B2B applications where reliability and air purity are non-negotiable. By utilizing advanced oil-free technology, the pump reduces long-term maintenance costs associated with oil changes, filter replacements, and system cleaning, allowing technical teams to focus on productivity rather than equipment troubleshooting.

  • 100% Oil-Free Operation: Completely eliminates the risk of pneumatic system contamination, making it highly applicable for cleanroom manufacturing and sensitive analytical testing environments.
  • High-Pressure Air Flow: Achieves substantial flow rates of 270L/min to 315L/min at a continuous pressure rating of 1000Kpa, delivering consistent force for heavy-duty pneumatic cylinders.
  • Continuous 24h Duty Cycle: Engineered for non-stop, round-the-clock operation with an exceptional expected lifespan ranging from 10,000 to 70,000 hours, minimizing replacement frequency.
Model 220V / 50Hz 380V / 50Hz
Model Number HC504VA-200/10 HC504V-200/10
Head configuration Pressure parallel flow Pressure parallel flow
Voltage 220V/50Hz/1 380V/50Hz/3
Noise ?70dB(A) ?70dB(A)
Power ?2600W ?2700W
Air flow rate 200L/min@1000Kpa 200L/min@1000Kpa
Speed at rated pressure 1400rpm 1400rpm
Dimension 551?367?433mm 551?367?433mm
Net weight 54 kg 49 kg
Motor insulation class F F

Download the complete technical datasheet for specifications and performance curves.
