HC480A-CAB Pond Aerator Pump | 500W AC, 2-Acre Kit

Tackling the challenge of keeping a 5-acre recreational lake clear and odor-free for a resort requires serious water management strategies. Stagnant water quickly leads to foul smells, excessive muck accumulation, and an unappealing environment that drives guests away. When visitors expect pristine natural surroundings, dealing with algae blooms or mosquito infestations is simply not an option. While massive lakes might require custom setups or multiple synchronized units, managing a 2-acre section, a large fishing pond, or a dedicated resort swimming zone is entirely achievable with the right equipment. The HC480A-CAB provides a complete, cabinet-housed aeration solution designed to handle heavy biological loads, ensuring your water remains healthy, circulating, and highly oxygenated year-round.

Why Choose the HC480A-CAB

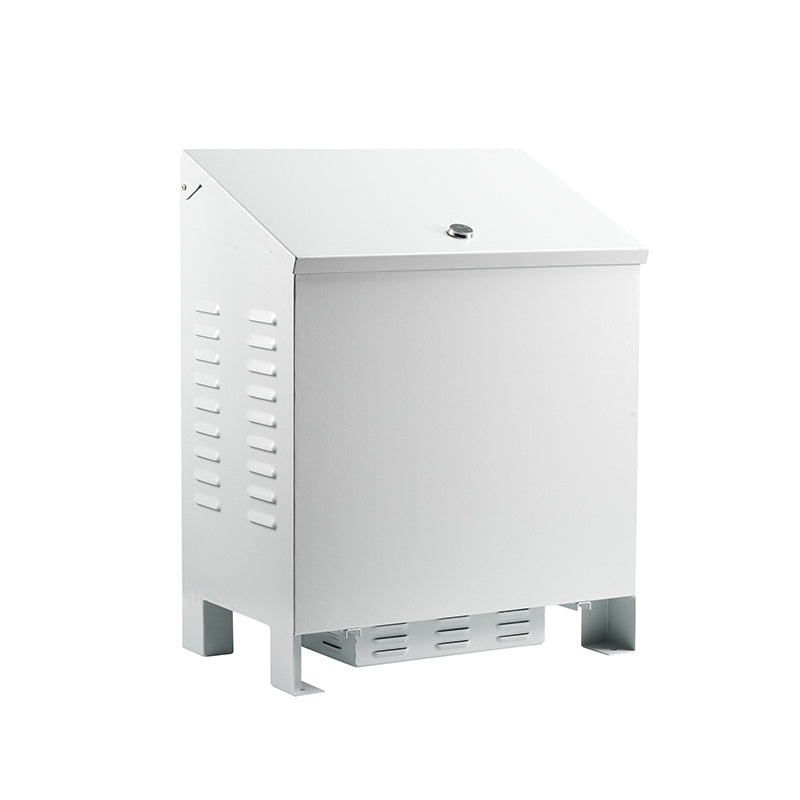

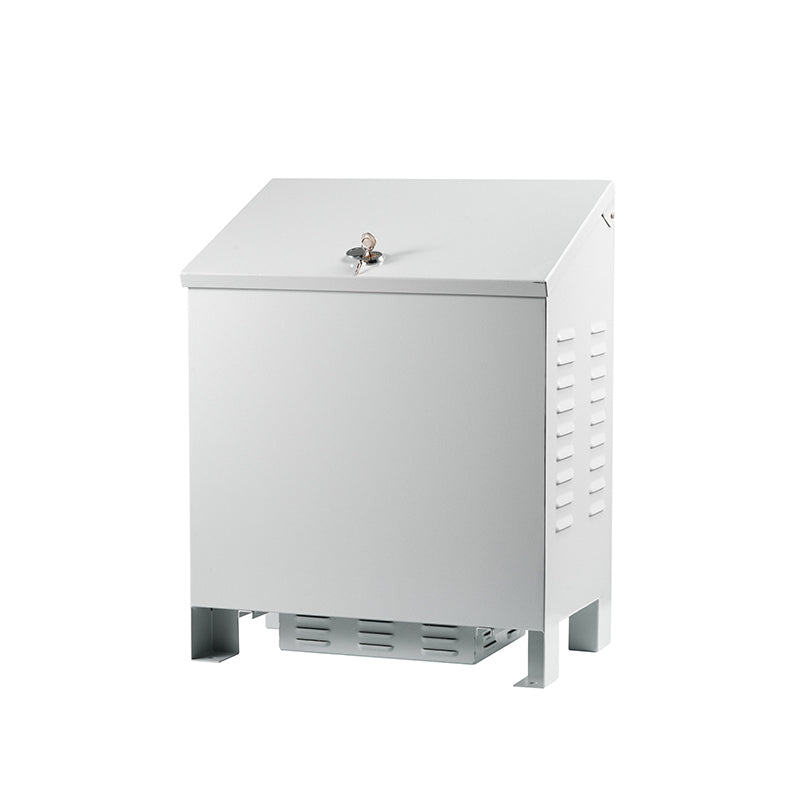

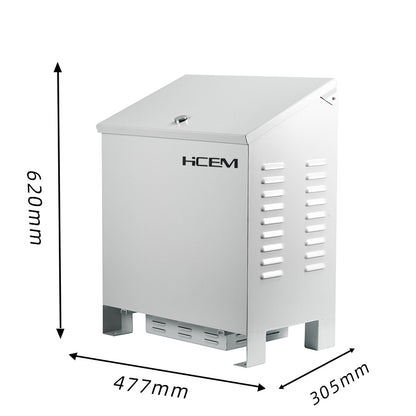

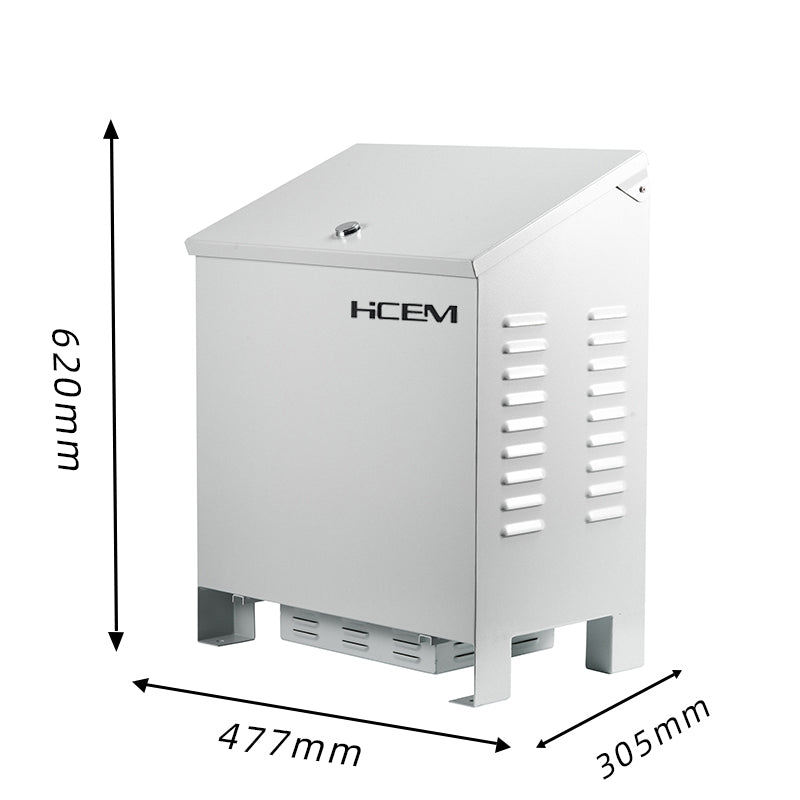

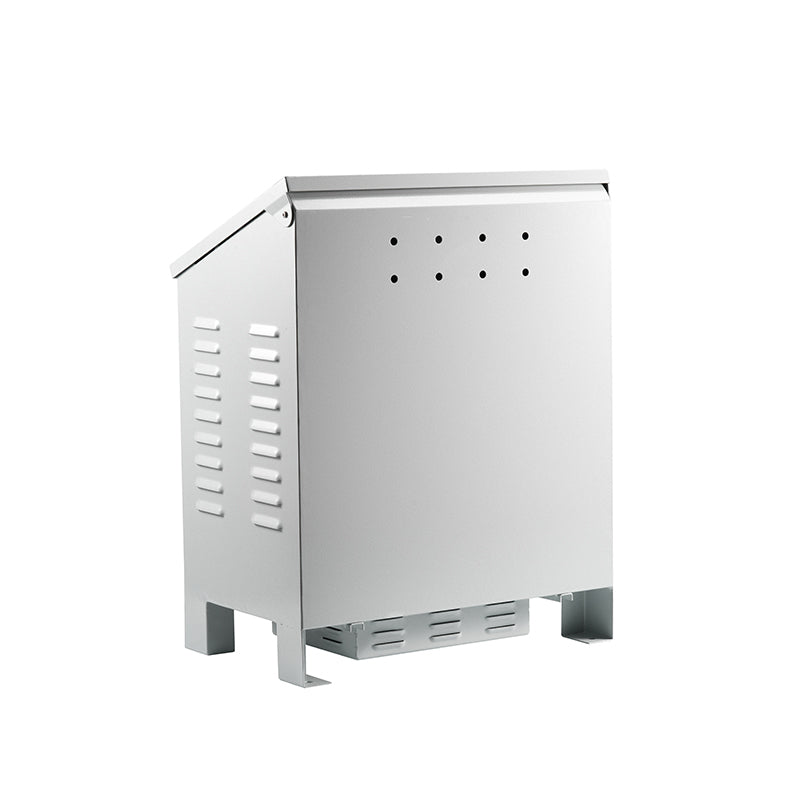

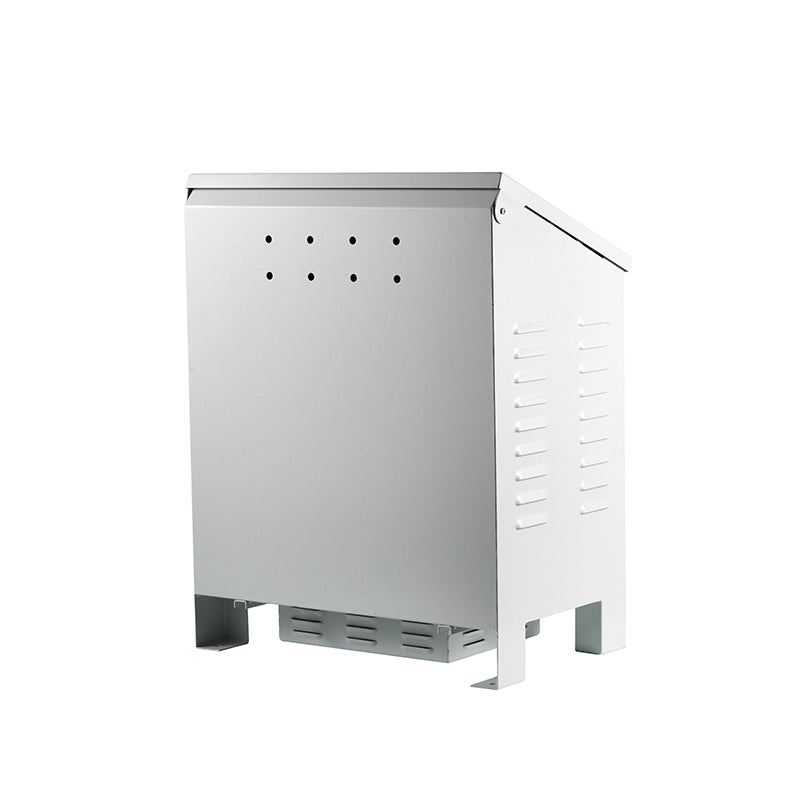

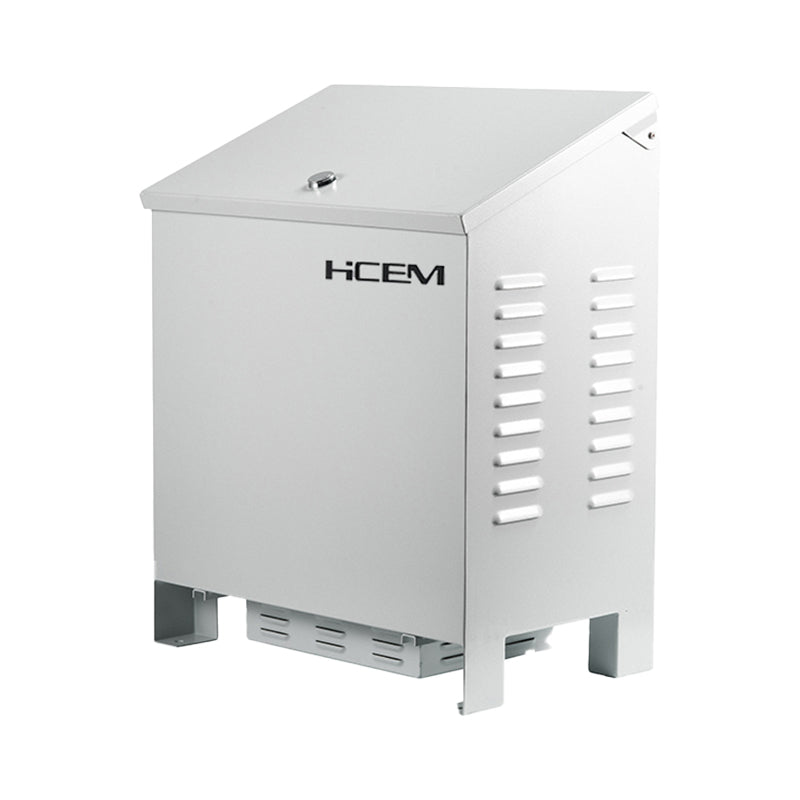

• Complete Weatherproof System: The compressor arrives pre-mounted inside a durable, protective outdoor cabinet measuring 477x305x620mm for immediate installation.
• High-Efficiency Power: Features a highly capable ≤500W AC motor (available in 110V or 220V configurations) operating at 1400 to 1700 rpm.
• 2-Acre Coverage: Engineered to effectively circulate and oxygenate ponds and small lakes up to 2 acres in total surface area.
• Deep Water Capability: Powerful pressure parallel flow pushes air down through weighted tubing to a maximum diffuser depth of 65 feet.
• Comprehensive Diffusion: Includes 4 premium EPDM rubber membrane diffusers to spread oxygen evenly across the pond floor.
• Built-In Thermal Protection: Integrated safety switch activates at 145±5℃ to prevent motor damage during continuous summer operation.

How Bottom Aeration Works

Bottom aeration is the most efficient method for managing deep water bodies because it actively breaks up the thermal stratification known as the thermocline. Compressed air is pushed through weighted tubing to the bottom-placed diffusers, which then release millions of tiny micro-bubbles into the water column. As these bubbles rise to the surface, they create a powerful lifting action that mixes the cold, oxygen-depleted bottom water with the oxygen-rich surface water. This constant circulation vents harmful gases like ammonia and hydrogen sulfide into the atmosphere while providing aerobic bacteria with the oxygen they need to actively digest bottom muck and organic debris. By maintaining high dissolved oxygen levels at the pond floor, you prevent the anaerobic conditions that lead to fish kills and foul, sulfurous odors. This natural process is environmentally friendly, relying on biological activity rather than chemical treatments to maintain water quality.

Ideal Applications for the HC480A-CAB

With its 500W power rating and 4-diffuser setup, the HC480A-CAB is perfectly scaled for medium-to-large private ponds, aquaculture grow-out facilities, and commercial resort water features up to 2 acres in size. It excels in deep-water environments (up to 65 feet), making it highly effective for flooded quarries or deep recreational swimming holes where thermal stratification is severe. Fish farmers raising high-density species like trout or bass rely on this continuous circulation to prevent sudden oxygen crashes during hot summer months. For resort managers, the quiet operation of the cabinet-housed unit ensures that guests are not disturbed by mechanical noise while enjoying the water. Additionally, the enclosed weatherproof cabinet makes it an excellent choice for permanent outdoor installation in parks or golf courses, where aesthetic integration and equipment protection are necessary. While this specific model runs on AC power, its highly efficient motor ensures continuous aeration through freezing winter months to keep a vital hole open in the ice for wildlife.

Technical Specifications

Frequently Asked Questions

What maintenance is required for the compressor inside the cabinet?

The HC480A-CAB is designed for low maintenance. You should periodically check the cabinet vents to ensure they are free of debris, tall grass, or snow. The air filter on the compressor should be inspected every few months and cleaned or replaced as needed to maintain the ≤500W motor's efficiency and prevent overheating.

Can I run all 4 diffusers at the maximum depth of 65 feet simultaneously?

Yes, the pressure parallel flow configuration of this pump is engineered to provide sufficient airflow to all 4 diffusers even at the maximum rated depth of 65 feet. However, placing diffusers at varying depths across your 2-acre pond may require valve adjustments at the manifold to ensure even air distribution across all lines.

Is the metal cabinet fully weatherproof for year-round outdoor use?

The protective cabinet is specifically designed for permanent outdoor installation. It shields the 28.28kg compressor assembly from rain, snow, and direct sunlight while allowing proper ventilation. It operates safely in ambient temperatures ranging from -5 to 40℃, making it highly suitable for both summer aeration and winter ice-clearing applications.
