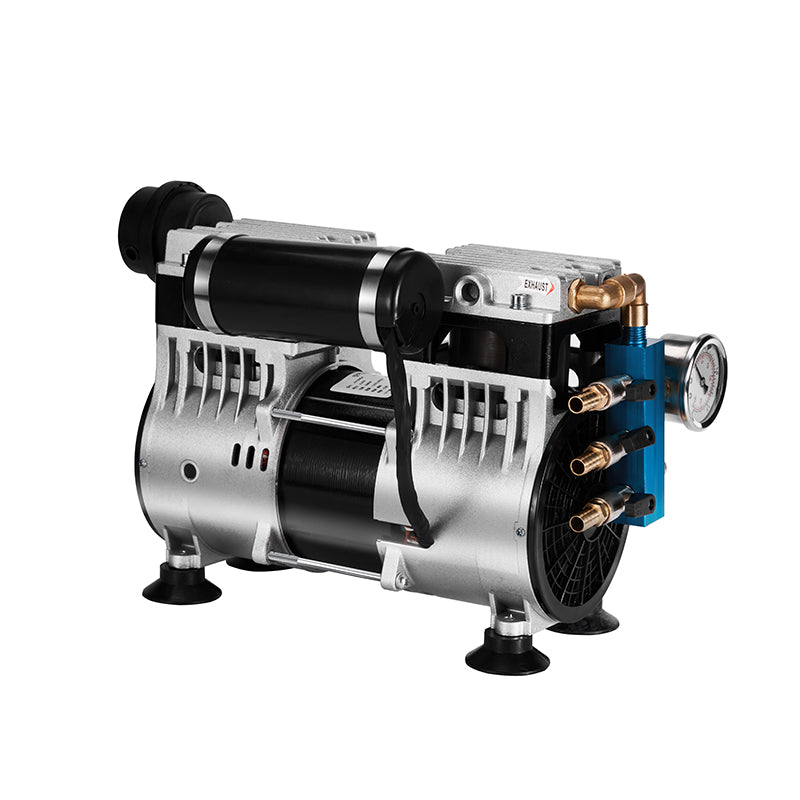

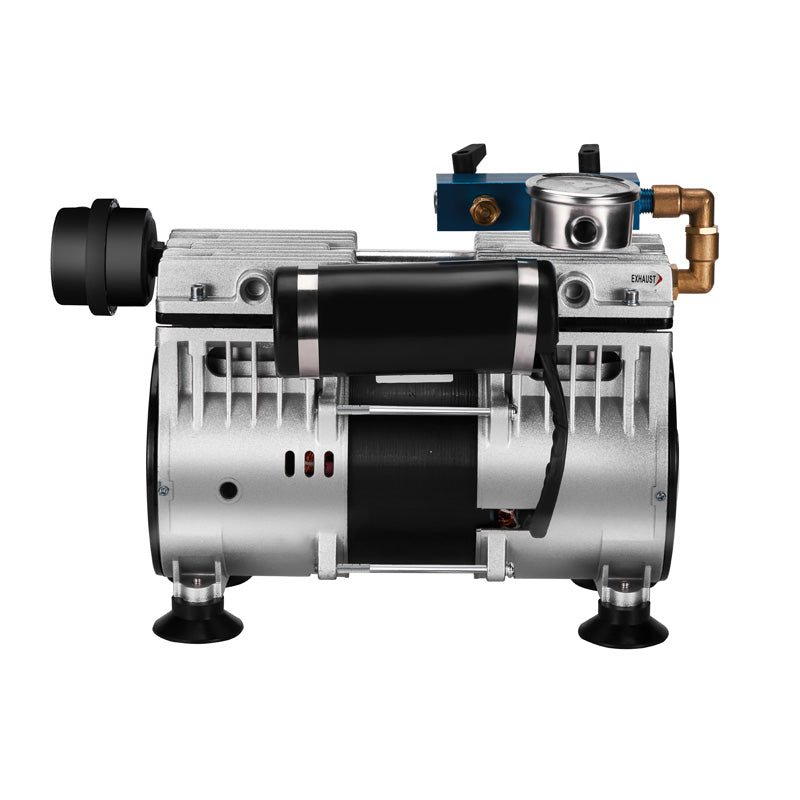

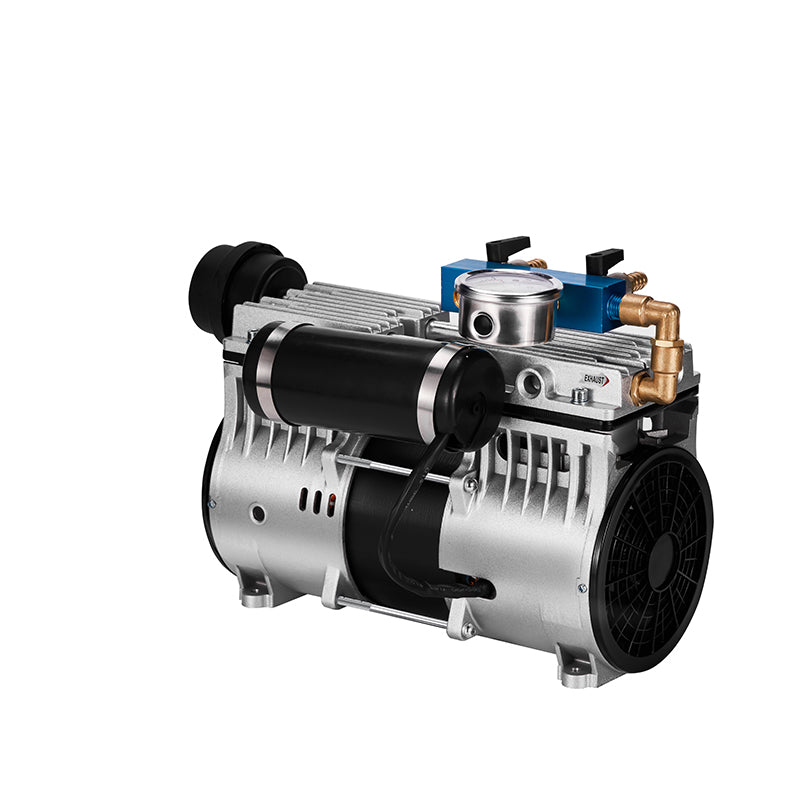

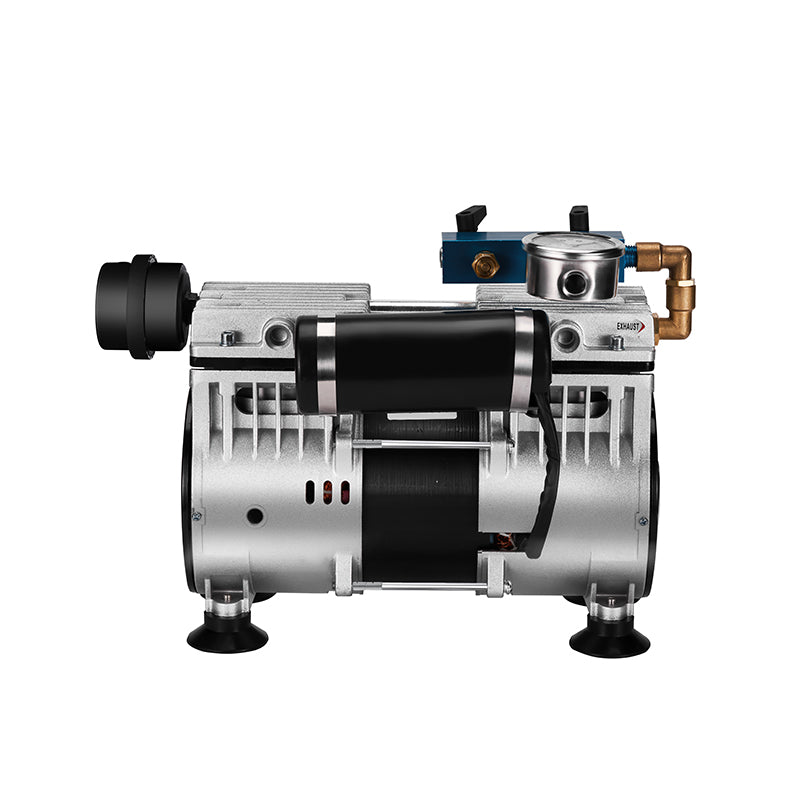

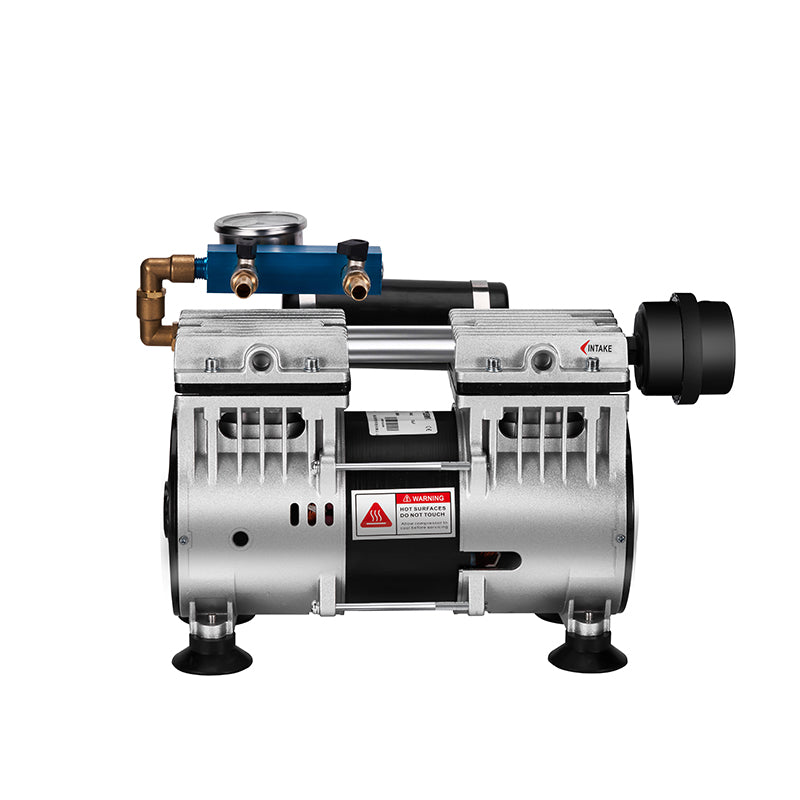

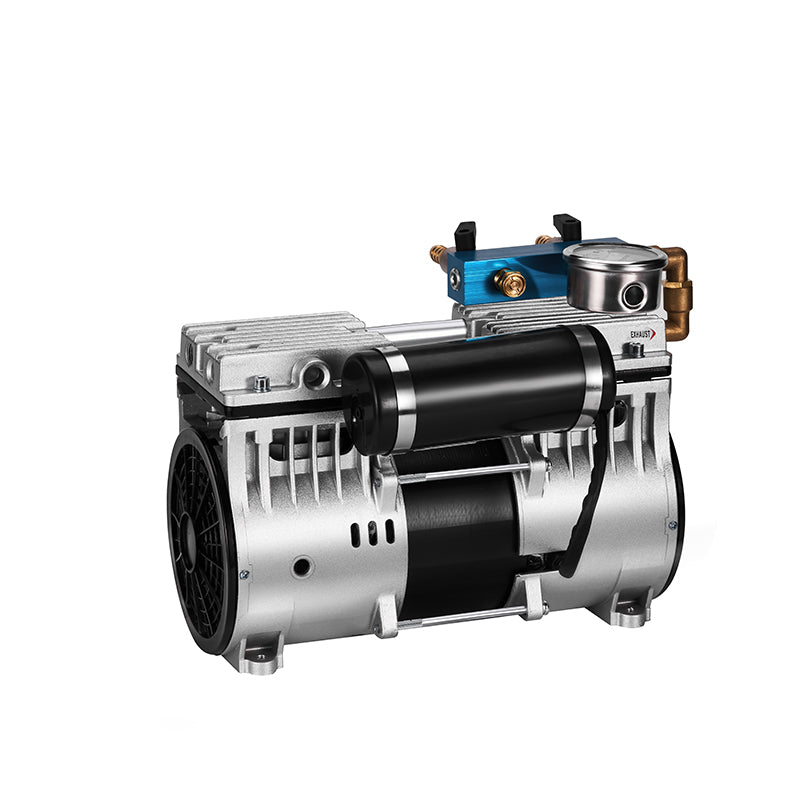

HC480A-1 Pond Aerator Pump | 500W AC, 2-Acre Coverage

A homeowner in a warm climate whose 1-acre retention pond emits foul odors in summer faces a frustrating challenge as temperatures rise. Heat rapidly accelerates organic decay, while stagnant, unmoving water traps toxic gases and breeds mosquitoes, turning a once-beautiful water feature into a neighborhood nuisance. Surface fountains might look attractive, but they only agitate the top few inches of water, leaving the toxic sludge completely undisturbed at the bottom. To properly address severe odor and muck accumulation, you need high-volume, deep-water circulation that reaches the pond floor and infuses the entire water column with life-sustaining oxygen. The HC480A-1 provides exactly this level of deep-water intervention.

Why Choose the HC480A-1

• High-Efficiency Power: Consumes ≤500W while operating on standard 110V/60Hz or 220V/50Hz AC mains power.
• Expansive Coverage: Effectively aerates water bodies up to 2 acres in size.
• Deep Water Capability: Pushes air to an impressive maximum diffuser depth of 65 feet.
• Multi-Point Distribution: Supports 4 diffusers for even oxygenation across complex pond shapes.
• Thermal Protection: Built-in safety shutoff at 145±5℃ prevents motor damage during continuous operation.
• Oil-Free Operation: Environmentally safe compression ensures zero contamination for fish and plants.

How Bottom Aeration Works

Bottom aeration relies on a powerful onshore air compressor pumping high volumes of air through weighted tubing to diffusers resting securely on the pond floor. As millions of tiny micro-bubbles escape the EPDM rubber membranes and rise to the surface, they create a strong, continuous upward current. This vertical current effectively breaks the thermocline, mixing cold, oxygen-depleted bottom water with warmer, oxygen-rich surface water. This constant, gentle circulation vents harmful, foul-smelling gases like ammonia and hydrogen sulfide into the atmosphere before they can harm aquatic life. Simultaneously, the drastically increased oxygen levels at the bottom of the pond supercharge beneficial aerobic bacteria. These hungry bacteria rapidly digest accumulated organic muck, dead leaves, and fish waste, preventing future sludge buildup and naturally improving overall water quality without the use of harsh chemicals.

Ideal Applications for the HC480A-1

The HC480A-1 is specifically designed for medium-to-large residential, commercial, and agricultural water bodies covering up to 2 acres. It excels in neighborhood retention ponds, private fishing lakes, and golf course water hazards where maintaining excellent water quality and preventing algae blooms is paramount. Because this powerful compressor pushes air down to 65 feet and supports 4 separate diffuser assemblies, it is highly effective for irregularly shaped lakes, long canals, or ponds with varying depth zones that require targeted oxygenation. Aquaculture facilities and commercial fish hatcheries raising high-density populations of bass, trout, or tilapia also benefit greatly from the consistent, high-volume dissolved oxygen delivery. This reliable aeration promotes healthy fish growth rates, supports higher stocking densities, and actively prevents devastating winter fish kills by keeping a continuous hole open in the ice during freezing months.

Technical Specifications

Frequently Asked Questions

Q: Can the HC480A-1 compressor sit outside in the elements?

A: While the HC480A-1 is built for continuous outdoor operation in temperatures ranging from -5 to 40℃, the compressor unit itself must be housed in a protective, ventilated cabinet. This protects the 110V/220V electrical components from direct rain and extends the lifespan of the motor.

Q: How do I position the 4 diffusers in a 2-acre pond?

A: For optimal circulation, space the 4 diffusers evenly across the deepest sections of your pond. Since this 500W unit can push air down to 65 feet, placing the EPDM rubber diffusers in the deepest zones ensures maximum water column mixing and oxygen transfer as the bubbles rise to the surface.

Q: Will this 500W AC pump cost a lot to run continuously?

A: The HC480A-1 is highly efficient, drawing only 4.54 Amps on the 110V model (and 2.27 Amps on 220V). Running it 24/7 is generally very economical compared to running large surface fountains, and it provides vastly superior bottom-to-top circulation for your 2-acre lake.
