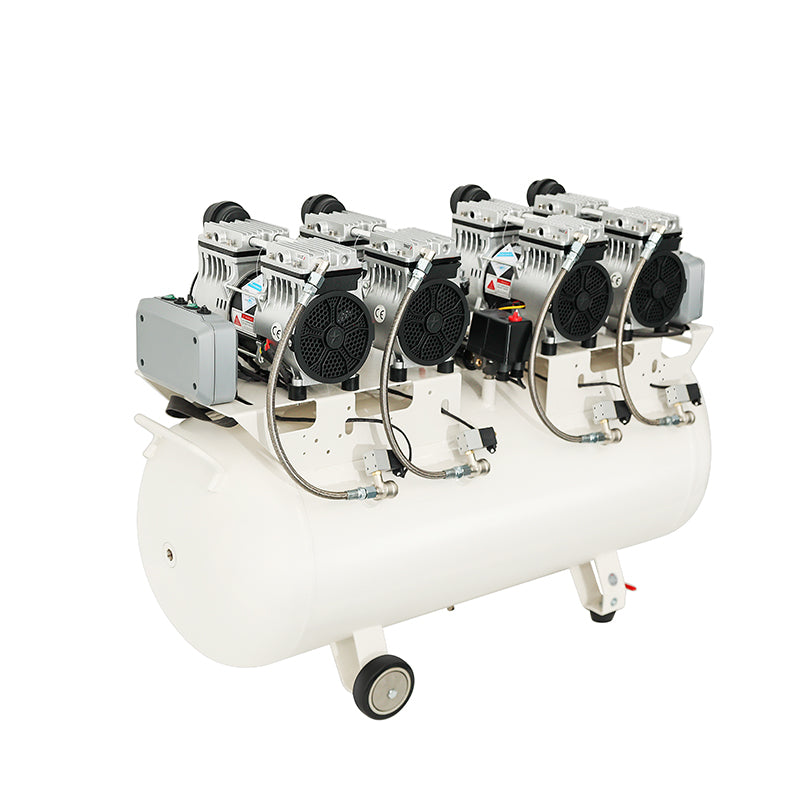

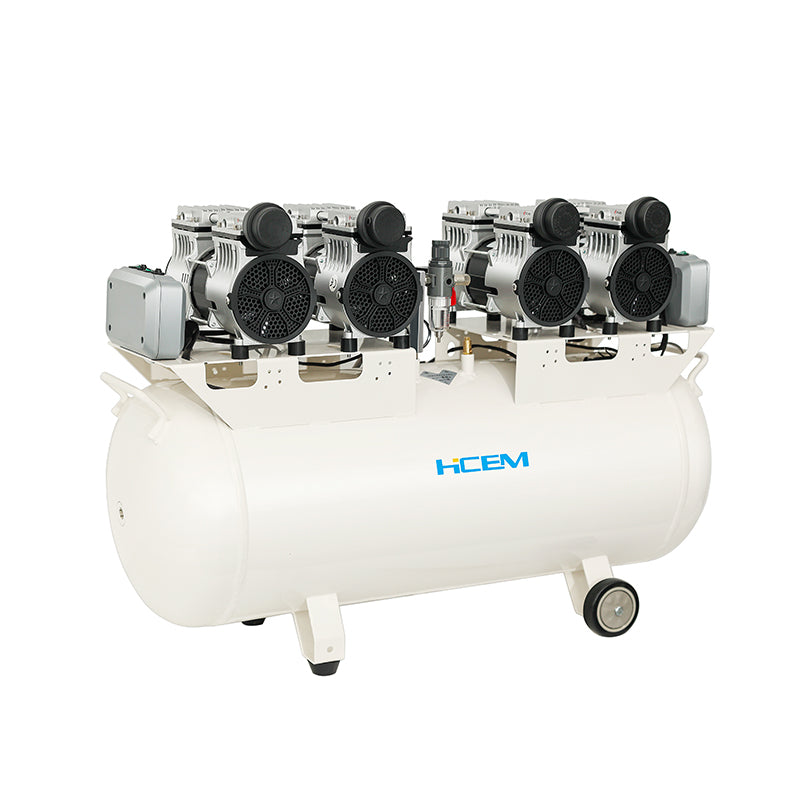

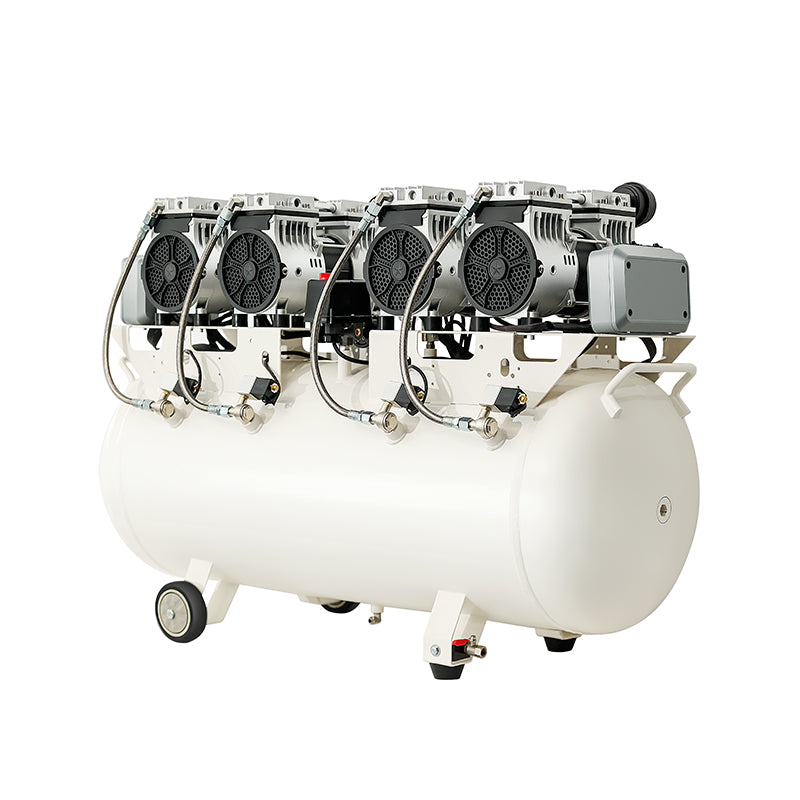

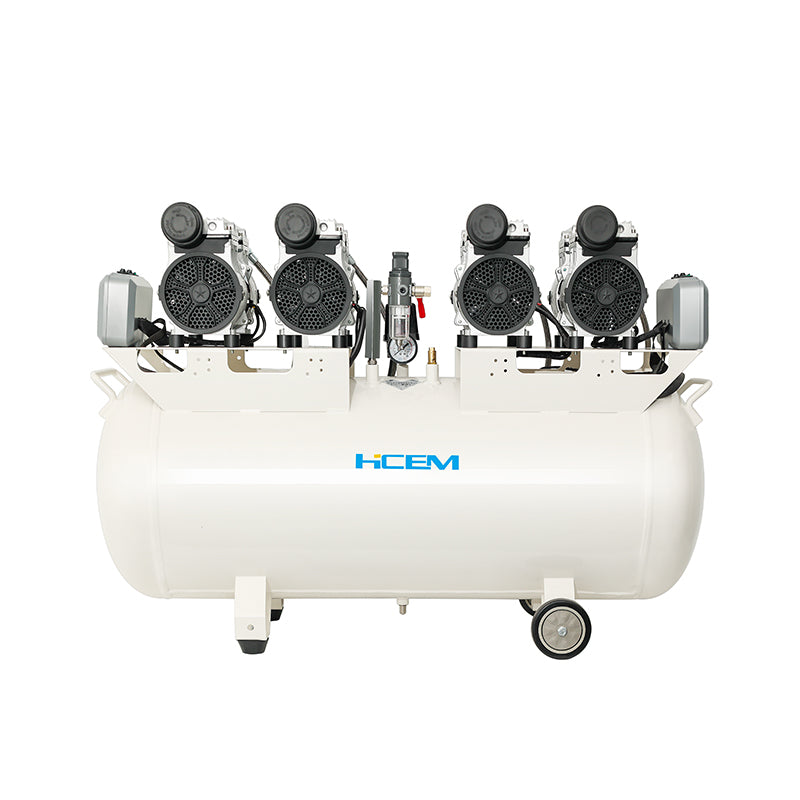

HC4804-HC5804

Why Choose the HC4804-HC5804

A semiconductor packaging facility in Suzhou was experiencing intermittent die-attach failures on their wire bonding line. Contamination analysis traced the defects to sub-micron oil particles in the pneumatic pick-and-place system air supply — particles small enough to pass through their existing 0.3-micron filters. The source was backstreaming from an oiled rotary vane pump three rooms away, carried through the facility air distribution manifold. Replacing the central supply with HC4804-HC5804 four-cylinder oilless units at each work cell eliminated the contamination path entirely. Defect rate dropped from 340 PPM to below 12 PPM within one week.

Why This Model — Not Another

The four-cylinder configuration delivers maximum flow capacity in the HC series lineup, making it the choice for applications requiring high sustained airflow to multiple simultaneous consumers. In semiconductor fabs, each pick-and-place head, each pneumatic actuator, and each vacuum chuck draws from the same supply. The HC4804-HC5804 four pistons provide enough instantaneous capacity to handle simultaneous demand spikes from 6-8 pneumatic devices without pressure sag. More critically, the completely oil-free air path eliminates the single largest contamination risk in precision manufacturing — hydrocarbon backstreaming that no filter can fully prevent.

Frequently Asked Questions

Why use point-of-use compressors instead of a central system in semiconductor fabs?

Central compressed air systems distribute contamination from any single failure point to every connected tool. A leaking oil seal on one compressor in a central plant contaminates the entire distribution network. Point-of-use HC4804-HC5804 units isolate each work cell — a failure affects only one station, not the entire production floor. This architecture also eliminates 200-500 meters of distribution piping where moisture and particulates accumulate.

What cleanliness class does the HC4804-HC5804 output achieve?

Direct output without additional filtration meets ISO 8573-1 Class 1.2.1 (particles/moisture/oil). With a single-stage 0.01-micron point-of-use filter, output reaches Class 1.1.0 — suitable for direct contact with exposed die surfaces during wire bonding and flip-chip processes.

How does four-cylinder design handle simultaneous multi-tool demand?

Each cylinder delivers independently, and the 90-degree firing interval means at least one cylinder is always in its power stroke. When 6-8 pneumatic tools activate simultaneously (common during automated lot transitions), the four-cylinder design maintains rated pressure within 0.03 bar — versus 0.15-0.3 bar sag typical of single or dual-cylinder units under the same transient load.

Under normal operating conditions, the HC4804-HC5804 delivers 10,000 to 50,000 hours of service life depending on ambient conditions and duty cycle. The oil-free design eliminates carbon buildup that typically shortens the life of oiled compressors.
