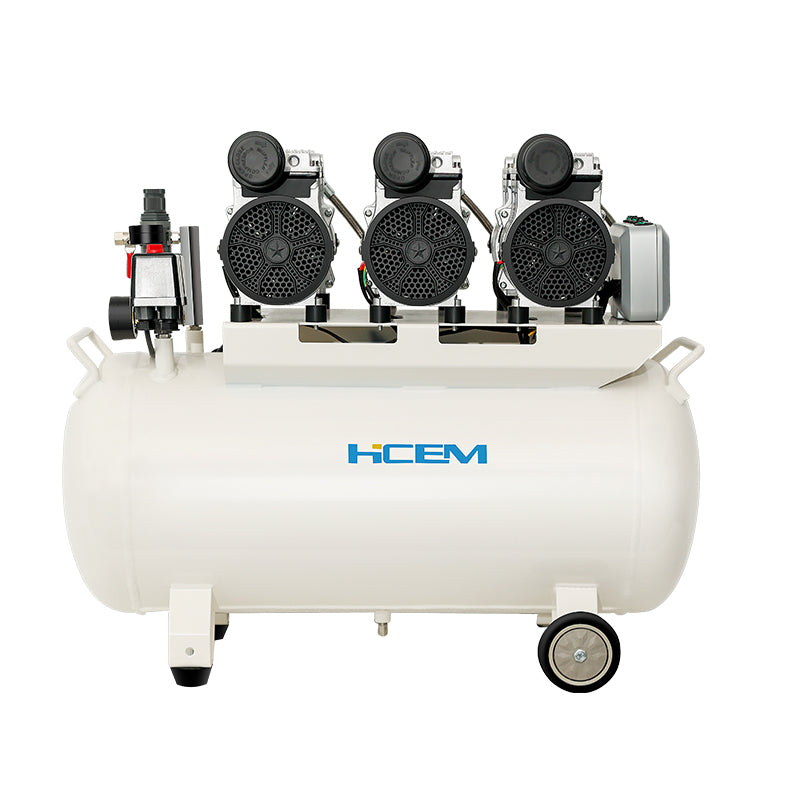

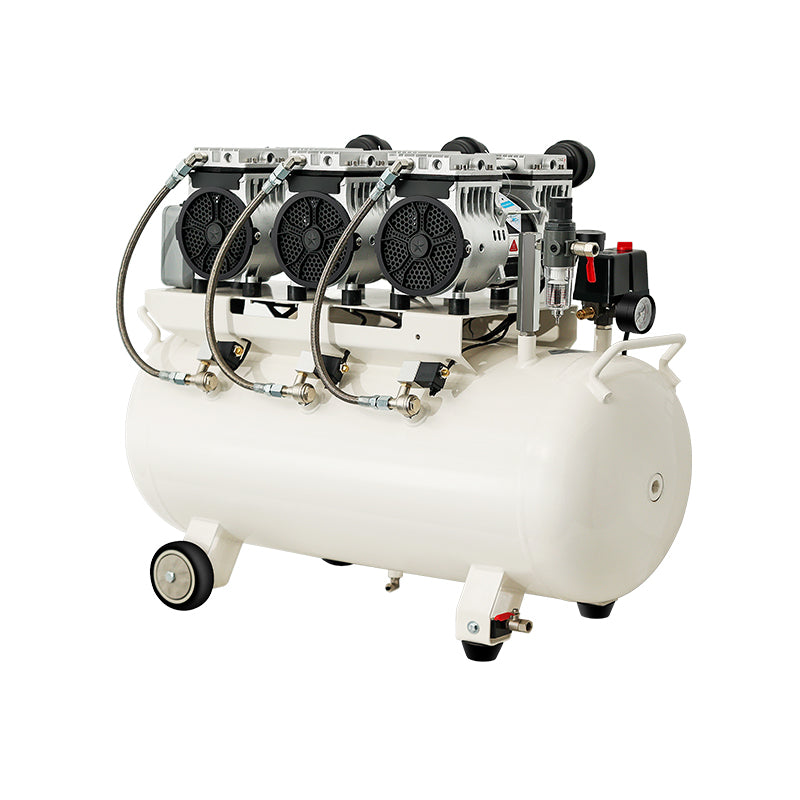

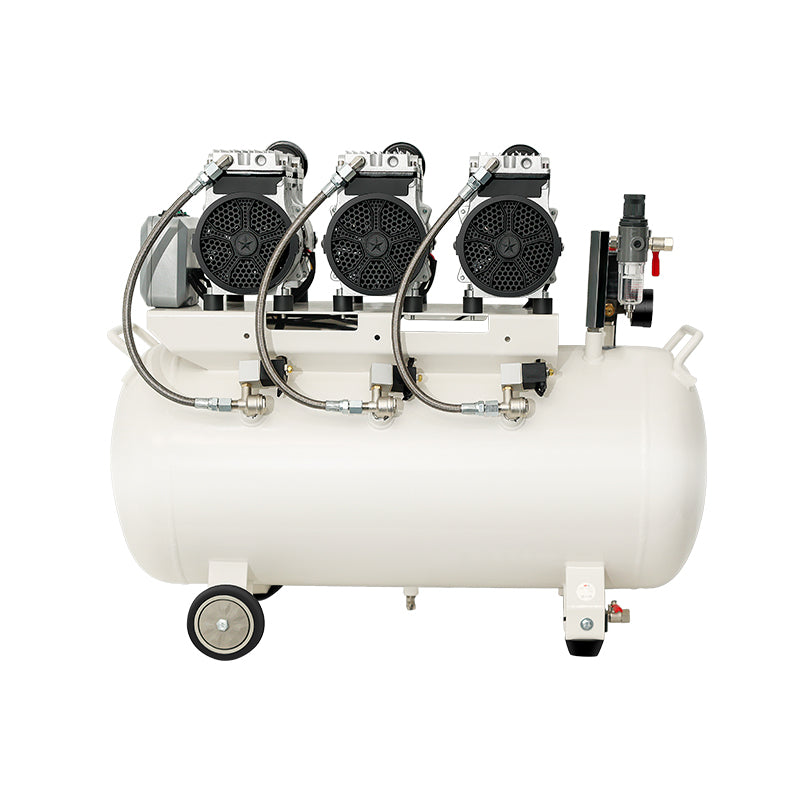

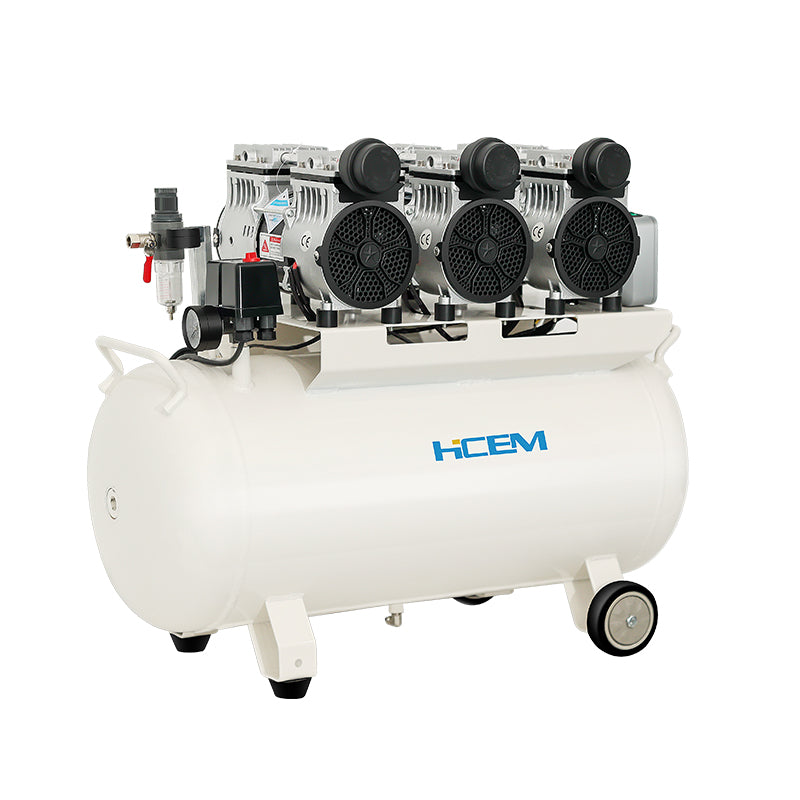

HC4803-HC5803

Why Choose the HC4803-HC5803

A custom auto body shop in Dongguan was struggling with orange peel texture on metallic finishes. Their spray technician blamed the paint viscosity, but the real culprit was pressure pulsation from their twin-cylinder compressor. Each piston stroke created a micro-surge that varied atomization particle size by 8-12%, visible as texture inconsistency on large flat panels like hoods and doors. After installing the HC4803-HC5803 three-cylinder unit, pressure variation dropped below 2%, and the shop achieved consistent Class A finishes on the first pass — eliminating an average of 1.5 hours of wet-sanding per vehicle.

Why This Model — Not Another

Three cylinders firing at 120-degree intervals produce the smoothest pressure curve available in a piston-type compressor. For automotive spray painting, where atomization quality depends directly on supply pressure stability, this translates to uniform droplet size and consistent film build across large panels. The HC4803-HC5803 maintains +/-0.05 bar stability at rated flow — tight enough for waterborne basecoats that are notoriously sensitive to application pressure. Unlike rotary screw compressors that offer similar stability, this unit requires no oil separation system and produces zero oil aerosol that could contaminate the paint booth air.

Frequently Asked Questions

Why does pressure pulsation affect paint finish quality?

Spray guns atomize paint by shearing the liquid stream with high-velocity air. When supply pressure fluctuates, atomization energy varies stroke-to-stroke, producing alternating fine and coarse droplets. On metallic finishes, this creates visible banding as aluminum flakes orient differently in thick vs. thin areas. The HC4803-HC5803 three-phase output eliminates this variation.

What booth size can the HC4803-HC5803 support?

A single unit supports one active spray station with a standard HVLP gun consuming 300-400 L/min at 2 bar. For dual-booth operations or high-volume shops running two painters simultaneously, pair two units or step up to the HC4804-HC5804 four-cylinder model.

How does oil-free operation benefit a paint booth environment?

Any oil vapor in booth air creates fisheye defects in the paint film — circular craters where paint cannot wet the contaminated surface. Traditional oiled compressors require multi-stage filtration (coalescing + activated carbon + final particulate) that adds $800-1200/year in filter costs and still carries residual risk. The HC4803-HC5803 eliminates this contamination source entirely.

Under normal operating conditions, the HC4803-HC5803 delivers 10,000 to 50,000 hours of service life depending on ambient conditions and duty cycle. The oil-free design eliminates carbon buildup that typically shortens the life of oiled compressors.
