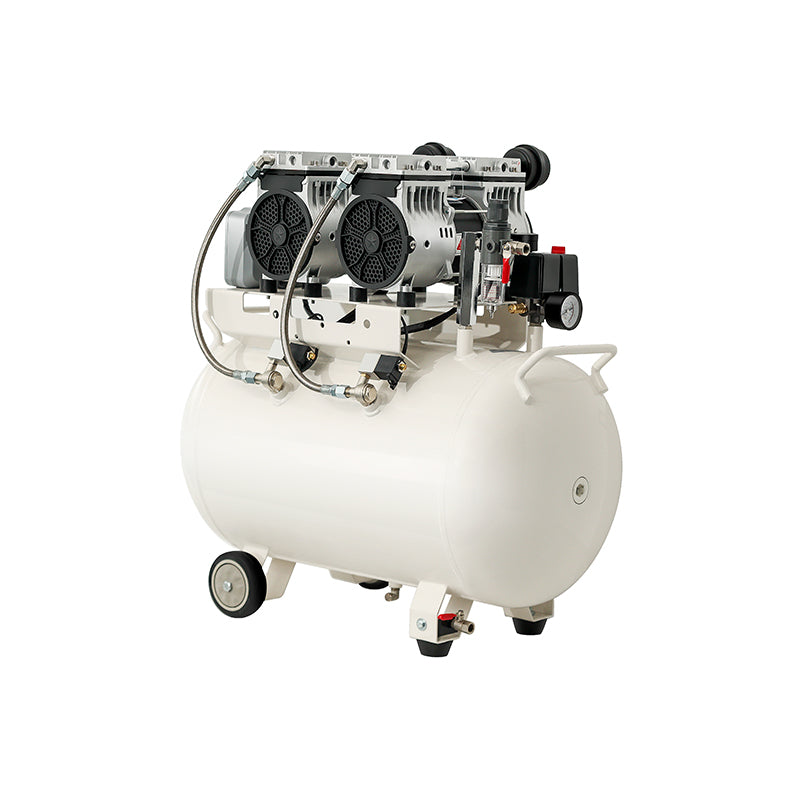

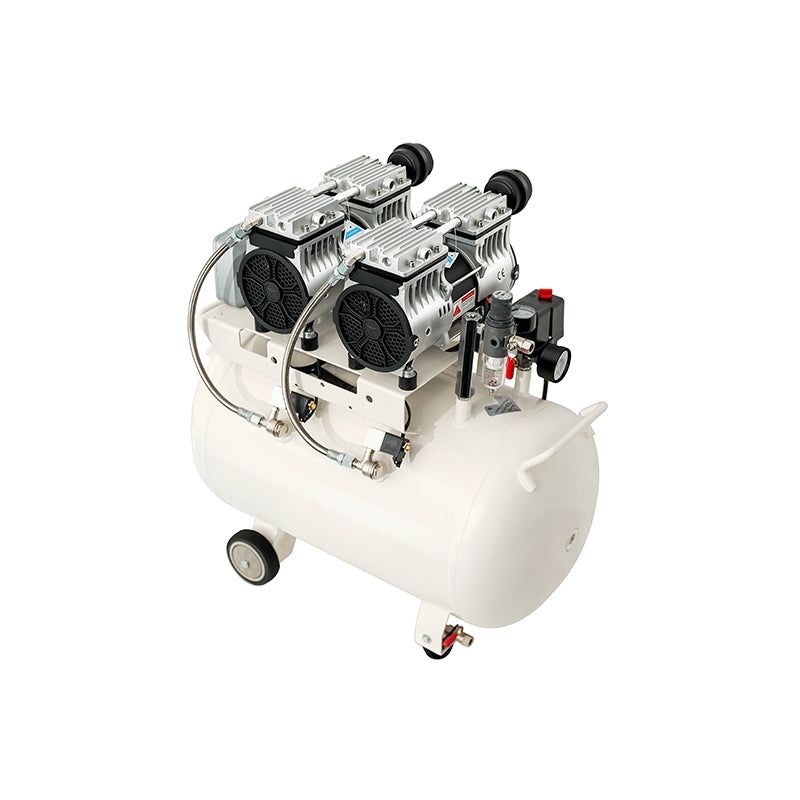

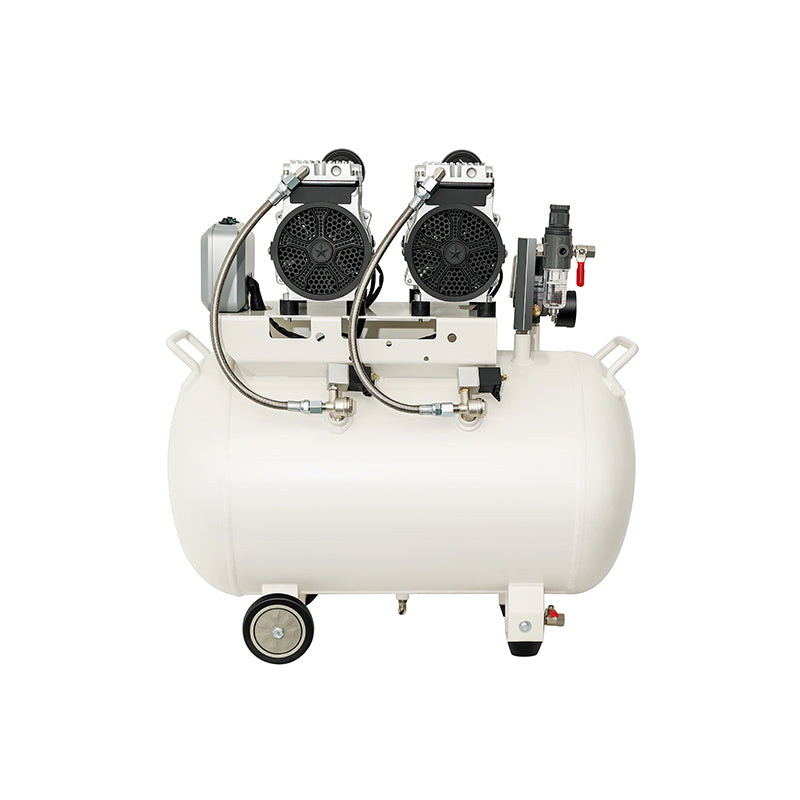

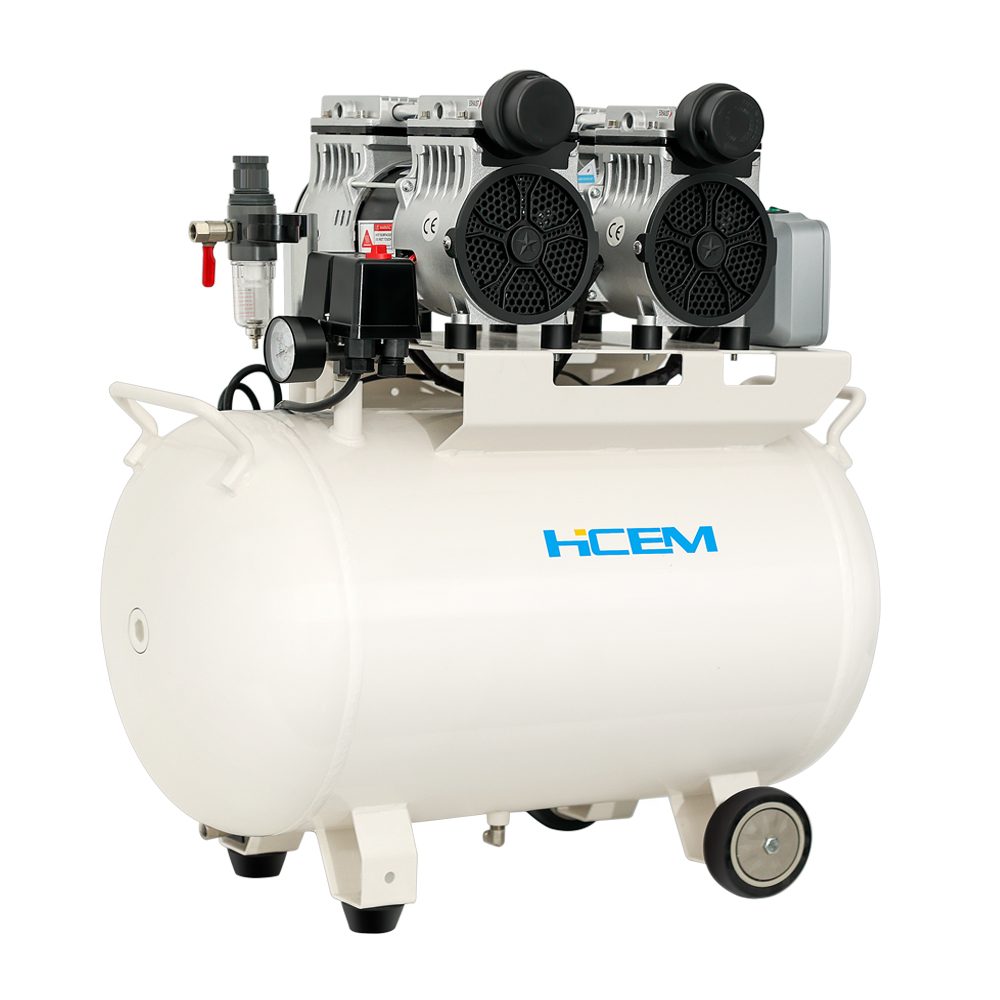

HC4802-HC5802

Why Choose the HC4802-HC5802

A snack food manufacturer in Guangzhou was experiencing 3-4 unplanned line stops per week on their nitrogen-flush packaging system. The root cause: their aging oiled compressor delivered inconsistent pressure during peak demand, causing the MAP (Modified Atmosphere Packaging) sealer to reject packs due to insufficient gas displacement. Each rejected batch meant 200kg of product rerouted to discount channels. The HC4802-HC5802 dual-cylinder design solved this by delivering constant, pulse-dampened airflow even during simultaneous operation of the flushing station and the carton erector.

Why This Model — Not Another

The dual-cylinder configuration provides inherently smoother pressure delivery than single-cylinder alternatives. In food packaging, pressure fluctuations of even 0.2 bar can cause seal failures or incomplete nitrogen displacement. The HC4802-HC5802 two pistons operate 180 degrees out of phase, canceling each other's pressure pulses and delivering near-constant output. This makes it ideal for MAP packaging, vacuum sealing, and pneumatic conveyor systems where pressure stability directly affects product quality and line uptime.

Frequently Asked Questions

How does dual-cylinder design prevent packaging seal failures?

The two pistons fire alternately (180-degree offset), producing overlapping pressure waves that sum to a nearly flat output curve. Single-cylinder pumps produce a sawtooth pressure pattern with 15-20% variation between strokes. For MAP sealers that require +/-0.1 bar consistency, this difference eliminates the primary cause of seal rejects.

Is the HC4802-HC5802 food-safe for direct product contact?

The oil-free design means zero risk of hydrocarbon contamination in the air stream. The output air meets ISO 8573-1 Class 0 for oil content. For applications where compressed air contacts food directly (nitrogen displacement, pneumatic sorting), this eliminates the need for downstream oil removal filters and their associated maintenance.

What throughput can this unit support on a packaging line?

At rated output, the HC4802-HC5802 supports packaging lines running up to 60 cycles per minute with standard MAP sealing heads. For higher-speed lines (80-120 cpm), consider the HC4803-HC5803 triple-cylinder model which provides 50% more instantaneous flow for burst demand during rapid seal-and-release cycles.

Under normal operating conditions, the HC4802-HC5802 delivers 10,000 to 50,000 hours of service life depending on ambient conditions and duty cycle. The oil-free design eliminates carbon buildup that typically shortens the life of oiled compressors.
