HC280D-SCAB Pond Aerator Pump | 350W DC Solar, 2-Acre

Picture the devastating loss of fish dying in summer due to low dissolved oxygen in a shallow 0.5-acre pond. When water stagnates under the hot sun, it quickly loses its ability to hold oxygen, suffocating aquatic life and causing massive die-offs. Without proper circulation, bottom sludge accumulates, foul odors develop, and the entire ecosystem suffers. The HC280D-SCAB offers a completely off-grid solution to prevent these disasters, ensuring your fish thrive even in the harshest heat.

Why Choose the HC280D-SCAB

• Powered by a high-efficiency 350W DC24V compressor for reliable off-grid aeration.
• Includes 2 weighted EPDM rubber membrane diffusers for maximum oxygen transfer.
• Provides complete bottom-to-top water column circulation for up to 2 acres of coverage.
• Features a massive 230Ah Lithium Iron Phosphate (LFP) battery for 20+ hours of daily operation.

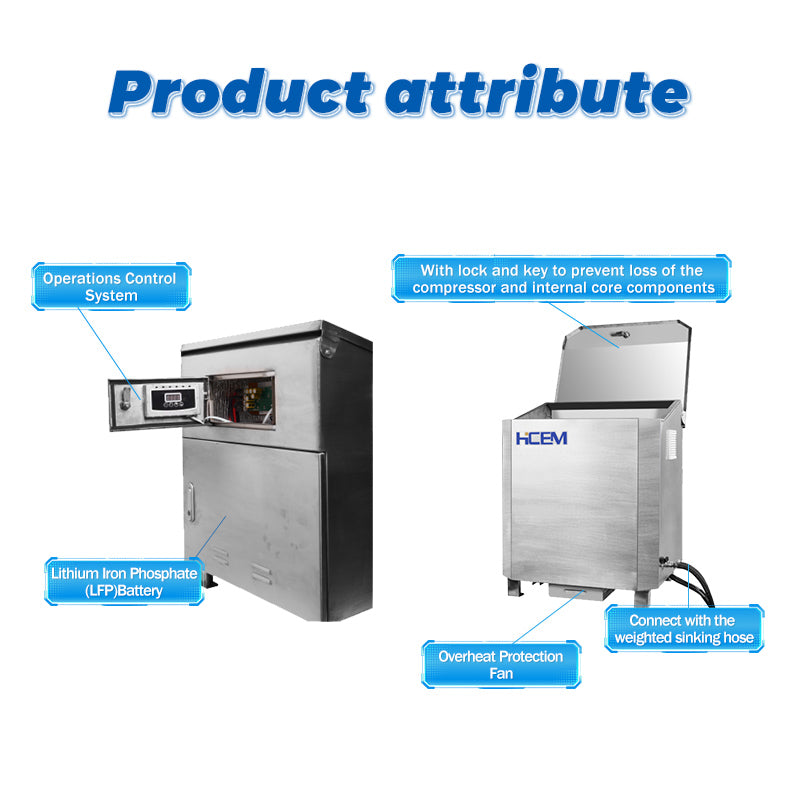

• Housed in a weather-resistant 304 stainless steel cabinet with an active heat dissipation cooling system.

How Bottom Aeration Works

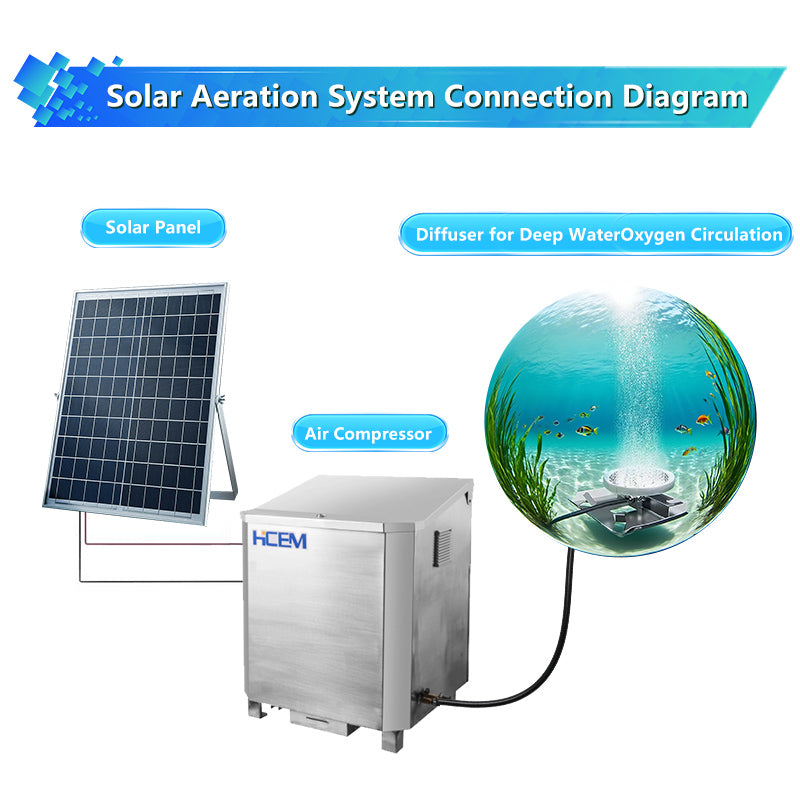

The system pushes compressed air through weighted tubing down to the EPDM rubber membrane diffusers resting on the lake floor. These diffusers release millions of micro-bubbles that rise rapidly to the surface, breaking the thermal stratification known as the thermocline. This action constantly mixes deep, oxygen-depleted water with the highly oxygenated surface layer. This continuous circulation supports populations of beneficial aerobic bacteria, which actively digest accumulated bottom muck, fish waste, and organic debris. Furthermore, the rising column of bubbles carries harmful dissolved gases, such as ammonia and hydrogen sulfide, safely venting them out of the water column and into the atmosphere before they can reach toxic levels.

Ideal Applications for the HC280D-SCAB

This all-in-one solar aeration system is specifically designed for remote ponds and lakes where traditional grid power is completely unavailable or prohibitively expensive to trench. With its powerful 350W DC compressor and dual-diffuser setup, it easily manages aquatic environments ranging from a shallow 0.5-acre pond up to a 2-acre lake. It provides critical life support for high-density aquaculture operations, remote koi breeding facilities, and private recreational fishing lakes. Because it operates on a massive 230Ah built-in lithium battery, it offers highly reliable overnight oxygenation. This is especially crucial for preventing fish kills during the vulnerable early morning hours when aquatic plant respiration causes dissolved oxygen levels to drop to their absolute lowest point.

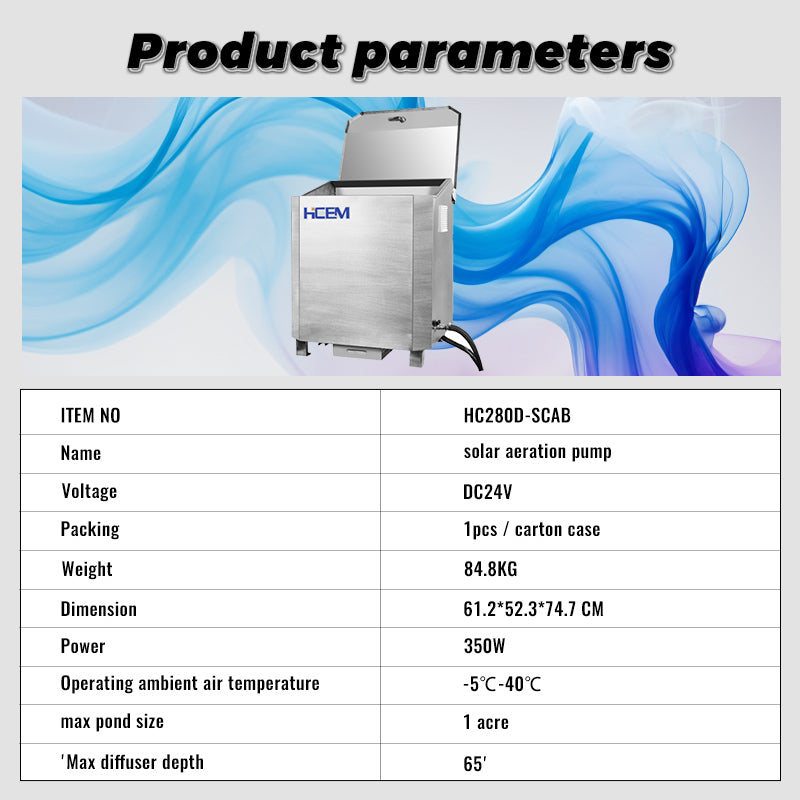

Technical Specifications

Frequently Asked Questions

Does the HC280D-SCAB system come with the required solar panels?

No, the solar panels must be sourced separately. To fully charge the integrated 230Ah lithium battery and run the 350W compressor simultaneously during the day, you will need a solar panel array with a minimum power capacity of 1650W. This ensures the system captures enough solar energy even on partially cloudy days.

How does the 230Ah LFP battery handle nighttime aeration?

During daylight hours, your connected solar array powers the compressor directly while concurrently storing excess energy in the built-in 24V lithium iron phosphate (LFP) battery. Once the sun sets, the system's controller automatically switches to draw from this stored power, providing over 20 hours of total daily runtime to prevent dangerous overnight oxygen depletion.

Is the stainless steel cabinet safe to leave exposed to the elements?

Yes, the entire aeration unit is securely housed inside a heavy-duty 304 stainless steel cabinet designed specifically for permanent outdoor installation in off-grid environments. It features a specialized heat dissipation cooling system that actively protects the internal solar controller, lithium battery, and air compressor from overheating, ensuring maximum longevity even during intense summer heatwaves.
