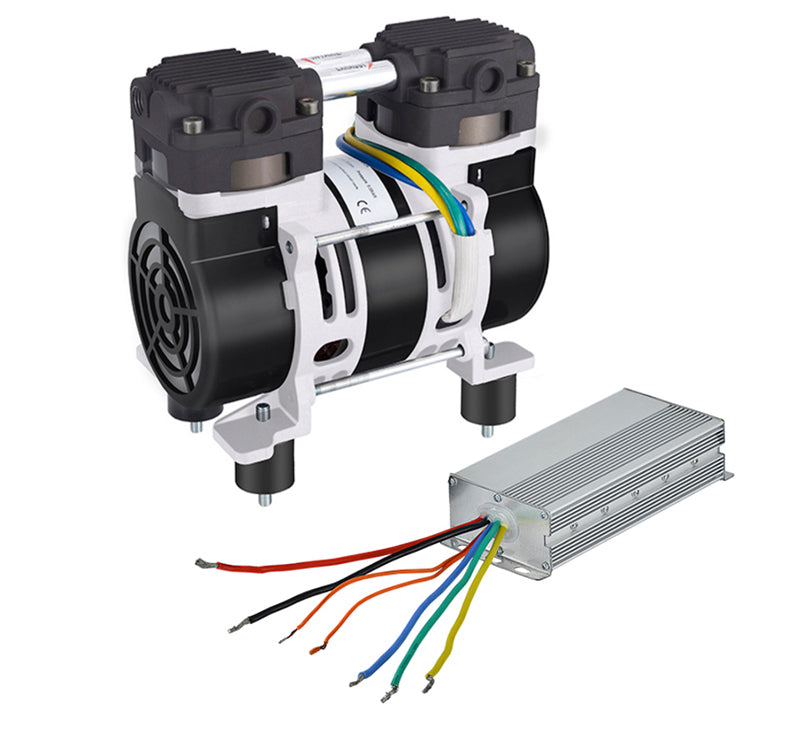

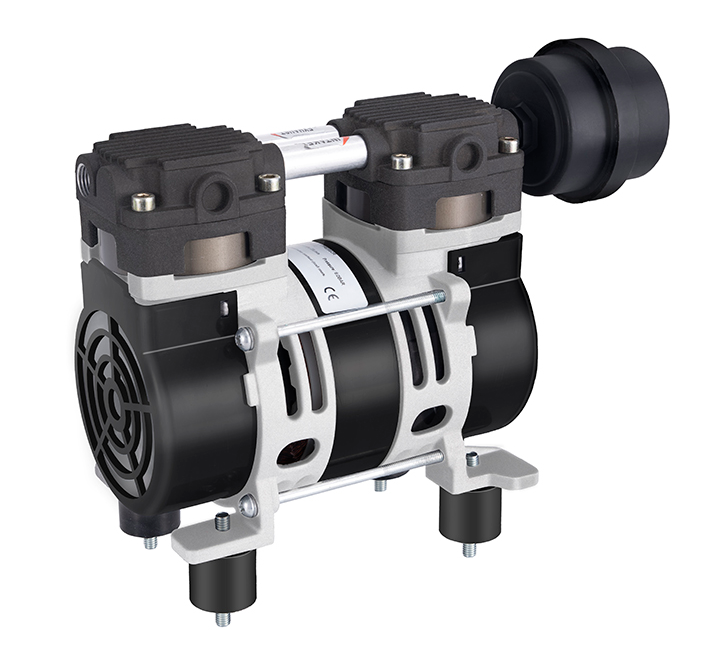

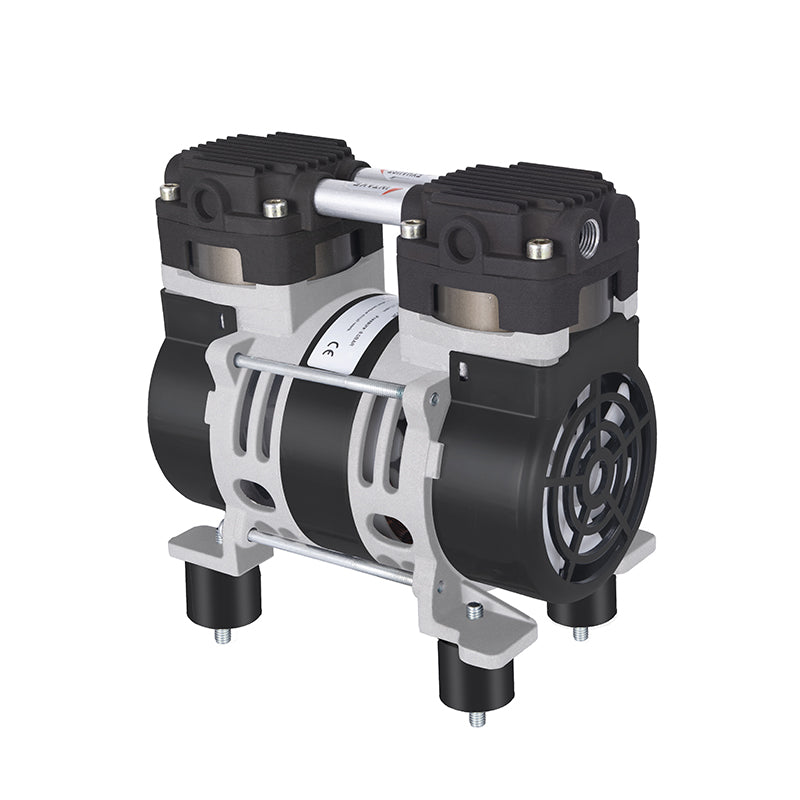

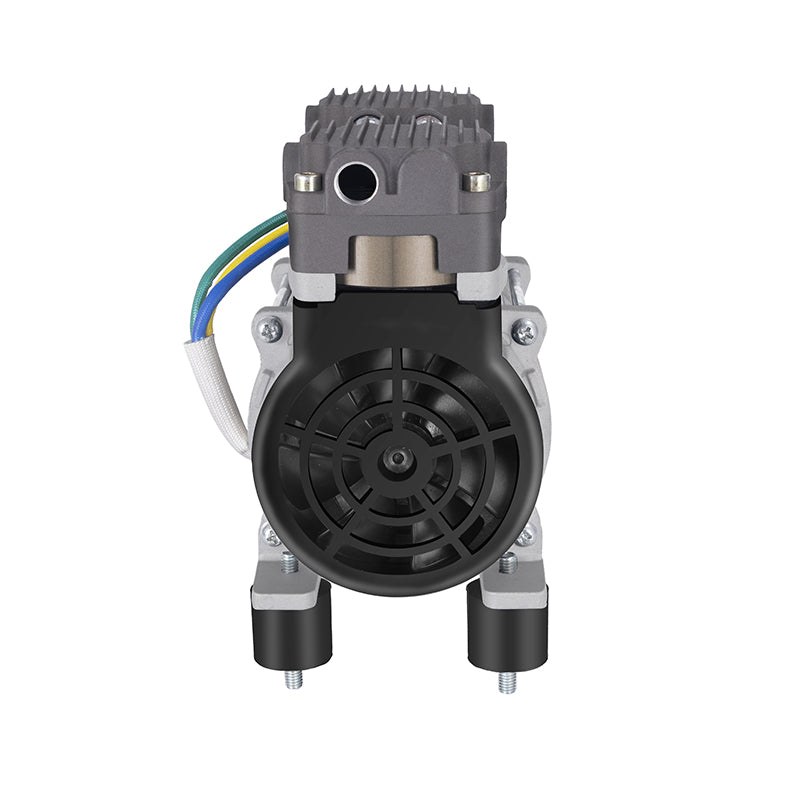

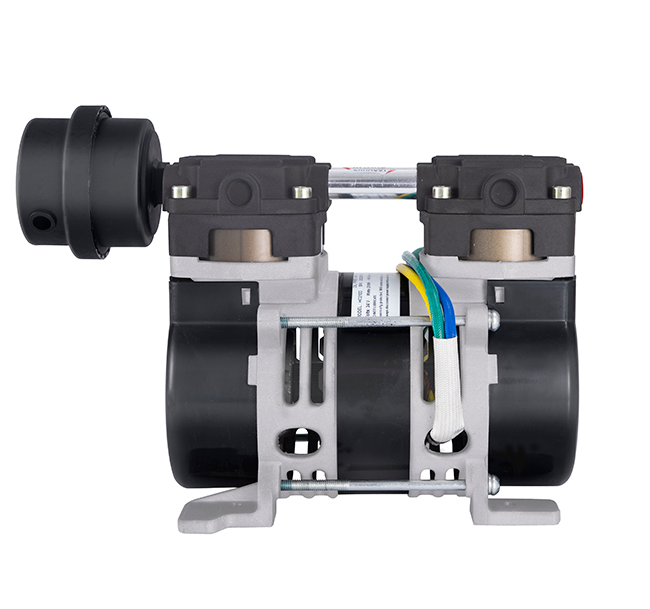

Why Choose the HC210DC Medical Oxygenation Pump
When a home care equipment manufacturer needing CE MDR-compliant pumps for portable oxygen devices evaluates pneumatic components, their primary focus is on continuous reliability and patient safety. The HC210DC medical oxygenation pump provides the exact specifications required to meet these clinical demands, offering a dependable, oil-free pneumatic core for life-supporting respiratory devices. By integrating this pump, OEM buyers can ensure a consistent medical-grade air supply while streamlining their own compliance and manufacturing processes.
- High-Flow Performance: Delivers a consistent air flow rate of ≥50L/min at a rated pressure of 140 Kpa, ensuring adequate pneumatic power for high-capacity oxygen concentrators.
- Optimized Power Consumption: Operates at 230W at rated pressure, providing efficient energy utilization across 12V, 24V, and 48V DC systems.
- Acoustic Control: Engineered for patient comfort with a noise output of ≤62dB(A), making it highly suitable for bedside hospital respiratory equipment.
- Continuous Operation: Designed for a continuous 24h duty cycle at 1700rpm, guaranteeing uninterrupted medical-grade air supply for critical care applications.
- Compact Integration: Features a space-saving footprint with dimensions of 177x98x150 mm and a standard installation size of 114x70mm, weighing just 3.1 kg.
- Strict Medical Compliance: Manufactured under ISO 13485 quality management and fully compliant with CE MDR 2017/745 regulations for medical devices.
- Clean Air Delivery: Utilizes a 100% oil-free compression mechanism, preventing hydrocarbon contamination in the patient air path.
Key Technical Specifications
| Specification | Value |
|---|---|
| Model Numbers | HC210C-50/1.4 (12V), HC210D-50/1.4 (24V), HC210E-50/1.4 (48V) |
| Head Configuration | Pressure parallel flow |
| Voltage | 12V / 24V / 48V DC |
| Noise Level | ≤62dB(A) |
| Power at Rated Pressure | 230W |
| Air Flow Rate | ≥50L/min @ 140 Kpa |
| Speed at Rated Pressure | 1700rpm |
| Dimensions (L x W x H) | 177 x 98 x 150 mm |
| Installation Size | 114 x 70 mm |
| Net Weight | 3.1 kg |
Applications & Industries
The HC210DC medical oxygenation pump is specifically engineered to serve as the primary pneumatic engine for high-capacity oxygen concentrators. In these devices, the pump forces ambient air through dense zeolite sieve beds to separate nitrogen from oxygen. The requirement for a continuous 24h duty cycle is critical in this application, as patients relying on oxygen therapy require an uninterrupted flow. With an output of ≥50L/min at a rated pressure of
Download the complete technical datasheet for specifications and performance curves.
