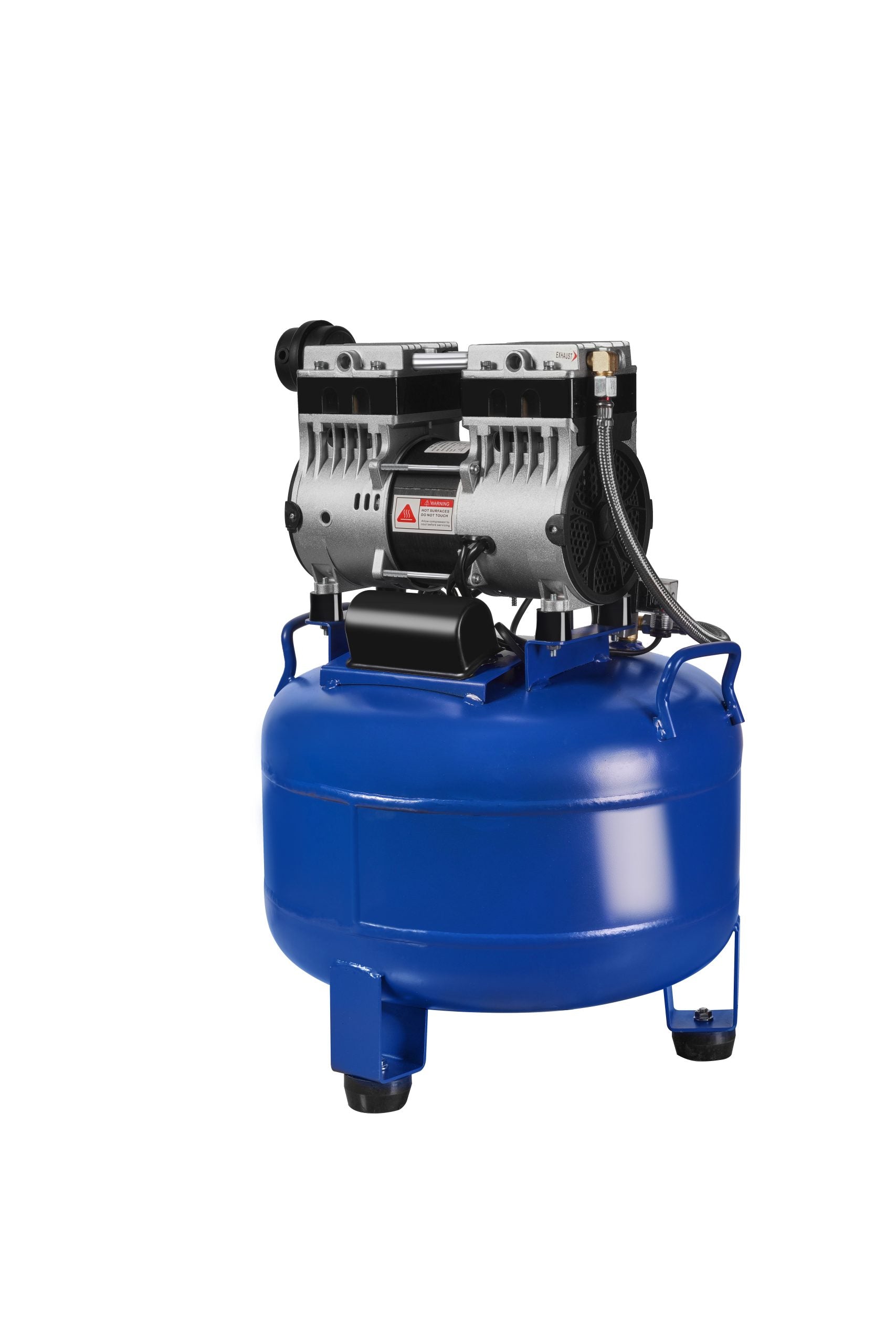

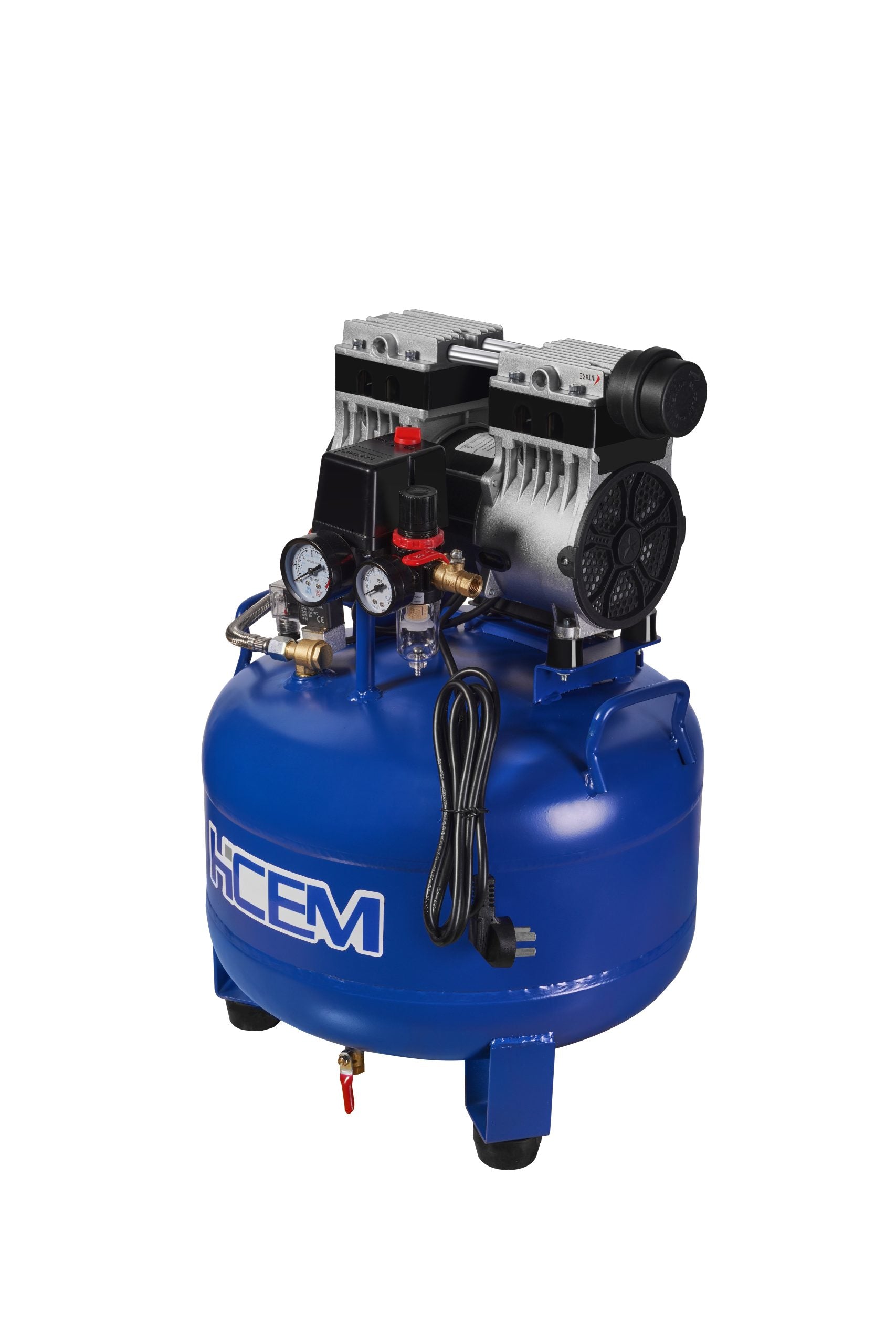

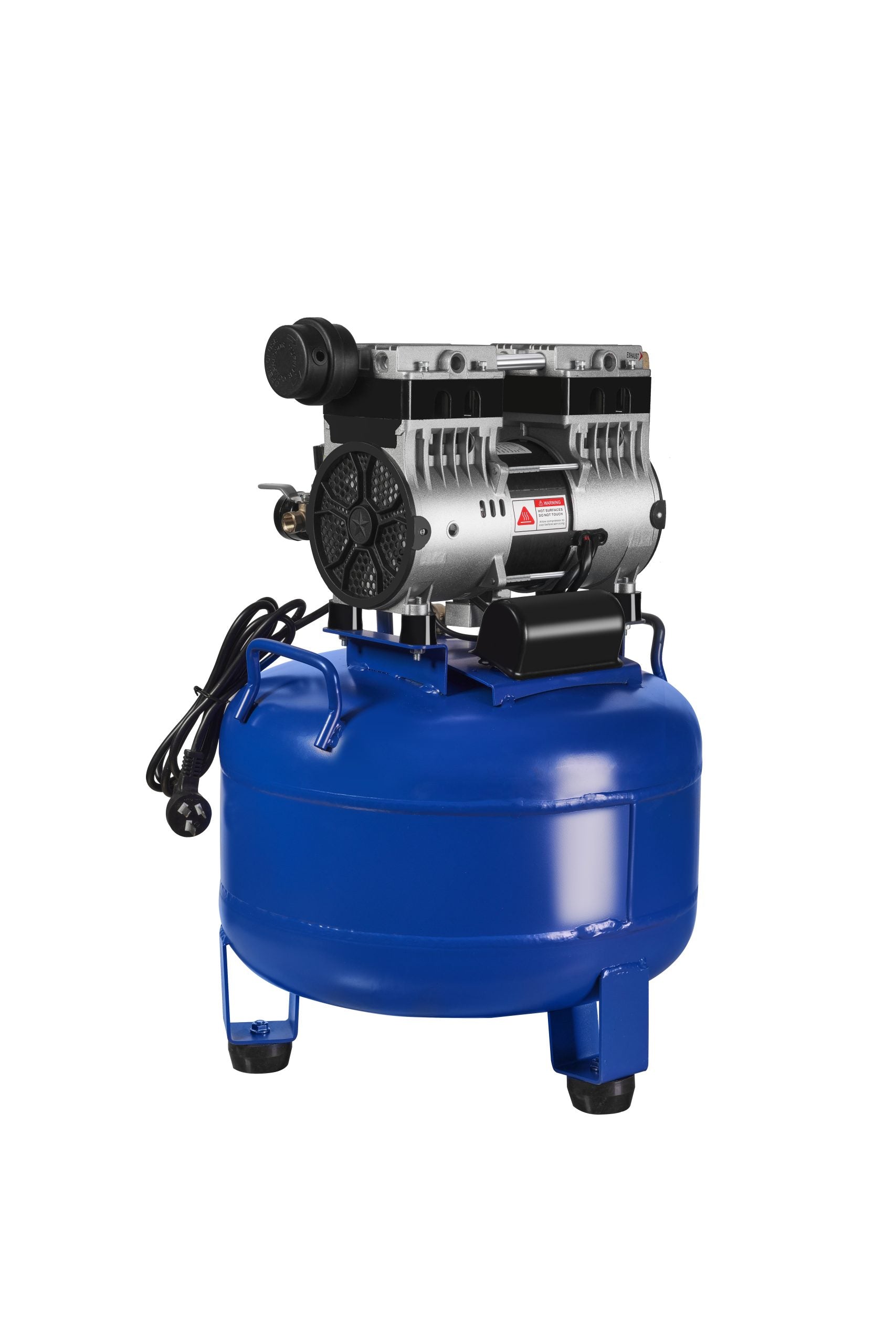

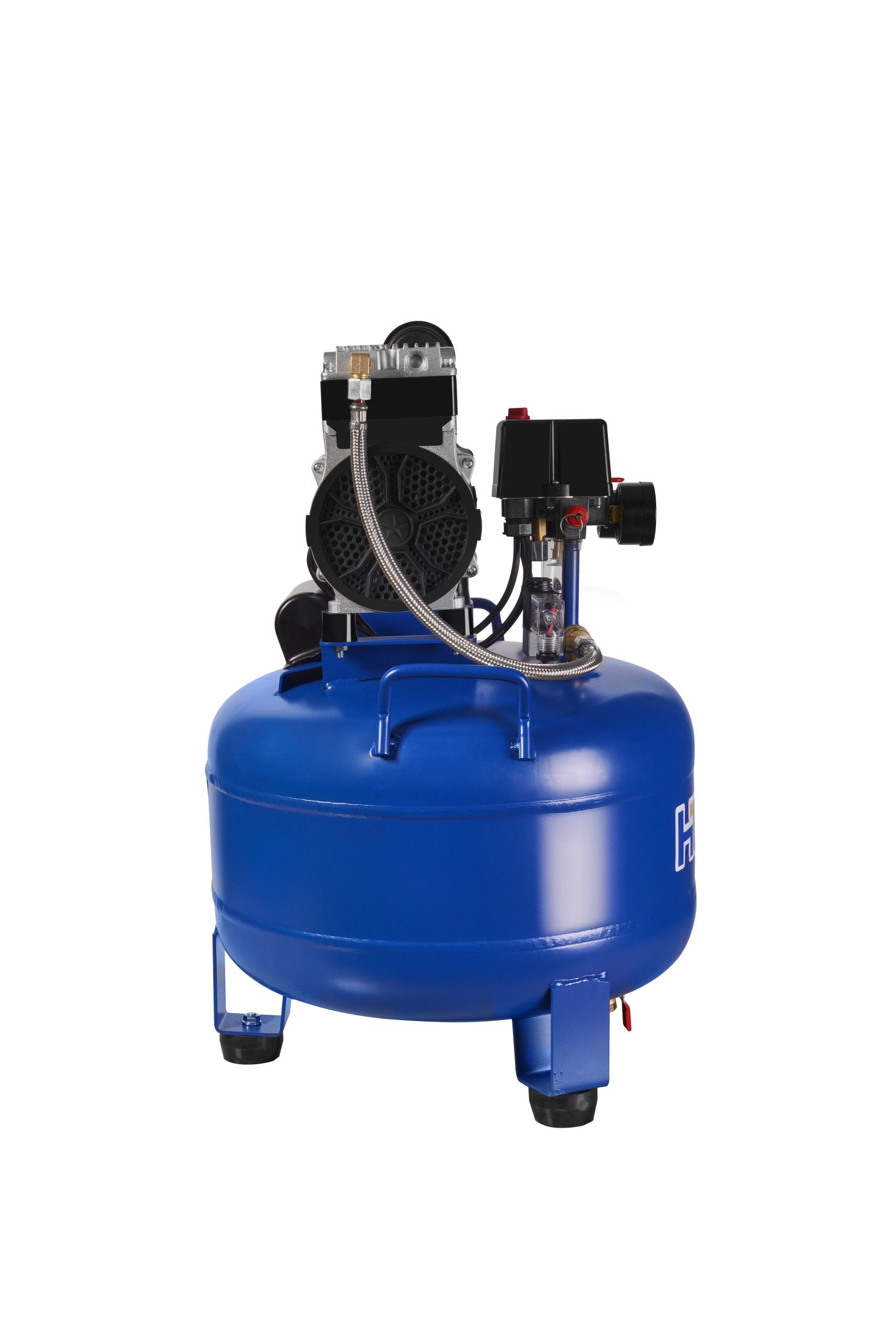

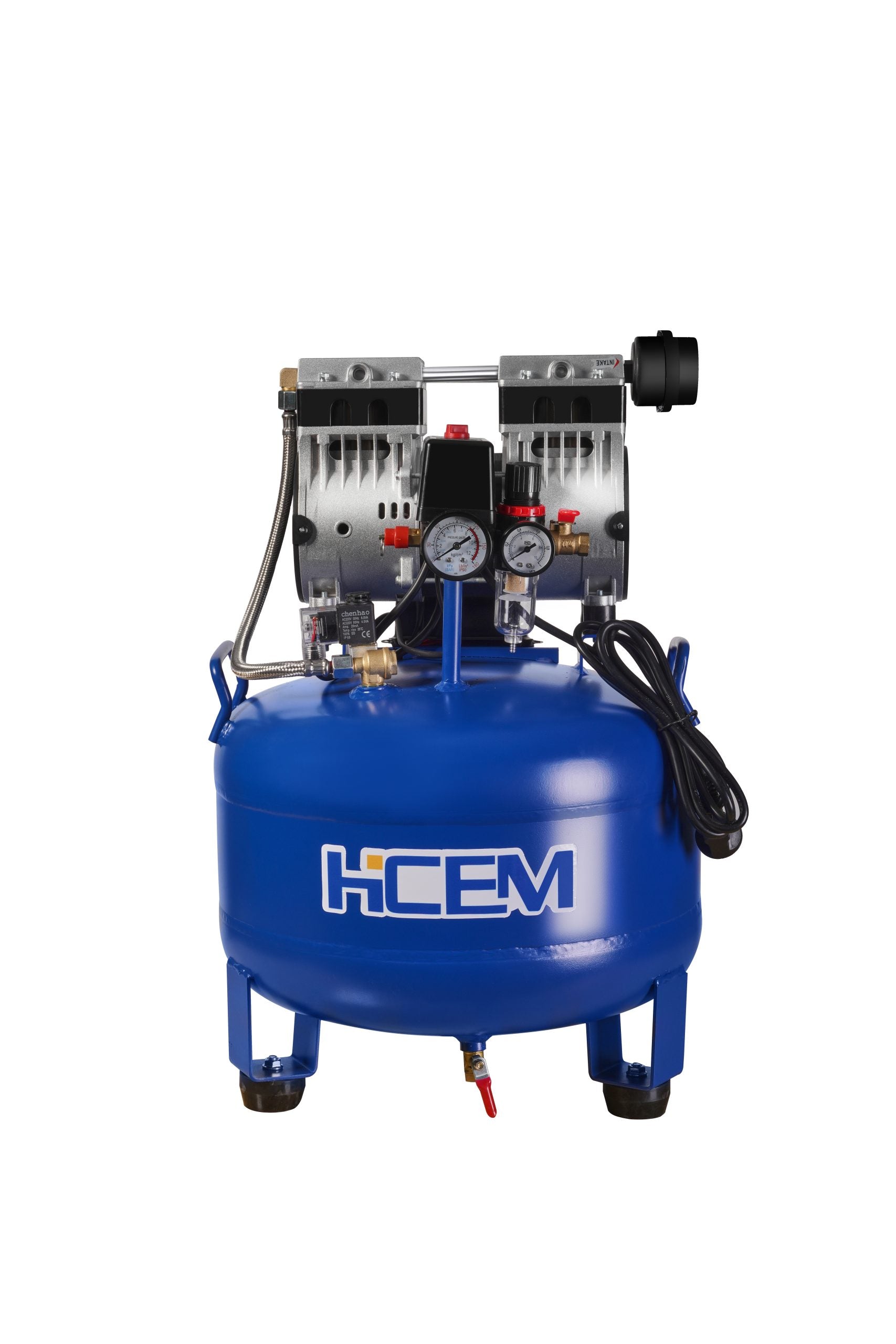

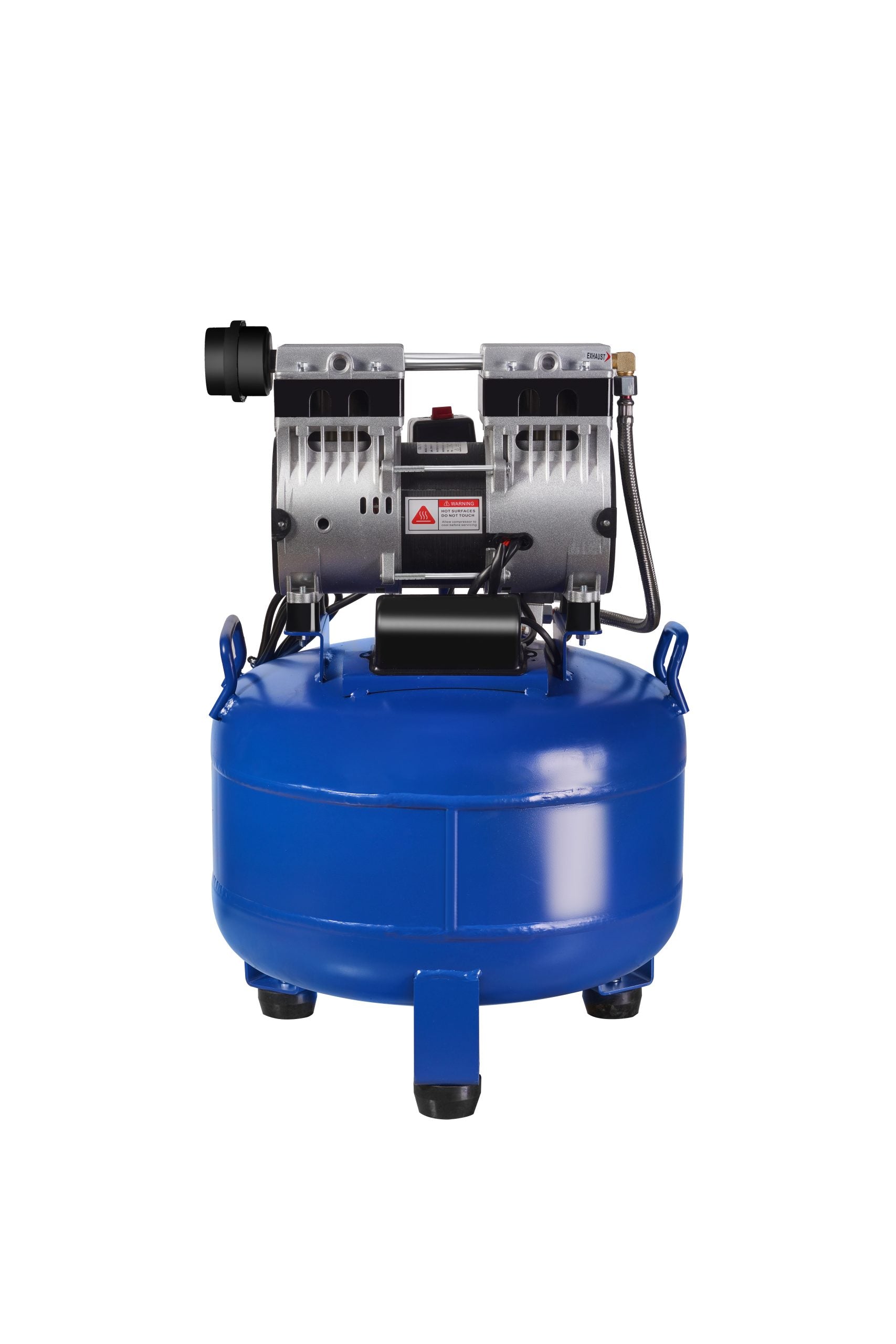

HC1524DM-HC1624DM

Why Choose the HC1524DM-HC1624DM

A 50MW solar farm in Ningxia needed compressed air for pneumatic panel-tilt actuators across 200 hectares of desert. Running AC power lines to each actuator cluster would cost $340,000 in trenching and cabling alone. The HC1524DM-HC1624DM DC-powered units connect directly to the local panel string DC bus (48V nominal), eliminating inverters, AC wiring, and the associated 12-18% conversion losses. Each unit serves a cluster of 40 tracking actuators, adjusting panel tilt 4 times daily. Total installation cost dropped 72% versus the AC alternative, and the system has operated maintenance-free for 14 months in desert conditions.

Why This Model — Not Another

The DM (DC Motor) series accepts 24-48V DC input directly, designed for installations where DC power is already available and AC conversion would add cost, complexity, and efficiency losses. Solar farms, battery storage facilities, electric vehicle charging stations, and marine vessels all have DC bus infrastructure. The HC1524DM-HC1624DM eliminates the inverter stage entirely — no additional hardware, no conversion heat, no inverter failure mode. The 24L tank stores enough air for a complete tilt adjustment cycle (all 40 actuators in sequence), then the pump refills during the 4-6 hour interval before the next adjustment.

Frequently Asked Questions

What DC voltage range does the DM-series accept?

The HC1524DM-HC1624DM operates on 36-58V DC input (nominal 48V). This covers standard solar string voltages, 48V battery banks, and 48V telecom DC bus systems. For 24V systems (vehicles, small battery banks), the HC1509M-HC1609M 24V variant is available. Input is reverse-polarity protected and includes a soft-start circuit to limit inrush current on battery systems.

How does efficiency compare to AC-powered alternatives in a solar installation?

Direct DC connection eliminates the inverter (92-95% efficient) and the compressor motor's AC-DC conversion stage (90-94% efficient). Net system efficiency improvement is 12-18% — meaning the same solar panel area produces 12-18% more compressed air output. Over a 25-year solar farm lifetime, this efficiency gain compounds to significant energy savings.

What happens during low-light conditions when DC bus voltage drops?

The HC1524DM-HC1624DM includes a wide-input voltage regulator that maintains rated output down to 36V (75% of nominal). Below 36V, the unit reduces output proportionally rather than shutting down abruptly. For critical applications, pairing with a small buffer battery (100Ah at 48V) ensures operation through cloud transients and provides 2-3 complete pump cycles during extended low-light periods.

By eliminating the DC-to-AC inverter stage, the HC1524DM-HC1624DM achieves 15-20% higher overall system efficiency in DC-powered installations. This translates directly to longer battery runtime or smaller solar panel requirements.
