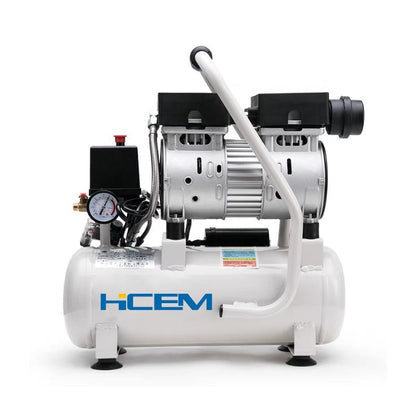

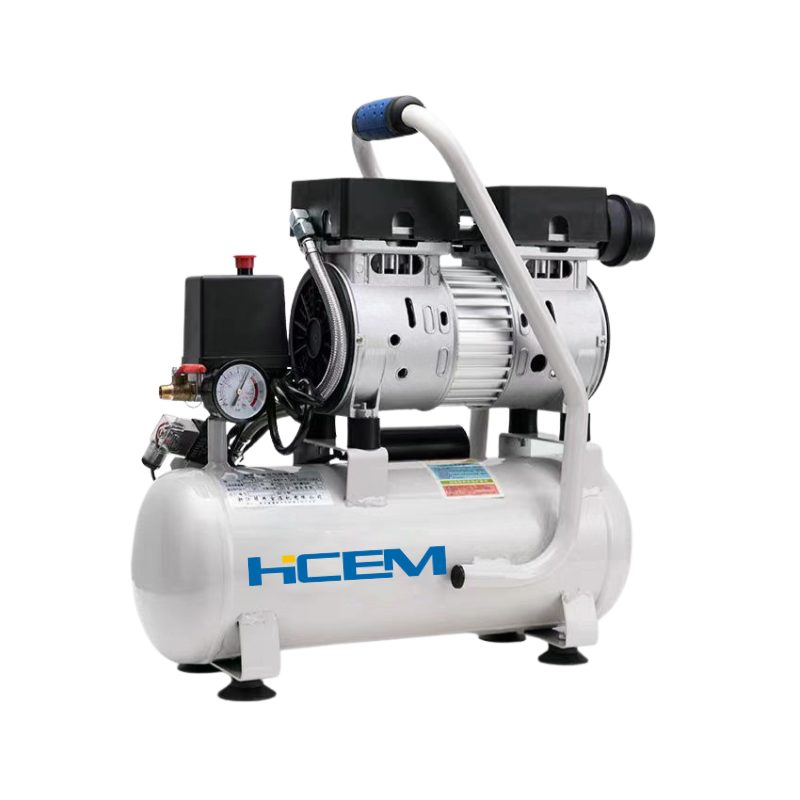

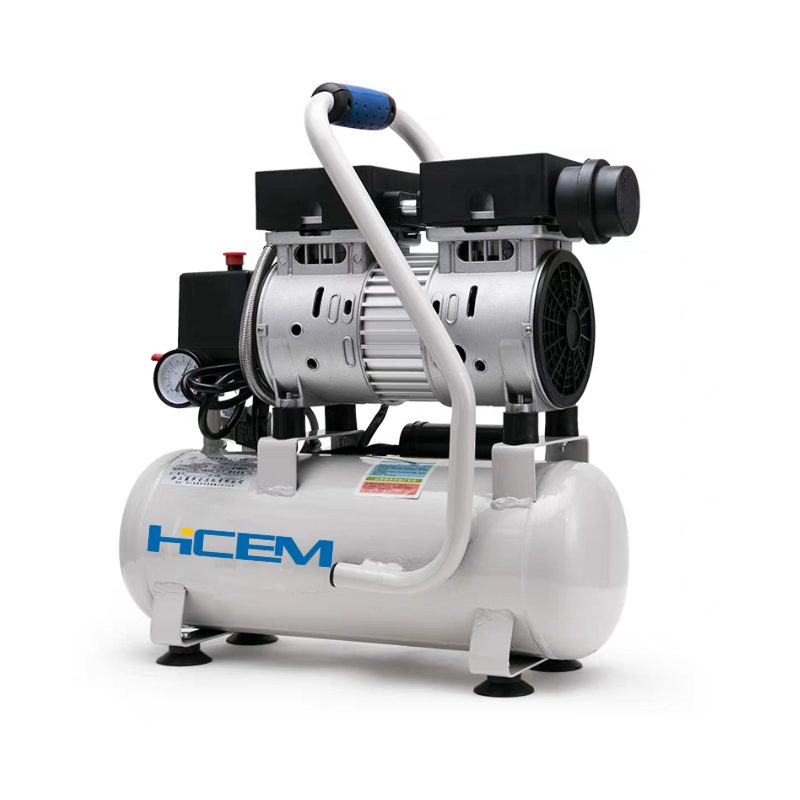

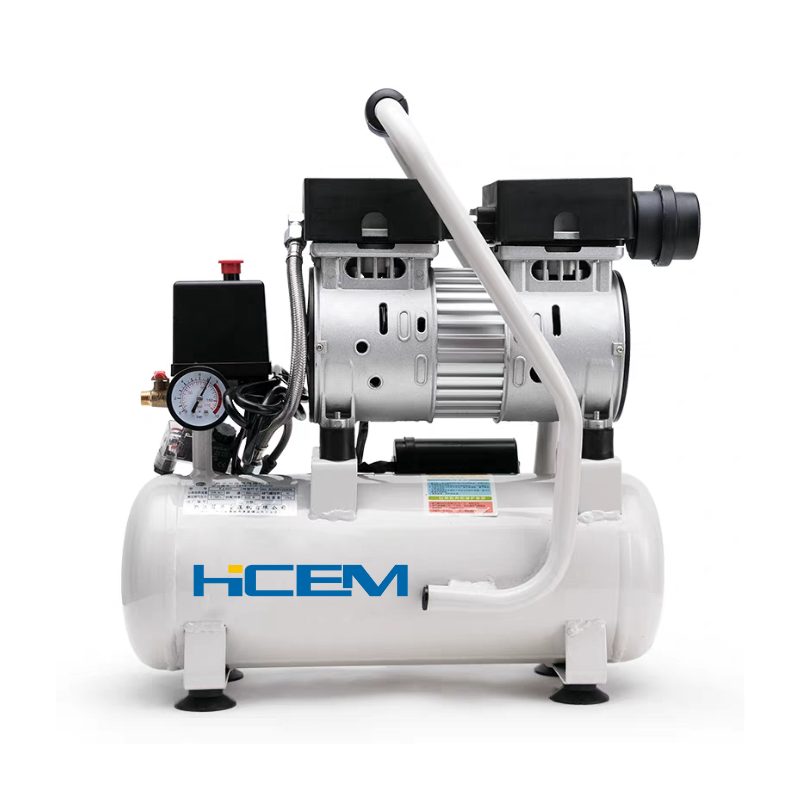

HC1509

Why Choose the HC1509

A fire department in Jiangsu Province needed a lightweight air source for their rapid-response rescue vehicles. The pneumatic rescue tools (spreaders, cutters, rams) on their heavy rescue truck had dedicated hydraulic power, but the smaller first-response vehicles needed compressed air for airbag lifting cushions, pneumatic chisels, and tire inflation at accident scenes. Weight was critical — every kilogram added to the vehicle reduced acceleration and fuel economy. The HC1509 at just 15kg (with 9L tank) mounts in the vehicle's equipment bay, runs off the 220V inverter already installed for scene lighting, and provides enough air for 3 airbag deployments or 20 minutes of continuous chisel operation on a single tank fill.

Why This Model — Not Another

The HC1509 prioritizes portability and weight above all other parameters. At 15kg total (pump + 9L tank + frame), it is the lightest unit in the lineup that still delivers meaningful work capacity. The compact form factor fits standard 19-inch equipment rack mounting used in emergency vehicles, and the vibration-isolated frame prevents damage during high-speed driving over rough terrain. Unlike the M-series variants (HC1509M) designed for stationary use, the base HC1509 includes reinforced mounting points, a locking pressure relief valve (prevents accidental discharge during transport), and a quick-connect outlet compatible with standard rescue tool couplings (Foster/Hansen series).

Frequently Asked Questions

How quickly does the HC1509 reach working pressure from cold start?

From zero to 8 bar operating pressure: 38 seconds. This is critical in emergency response where every second counts. The unit requires no warm-up, no oil pressure build-up, and no pre-start checks. Turn the switch, wait 38 seconds, connect your tool.

Can this unit operate while the vehicle is moving?

Yes, with the locking pressure relief valve engaged (prevents discharge from vibration-induced valve bounce). The unit is rated for operation under vibration levels up to 2G — exceeding the 0.5-1.2G typical of emergency vehicle driving on paved roads. For off-road response (earthquake, flood), secure the unit with the provided ratchet strap points.

What rescue tools can the HC1509 power?

Pneumatic airbag lifting cushions (the primary use case): 3 full deployments per tank fill. Pneumatic rescue chisel: 20 minutes continuous operation. Tire inflation: 8-10 passenger vehicle tires from flat to 2.4 bar. The 9L tank at 8 bar stores 72 liters of free air — allocate based on your tool's consumption rate listed in its manual.

Under normal operating conditions, the HC1509 delivers 10,000 to 50,000 hours of service life depending on ambient conditions and duty cycle. The oil-free design eliminates carbon buildup that typically shortens the life of oiled compressors.
