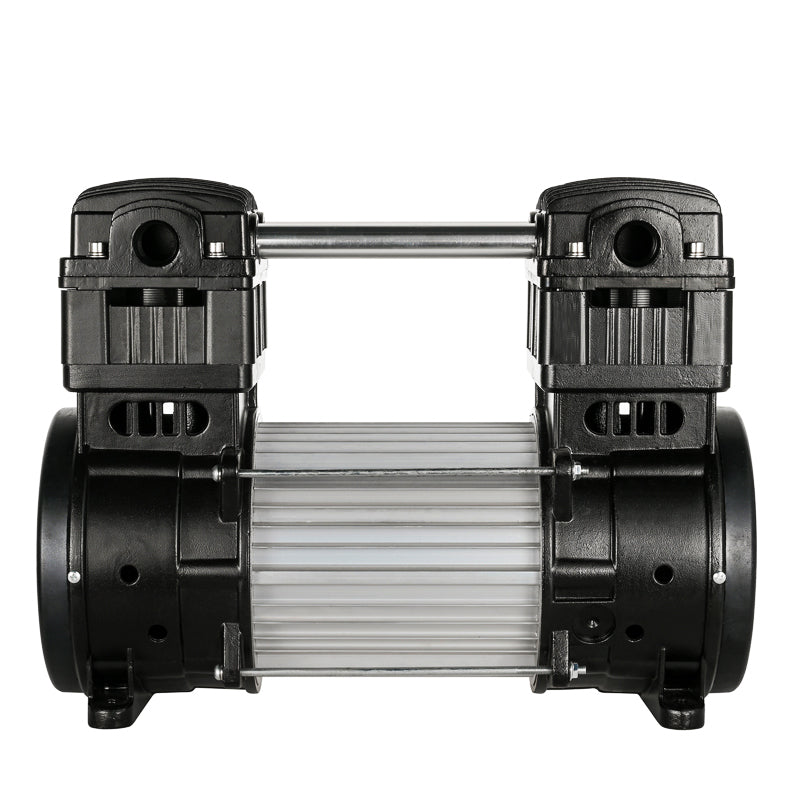

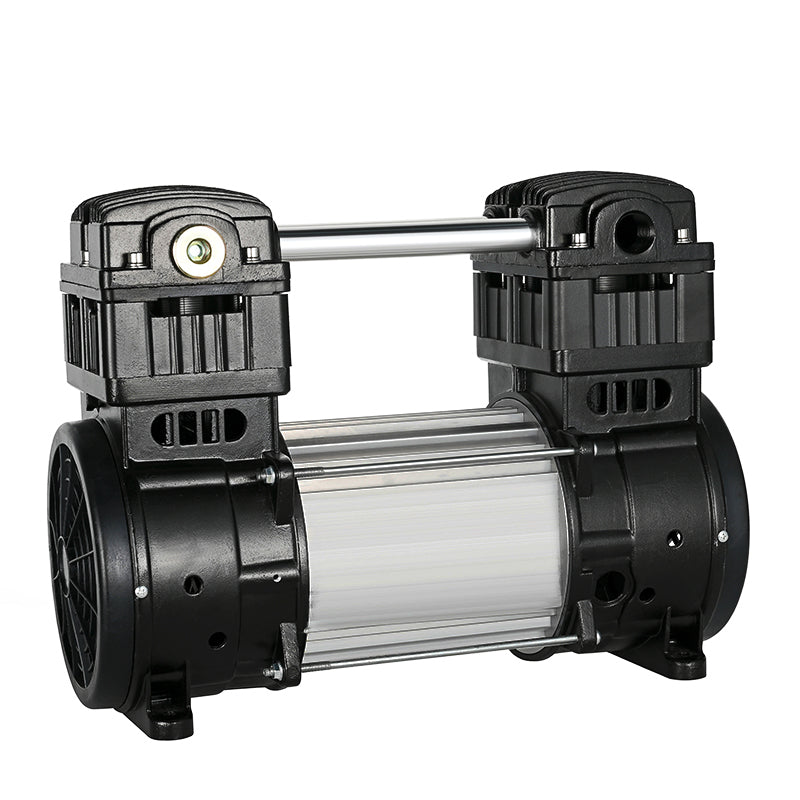

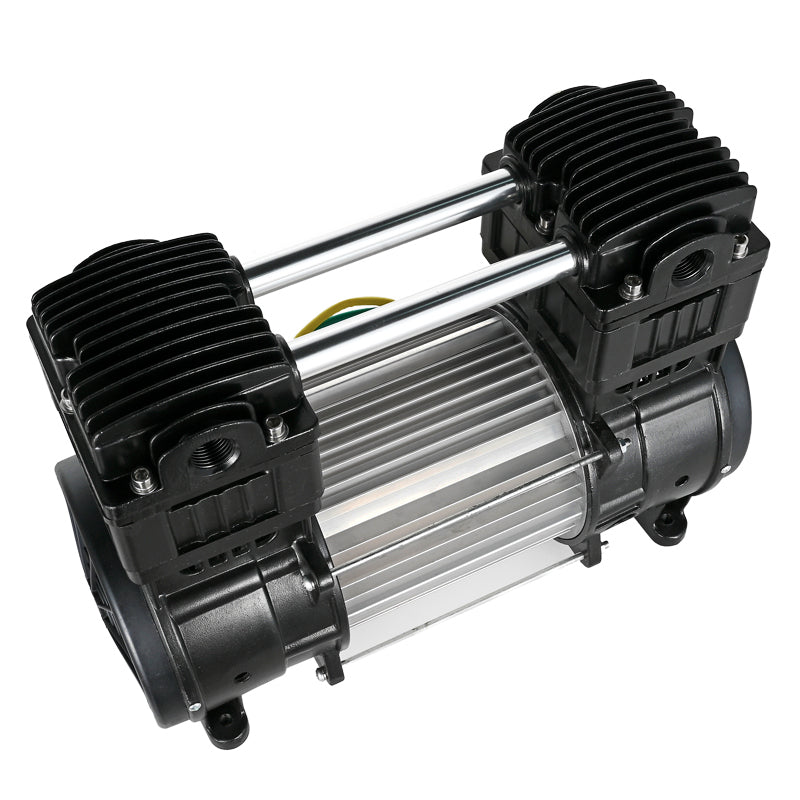

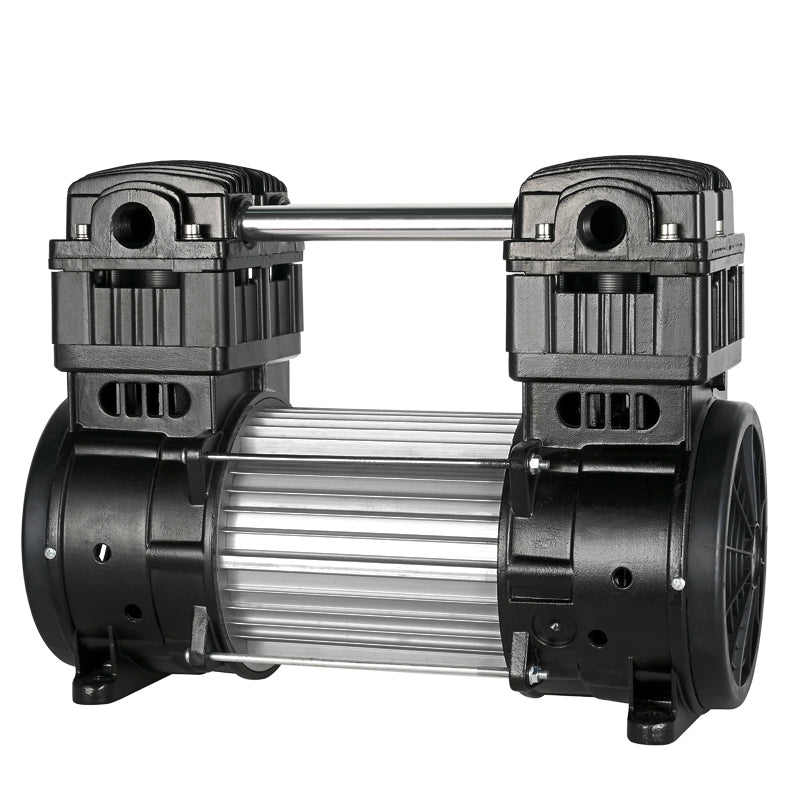

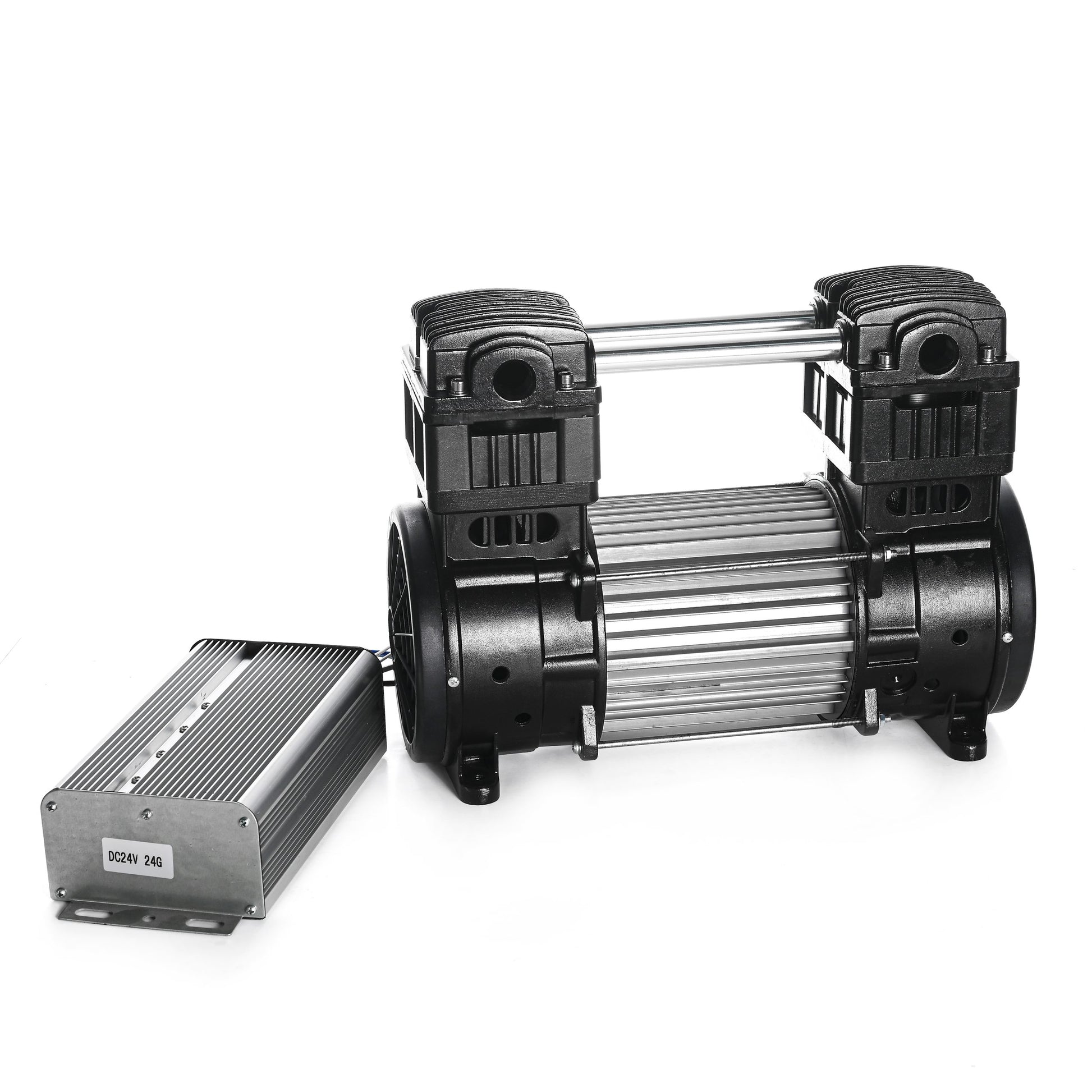

HC1500D Oilless Vacuum Pump | DC24V, 700W, 240 L/min

Why Choose the HC1500D Oilless Vacuum Pump

Consider a medical device manufacturer needing vacuum pumps that meet ISO 8573-1 Class 0 air purity for integration into critical surgical suction units and respiratory therapy equipment. In such sensitive clinical environments, the introduction of oil mist or particulate matter compromises patient safety, contaminates sterile fields, and violates strict medical device regulations. The HC1500D oilless vacuum pump addresses this exact technical requirement by utilizing a completely oil-free double-head design driven by an efficient brushless DC motor, ensuring a clean, uncontaminated vacuum for highly sensitive operations. By eliminating the need for lubricating oils, this pump dramatically reduces routine maintenance while preventing environmental contamination.

• Power & Efficiency: Consumes ≤700W at rated pressure, providing reliable mechanical output for demanding industrial and medical systems.
• Flow Rate & Pressure Options: Configurable for either a high-volume 240 L/min at -92Kpa or a deeper vacuum of 130 L/min at -98Kpa to match specific equipment requirements.
• Acoustic Performance: Engineered with a durable aluminum housing and precision internal components to keep operational noise strictly at or below 70dB(A).
• Drive Mechanism: Operates on a safe DC24V power supply with a brushless DC motor running at speeds of ≤1700rpm at rated pressure.
• Form Factor & Weight: Features a compact footprint with overall dimensions of 330 x 167 x 278 mm and a net weight of 12.6 kg.
• Mounting Specifications: Designed with a standardized installation size of 127 x 244 mm for straightforward integration into OEM machinery.
• Quality Assurance: Fully certified with CE and RoHS marks, and manufactured in an ISO 9001 certified production facility.

Key Technical Specifications

Applications & Industries

The HC1500D oilless vacuum pump is specifically engineered to serve a variety of demanding B2B sectors, primarily focusing on laboratory research, automated packaging, pick-and-place automation, and medical suction. In the medical field, OEM buyers and engineers integrate this specific pump model into portable and stationary surgical suction machines, dental vacuum systems, and advanced respiratory assistance devices. The oil-free operation guarantees that no hydrocarbons contaminate the clinical environment or the patient's airway. The DC24V voltage allows for safe integration into mobile clinical carts and battery-backed emergency medical equipment, ensuring functionality even during power interruptions. The 240 L/min flow rate option ensures rapid fluid and air evacuation, which is highly critical for maintaining clear surgical fields during complex procedures.

In the realm of industrial automation, the pump provides the continuous duty cycle required for high-speed pick-and-place automation networks. Manufacturing facilities utilizing robotic arms for delicate electronics assembly, PCB handling, or semiconductor manufacturing rely on the clean vacuum to grip sensitive components without leaving any microscopic oil residue. The -92Kpa to -98Kpa vacuum pressure range offers a highly secure hold on heavy, flat, or non-porous materials during rapid transit across the assembly line. Furthermore, packaging machinery—particularly vacuum sealing, blister packaging, and thermoforming equipment—benefits directly from the pump's reliable ≤1700rpm speed and consistent vacuum generation. This ensures airtight, secure seals for food packaging and pharmaceutical blister packs, extending product shelf life and preventing contamination.

Laboratory environments also heavily depend on the HC1500D for daily applications such as vacuum filtration, rotary evaporation, desiccation, and mass spectrometry sample preparation. The durable aluminum construction and brushless DC motor ensure low maintenance over extended periods of continuous use, reducing total cost of ownership for research facilities. With a controlled noise level of ≤70dB(A), it maintains a quiet working environment, which is highly valued by lab technicians and researchers conducting focus-intensive analytical tasks. The double head pump design ensures stable, pulsation-free vacuum delivery, which is necessary for precise fluid aspiration and chemical distillation processes.

Certifications & Compliance

For procurement engineers, compliance officers, and OEM buyers navigating complex global markets, the HC1500D oilless vacuum pump carries essential certifications that streamline final product compliance and market entry. The CE mark indicates strict conformity with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA). This allows European equipment manufacturers to integrate the pump into their medical devices
