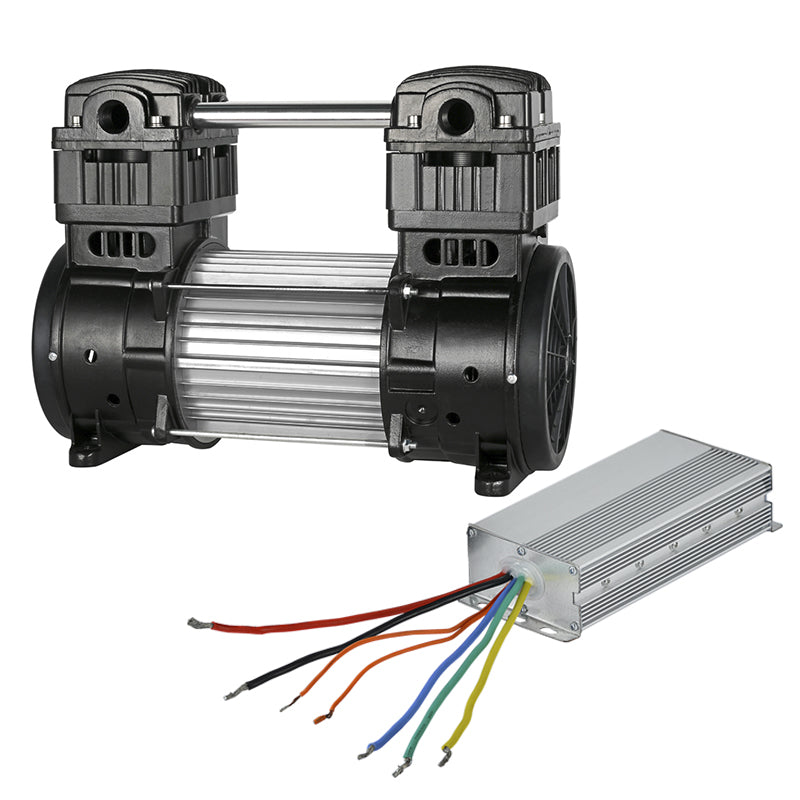

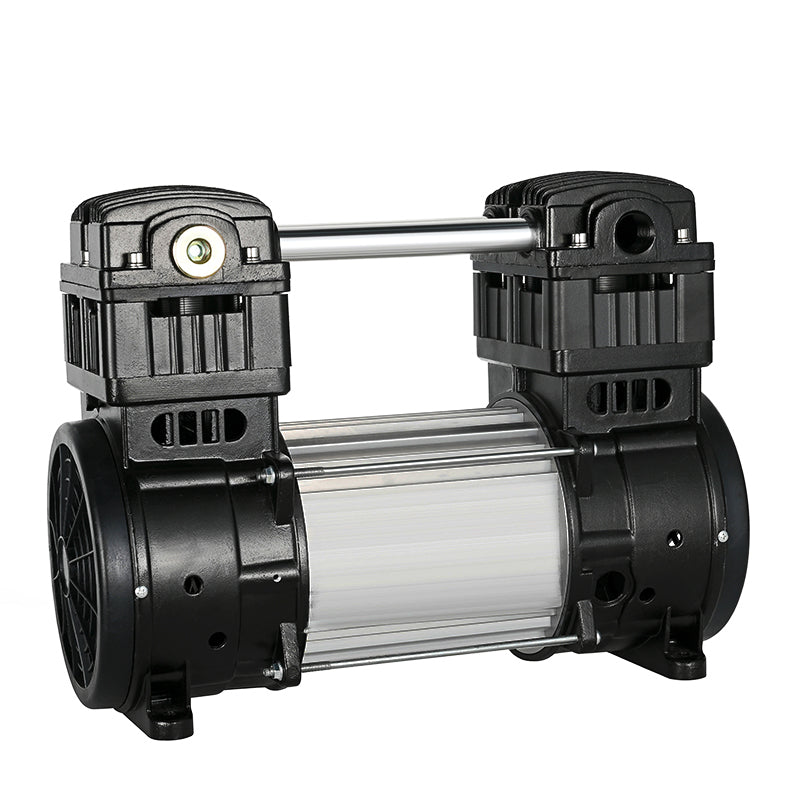

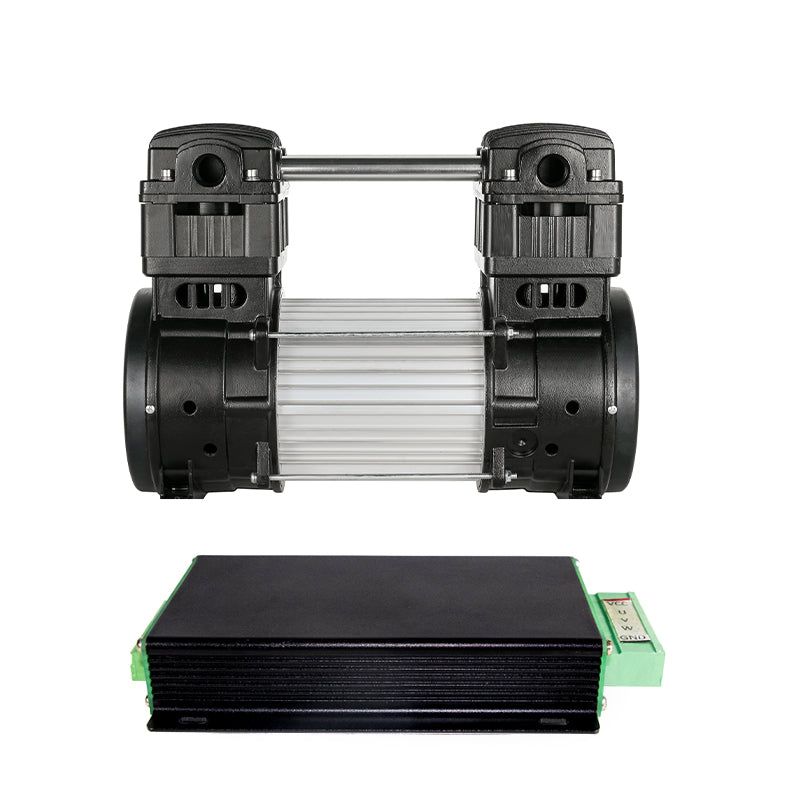

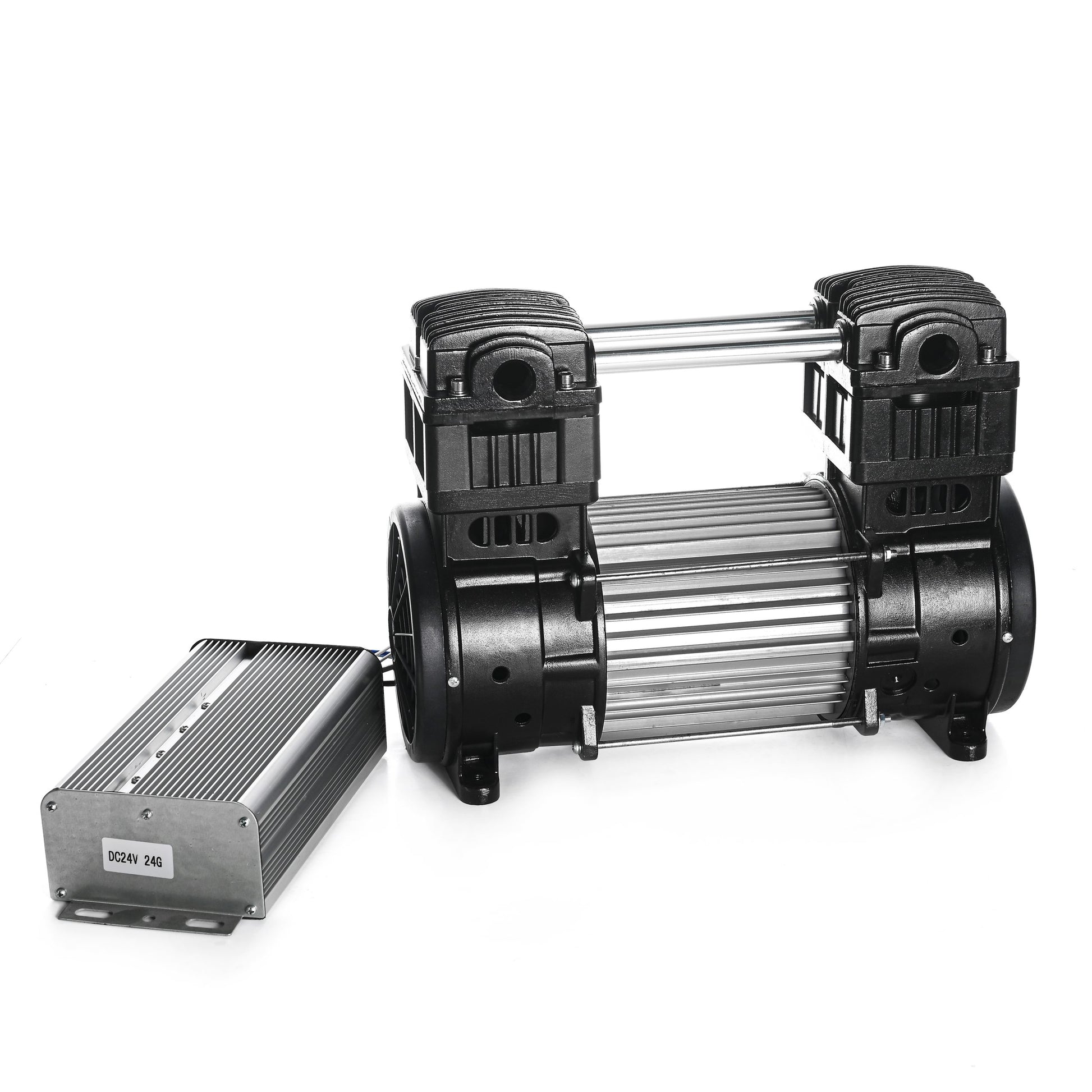

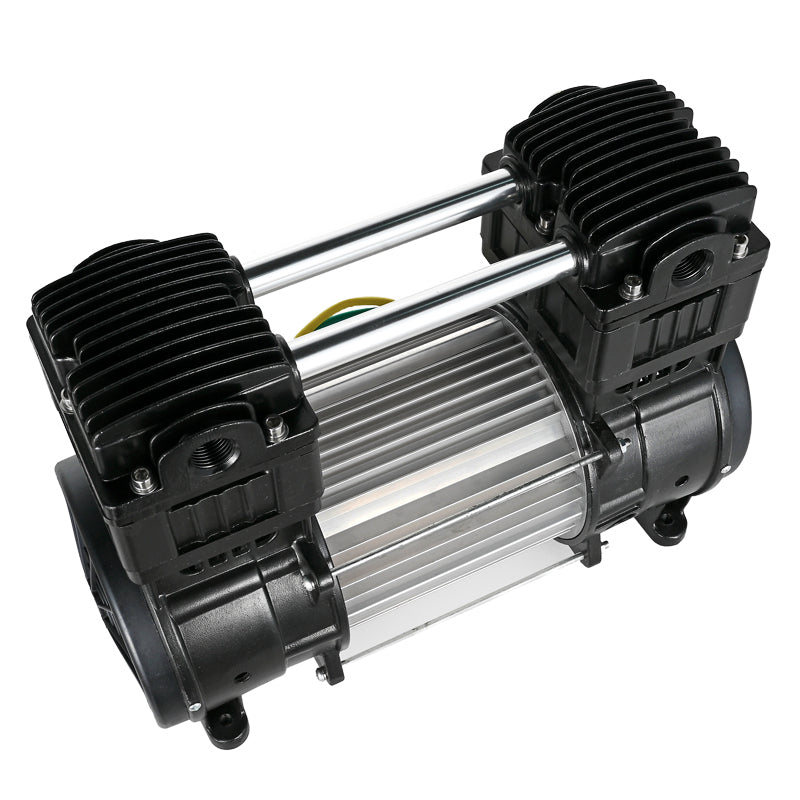

The HC1500D Oilless DC Air Pump is a 1500W, 24V DC air pump delivering 200L/min flow and up to 8 bar pressure for demanding industrial systems. As a 24V industrial air pump manufacturer, HC Pump supports OEM customization, wholesale supply, and energy-saving variable speed solutions.
Technical Specifications
| Model | HC1500D-120/8 | HC1500E-120/8 | HC1500F-120/8 |
|---|---|---|---|
| Voltage | DC24V | DC48V | DC144V |
| Current at Rated Pressure | 62.5 A | 31.2 A | 10.4 A |
| Power at Rated Pressure | ≤1500W | ≤1500W | ≤1500W |
| Air Flow Rate at Rated Pressure | 120 L/min @ 800kPa | 120 L/min @ 800kPa | 120 L/min @ 800kPa |
| Dimensions | 380×160×288mm | 380×160×288mm | 380×160×288mm |
| Installation Size | 127×298 mm(4xM8) | 127×298mm(4xM8) | 127×298 mm(4xM8) |
| Rated Speed | 1700rpm | 1700rpm | 1700rpm |
| Net Weight | 12.6 kg | 12.6 kg | 12.6 kg |
| Noise | ≤68dB(A) | ≤68dB(A) | ≤68dB(A) |
Download the complete technical datasheet for specifications and performance curves.
