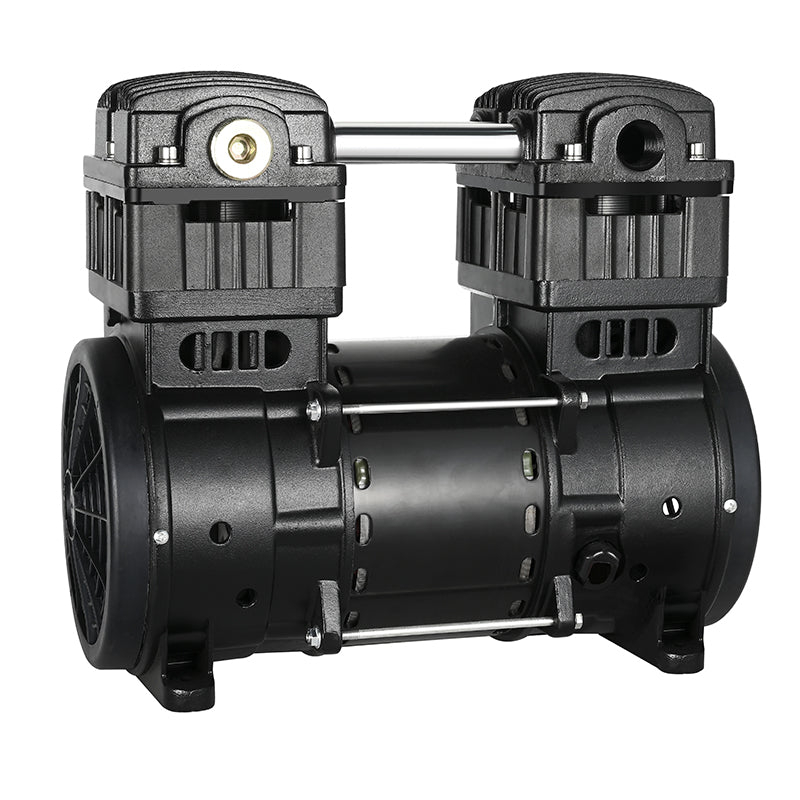

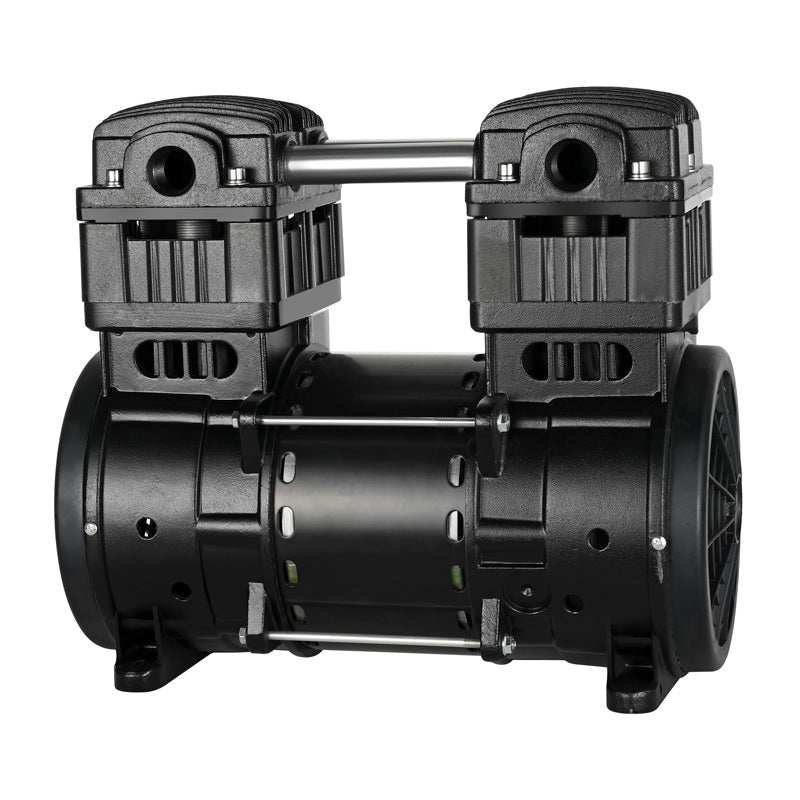

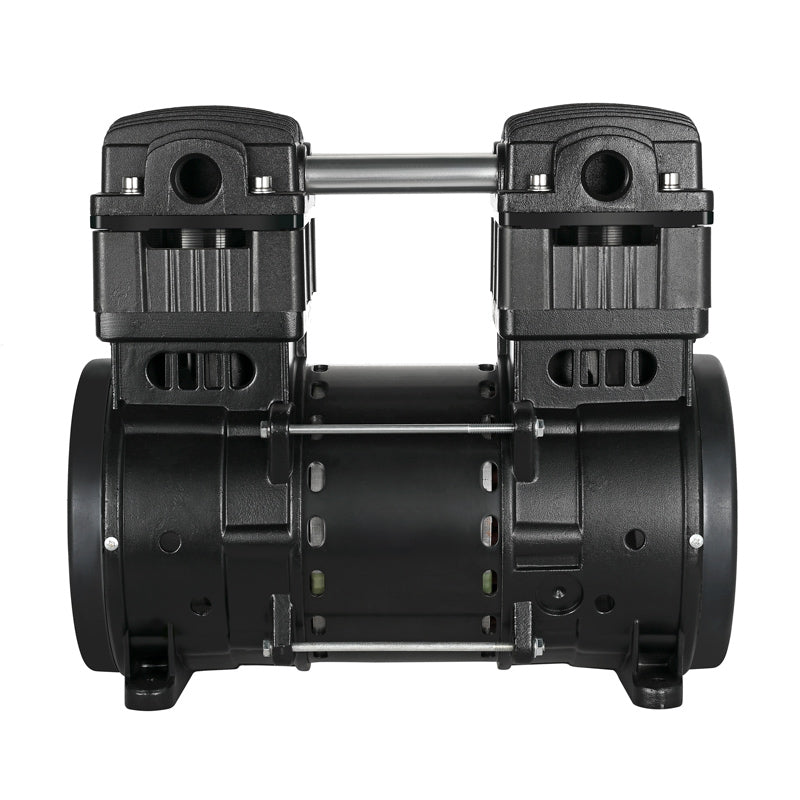

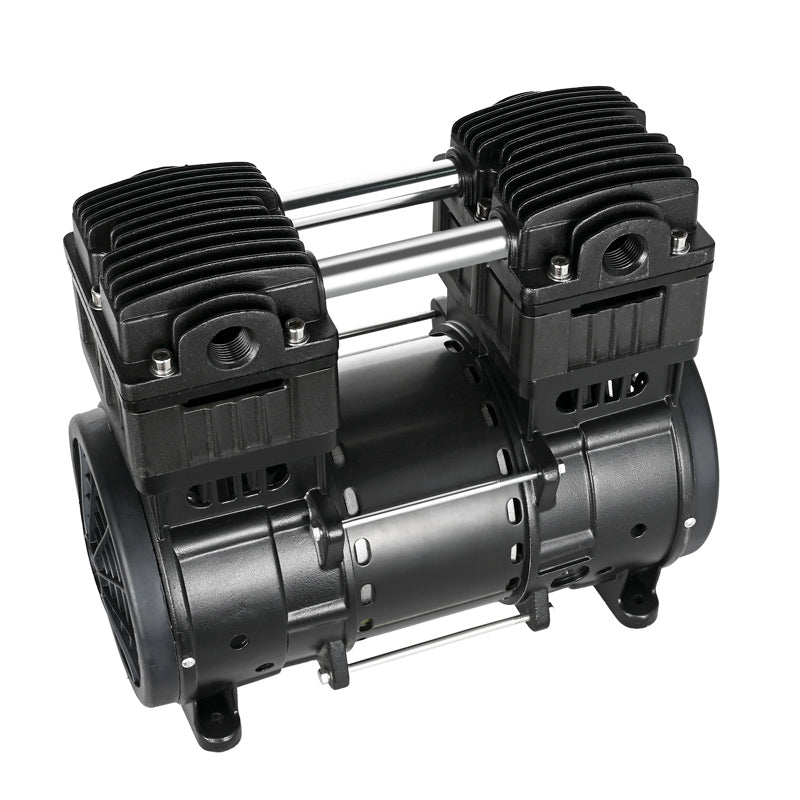

The HC1500A oilless vacuum pump provides 1500W power, 200L/min flow, and stable -0.085 MPa vacuum for industrial automation and process equipment. As a vacuum pump manufacturer China, HC Pump supports OEM supply, wholesale orders, and application-based engineering support.
| Technical Specifications | ||
|---|---|---|
| Specification | HC1500A | HC1500B |
| Voltage | 220V/50Hz/1 | 110V/60Hz/1 |
| Noise | ≤69dB(A) | ≤71dB(A) |
| Power at rated pressure | ≤700W | ≤750W |
| Vacuum flow rate @ pressure | 210 L/min@-92Kpa | 250 L/min@-92Kpa |
| (There's are two options, but you can only choose one) | 110 L/min@-98Kpa | 130 L/min@-98Kpa |
| Speed at rated pressure | 1400rpm | 1700rpm |
| Dimension | 330×167×278mm | 330×167×278mm |
| Installation Size | 244×127mm | 244×127mm |
| Net Weight | 17.5kg | 17.5kg |
| Operating ambient temperature | -5 to 40℃ | -5 to 40℃ |
| Thermal protection | 145±5℃ | 145±5℃ |
| Motor insulation class | F | F |
| Capacitor value | 35μF | 120μF |
Download the complete technical datasheet for specifications and performance curves.
