HC1500A-CAB 220V AC Cabinet Pond Aerator System (Up to 5 Acres)

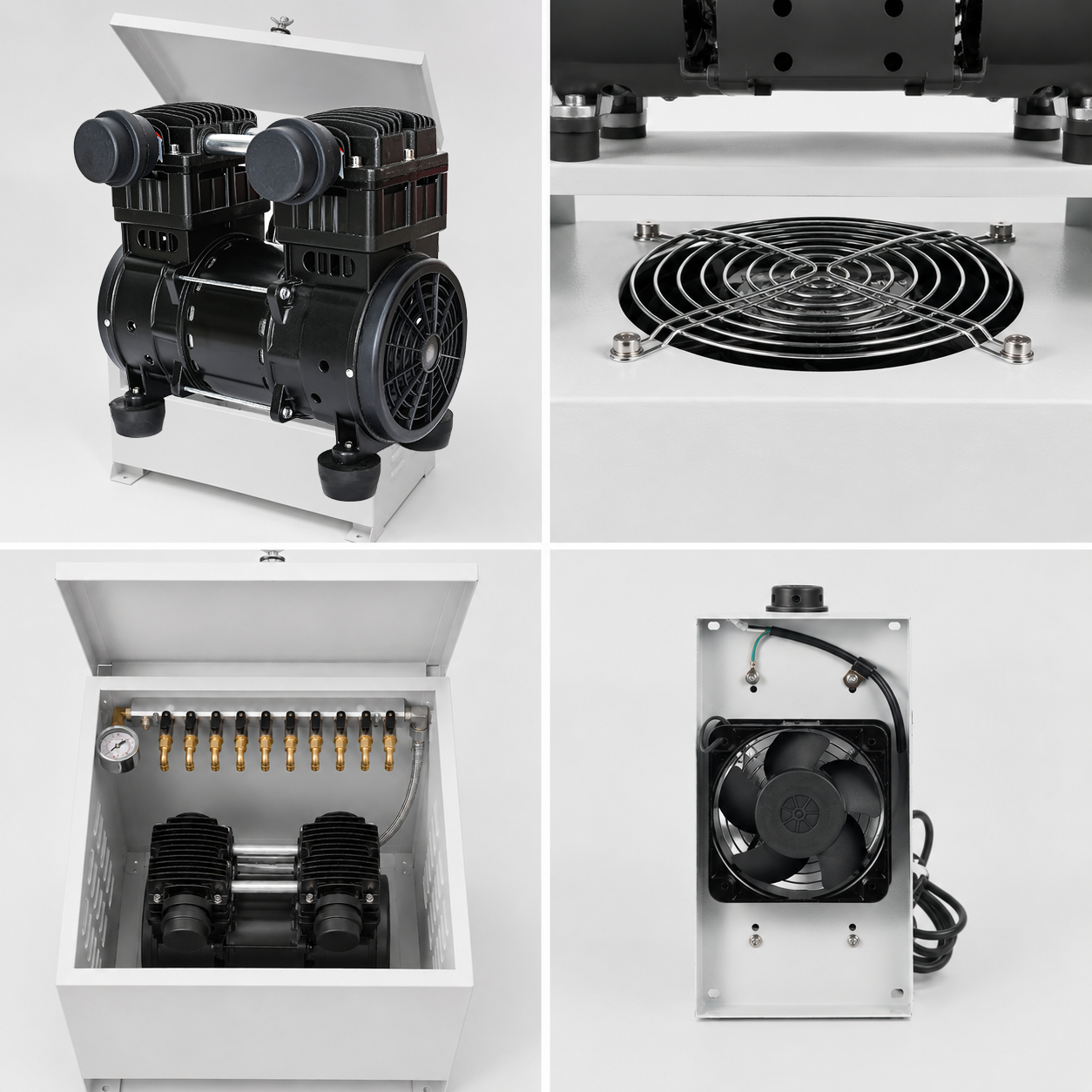

The HC1500A-CAB is a complete 220V/50Hz cabinet pond aeration system for ponds up to 5 acres. It supplies ten diffuser stations from an oil-free twin-head compressor and keeps the electrical equipment on the bank inside a lockable, ventilated steel cabinet.

Ten-diffuser pond aeration package

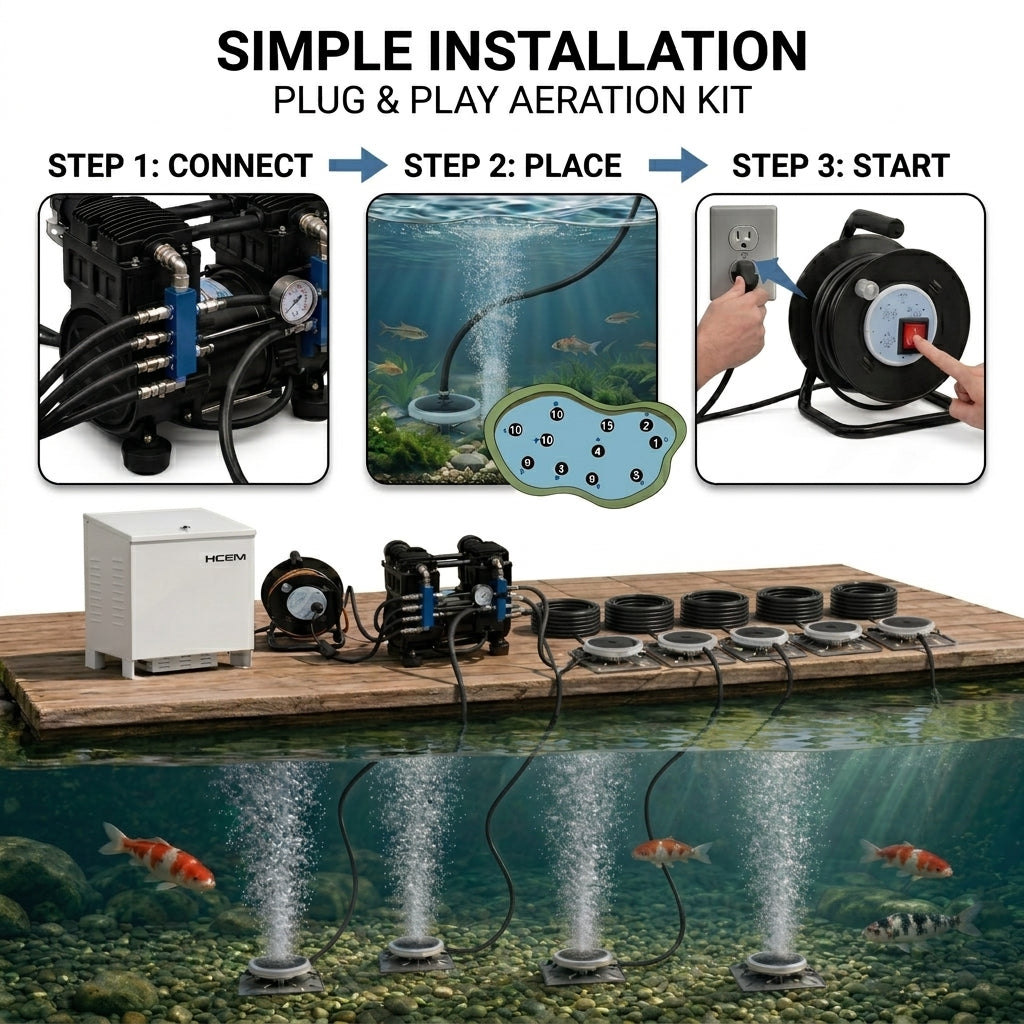

The package is configured for distributed bottom aeration across larger ponds. Ten separate weighted airlines allow the diffuser locations to be planned around pond shape, depth changes, and circulation requirements.

Oil-free AC compressor

The HC1500A1-180/2-CAB configuration uses 220V/50Hz power and is rated at no more than 700W. The compressor delivers 7.06 CFM at 29 psi, approximately 200 L/min, with a rated operating depth of 15 m (49 ft).

Technical specifications

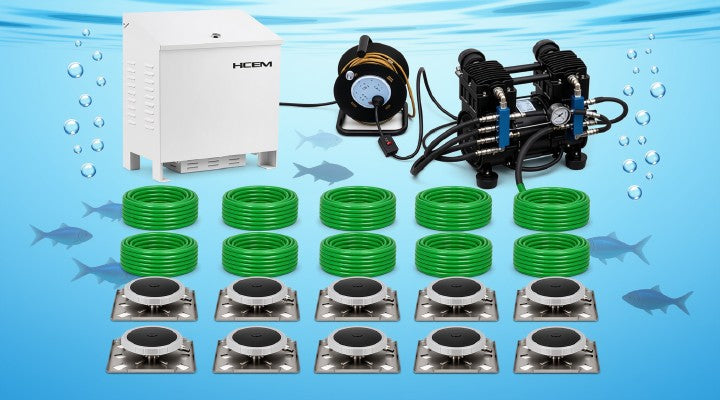

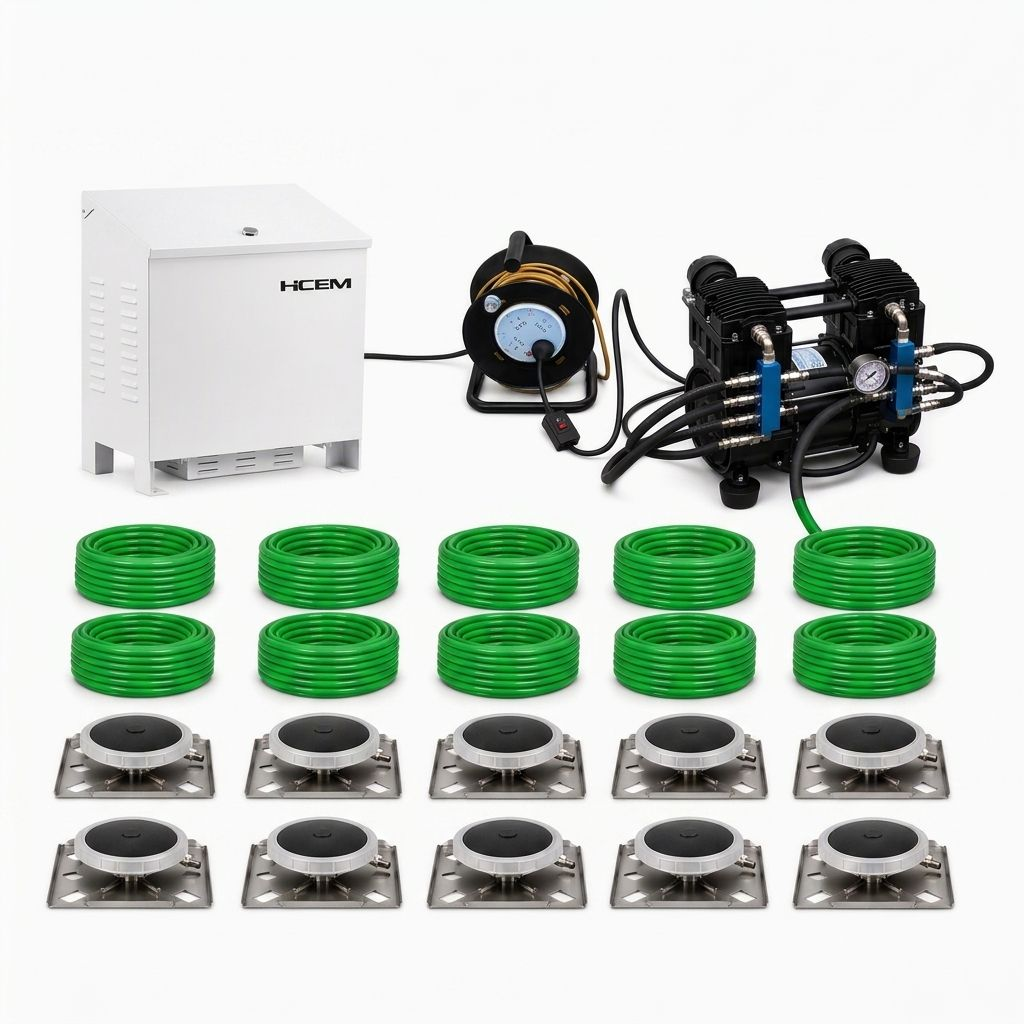

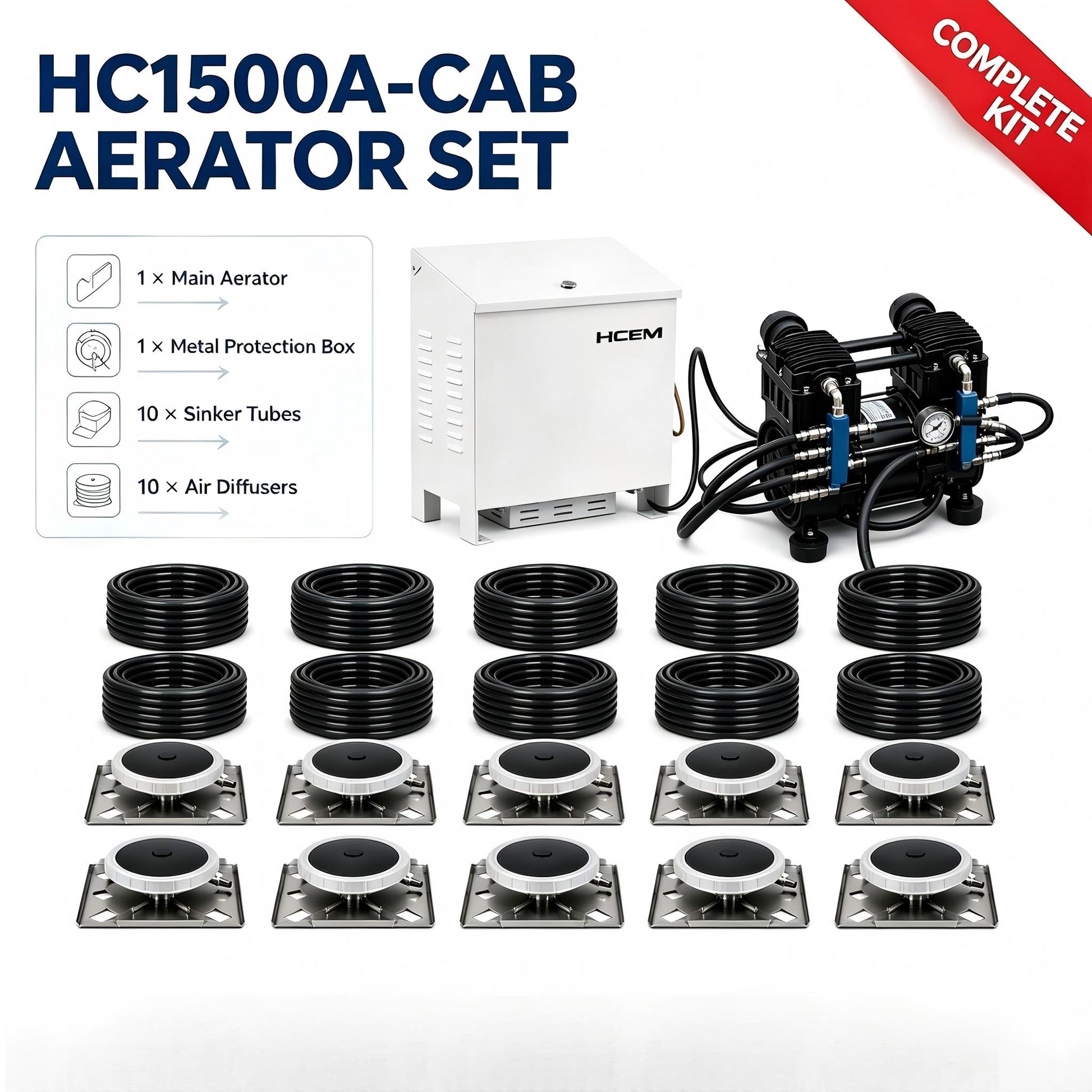

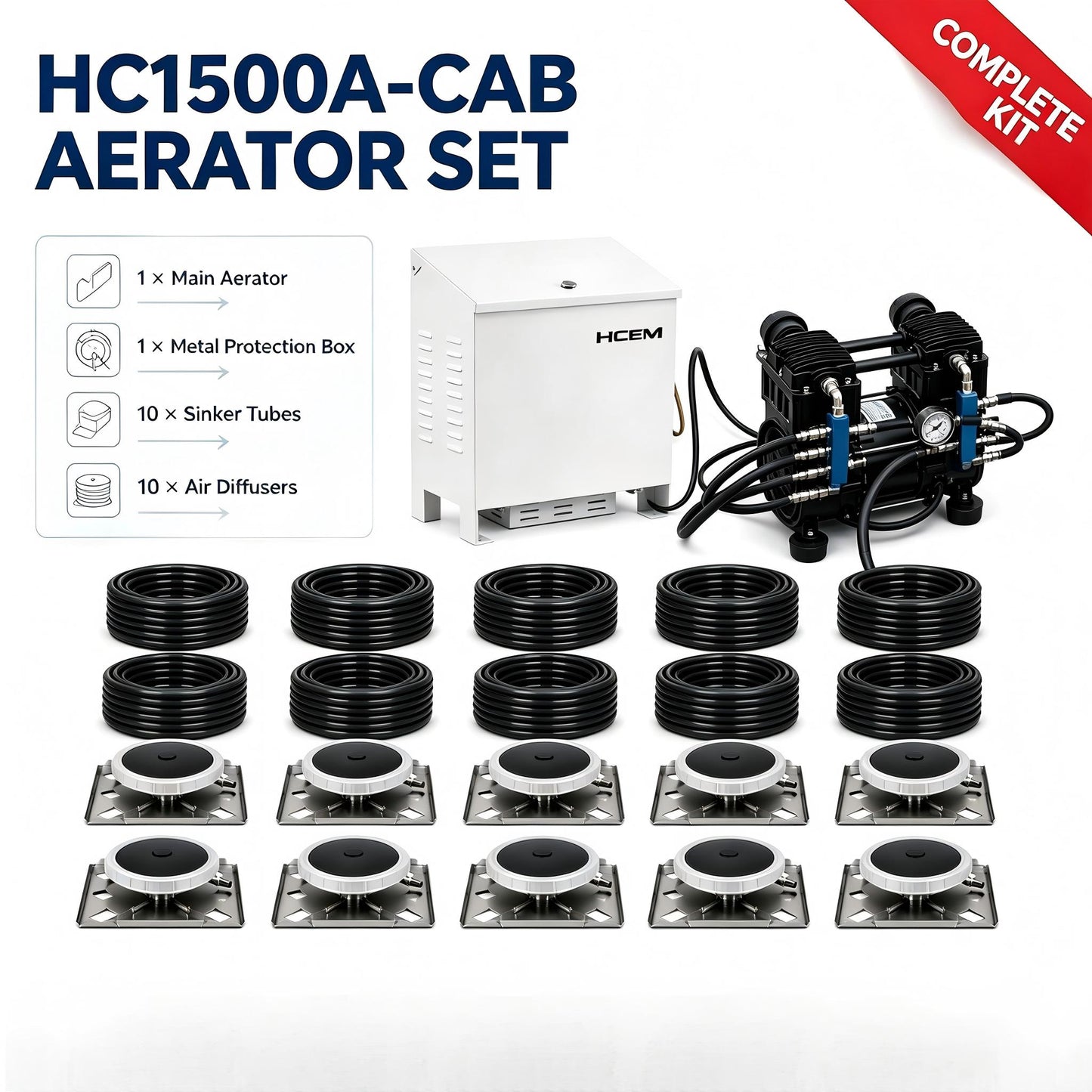

What is included

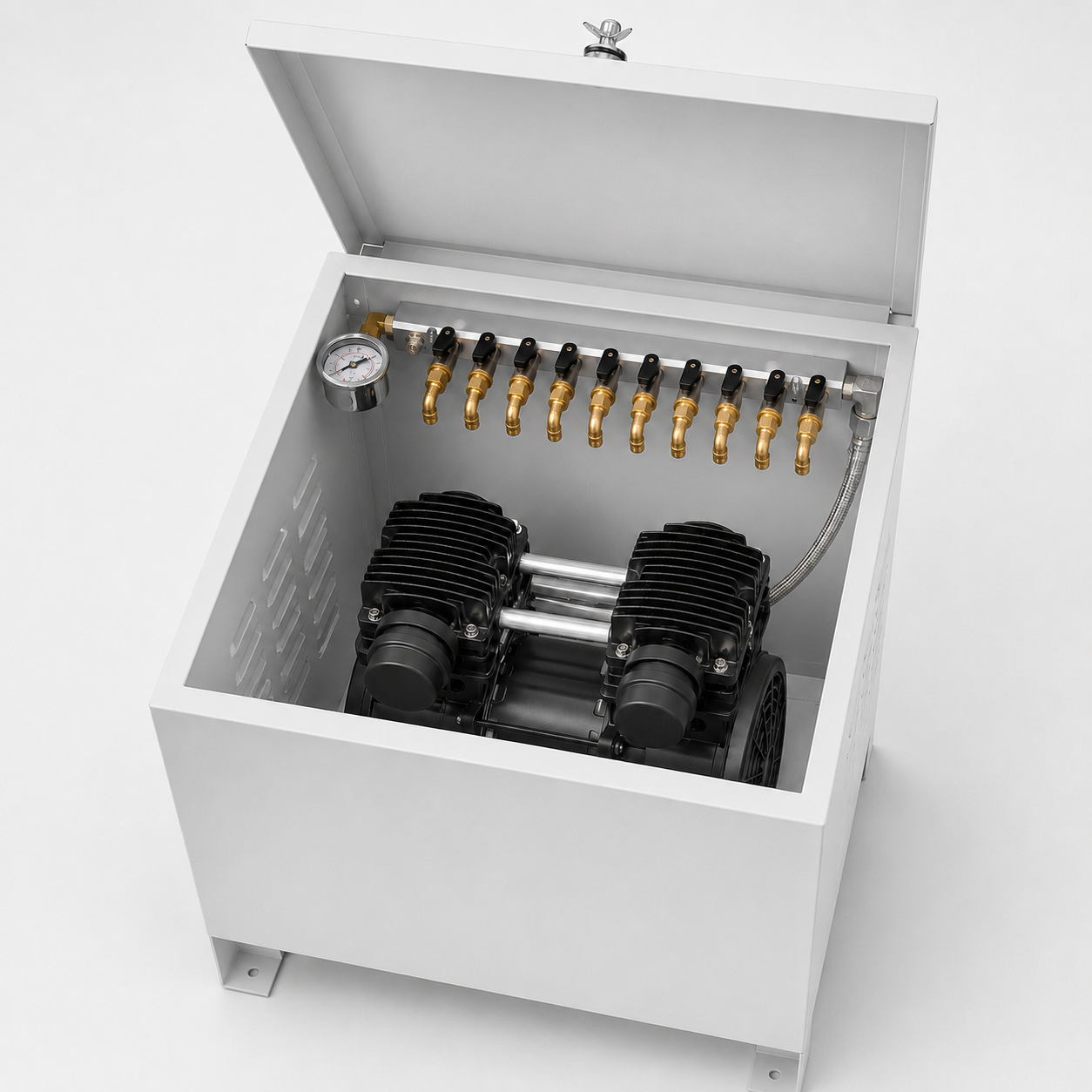

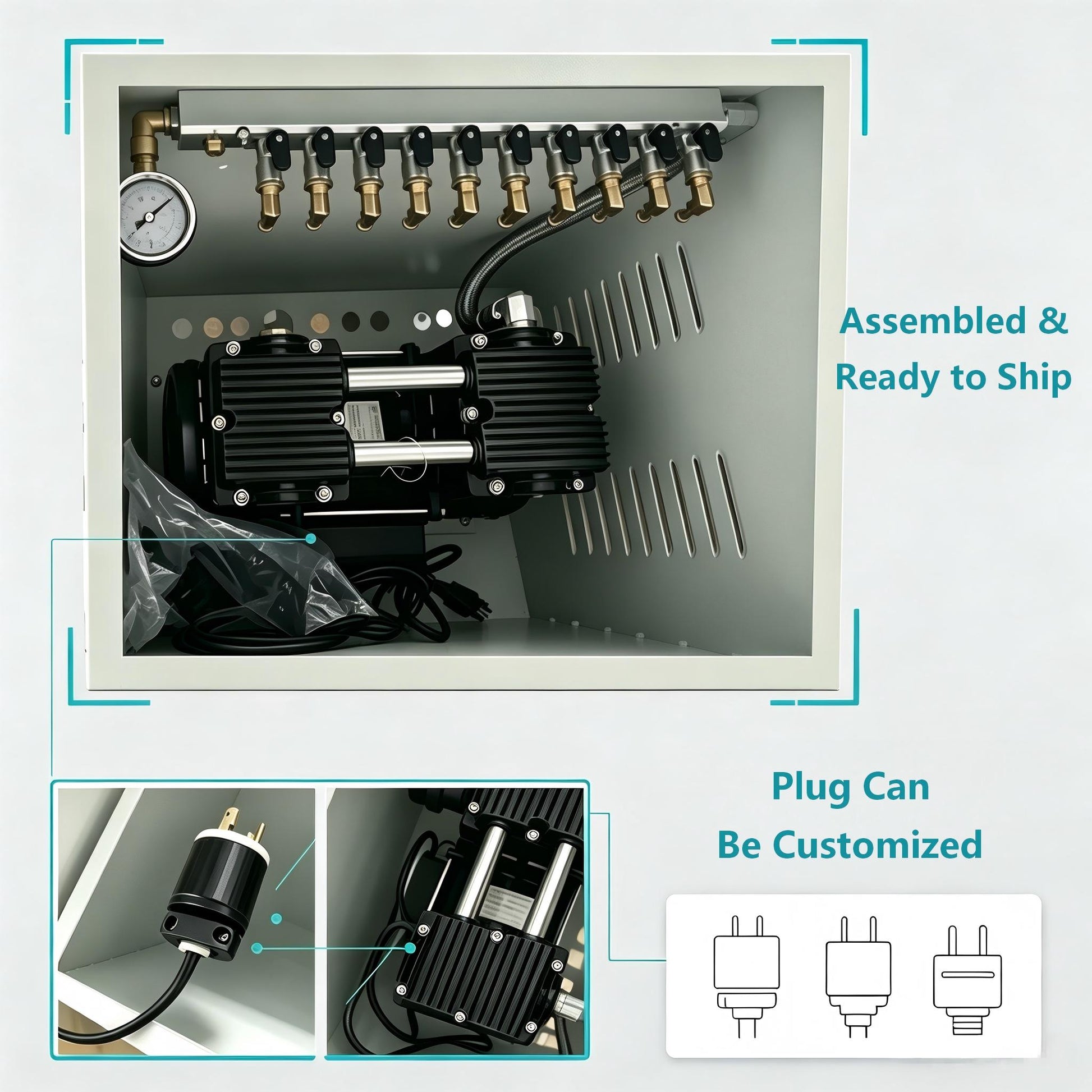

• One oil-free compressor in a lockable steel cabinet

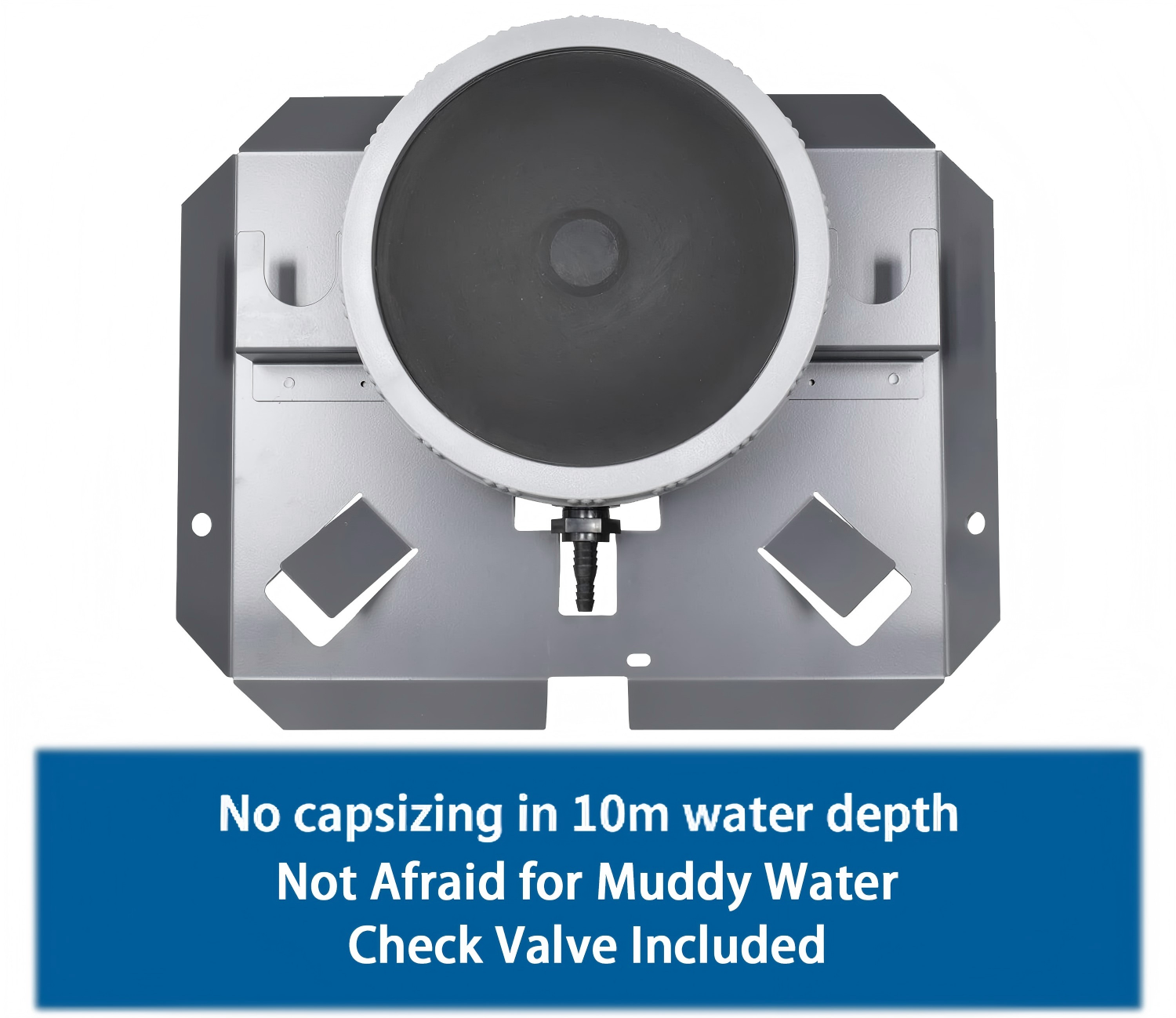

• Ten EPDM membrane diffusers with stainless steel bases
• Ten 100 ft, 3/8-inch weighted airlines

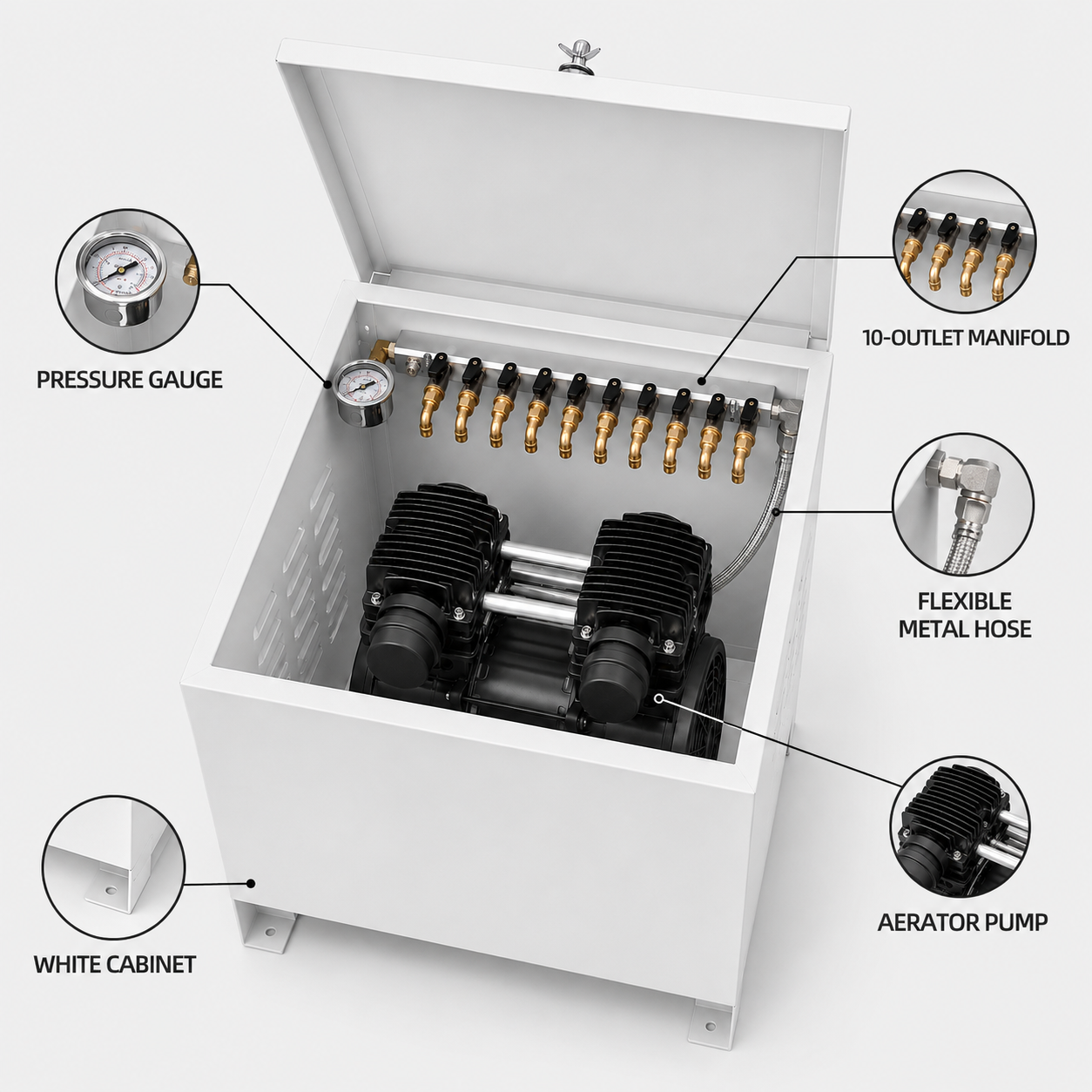

• Manifold, pressure gauge, and brass valves
• Single wooden shipping crate

Voltage selection

This listing is for the 220V/50Hz HC1500A1-180/2-CAB. Buyers who require 110V/60Hz should ask about model HC1500B1-180/2-CAB so the supplied configuration matches the installation site.

System sizing before purchase

Provide the pond surface area, maximum depth, fish species and stocking density, local voltage, and bank-to-diffuser distances. These details are needed to confirm diffuser placement and whether this system is suitable for the application.
