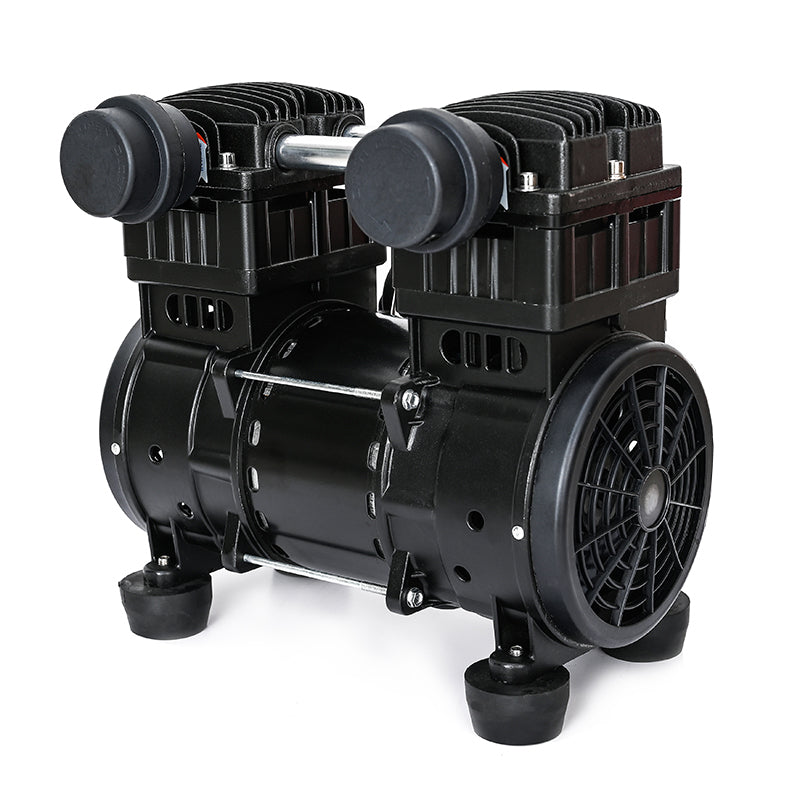

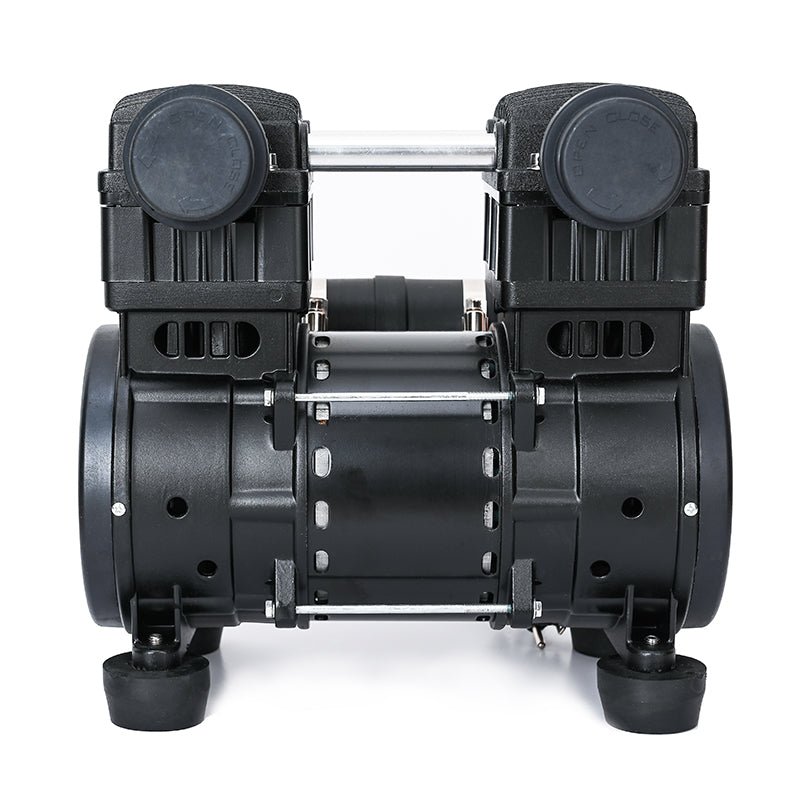

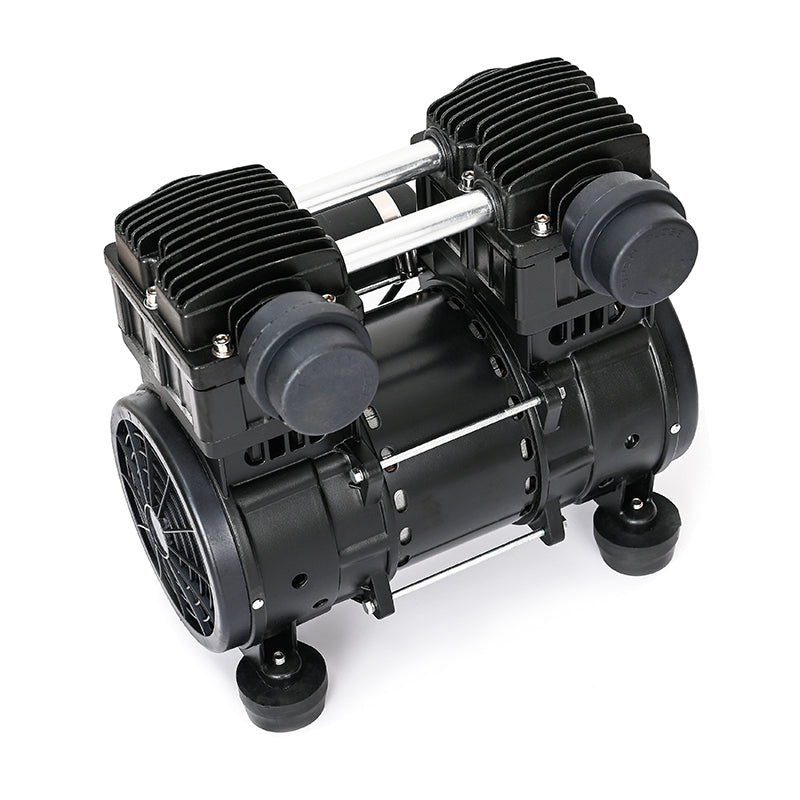

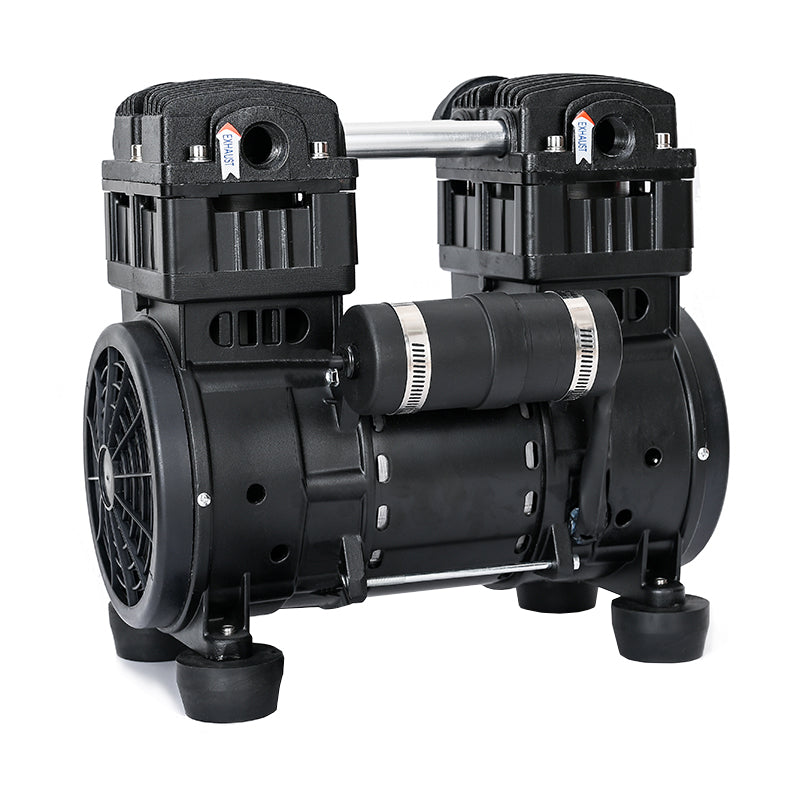

HC1500A-1 Pond Aerator Pump | 1100W AC, 5-Acre Coverage

When a municipal park needs to restore a decorative lake that has turned into a foul-smelling swamp, surface treatments simply mask the underlying problem. Decades of accumulated leaves, grass clippings, and organic waste settle at the bottom, creating a toxic, oxygen-depleted zone that fuels excessive algae growth and drives away local wildlife. To reclaim these vital public spaces, facility managers require a high-capacity intervention that addresses poor water quality at its source. The HC1500A-1 provides the heavy-duty, deep-water circulation necessary to lift stagnant bottom waters, oxygenate the entire water column, and restore ecological balance to large recreational lakes. Without proper aeration, the natural decomposition process slows to a halt, leading to the rapid accumulation of black muck. By introducing high volumes of oxygen directly to the pond floor, this system reinvigorates the natural biological processes required to maintain a balanced, odor-free aquatic environment that the community can enjoy year-round.

Why Choose the HC1500A-1

• Massive 5-Acre Coverage: Engineered to handle expansive public lakes and large commercial aquaculture operations.
• High-Output 1100W Motor: The powerful ≤1100W AC compressor delivers consistent, continuous airflow for demanding environments.
• Deep Water Capability: Effectively pushes air to a maximum diffuser depth of 65 feet, ensuring complete circulation in deep basins.
• 10-Diffuser Distribution: Includes capacity for 10 EPDM membrane diffusers, allowing you to spread oxygenation evenly across irregular lake shapes.
• Global Power Compatibility: Available in both 220V/50Hz (5.0A) and 110V/60Hz (10.0A) configurations to match standard mains power connections worldwide.
• Built-In Thermal Protection: Integrated 145±5℃ thermal overload protection safeguards the motor during continuous summer operation.

How Bottom Aeration Works

The HC1500A-1 operates on the principle of destratification, effectively breaking the thermocline that separates warm surface water from cold, oxygen-starved bottom layers. Compressed air travels through weighted tubing to the 10 bottom-placed EPDM diffusers, which produce millions of micro-bubbles. As these tiny bubbles rise, they create an upward current that pulls dense, stagnant bottom water to the surface. This continuous turnover allows harmful gases like ammonia and hydrogen sulfide to vent safely into the atmosphere while simultaneously drawing atmospheric oxygen down to the pond floor. The resulting oxygen-rich environment dramatically accelerates the natural digestion of bottom muck by aerobic bacteria, starving algae of nutrients and preventing mosquito breeding. Unlike surface fountains that only agitate the top few feet of water, this bottom-up approach guarantees that every gallon of water is circulated. The continuous movement also stabilizes water temperatures and eliminates the dangerous conditions that lead to sudden fish kills during seasonal turnovers.

Ideal Applications for the HC1500A-1

With its impressive 5-acre capacity and 10-diffuser output, the HC1500A-1 is built for large-scale water management. It is perfectly suited for municipal parks, golf course water hazards, and residential community lakes that suffer from organic loading and severe stratification. In the commercial sector, this high-volume AC unit is excellent for high-density aquaculture and fish farming, where maintaining high dissolved oxygen levels at depths up to 65 feet is critical for stock survival. Additionally, because it runs on standard 110V or 220V mains power, it is ideal for properties with reliable shore power looking for a permanent, continuous-duty solution to maintain healthy fish habitats year-round. By maintaining an open hole in the ice during winter, the system allows toxic gases to escape, protecting your fish population from winterkill.

Technical Specifications

Frequently Asked Questions

How do I position 10 diffusers across a 5-acre lake?

For optimal circulation, the 10 EPDM diffusers should be distributed evenly throughout the deepest sections of your 5-acre lake. Avoid placing them all in one central location; instead, space them out based on the bottom contours to ensure the micro-bubbles can lift and mix the entire water column without leaving stagnant dead zones near the shorelines.

Can the 1100W compressor handle pushing air down to 65 feet?

Yes, the HC1500A-1 features a pressure parallel flow head configuration specifically engineered to overcome deep-water resistance. The high-output 1100W motor generates sufficient pressure to deliver consistent airflow through weighted tubing to diffusers placed at maximum depths of 65 feet, making it highly effective for deep municipal and commercial lakes.

Does this AC-powered system require a specialized electrical setup?

The system is available in two standard configurations: a 110V/60Hz model drawing 10.0A, and a 220V/50Hz model drawing 5.0A. While it operates on standard mains power, we recommend a dedicated circuit with GFI protection due to the continuous power draw of the 1100W motor, especially when installed near water in municipal parks or golf courses.
