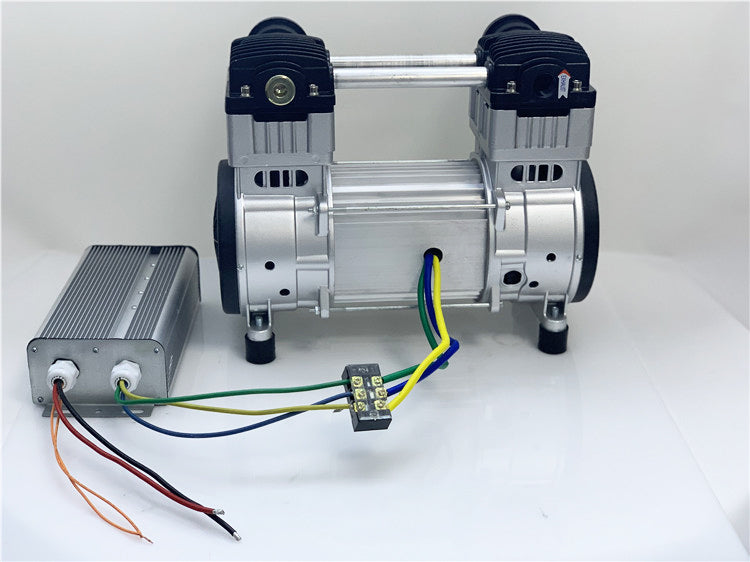

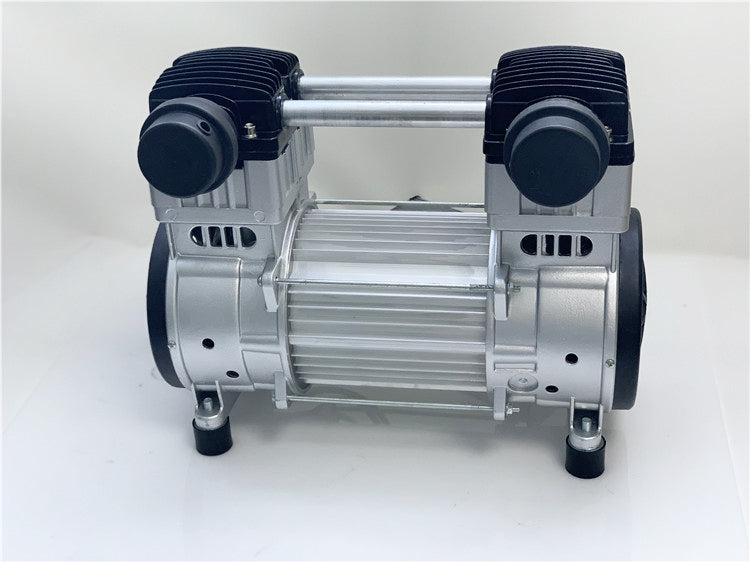

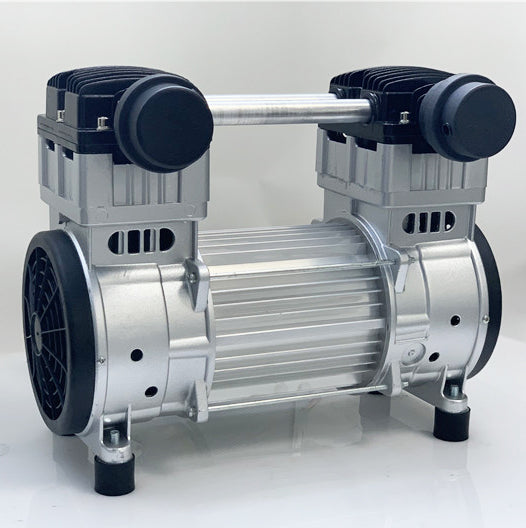

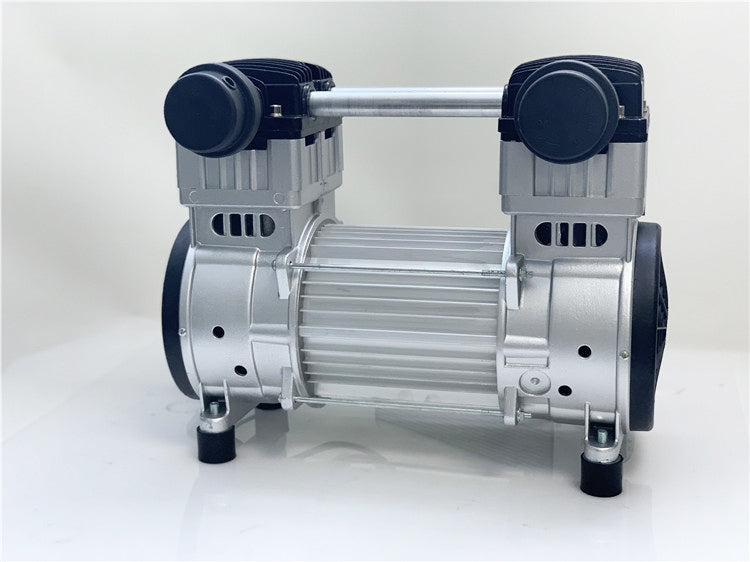

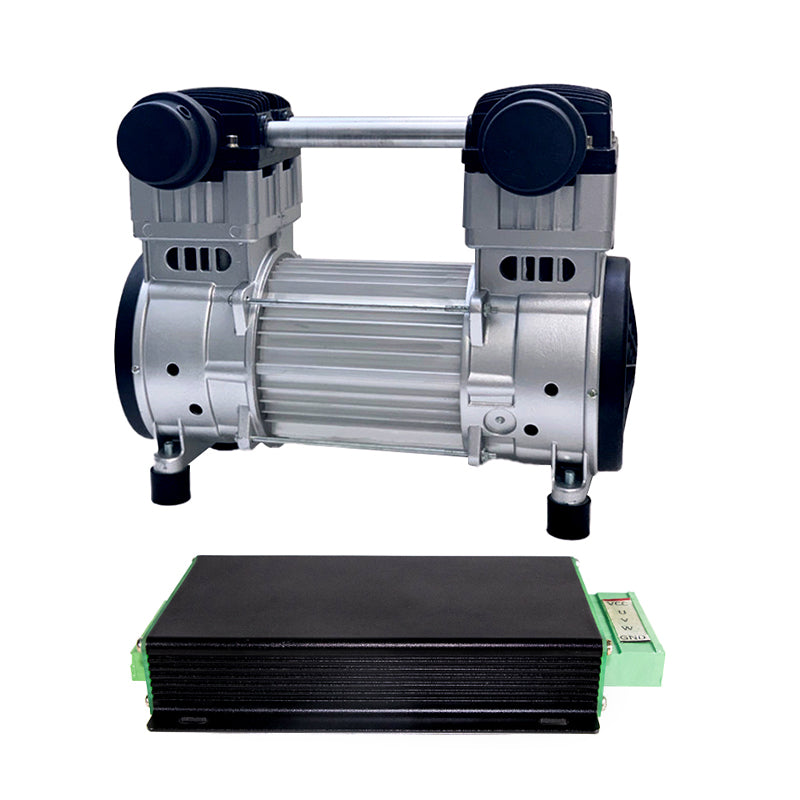

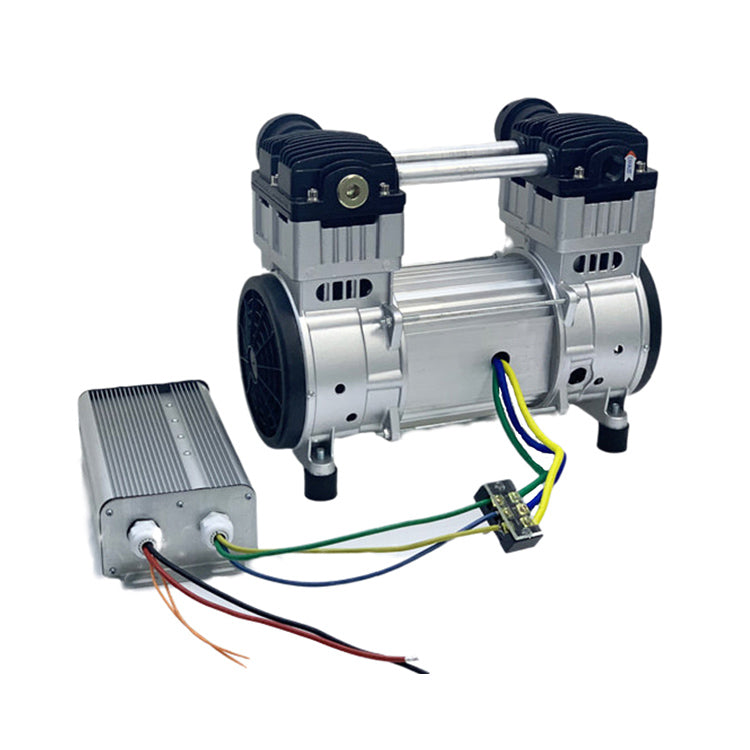

Why Choose the HC1100D Oilless Vacuum Pump
When a laboratory technician processes sensitive chromatography samples, even microscopic oil vapors can compromise the results, leading to costly delays and ruined experiments. The HC1100D oilless vacuum pump eliminates this risk entirely, providing a completely clean, oil-free vacuum environment that ensures strict sample integrity. Designed for continuous duty, this pump delivers consistent pneumatic power without the maintenance overhead of fluid checks, lubrication schedules, or specialized filter replacements associated with traditional lubricated pumps.
Beyond laboratory precision, this unit is engineered to maximize operational uptime across diverse industrial applications. By removing the need for oil, facilities decrease their consumable expenses while simultaneously maintaining a cleaner workspace. The internal components are specifically configured to manage heat and friction efficiently, ensuring stable pressure generation during long operational cycles.
- High-Efficiency Power: Operates at a maximum of 600W on a dedicated DC24V power supply, ensuring optimal energy usage for industrial machinery.
- Dual Performance Options: Users can configure the unit for a 200L/min flow rate at -92Kpa for higher volume applications, or a 100L/min flow rate at -98Kpa for deeper vacuum requirements.
- Quiet Operation: Designed to maintain a controlled workplace environment, the pump produces a noise profile of ≤70dB(A) while running at a maximum speed of 1700rpm.
- Clean Vacuum Technology: The completely oil-free mechanism prevents internal system contamination and protects sensitive downstream equipment.
- Certified Manufacturing: Production processes and materials are fully compliant with rigorous CE, RoHS, and ISO 9001 standards.
Key Technical Specifications
| Specification | Value |
|---|---|
| Model Number | HC1100D |
| Voltage | DC24V |
| Noise | ≤70dB(A) |
| Power at rated pressure | ≤600W |
| Vacuum flow rate @ pressure (Option 1) | 200L/min @ -92Kpa |
| Vacuum flow rate @ pressure (Option 2) | 100 L/min @ -98Kpa |
| Speed at rated pressure | ≤1700rpm |
| Dimension | 330 x 167 x 278 mm |
| Installation Size | 127 x 244 mm |
| Net Weight | 12.6 kg |
Applications & Industries
The HC1100D oilless vacuum pump is purposefully engineered to support a wide variety of industrial and commercial applications requiring highly reliable, clean suction. In the laboratory sector, a completely oil-free design is essential for supporting analytical equipment such as rotary evaporators, vacuum drying ovens, and complex filtration systems. Because the pump entirely removes the risk of hydrocarbon vapor contamination, scientists and technicians can rely on it for analytical chemistry processes, ensuring that volatile compounds are handled safely without cross-contamination.
In automated manufacturing, specifically within pick-and-place automation and high-speed packaging lines, consistent vacuum flow is necessary for moving components rapidly and securely. The 600W motor and 1700rpm maximum speed provide the sustained suction required to grip, lift, and transfer heavy or irregular items safely across the production floor. Its DC24V input voltage makes it highly compatible with standard programmable logic controllers (PLCs), industrial control panels, and mobile robotics platforms. The 12.6 kg weight and 127 x 244 mm installation size allow engineers to mount the pump directly onto moving gantries or inside compact control cabinets, ensuring predictable operation during long production shifts without occupying excessive space.
For medical suction devices, patient safety and strict environmental hygiene are absolute priorities. The clean vacuum output meets the demanding air quality requirements of contemporary healthcare settings. Medical equipment designers frequently integrate the HC1100D into surgical aspirators, dental vacuum systems, and respiratory care machines. The dual flow configurations—either 200L/min at -92Kpa for rapid fluid removal or 100L/min at -98Kpa for concentrated, deeper suction—allow manufacturers to tailor the pneumatic response for precise medical tasks without introducing airborne pollutants into the clinical environment.
Certifications & Compliance
Procuring industrial components for international distribution requires strict adherence to global safety and environmental directives. The HC1100D carries official CE marking, indicating that it meets the essential health, safety, and environmental protection standards mandated for products sold within the European Economic Area (EEA). This specific certification ensures that the pump operates safely within complex electrical systems, adhering strictly to machinery directives and low-voltage guidelines, while effectively mitigating the risk of electromagnetic interference with surrounding equipment.
Additionally, the RoHS certification guarantees that the vacuum pump is manufactured without the use of restricted hazardous materials, including lead, mercury, hexavalent chromium, and cadmium. This makes the unit significantly safer for the environment, protects factory workers during assembly, and simplifies end-of-life recycling and disposal processes. Furthermore, the manufacturing facilities producing the HC1100D operate under stringent ISO 9001 standards. This internationally recognized accreditation ensures a consistent, heavily audited quality management system throughout the entire production lifecycle. By maintaining ISO 9001 compliance, B2B buyers and procurement officers are guaranteed that every single 24V unit delivered has undergone standardized testing and meets strict functional criteria before final installation.
Frequently Asked Questions
What are the voltage and physical installation requirements for the HC1100D?
This model is designed specifically to operate on a DC24V power supply. It consumes a maximum of 600W at its rated pressure and operates at speeds up to 1700rpm. Physically, the pump has overall dimensions of 330 x 167 x 278 mm, with a dedicated installation base size of 127 x 244 mm. It weighs 12.6 kg, making it straightforward to bolt into standard industrial racks or automated machine frames.
Is the HC1100D suitable for pick-and-place automation machinery?
Yes, the HC1100D is highly suitable for pick-and-place automation. Its configurable flow rate options—either a higher volume 200L/min at -92Kpa or a deeper vacuum of 100L/min at -98Kpa—provide the strong, continuous suction necessary for automated vacuum gripping systems. The absence of oil means no exhaust mist will contaminate the production line or the products being handled.
What specific certifications does this vacuum pump carry for commercial integration?
The pump is fully verified with CE, RoHS, and ISO 9001 certifications. These credentials confirm that the unit complies with European safety and electrical standards, is completely free from restricted toxic substances, and is manufactured under a rigorously audited quality management system. These certifications facilitate easier regulatory compliance for original equipment manufacturers integrating the pump into larger systems.
Download the complete technical datasheet for specifications and performance curves.
