HC1100 Oilless Air Pump | ≤1100W, 100L/min, 24h Continuous Duty

HC1100 Series — AC Oil-Free Air Compressor

Why Choose the HC1100 Oilless AC Air Pump

Picture a production floor where a central pneumatic source must feed filling lines, packaging stations and automated tools at once — each demanding a steady supply at 8 bar, with no downtime for oil changes and no risk of oil mist reaching sensitive products. In high-consumption industrial environments, undersized or lubricated compressors create exactly the bottlenecks and contamination risks you cannot afford. The HC1100 oilless air pump delivers a powerful 100L/min at 800Kpa — oil-free by design, built for sustained multi-station duty, and free of lubrication maintenance for life. With its twin-cylinder, pressure-parallel-flow head, the HC1100 gives OEM buyers and facility managers the flow headroom to run entire work cells from one dependable pneumatic core.

Key Features

• 100% Oil-Free Operation — eliminates oil-mist contamination and lubrication maintenance entirely, making it safe for food, beverage, pharmaceutical and laboratory integration where air purity is non-negotiable.
• High-Capacity Output — delivers a powerful 100L/min at 800Kpa, with free-air delivery of up to 187L/min — enough to feed multiple workstations or high-consumption equipment from a single unit.

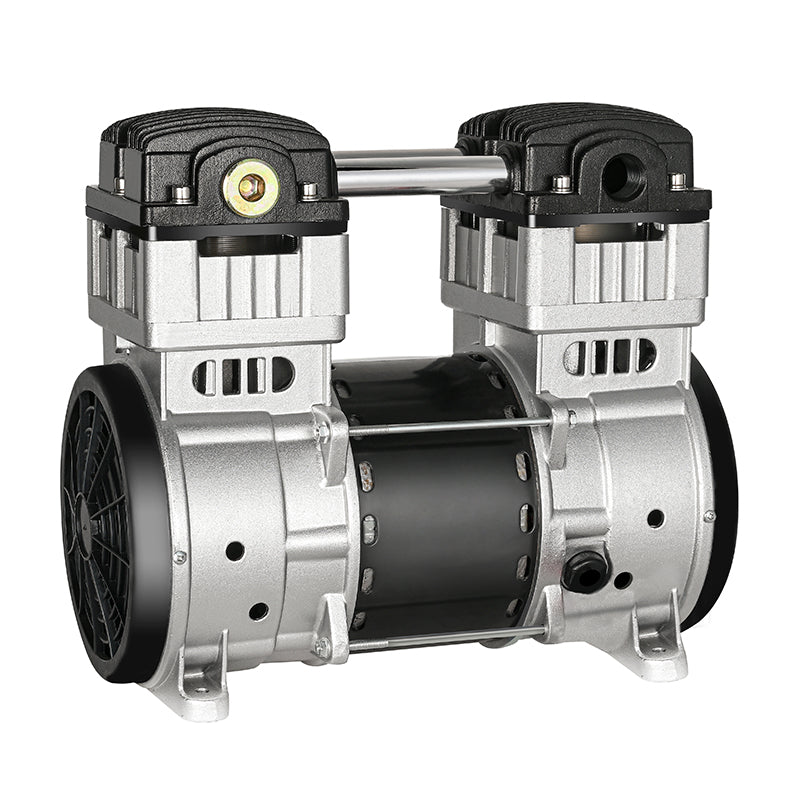

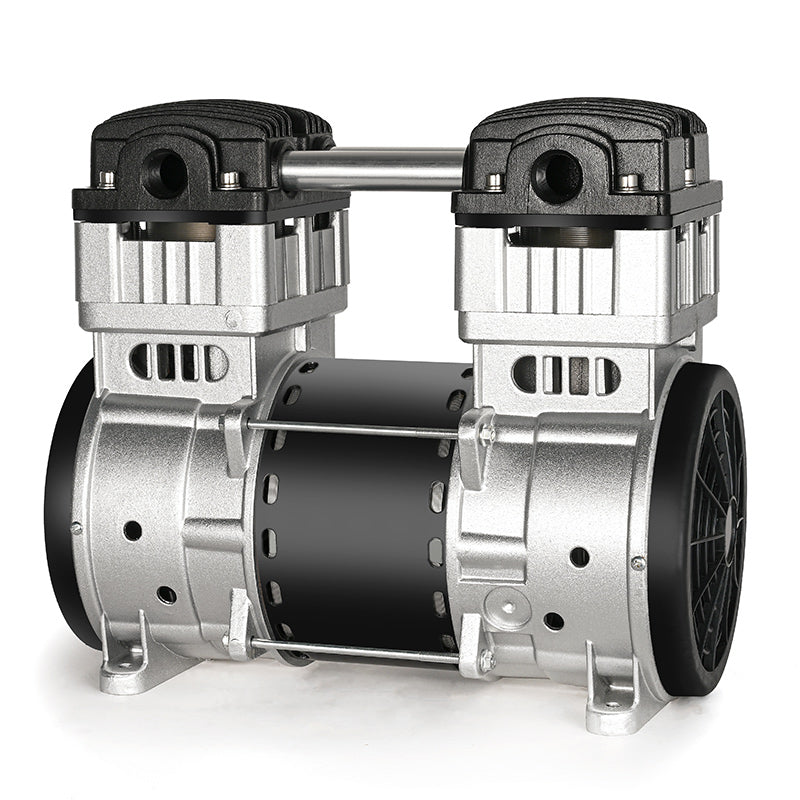

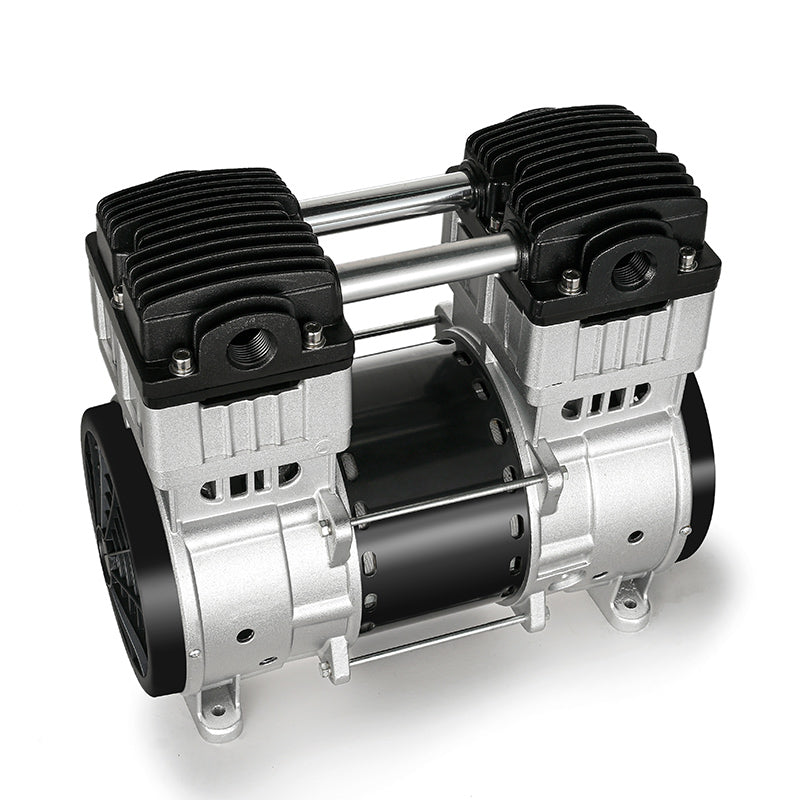

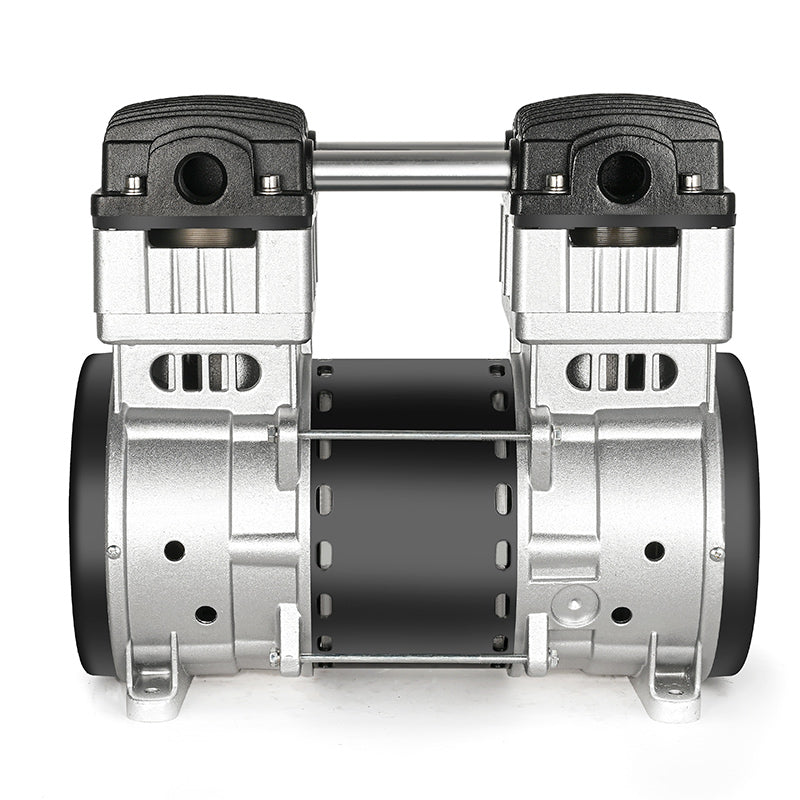

• Heavy-Duty Twin-Cylinder Design — heads in pressure-parallel-flow configuration share the load for smooth, sustained delivery under continuous operating cycles.
• Built for Continuous Duty — F-class motor insulation and a 17.2kg precision-built frame are engineered for the demands of daily production operation.
• Thermal Safety — integrated thermal protection activates at 145±5°C to prevent motor overheating during intensive operation.
• Global Voltage Flexibility — offered as HC1100A-100/8 (220V/50Hz/1) and HC1100B-100/8 (110V/60Hz/1), so OEMs can standardize one pneumatic platform across regional markets.
• Wide Operating Range — functions reliably in ambient air temperatures from -5°C to 40°C.

Applications & Industries

Industrial automation & production lines — For plants that run filling, capping, sealing and pick-and-place stations from one air supply, the HC1100 provides the flow capacity and pressure stability to keep entire lines moving. Sustaining 100L/min at a steady 800Kpa, it supports simultaneous pneumatic consumers without the pressure sag typical of undersized units — and because the air is 100% oil-free, there is no contamination risk and no lubrication downtime across multi-station operations.

Food, beverage & pharmaceutical processing — Hygiene-critical facilities must keep compressed air free of oil contamination during flushing, packaging, sealing and product handling. An oilless design removes that hazard at the source, while the twin-cylinder parallel-flow layout sustains the higher air demand of automated lines. With F-class insulation and thermal protection, the HC1100 supports extended operating cycles without scheduled lubrication shutdowns.

Centralized systems & OEM equipment — The HC1100 also serves as a central air source for workshops, garages and OEM machinery requiring higher flow at elevated pressure. With a 330×167×278mm body, a 244×127mm mounting footprint and a net weight of 17.2kg, it integrates into equipment frames and mobile carts while delivering the output of far larger installations. Dual voltage options allow manufacturers to standardize their pneumatic design across global markets.

Certifications & Compliance

Procurement engineers and OEM buyers require strict quality assurance and regulatory compliance to mitigate supply-chain risk. The HC1100 is manufactured in an ISO 9001-certified facility, ensuring that every unit rolling off the production line adheres to strict quality management principles — consistent manufacturing tolerances, predictable performance across large-batch orders and a commitment to continuous product improvement for industrial buyers.

Furthermore, the HC1100 series supports CE and RoHS compliance. The CE mark indicates conformity with European health, safety and environmental protection standards, supporting market access for OEMs exporting equipment to the European Economic Area. RoHS compliance confirms the pump is manufactured without restricted hazardous substances such as lead, mercury or cadmium — critical for manufacturers of food-processing and pharmaceutical machinery that must meet environmental directives and ensure end-of-life recyclability of their products.

Frequently Asked Questions

What are the electrical requirements and thermal limits of the HC1100?

The HC1100 is available in two configurations to suit regional power grids: the HC1100A-100/8 operates on 220V/50Hz/1, drawing ≤1100W and running at 1400rpm, while the HC1100B-100/8 requires 110V/60Hz/1, drawing ≤1100W and running at 1700rpm. Both models deliver 100L/min at 800Kpa, feature Class F motor insulation and include built-in thermal protection that triggers automatically at 145±5°C. Capacitor values are 30μF for the 220V model and 120μF for the 110V model. The pump operates safely in ambient air temperatures between -5°C and 40°C.

Can the HC1100 supply multiple workstations or high-consumption equipment at once?

Yes. With a rated output of 100L/min at 800Kpa and free-air delivery up to 187L/min, the HC1100 is designed to feed several pneumatic consumers simultaneously — such as filling lines, sealing stations and automated tools — while maintaining stable pressure. For exact sizing, share your number of consumers, typical duty cycle and required working pressure and we will confirm suitability.

How does the HC1100 mount inside OEM equipment or mobile systems?

The HC1100 is designed for straightforward integration into OEM machinery and carts. Overall dimensions are 330×167×278mm, with a 244×127mm mounting footprint (4×M8 holes) and a net weight of 17.2kg — providing industrial-grade output in a frame that can be bolted directly into equipment structures with minimal modification.

Technical Specifications
