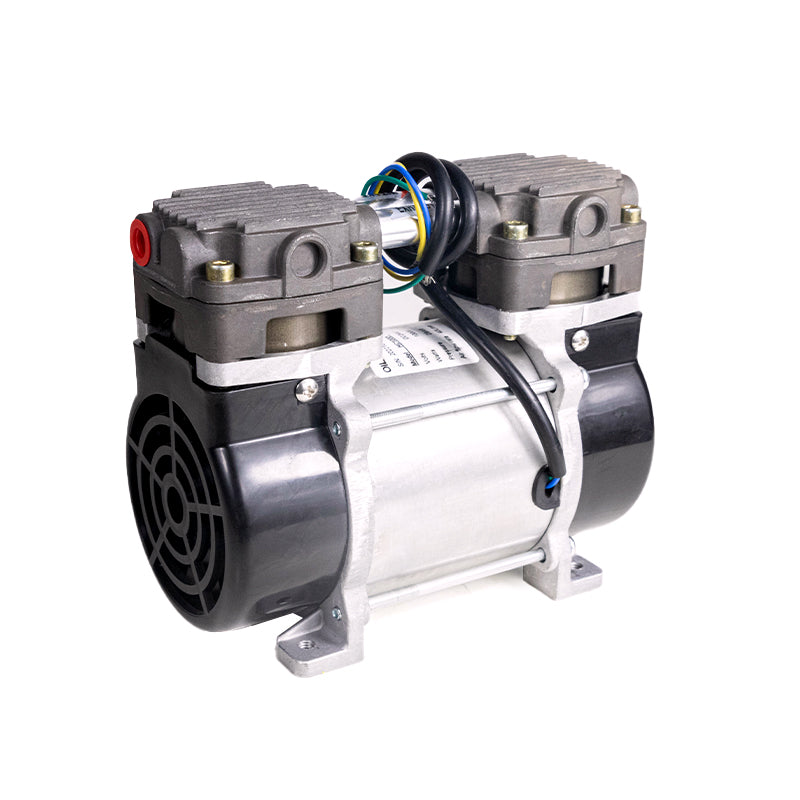

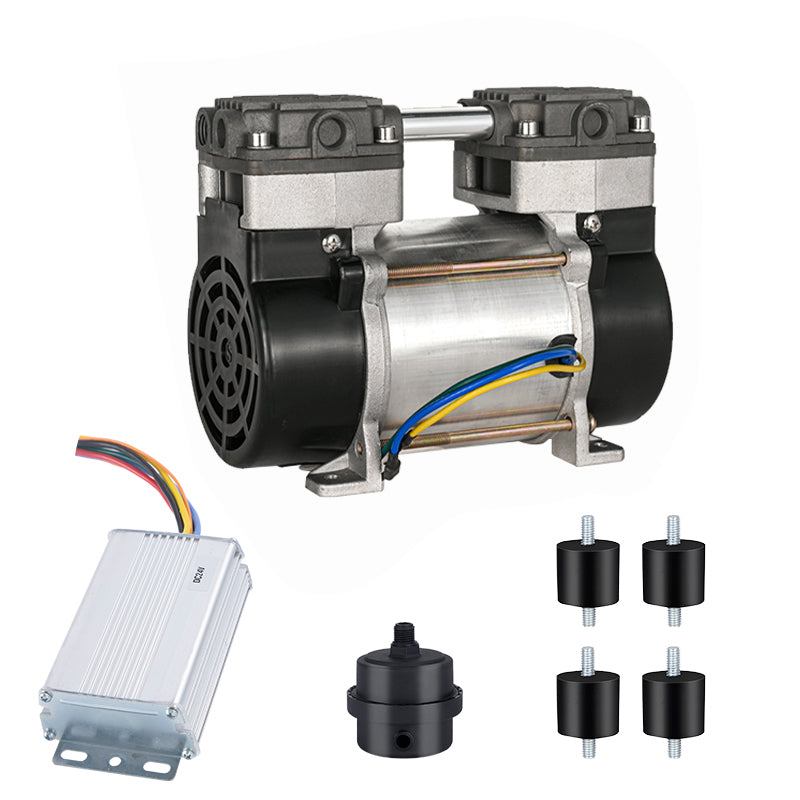

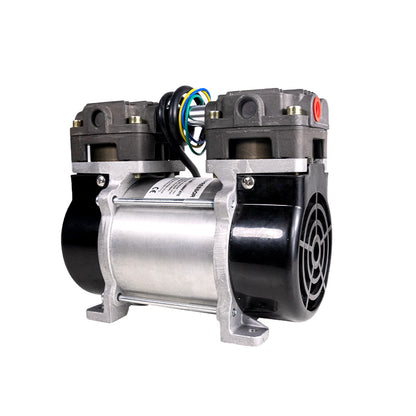

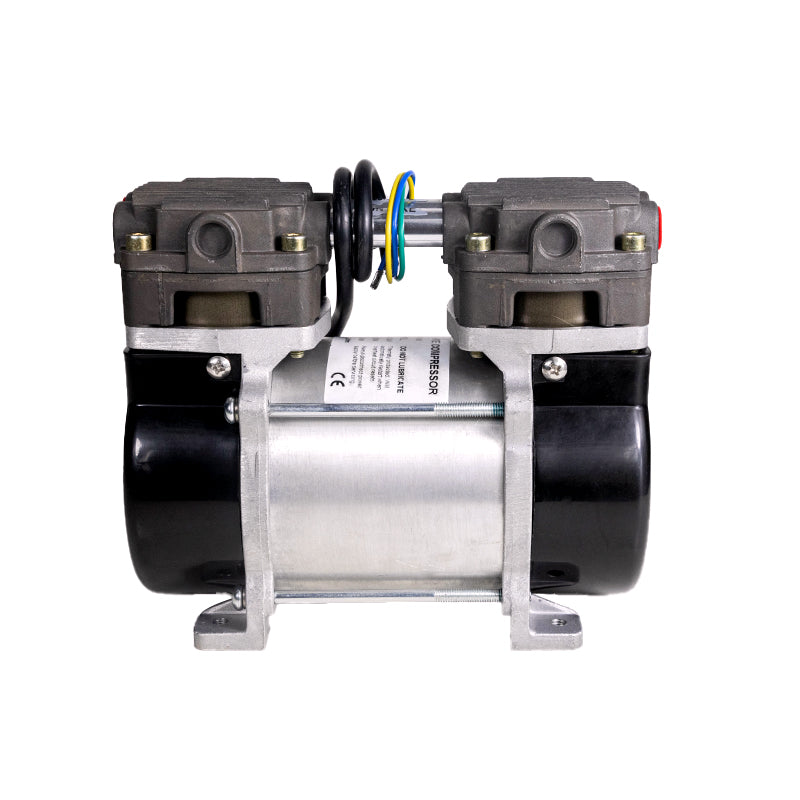

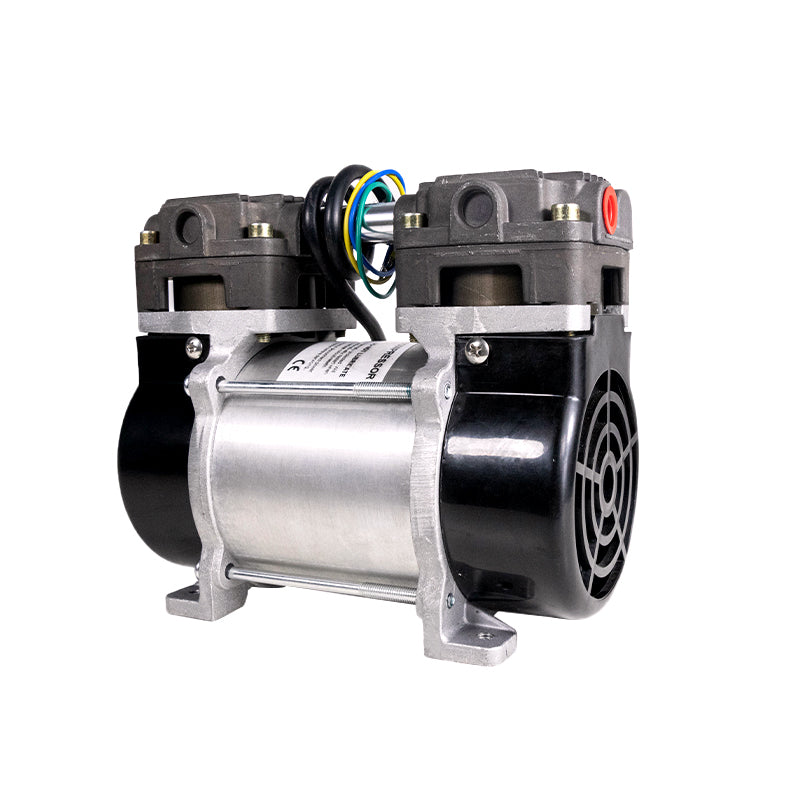

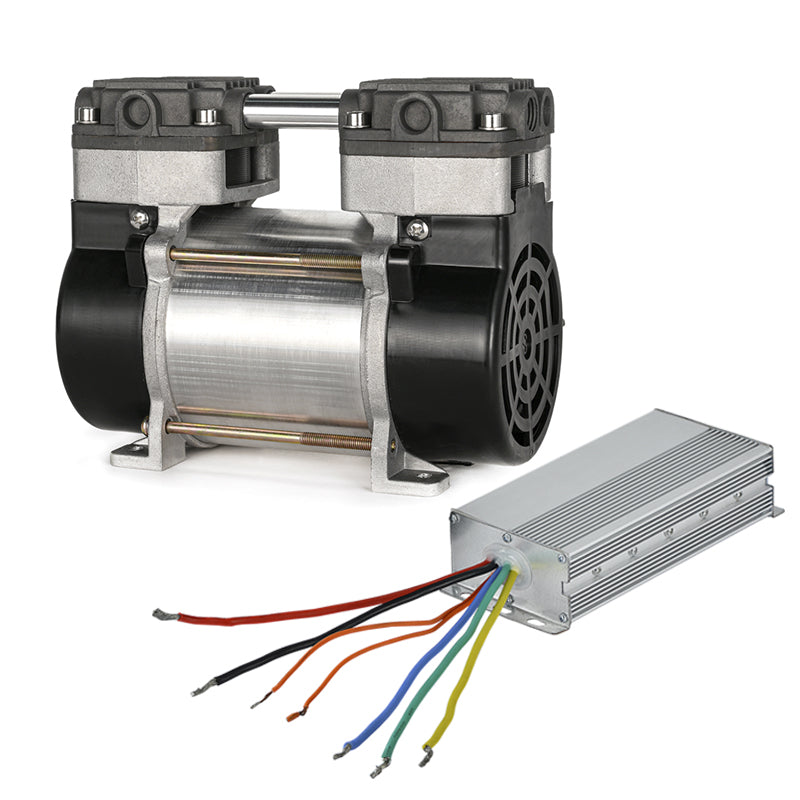

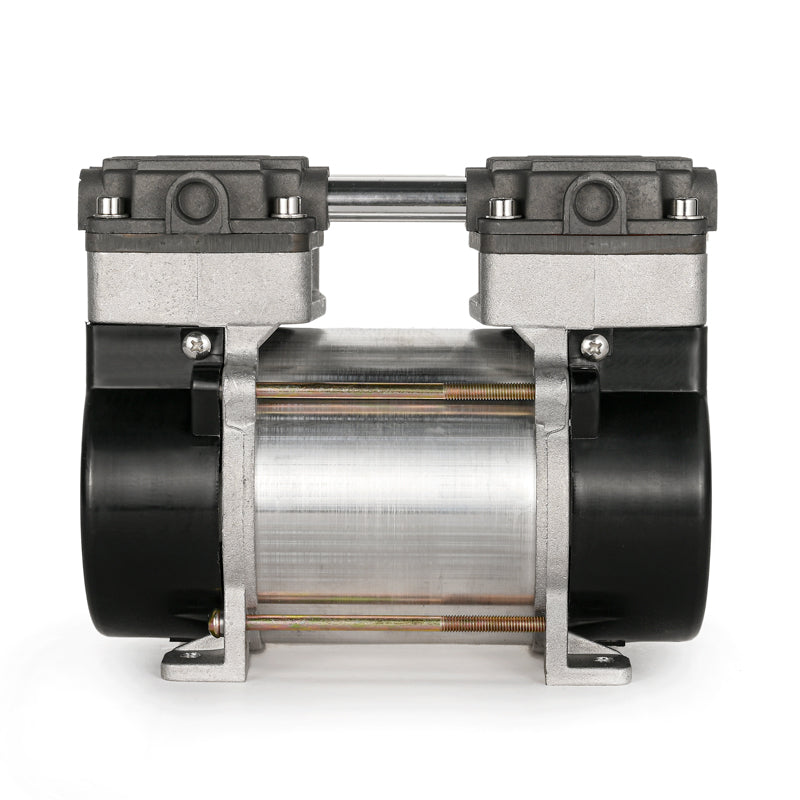

HC100D Oilless DC Air Pump | 24V, 9L/min @700Kpa, IP54

Why Choose the HC100D Oilless DC Air Pump

Consider a mobile medical unit needing a DC air pump that operates in -40°C Arctic conditions to maintain critical pneumatic systems. Standard compressors often fail in these extreme environments due to lubricant freezing, condensation build-up, or electrical faults. The HC100D oilless DC air pump solves this exact challenge by utilizing advanced internal materials and a dry-running design that functions reliably across an extreme temperature spectrum from -50°C to 150°C. By entirely eliminating the need for lubricating oil, this pump ensures clean, contaminant-free air delivery and zero maintenance downtime.

• Power Efficiency: Operates at ≤200W at rated pressure, drawing just 8.3 A on a 24V DC system, ensuring minimal battery drain for mobile and remote applications.
• Consistent Output: Delivers a precise air flow rate of 9L/min at a high pressure of 700Kpa, suitable for demanding and continuous pneumatic tasks.
• Extreme Durability: Engineered for a 70,000-hour lifespan, providing years of continuous operation without mechanical degradation or the need for servicing.
• Environmental Resilience: Rated for operating temperatures ranging from -50°C to 150°C, allowing deployment in both arctic and high-heat industrial environments.
• Quiet Operation: Runs at a low noise level of ≤60dB(A), minimizing acoustic disruption in enclosed spaces or sensitive medical environments.
• Global Compliance: Fully certified with CE and RoHS marks, guaranteeing adherence to international safety, health, and environmental standards.
• Ingress Protection: Features an IP54 rating, protecting the internal motor and pump components from harmful dust accumulation and splashing water.

Key Technical Specifications

Applications & Industries

The HC100D oilless DC air pump is specifically engineered for sectors requiring highly dependable pneumatic power independent of standard AC grids. In the realm of EV fleet maintenance, this pump serves as an essential component for on-board tire inflation systems and precise pneumatic suspension adjustments. Because it runs directly off DC power sources and draws only 8.3 A at its rated pressure, it integrates easily into an electric vehicle's existing 24V or 48V architecture without causing excessive drain on the auxiliary battery. The compact dimensions (176x96x146 mm) allow automotive engineers to mount the unit securely within tight chassis compartments.

For solar-powered systems and off-grid applications, energy efficiency and reliability are primary concerns. The ≤200W power consumption makes the HC100D highly compatible with solar charge controllers and remote battery banks. Remote weather stations, off-grid environmental monitoring tools, and agricultural aeration systems benefit immensely from the pump's 70,000-hour lifespan and IP54 rating. In these isolated locations, the oilless design is critical, as it removes the need for routine maintenance visits to check or replace pump oil, thereby lowering the total cost of ownership and preventing system failures.

Furthermore, mobile equipment manufacturers utilize this compressor for heavy-duty applications. Construction vehicles, mobile medical units, and emergency response trailers frequently encounter harsh weather and demanding duty cycles. The pump's ability to operate in temperatures from -50°C to 150°C ensures that pneumatic brakes, medical ventilators, or mobile lifting mechanisms function correctly whether deployed in freezing arctic environments or high-heat desert conditions. The low noise output of ≤60dB(A) is particularly beneficial for medical and emergency applications where communication and patient comfort cannot be compromised by loud machinery.

Certifications & Compliance

For OEM buyers and procurement engineers, regulatory compliance is a mandatory requirement for international distribution. The HC100D oilless DC air pump carries the CE mark, indicating full conformity with European health, safety, and environmental protection standards. This certification ensures that the equipment can be legally sold and integrated into machinery destined for the European Economic Area (EEA). It provides manufacturers with the assurance that the electrical components and pressure vessels meet strict safety directives, reducing liability and simplifying the final certification process for the complete machine.

In addition to CE, the pump is RoHS compliant, meaning it is manufactured without the use of hazardous substances such as lead, cadmium, or mercury. This is vital for companies adhering to global environmental regulations and corporate sustainability goals. Furthermore, the IP54 protection rating guarantees that the internal mechanics are protected against harmful dust ingress and splashing water from any direction. This environmental sealing is a critical specification for outdoor solar-powered systems and mobile equipment, ensuring the pump maintains its 70,000-hour lifespan even when exposed to challenging industrial environments.

Frequently Asked Questions

What is the maintenance schedule for the HC100D model given its 70,000-hour lifespan?

Because the HC100D is an oilless DC air pump, it requires zero lubrication maintenance. There is no oil to check, top up, or replace. The 70,000-hour lifespan is achieved through the use of self-lubricating internal materials and high-quality bearings. Routine maintenance is generally limited to inspecting the external electrical connections, ensuring the 4xM6 mounting bolts remain secure at the 70x114 mm installation points, and keeping the external housing clear of heavy debris to maintain the IP54 protection rating.

Is the HC100D suitable for integration into 24V solar-powered systems?

Yes, the HC100D-9/7 model is explicitly designed for DC24V operation, making it an excellent match for standard 24V solar battery banks. It consumes ≤200W and draws just 8.3 A at its rated pressure of 700Kpa, which allows for straightforward sizing of solar panels and charge controllers. Additionally, its wide voltage compatibility (12V-560V DC) and extreme temperature tolerance (-50°C to 150°C) make it highly reliable for outdoor, off-grid solar deployments where environmental conditions fluctuate significantly.

Does the IP54 rating allow the pump to be mounted on the exterior of mobile equipment?

The IP54 rating indicates that the pump is protected against dust that could interfere with normal operation and is protected against water splashing from any angle. While this provides excellent protection for EV fleet maintenance vehicles and mobile equipment, it is not fully waterproof or submersible. For exterior mounting, it is highly recommended to place the pump within a secondary ventilated enclosure to protect it from direct, heavy rain or high-pressure washing, ensuring the longevity of the electrical components.
