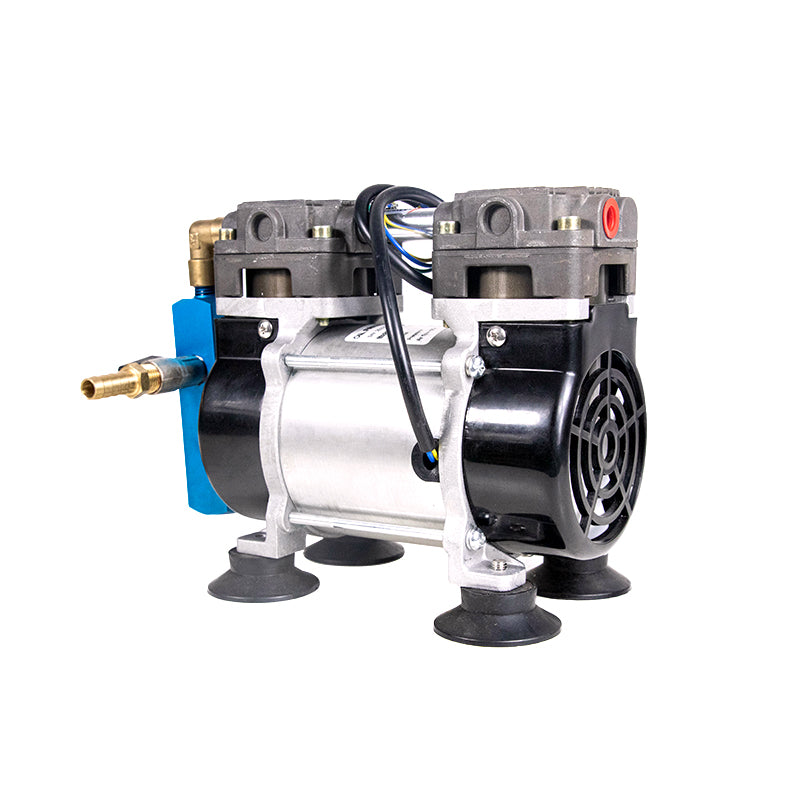

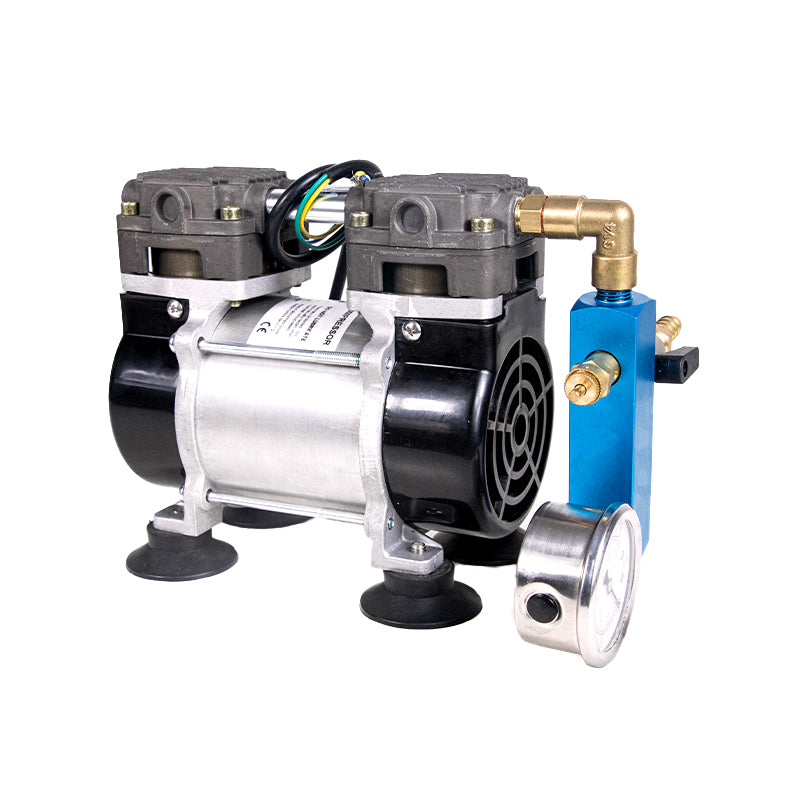

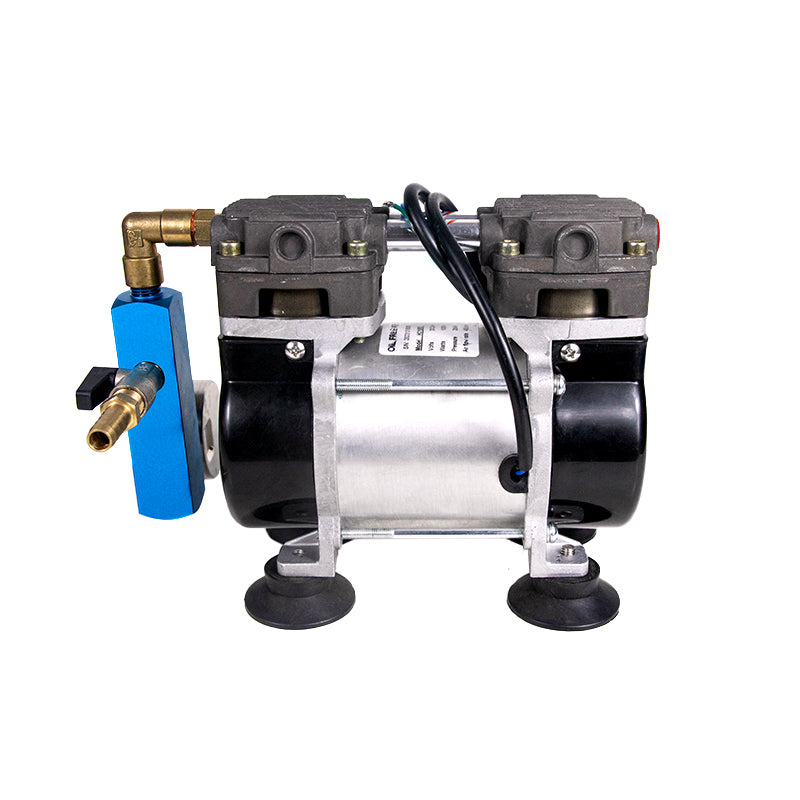

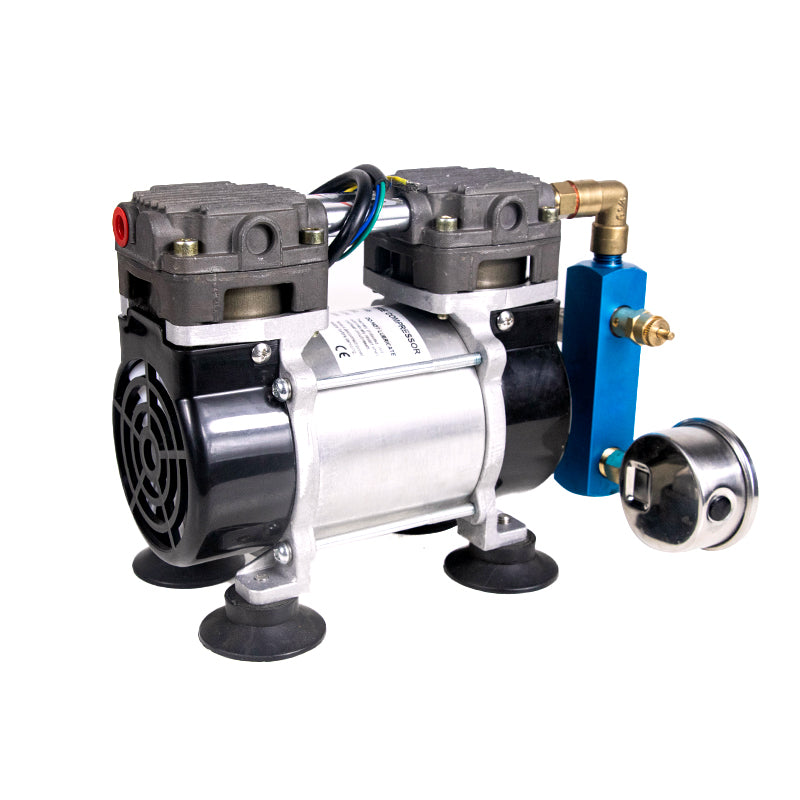

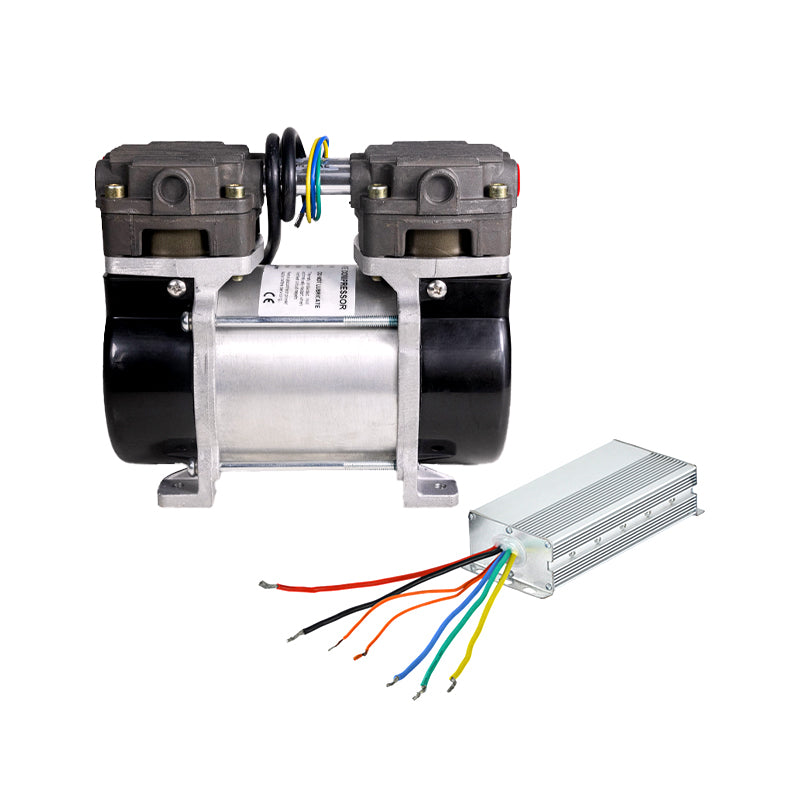

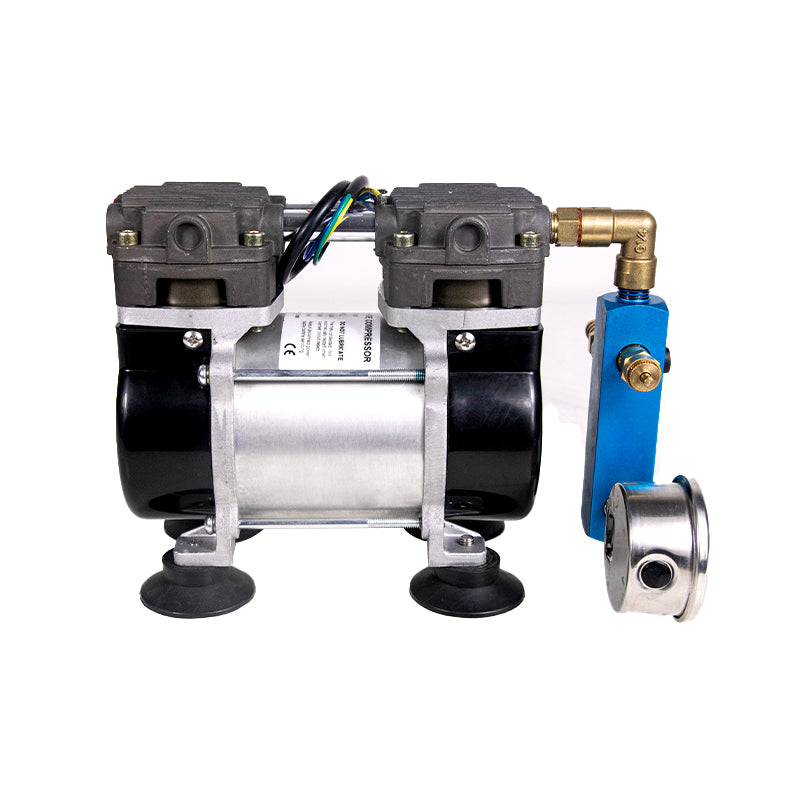

HC100D-1 Pond Aerator Pump | 150W 24V DC, 0.5-Acre Coverage

As a water garden hobbyist frustrated by repeated pond liner damage from aggressive algae, you understand how quickly poor water management can ruin a beautiful aquatic environment. Stagnant water creates the ideal breeding ground for invasive algae species that attach themselves to the sides, slowly weakening expensive pond liners over time. Beneath the surface, decomposing leaves and fish waste build up as a thick layer of toxic muck at the bottom. Without proper circulation, your fish suffer from dangerously low oxygen levels, and your remote water feature becomes a constant source of stress rather than a relaxing retreat. When standard electrical power isn't available at the water's edge, finding a dependable way to oxygenate and protect your aquatic investment requires a specialized, off-grid approach to water management.

Why Choose the HC100D-1

• Energy-efficient 150W, 24V DC motor designed specifically for off-grid solar panel and battery integration.
• Provides comprehensive bottom aeration for remote ponds and water features up to 0.5 acres in size.
• Includes 1 high-performance diffuser capable of operating efficiently at a maximum depth of 65 feet.
• Built-in thermal protection up to 145°C ensures safe, continuous operation even in demanding outdoor conditions.
• Compact and manageable design weighing just 3.2 kg, making remote installation and maintenance straightforward.

How Bottom Aeration Works

Bottom aeration fundamentally improves overall water health by disrupting the natural thermocline, actively mixing colder, oxygen-depleted bottom water with the warmer, oxygen-rich surface layer. Compressed air is pushed from the shore down through weighted tubing to the heavy-duty diffuser resting on the pond floor. This diffuser releases millions of fine micro-bubbles that rise steadily through the water column, facilitating rapid and efficient oxygen transfer. As these bubbles break the surface tension, they safely vent harmful trapped gases like ammonia and hydrogen sulfide into the atmosphere. This continuous, top-to-bottom circulation creates a highly oxygenated environment at the pond floor, allowing beneficial aerobic bacteria to thrive. These bacteria then go to work, naturally digesting accumulated muck, reducing foul odors, and clearing the water column of suspended organic debris.

Ideal Applications for the HC100D-1

This 24V DC model is specifically engineered for off-grid and remote applications where traditional 110V/220V mains power is simply inaccessible or too expensive to trench. It is an excellent choice for 0.5-acre off-grid recreational ponds, small remote fish farms, and agricultural water features that rely entirely on 12V/24V solar panel arrays and battery banks. Because the compressor supports impressive depths up to 65 feet, it serves exceptionally well in deep, steep-sided irrigation reservoirs or abandoned quarries converted into aquaculture habitats. During the freezing winter months, the continuous upward movement of warmer bottom water helps maintain an open hole in the surface ice. This critical function prevents deadly winterkill by allowing toxic gases to escape, keeping valuable fish species like koi, bass, or trout healthy and safe year-round.

Technical Specifications

Frequently Asked Questions

Q: Do I need an AC inverter to run the HC100D-1 on my solar power system?

A: No, the HC100D-1 features a highly efficient DC 24V motor, meaning it can be wired directly to a compatible 24V solar charge controller and battery bank system without the need for an AC inverter. This minimizes power loss and maximizes your off-grid efficiency.

Q: Can this 150W compressor handle more than one diffuser if I decide to expand my pond later?

A: This specific system is optimized to run exactly 1 diffuser to effectively aerate up to 0.5 acres at depths up to 65 feet. Adding a second diffuser to this 150W pump would reduce the pressure and airflow, preventing the system from functioning optimally at its maximum rated depths.

Q: Is the 3.2 kg compressor fully weatherproof for permanent outdoor installation?

A: While the compressor is built for demanding outdoor environments with a wide operating ambient temperature range of -5 to 40℃, it must be housed in a ventilated, weather-resistant cabinet. This protects the motor and electrical components from direct rain, heavy snow, and excessive dust, ensuring a long operational lifespan.
