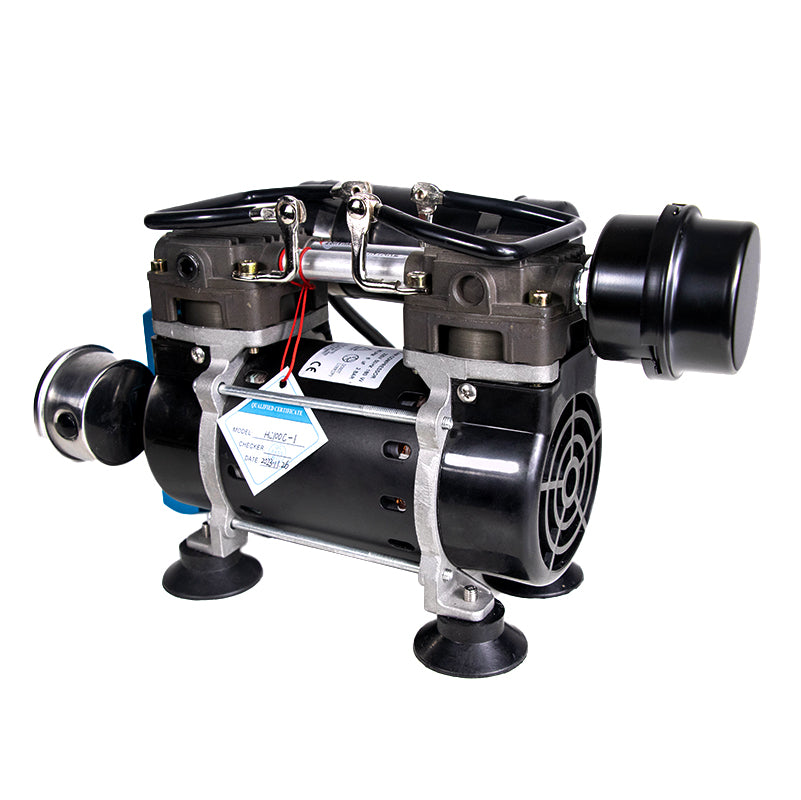

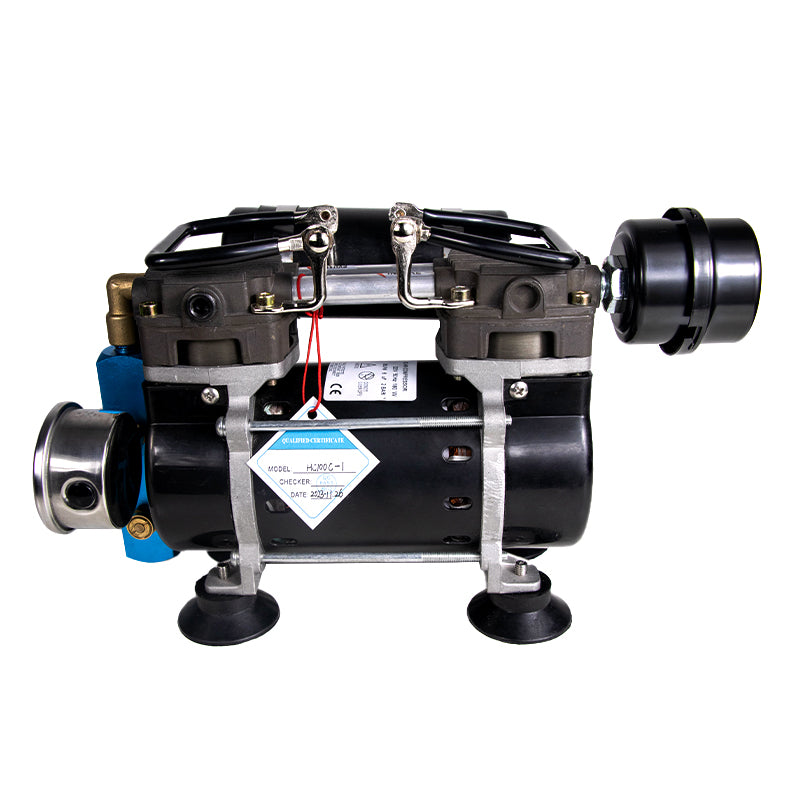

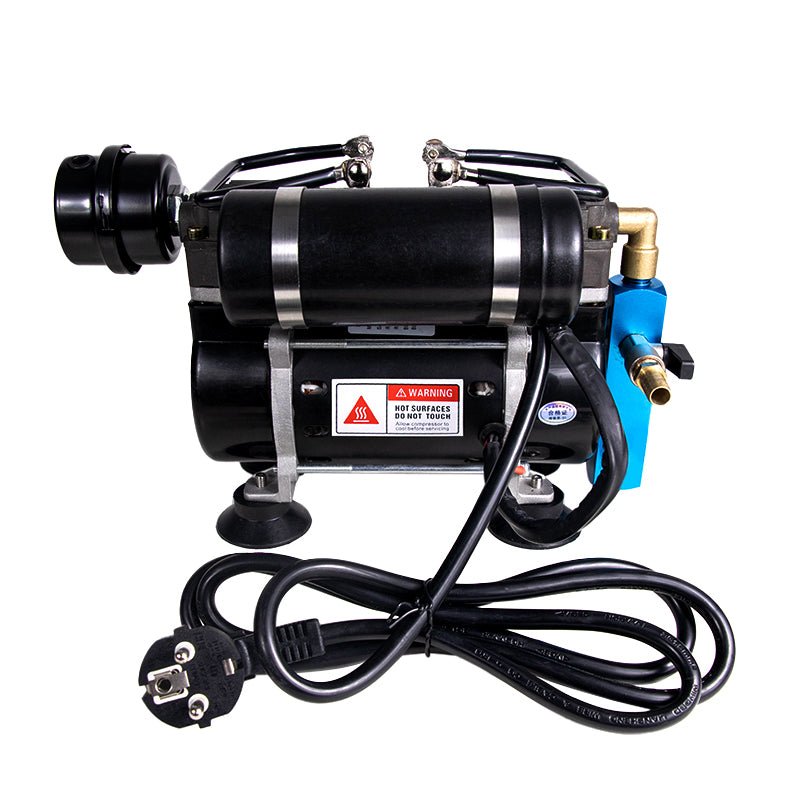

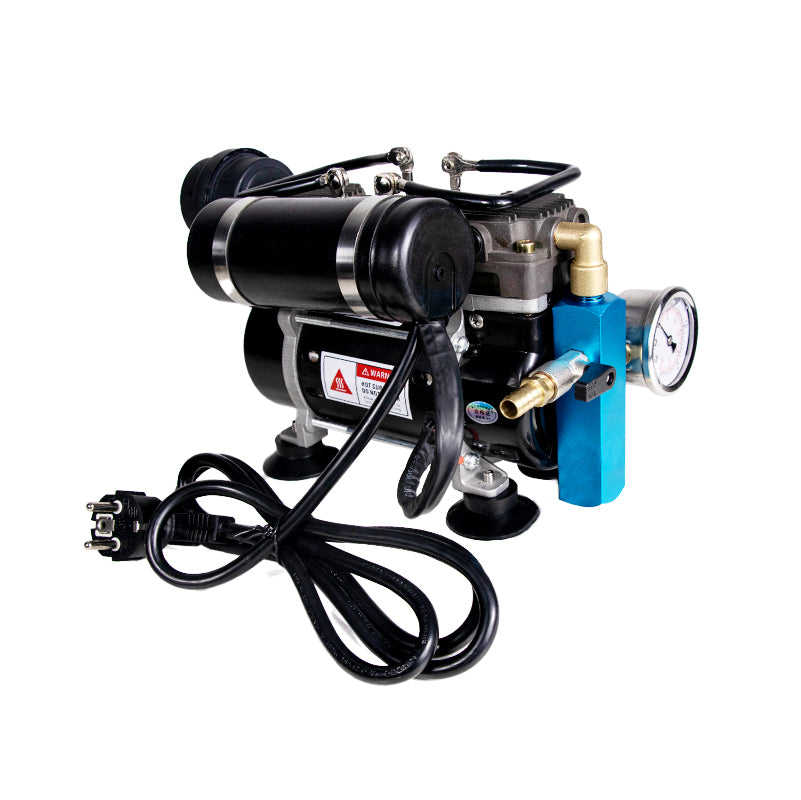

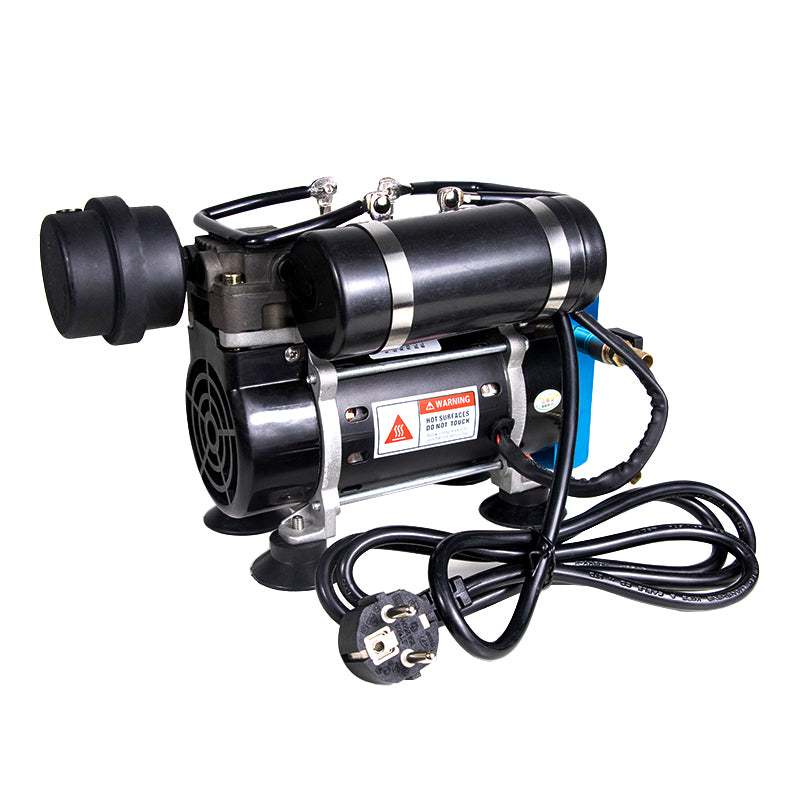

HC100A-1 Pond Aerator Pump | 230W AC, 0.5-Acre Coverage

A duck farm operator needing clean water circulation to reduce disease and maintain water quality faces a constant daily battle against heavy organic waste and stagnant water. When waterfowl produce high volumes of nutrient-rich runoff, ponds quickly suffer from severe oxygen depletion, foul surface odors, and harmful bacteria accumulation. Without proper circulation, these conditions can lead to avian botulism and other waterborne pathogens that threaten the entire flock. The HC100A-1 pond aerator pump provides the continuous, high-volume oxygenation required to process this heavy waste load, protect flock health, and restore biological balance to heavily used agricultural aquatic environments.

Why Choose the HC100A-1

• Optimized Power Consumption: Runs at a highly efficient ≤230W, available in both 110V/60Hz and 220V/50Hz configurations for standard AC mains connections worldwide.
• Targeted Coverage: Effectively aerates ponds up to 0.5 acres, making it ideal for small to medium-sized agricultural, commercial, or residential water bodies.
• Deep Water Capability: Engineered to push compressed air down to a maximum diffuser depth of 65 feet, ensuring full circulation even in steep-sided reservoirs.
• Complete Oxygenation: Utilizes 1 specialized bottom diffuser to produce millions of micro-bubbles that thoroughly mix the entire water column from floor to surface.
• Thermal Protection: Built-in thermal overload protection triggers at 145±5℃, safeguarding the Class F insulated motor during demanding continuous operation.

How Bottom Aeration Works

Bottom aeration relies on compressed air traveling through weighted tubing to a diffuser stationed on the pond floor. As the diffuser releases millions of tiny micro-bubbles, they rise to the surface, breaking the thermocline and mixing cold, oxygen-depleted bottom water with warmer, oxygen-rich surface water. This constant upward flow vents harmful gases like ammonia and hydrogen sulfide into the atmosphere before they can reach toxic levels. Simultaneously, the increased dissolved oxygen at the pond bottom accelerates the digestion of muck and organic waste by beneficial aerobic bacteria, naturally maintaining a balanced and healthy aquatic ecosystem.

Ideal Applications for the HC100A-1

With its highly efficient 230W motor and single-diffuser setup, the HC100A-1 is perfectly sized for water bodies up to 0.5 acres. It excels in small agricultural settings, such as duck ponds, dairy farm retention basins, or livestock watering holes, where managing heavy organic runoff is critical to animal health. Residential pond owners will find it highly effective for preventing summer fish kills by maintaining high dissolved oxygen during the hottest months. Furthermore, during freezing winter months, continuous operation of this AC-powered compressor keeps a hole open in the surface ice. This critical winter function allows toxic gases to escape and prevents winter fish kills. Additionally, this reliable pump serves as an excellent daily aeration source for small-scale aquaculture grow-out ponds, ensuring juvenile fish receive the stable dissolved oxygen levels required for healthy development and maximum feed conversion ratios.

Technical Specifications

Frequently Asked Questions

Can the 230W HC100A-1 handle a pond deeper than 20 feet?

Yes, this specific compressor is engineered to push air to a maximum diffuser depth of 65 feet. Its pressure parallel flow design maintains consistent airflow even against the high hydrostatic pressure found in deep water, making it highly versatile for deep, small-acreage ponds.

Do I need multiple diffusers for a 0.5-acre duck pond?

No, the HC100A-1 system is designed to effectively circulate up to 0.5 acres using just 1 included diffuser. The high-volume micro-bubble output from this single unit provides sufficient water column mixing for ponds of this exact size, ensuring complete oxygenation without the need for additional equipment.

Is the HC100A-1 suitable for continuous, 24/7 operation?

Absolutely. The motor features Class F insulation and built-in thermal protection that activates at 145±5℃. This allows the AC-powered compressor to run continuously day and night, ensuring your pond maintains optimal oxygen levels without the risk of overheating.
