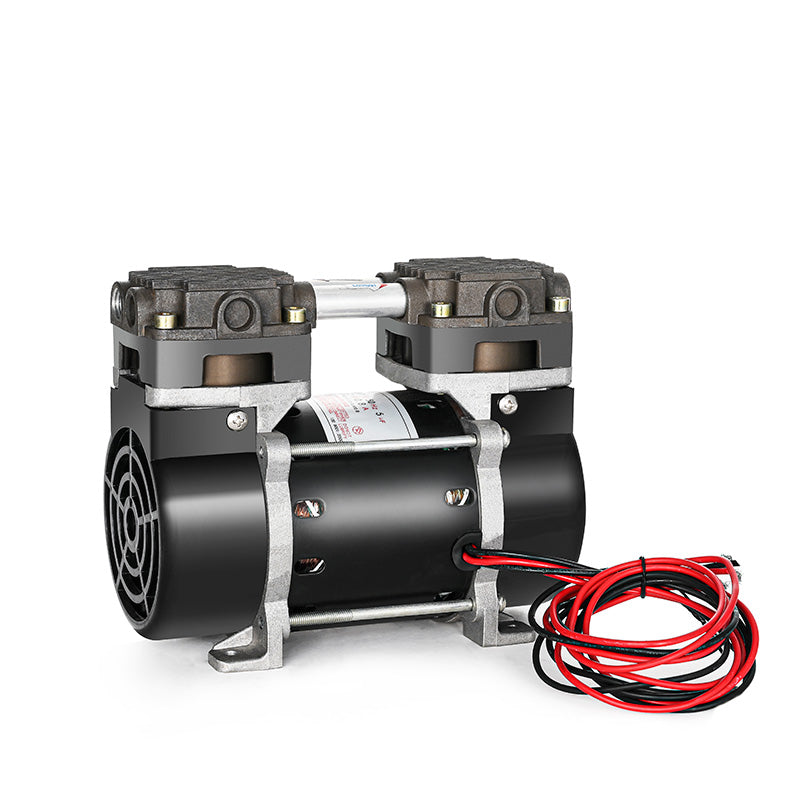

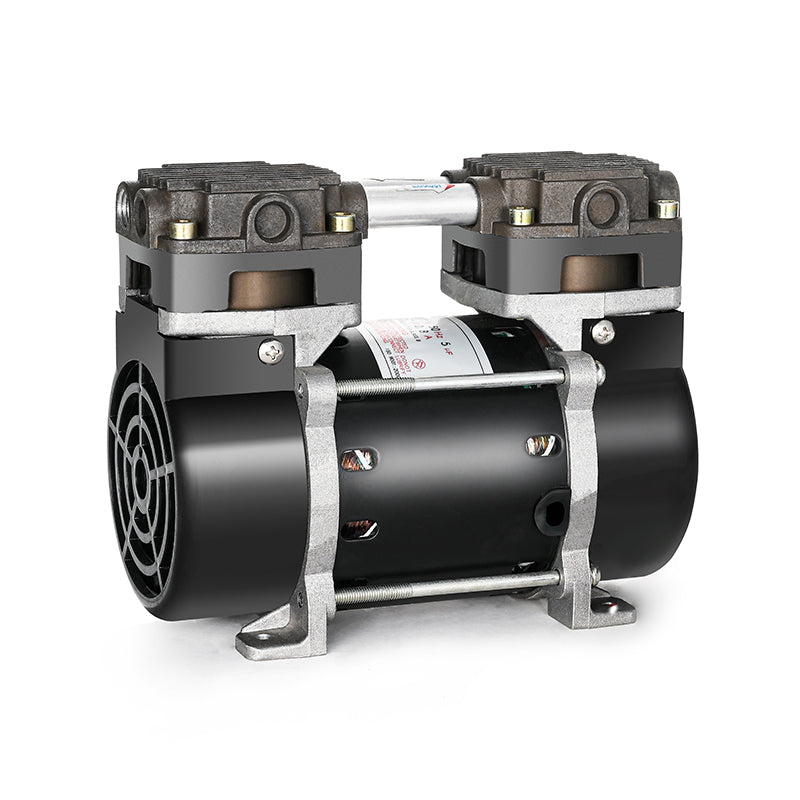

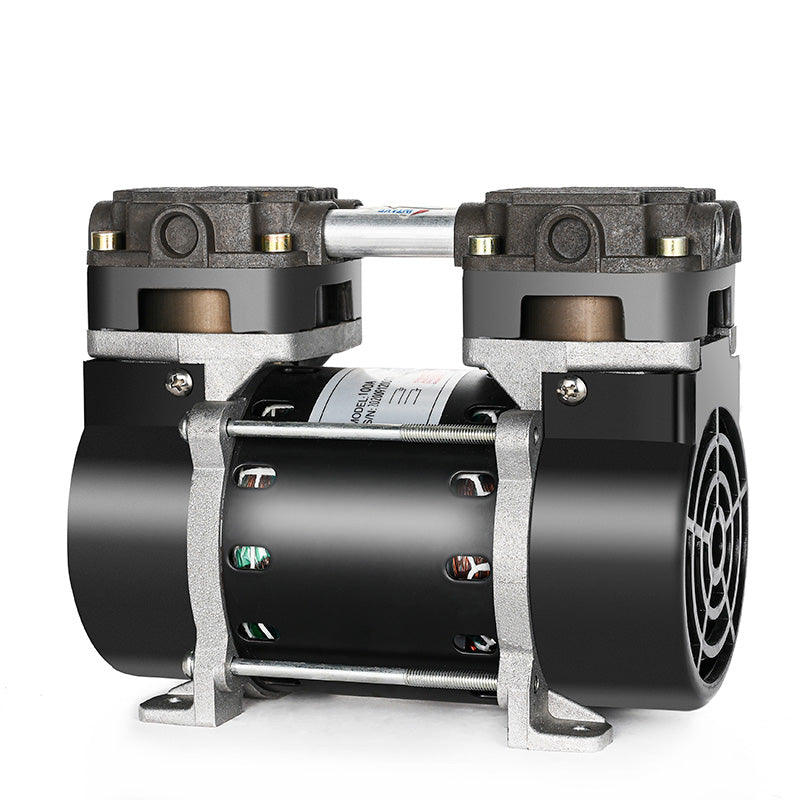

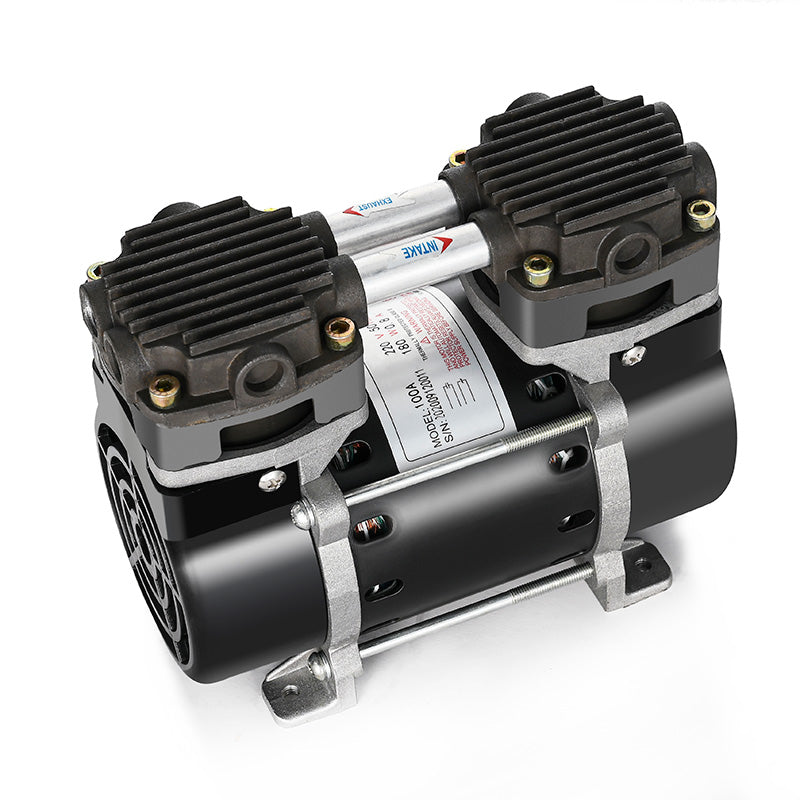

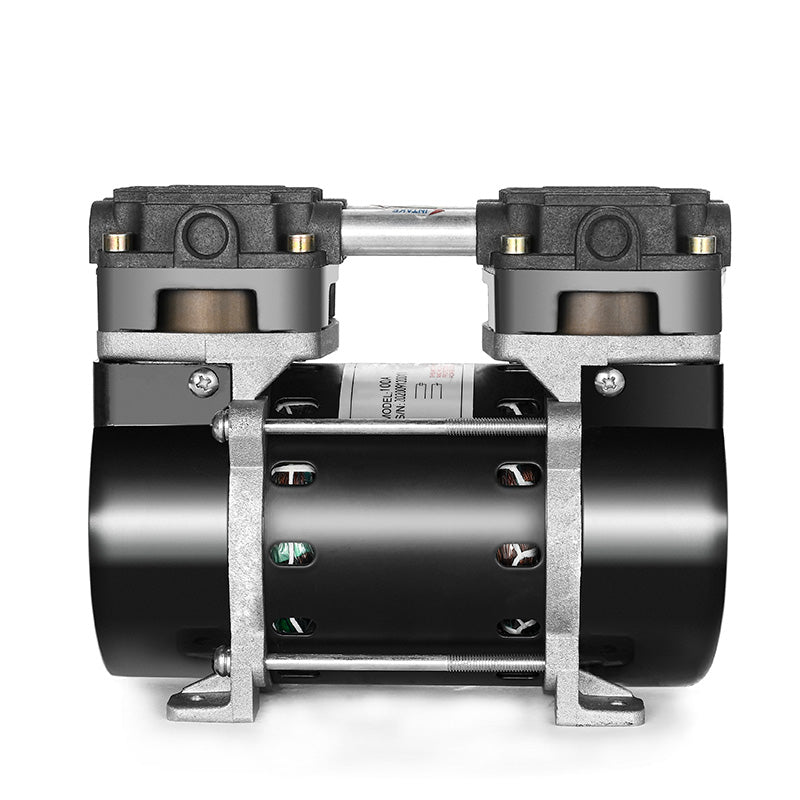

HC100 Medical Oxygenation Pump | ≥30L/min, Oil-Free, CE MDR

Why Choose the HC100 Medical Oxygenation Pump

When a respiratory therapy device OEM requires pumps with a 20,000h MTBF for critical care applications, selecting the right pneumatic component is a highly technical decision. The HC100 medical oxygenation pump is engineered specifically to meet these continuous duty requirements without compromising on acoustic performance or air purity. By maintaining a 24-hour duty cycle and utilizing an oil-free mechanism, this pump ensures that critical medical equipment functions dependably in demanding clinical environments. Procurement engineers tasked with sourcing reliable components will find that the HC100 series mitigates the risk of sudden equipment failure, thereby safeguarding patient health and reducing costly warranty claims for the manufacturer. The parallel flow pressure configuration maximizes output efficiency while maintaining a compact form factor.

• Air Flow Rate: Delivers ≥30L/min (220V model) or ≥38L/min (110V model) at a sustained pressure of 200kPa.
• Low Noise Operation: Operates at ≤52dB(A) to ≤55dB(A), ensuring minimal auditory disturbance in patient care settings.
• Power Efficiency: Consumes ≤180W or ≤220W at rated pressure, optimizing energy use for continuous 24-hour duty cycles.
• Certifications: Fully compliant with CE MDR 2017/745 and ISO 13485 for immediate medical device integration.
• Operating Temperature: Functions reliably in ambient environments ranging from -5 to 40℃.
• Thermal Protection: Integrated thermal safety mechanism activates at 145±5℃ to prevent motor damage.
• Oil-Free Design: Guarantees medical-grade air purity for patient safety and entirely eliminates lubrication maintenance.

Key Technical Specifications

Applications & Industries

The HC100 medical oxygenation pump is specifically manufactured for integration into high-demand medical devices where consistent airflow and pressure are critical. In the production of oxygen concentrators, particularly 2-liter and higher capacity models, the pump delivers a reliable flow rate of ≥30L/min to ≥38L/min at 200kPa. This precise pneumatic output is necessary for pushing ambient air through zeolite sieve beds, facilitating the continuous separation of nitrogen and oxygen. The oil-free mechanism is vital in this application, as it prevents any hydrocarbon contamination from entering the patient's breathing circuit, maintaining strict medical-grade air purity.

Within hospital respiratory equipment, including ventilators and CPAP/BiPAP machines, acoustic performance is a primary concern. The HC100 operates at a low noise level of ≤52dB(A) to ≤55dB(A), allowing it to be deployed in intensive care units and overnight patient wards without causing auditory distress to patients or clinical staff. The compact footprint (176*96*146 mm) and standardized installation size (114*70mm) allow OEM engineers to easily fit the compressor into tight equipment enclosures without requiring extensive internal redesigns.

Furthermore, this medical oxygenation pump is highly suitable for centralized medical-grade air supply systems in smaller clinics or mobile field hospitals. The continuous 24-hour duty cycle and Class F motor insulation ensure that the pump can run constantly without overheating. The built-in thermal protection switch, calibrated to 145±5℃, provides an essential failsafe for these continuous-use scenarios. This operational stability makes it an ideal pneumatic core for any application demanding uninterrupted, clean air delivery.

Certifications & Compliance

Regulatory compliance is a mandatory requirement for medical device manufacturers targeting global markets. The HC100 medical oxygenation pump is fully certified under CE MDR 2017/745, ensuring it meets the strict safety and clinical performance requirements of the European Union's updated Medical Device Regulation. For OEM buyers and procurement managers, utilizing an MDR-compliant pump significantly reduces the regulatory burden during the certification process and accelerates the final product's time-to-market in European territories.

Additionally, HCEM Pump manufactures the HC100 series under a strict ISO 13485 quality management system. This internationally recognized standard demonstrates a comprehensive commitment to consistent design, development, and production of medical devices. Procurement engineers in North America, Europe, and Southeast Asia can rely on this certification as proof of rigorous quality control, traceability, and risk management. Every unit produced undergoes strict testing for flow rate, pressure, and noise levels before leaving the facility, providing OEMs with a highly consistent batch-to-batch component supply.

Frequently Asked Questions

What is the operating voltage and frequency for the HC100 series?

The HC100 series is available in two distinct configurations to suit different regional power standards. Model HC100A-30/2 operates on a 220V/50Hz/1 power supply, which is standard for European and Southeast Asian markets. Model HC100B-38/2 operates on a 110V/60Hz/1 power supply, making it directly compatible with North American electrical requirements.

Is the HC100 suitable for continuous use in oxygen concentrators?

Yes, the HC100 is engineered for a continuous 24-hour duty cycle, making it highly suitable for oxygen concentrators and other hospital respiratory equipment. It features Class F motor insulation and a thermal protection mechanism set at 145±5℃ to ensure safe, continuous operation in ambient temperatures ranging from -5 to 40℃.

How does the pump maintain medical-grade air purity?

The HC100 utilizes a completely oil-free design. By eliminating the need for lubricating oils in the compression chamber, the pump prevents any particulate or hydrocarbon contamination from entering the air stream. This ensures that the output meets the stringent requirements for medical-grade air supply and ensures patient safety.
