Why Choose the HC0750/1-P124W Oilless Air Compressor

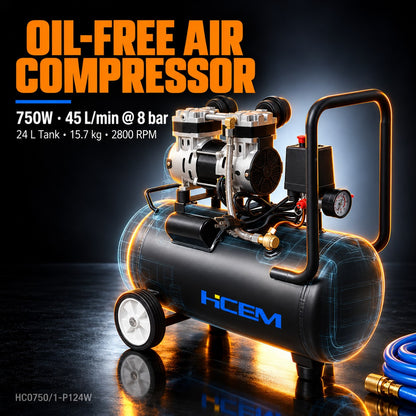

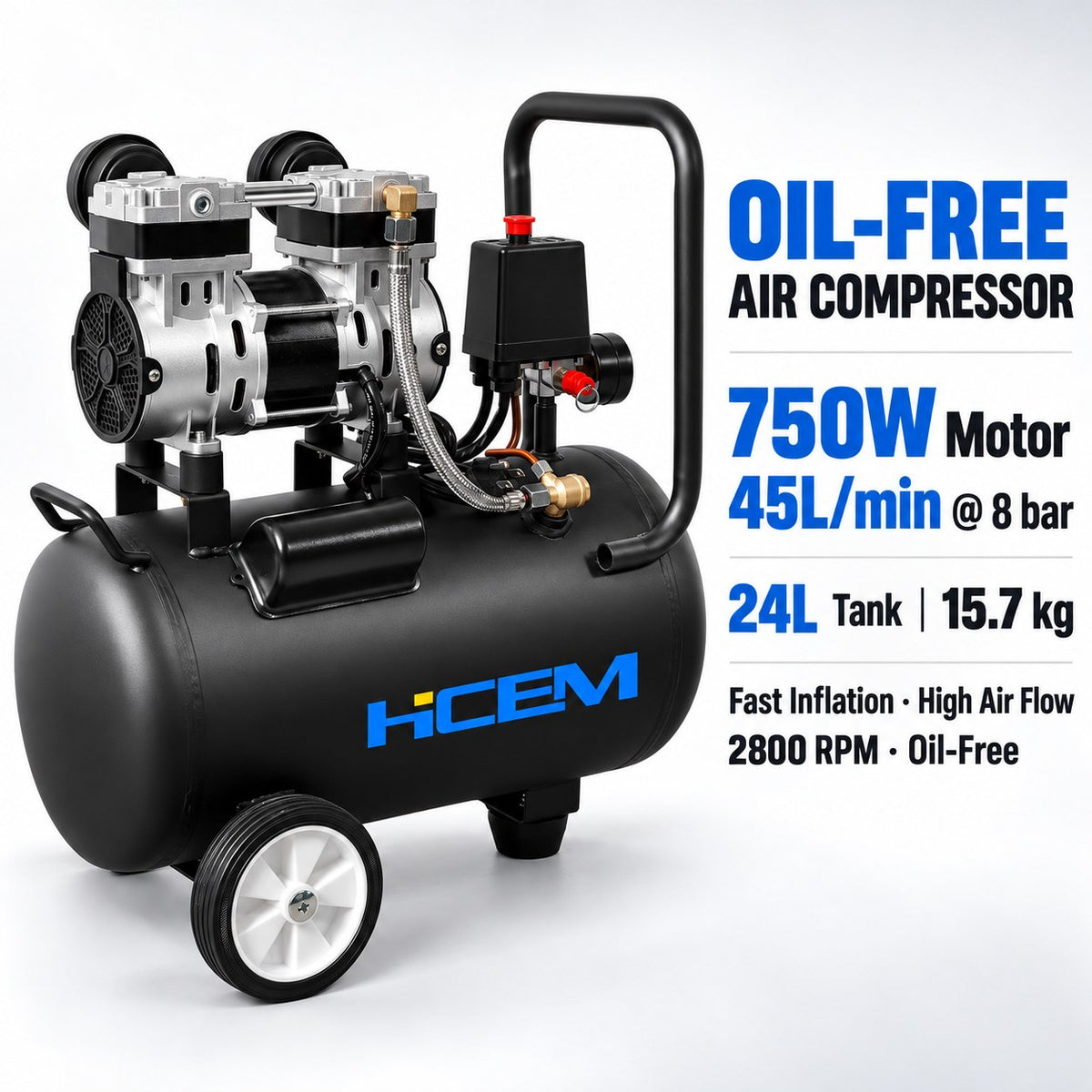

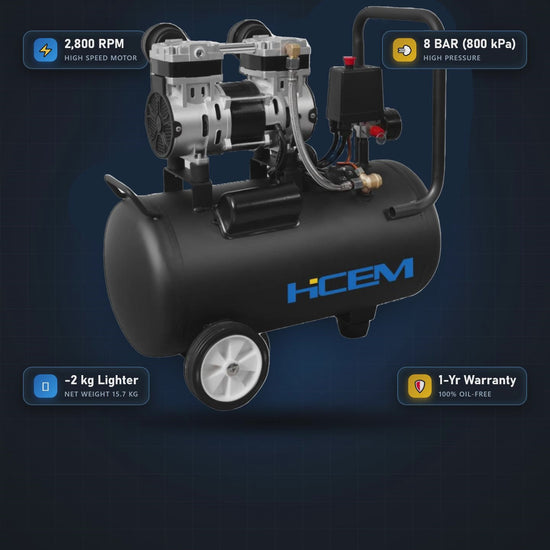

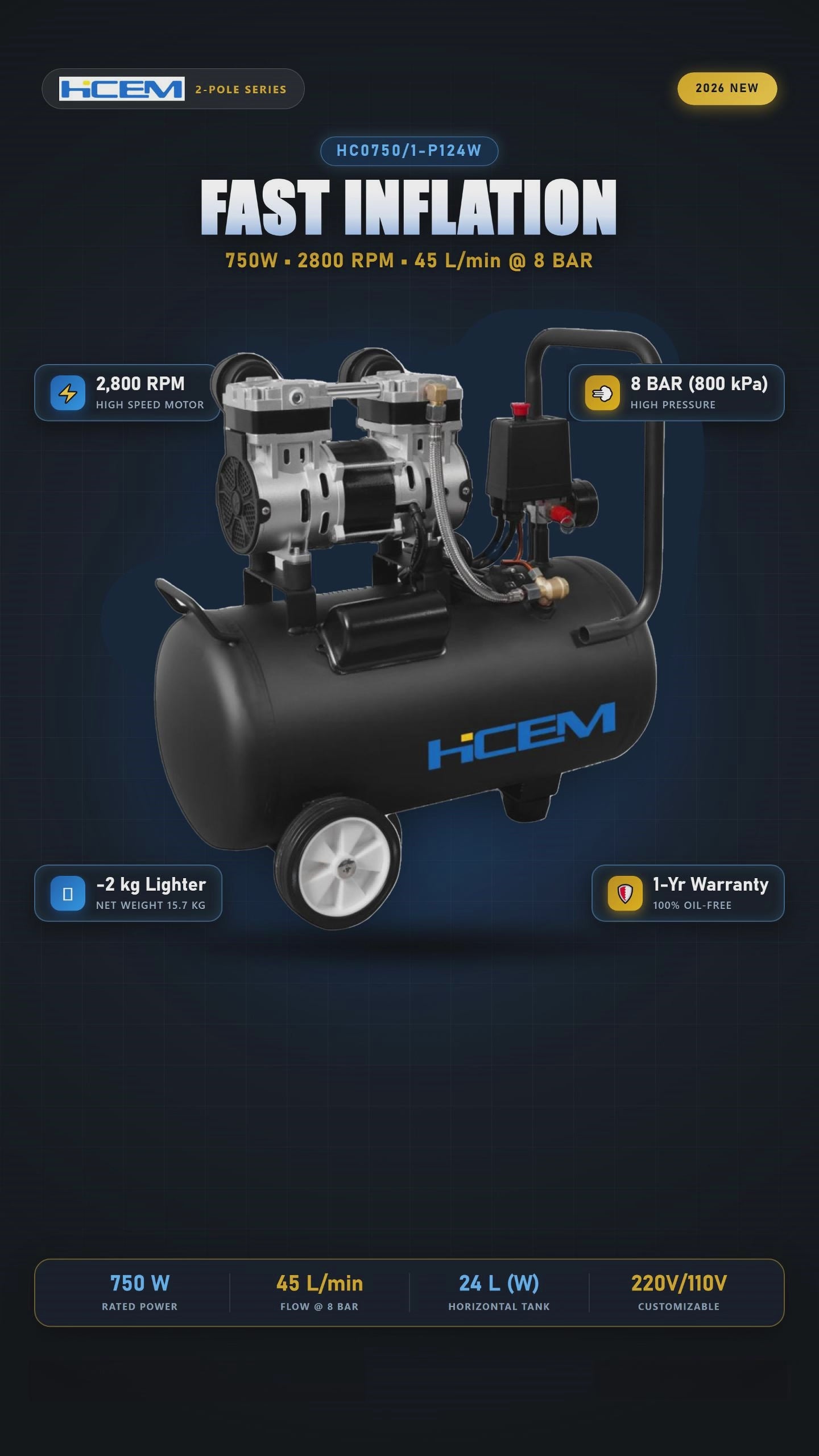

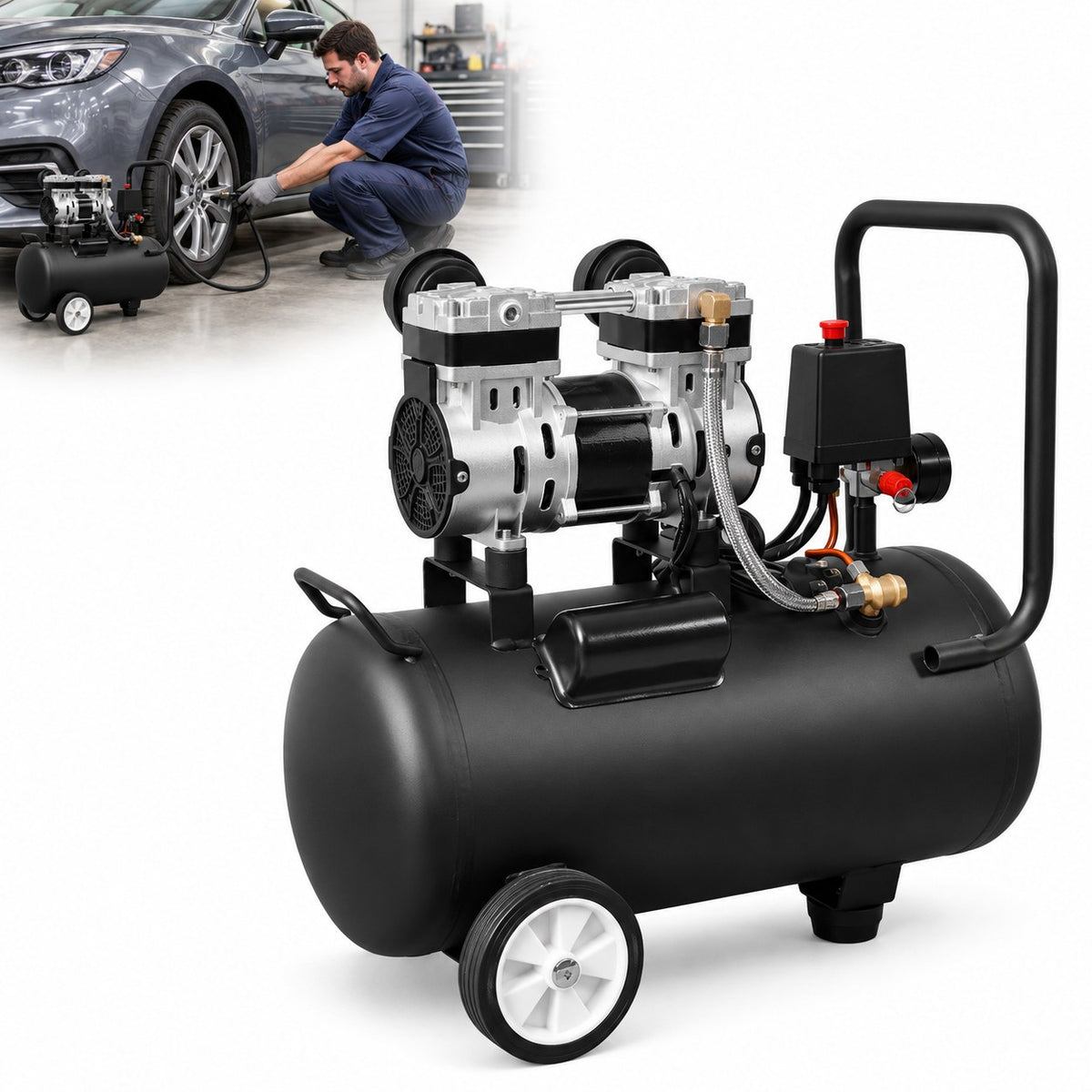

The HC0750/1-P124W is a compact 2-pole oilless air compressor built around a 750 W motor running at 2800 rpm. It delivers a rated 45 L/min at 8 bar (800 kPa) into a 24 L horizontal tank, giving fast tank charging and a steady air supply for workshop tools, inflation and light painting.

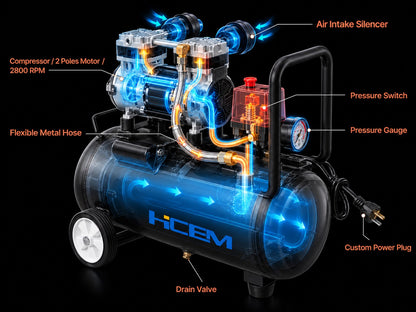

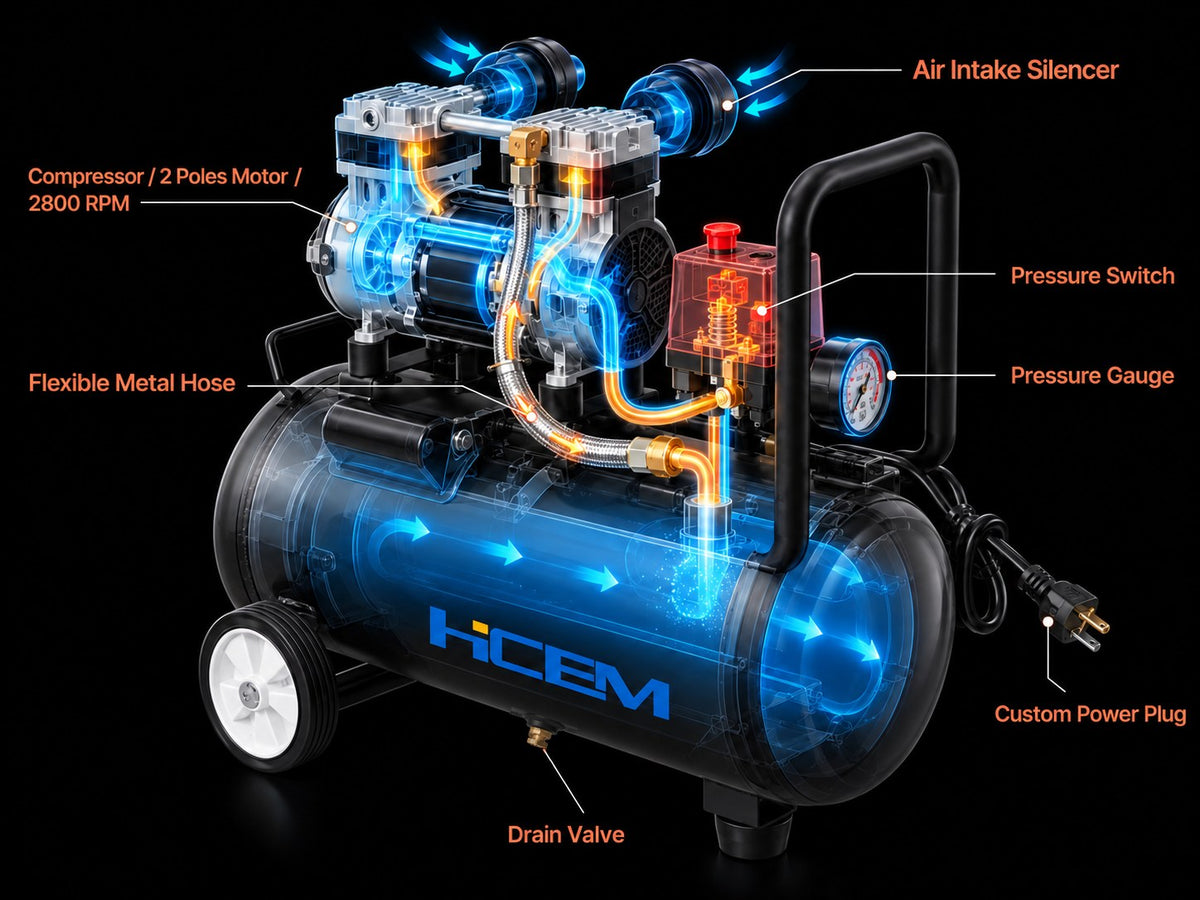

Because the piston pump runs 100% oil-free, the compressed air carries no oil mist and there is no oil to check or top up. At 15.7 kg net it is about 2 kg lighter than comparable models, and the horizontal tank with wheels and a carry handle keeps the centre of gravity low and the unit easy to move.

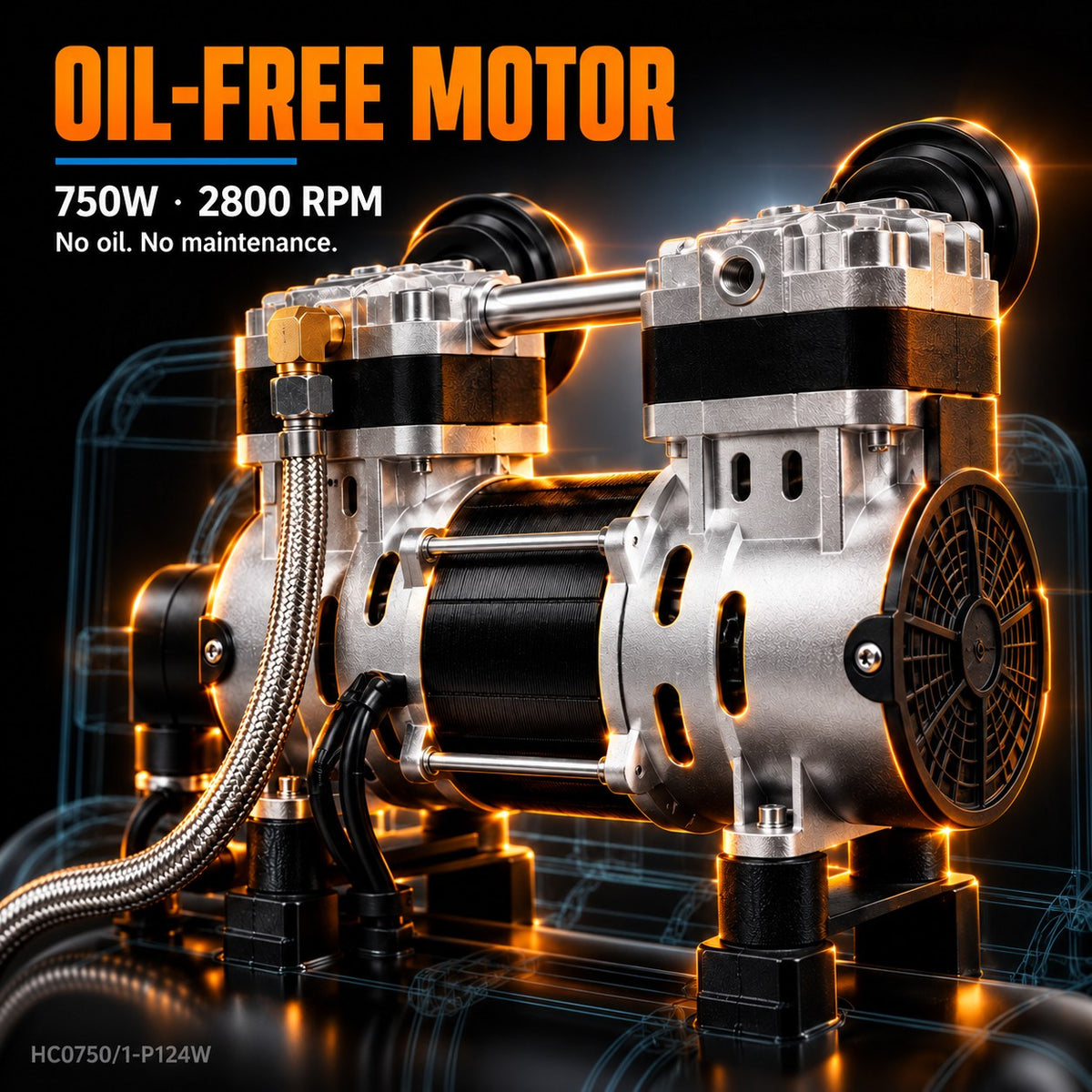

- 2-Pole Motor: 750 W motor at 2800 rpm for fast inflation and quick tank recovery.
- Rated Flow: 45 L/min at 8 bar (800 kPa) rated working flow.
- Maximum Pressure: 8 bar (800 kPa).
- 100% Oil-Free: Clean air with zero oil mist; no oil changes or top-ups.
- Lightweight: 15.7 kg net weight, about 2 kg lighter than similar models on the market.
- Customizable Voltage: 220V 50/60Hz or 110V 60Hz; basic accessory kit included.
- Warranty: 1-year quality warranty.
Applications & Industries
The HC0750/1-P124W suits users who need clean compressed air in a portable package: spray painting and airbrushing, tyre and equipment inflation, nail guns and light woodworking, home decoration work, DIY workshops and mobile service vehicles.
Its G1/4" inlet and outlet ports accept standard quick couplers and hoses, and the 24 L receiver smooths delivery for tools that need short bursts of air. For distributors and OEM buyers, voltage can be specified for the destination market (220V 50/60Hz or 110V 60Hz).
Certifications & Compliance
The HC0750/1-P124W is manufactured by Zhejiang Hongchuan Power Technology Co., Ltd., a specialist producer of oil-free piston air compressors and vacuum pumps, and is covered by a 1-year quality warranty.
For certification documents required in your target market, together with the full datasheet, please contact our sales team with your destination country and voltage.

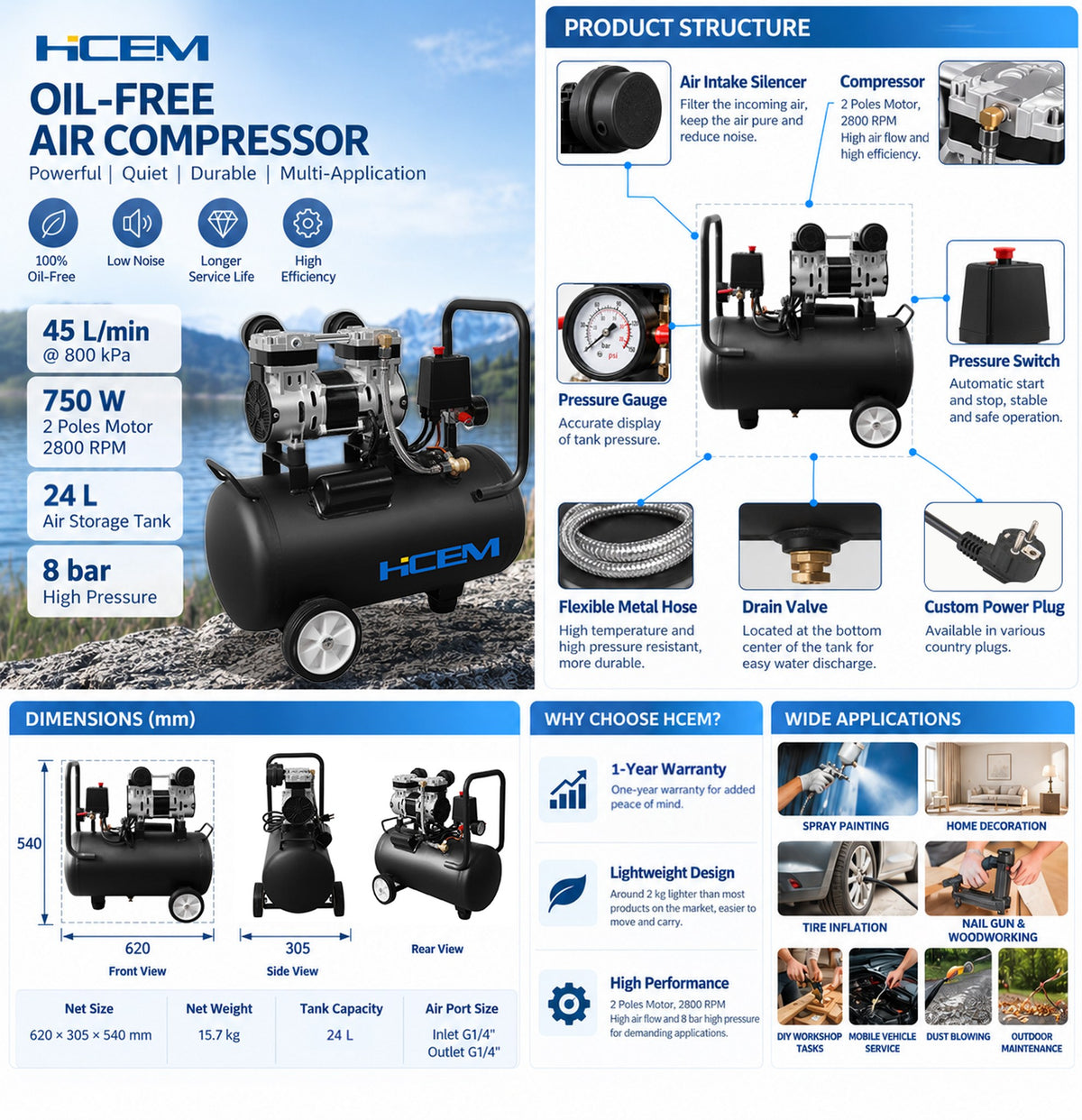

Technical Specifications
| Model | HC0750/1-P124W |
|---|---|
| Model | HC0750/1-P124W |
| Rated Power | 750 W |
| Rated Voltage | 220V 50/60Hz, 110V 60Hz (customizable) |
| Motor Speed | 2800 rpm (2 poles) |
| Rated Flow @ 8 bar | 45 L/min @ 800 kPa |
| Max. Pressure | 8 bar (800 kPa) |
| Tank Capacity | 24 L (horizontal) |
| Lubrication | 100% oil-free |
| Air Inlet / Outlet | G1/4" |
| Net Dimensions (L×W×H) | 620 × 305 × 540 mm |
| Net Weight | 15.7 kg |
| Warranty | 1 year |
Download the complete technical datasheet for specifications and performance curves.
