Why Choose the HC0030C1 Oilless Vacuum Pump

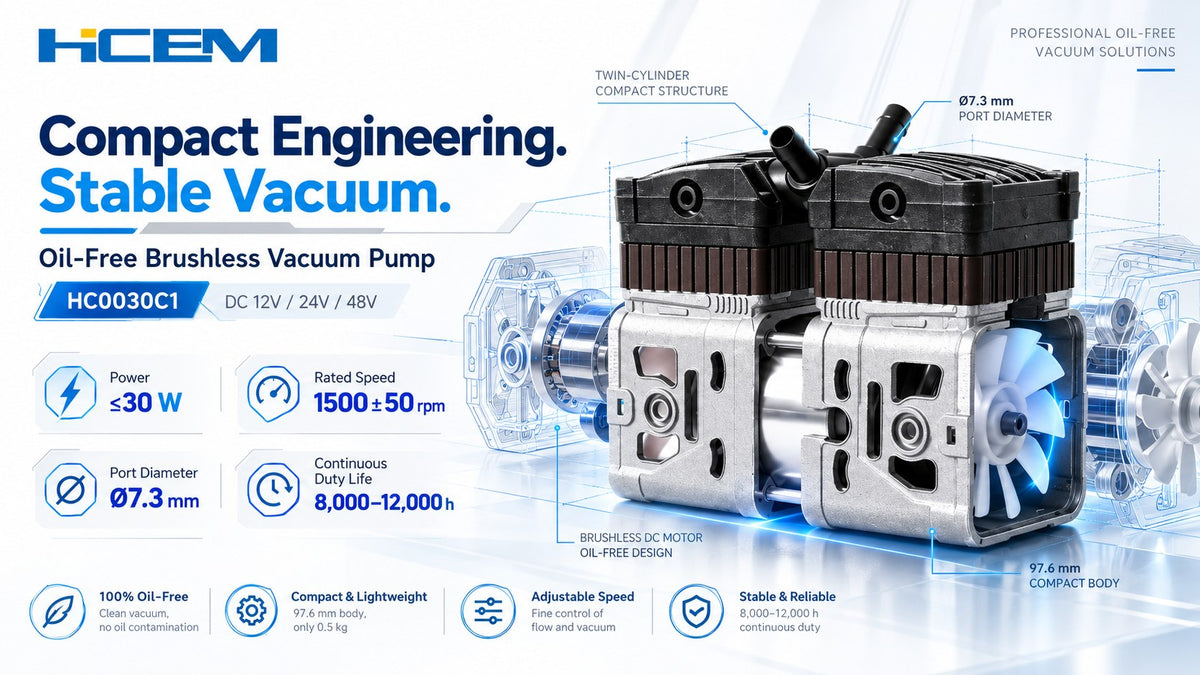

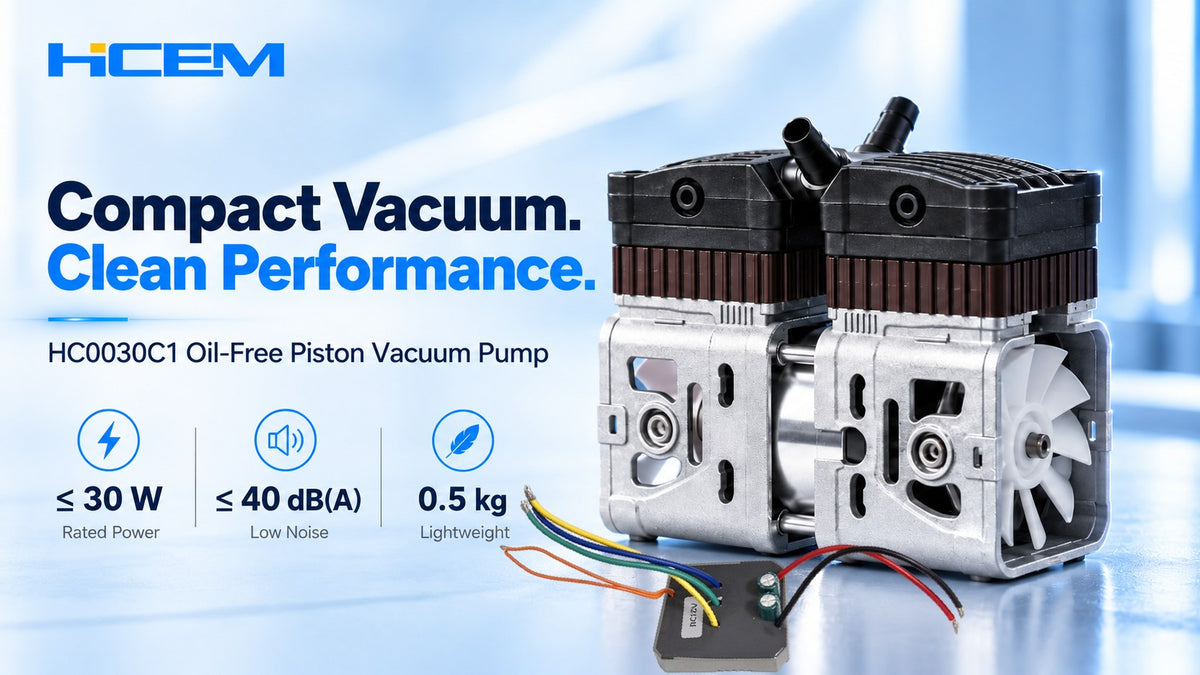

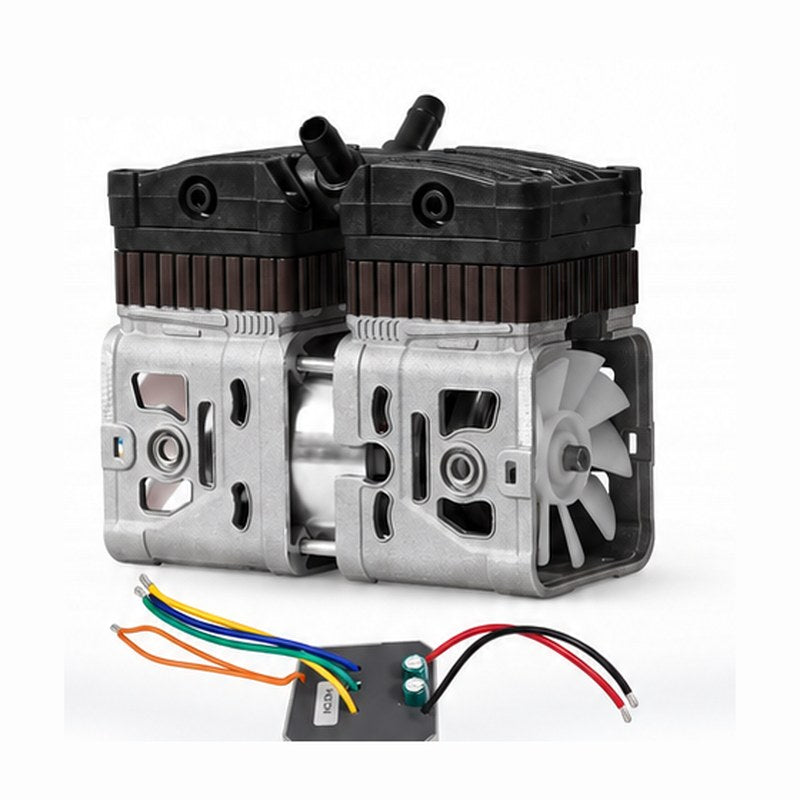

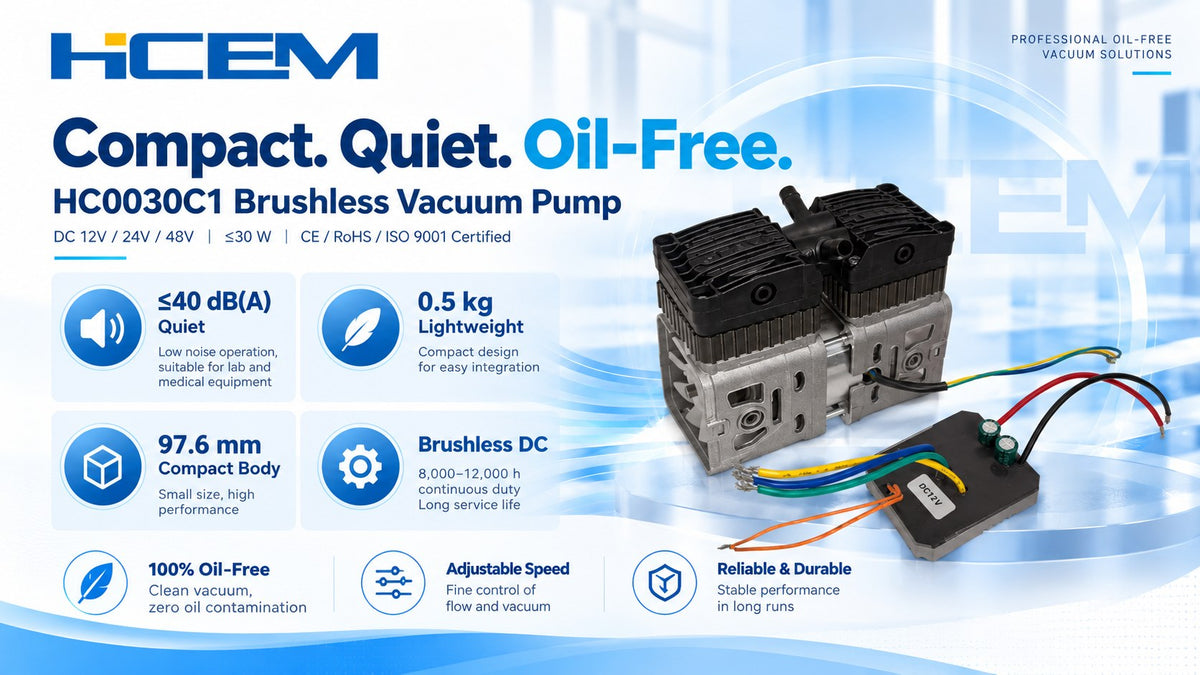

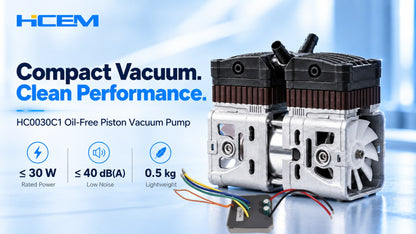

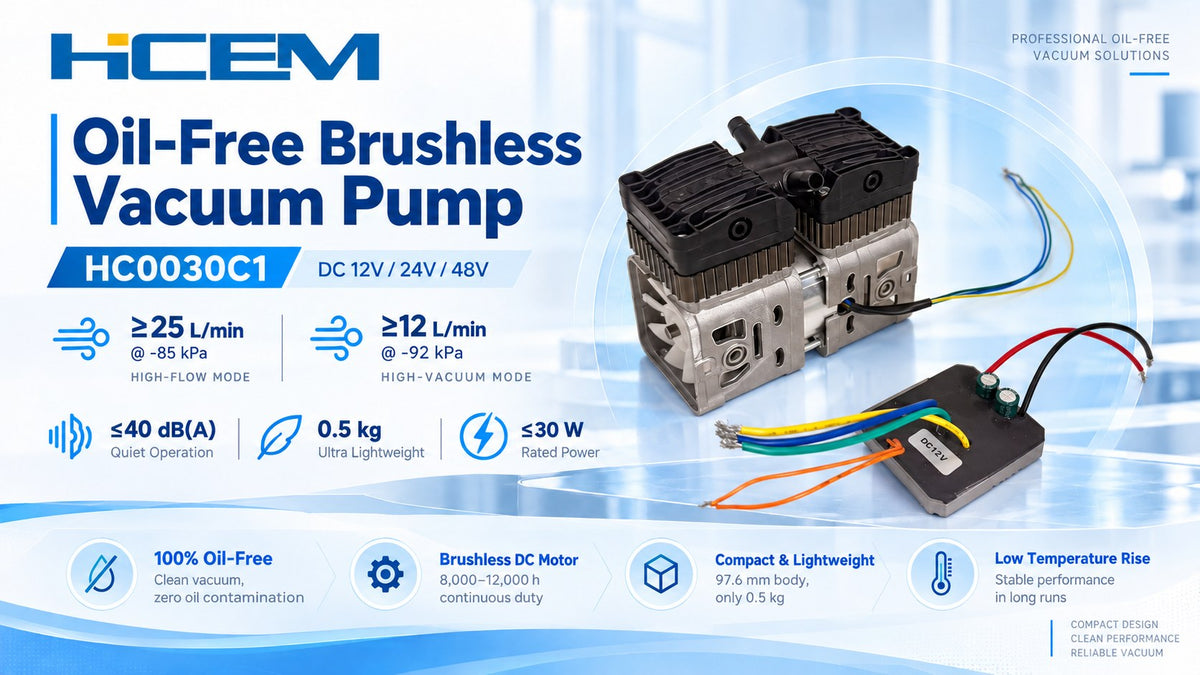

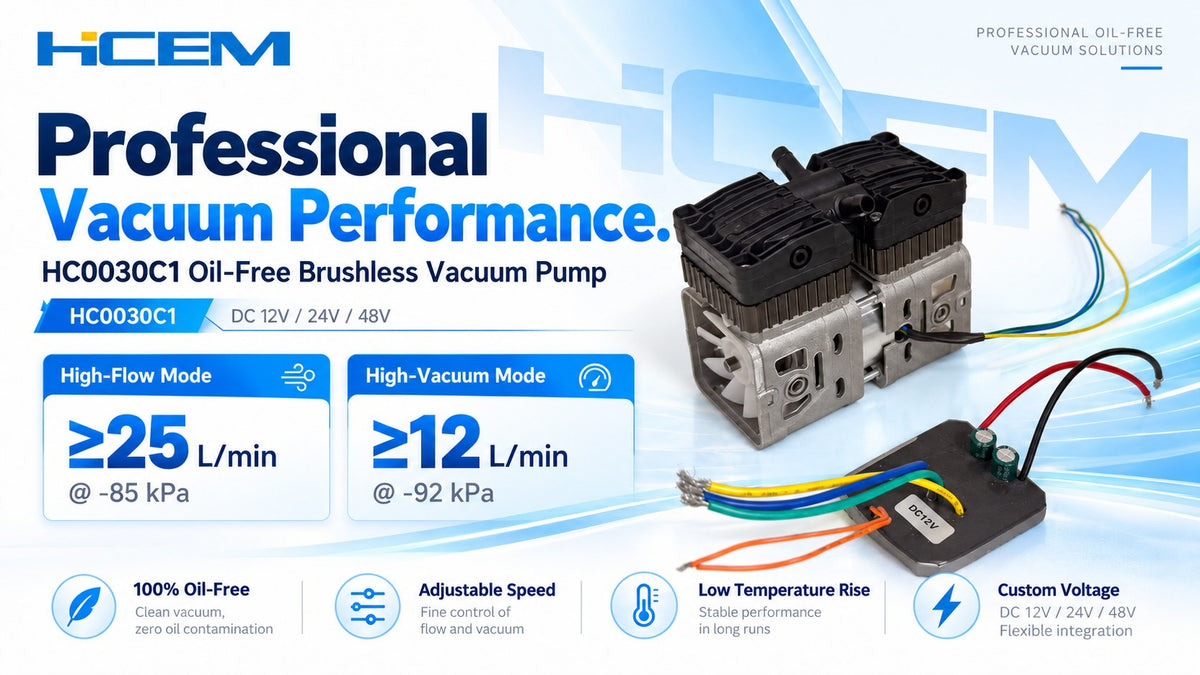

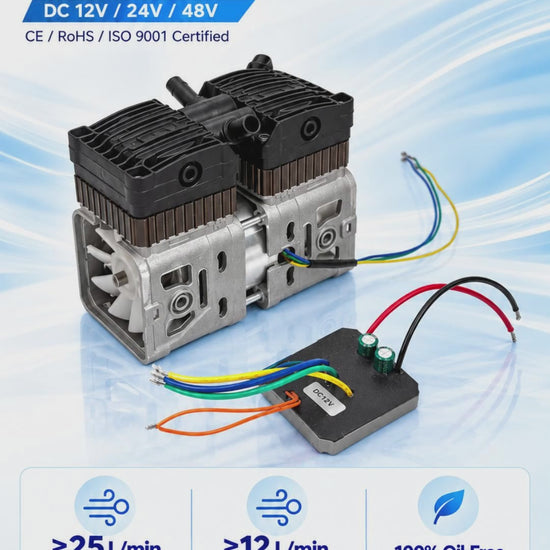

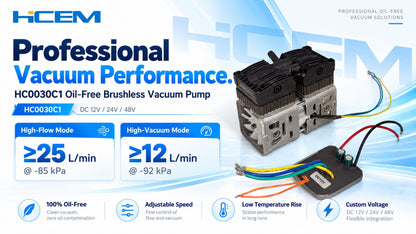

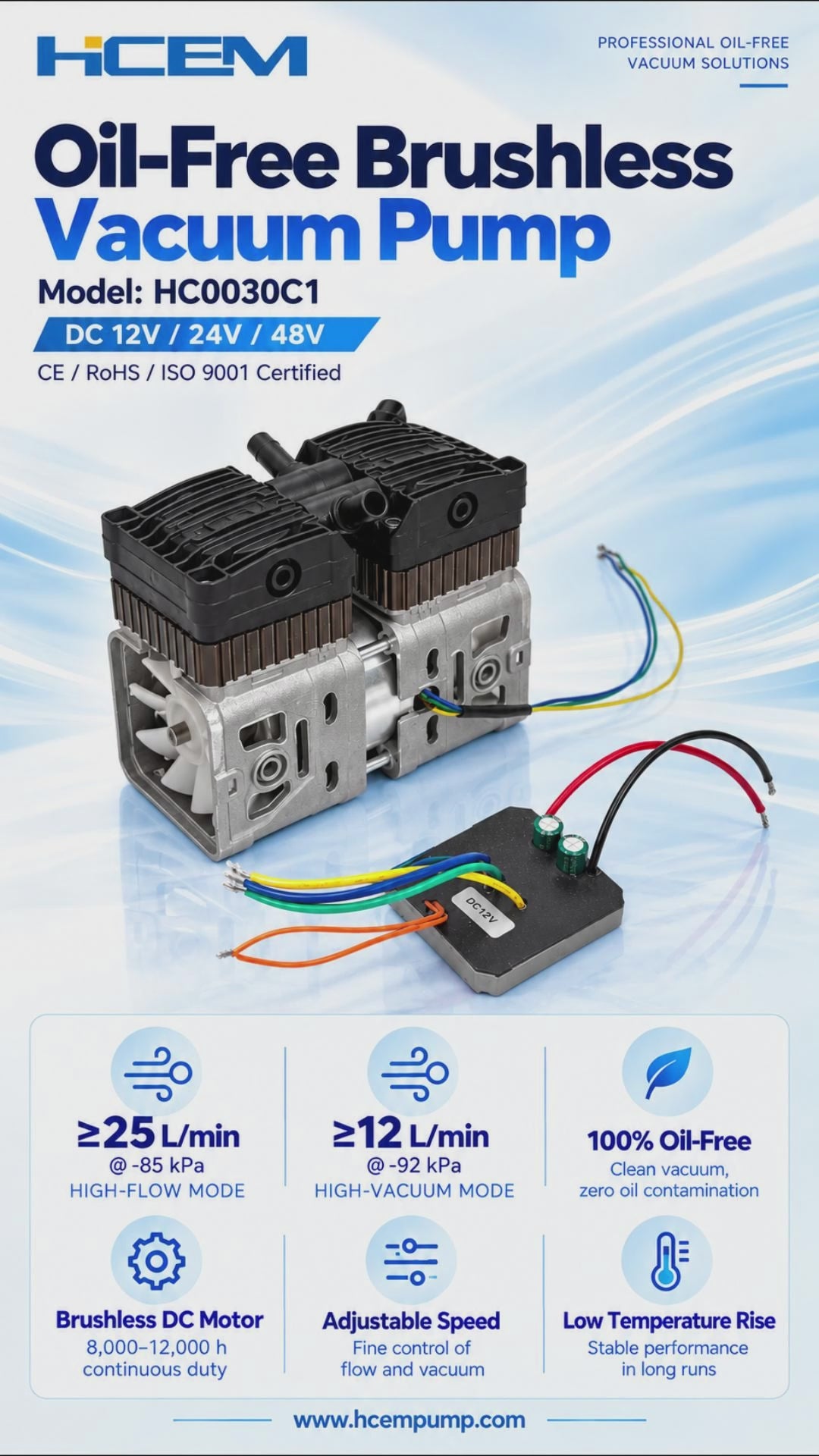

The HC0030C1 is a twin-cylinder, 100% oil-free piston vacuum pump driven by a brushless DC motor. It offers two working modes: a high-flow mode of ≥25 L/min at -85 kPa and a high-vacuum mode of ≥12 L/min at -92 kPa, with a maximum vacuum of -92 kPa.
Power at rated pressure is ≤30 W, noise is ≤40 dB(A), and the whole pump weighs just 0.5 kg in a 97.6 × 53.7 × 84 mm body. Adjustable speed gives fine control of flow and vacuum, and the low temperature rise keeps performance stable in long runs, with a reference continuous-duty life of 8,000–12,000 hours.
- Dual Working Modes: ≥25 L/min @ -85 kPa (high-flow) or ≥12 L/min @ -92 kPa (high-vacuum).
- Brushless DC Motor: 1500 ± 50 rpm; 8,000–12,000 h continuous-duty life (reference).
- Custom Voltage: DC 12V / 24V / 48V.

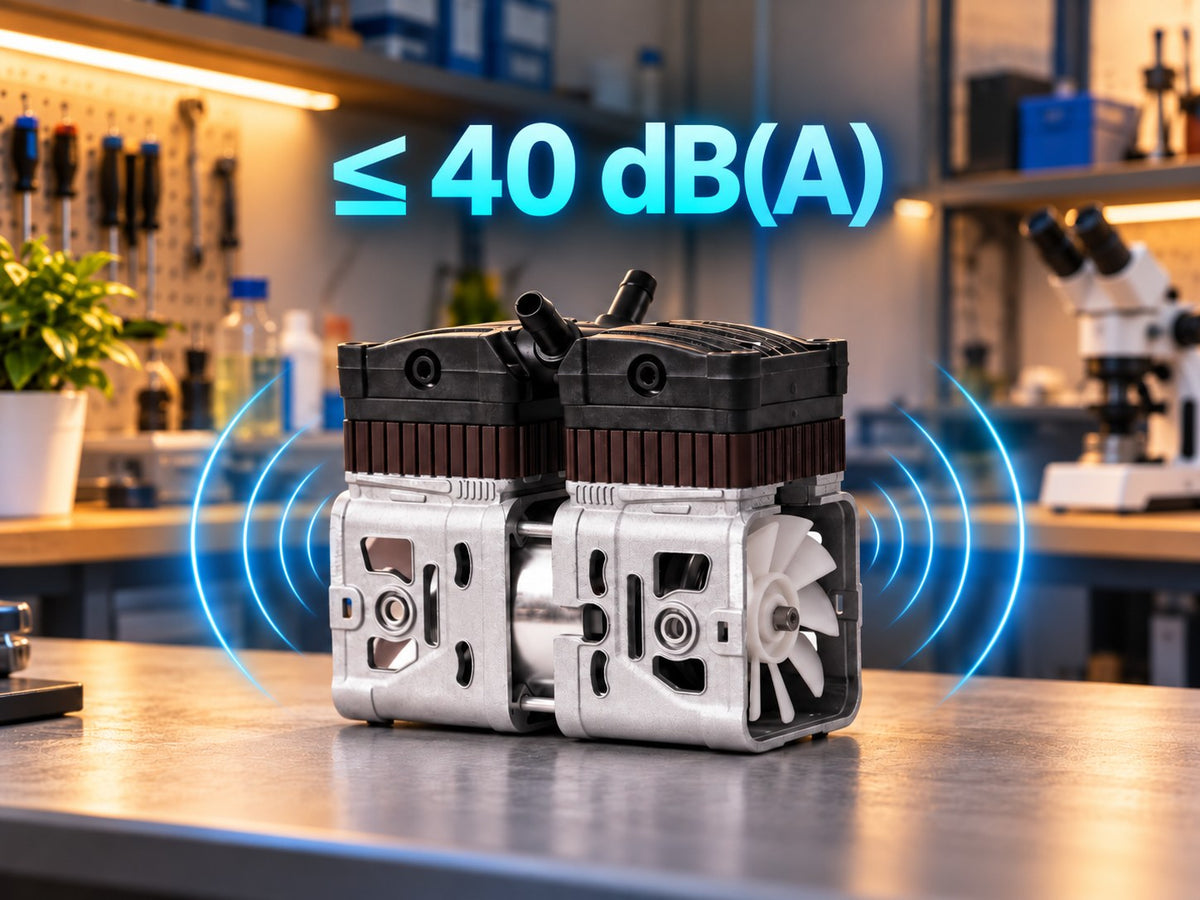

- Ultra-Quiet: ≤40 dB(A), suited to lab and medical equipment.
- Low Power: ≤30 W at rated pressure.
- Compact & Lightweight: 97.6 × 53.7 × 84 mm, 0.5 kg; 4 × M4 mounting on 87 × 29 mm.
- 100% Oil-Free: Clean vacuum with zero oil contamination.
Applications & Industries
In high-flow mode (25 L/min @ -85 kPa) the HC0030C1 suits pick-and-place and labeling, desktop CNC vacuum tables, vacuum forming and film lamination, printing paper feed and sheet holding, rough pumping of larger chambers and small vacuum filling assist.
In high-vacuum mode (12 L/min @ -92 kPa) it serves portable suction and aspirators, medical and beauty negative-pressure devices, dental wax-up and plaster vacuum, lab filtration and desiccators, desktop vacuum sealing, and gas sampling or instrument vacuum. Inlet and outlet are Ø7.3 mm; the U/V/W motor leads are 260 ± 20 mm.
Certifications & Compliance
The HC0030C1 is CE and RoHS certified and manufactured under an ISO 9001 quality management system by Zhejiang Hongchuan Power Technology Co., Ltd.
Continuous-duty life is a reference value under rated conditions; actual life depends on duty cycle, ambient temperature and air cleanliness. Contact our sales team for certificate copies and OEM/ODM options.

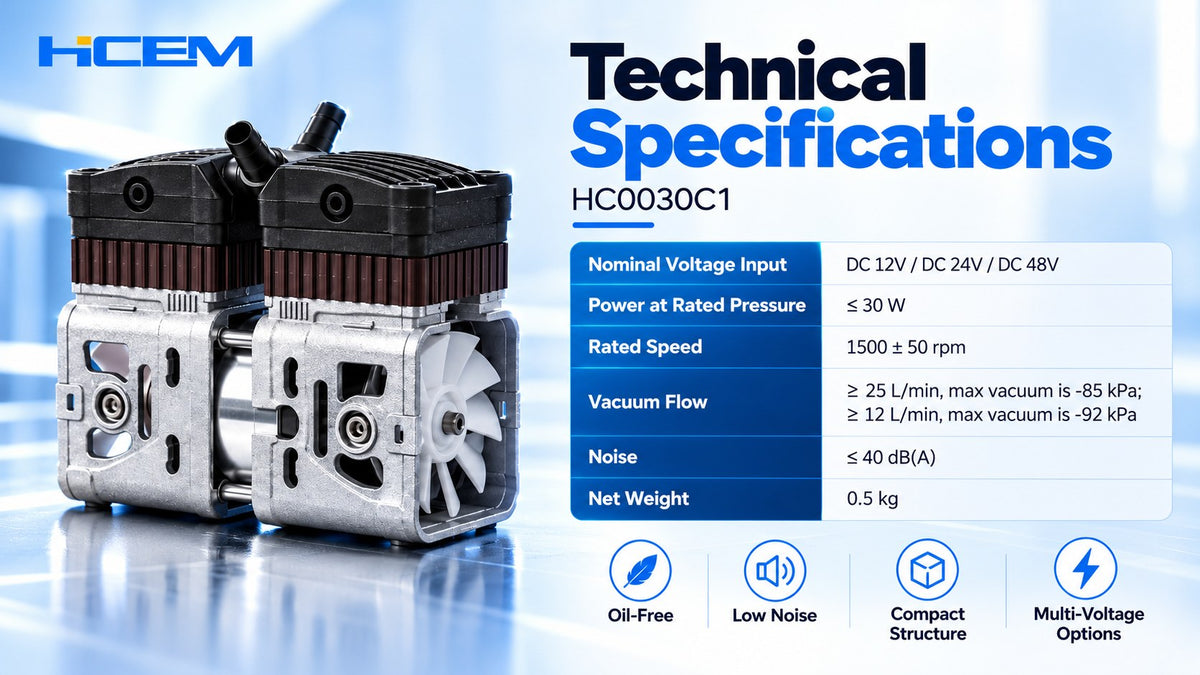

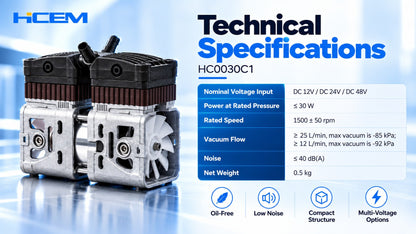

Technical Specifications
| Model | HC0030C1 |
|---|---|
| Model | HC0030C1 |
| Nominal Voltage | DC 12V / 24V / 48V |
| Power at Rated Pressure | ≤ 30 W |
| Rated Speed | 1500 ± 50 rpm |
| Vacuum Flow (High-Flow Mode) | ≥ 25 L/min @ -85 kPa |
| Vacuum Flow (High-Vacuum Mode) | ≥ 12 L/min @ -92 kPa |
| Max. Vacuum | -92 kPa |
| Noise | ≤ 40 dB(A) |
| Motor Type | Brushless DC |
| Continuous Duty Life | 8,000–12,000 h (reference) |
| Net Weight | 0.5 kg |

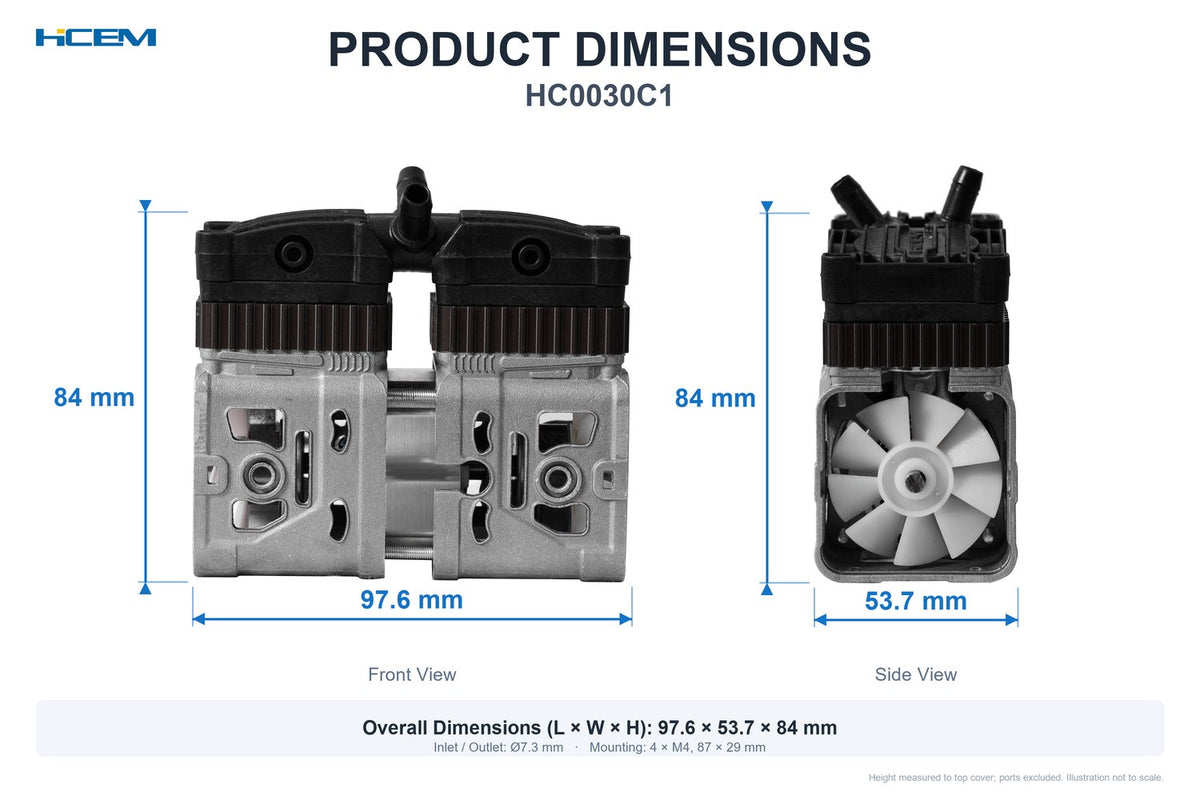

| Overall Dimensions | 97.6 × 53.7 × 84 mm |
| Mounting | 4 × M4, 87 × 29 mm |
| Port Diameter | Ø7.3 mm |
| Leads | U / V / W, 260 ± 20 mm |
Download the complete technical datasheet for specifications and performance curves.
