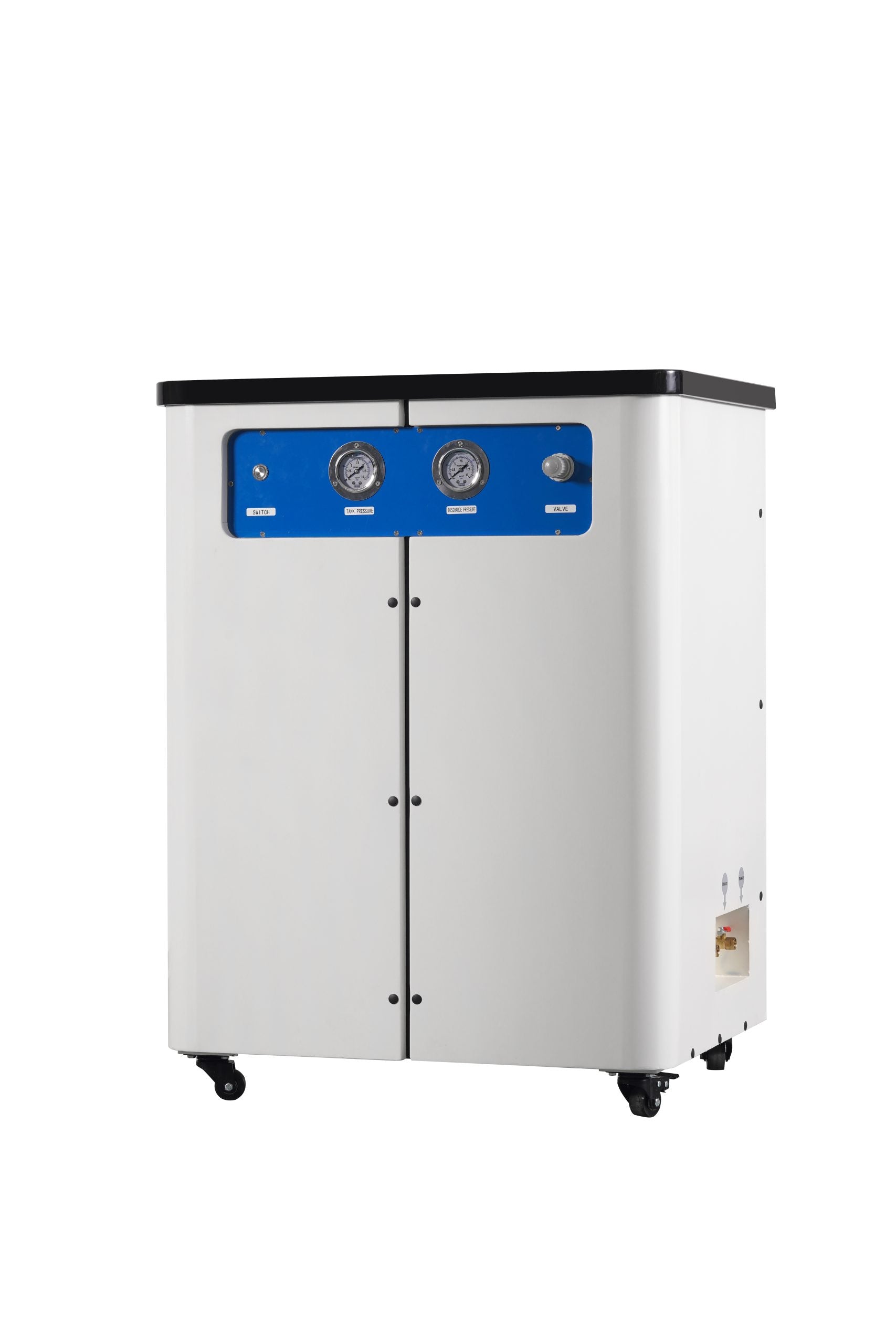

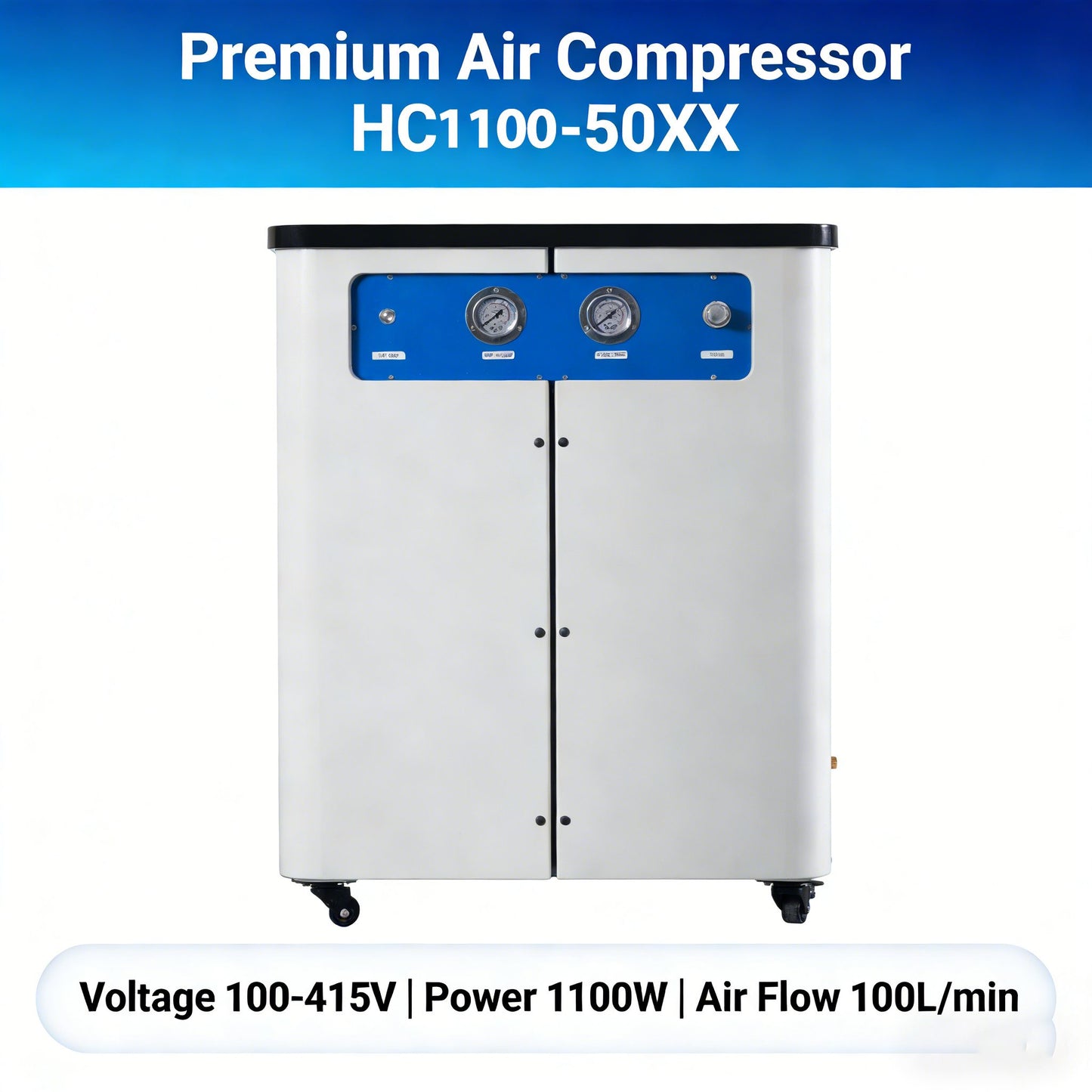

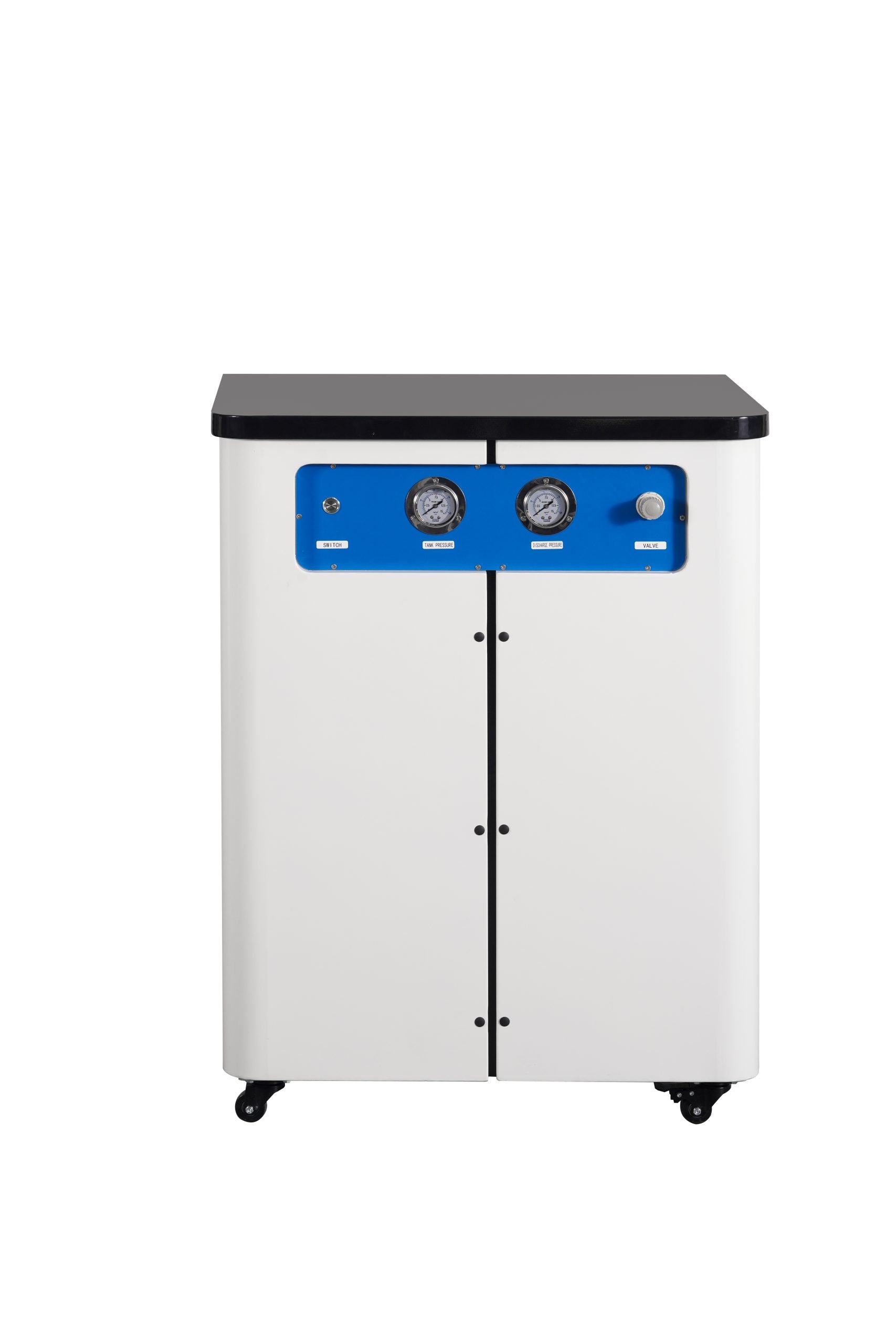

HC 1100-50X

Why Choose the HC 1100-50X

A furniture finishing company in Dongguan operates 6 spray booths running water-based lacquer on kitchen cabinets. Their previous setup used two 200L tank compressors in a separate room, connected by 40 meters of pipe. Pressure drop across the piping meant booth-end pressure varied between 4.8 and 6.2 bar depending on how many booths were active — causing inconsistent atomization and finish quality variation between morning (1-2 booths active) and afternoon (all 6 running). Replacing the central system with HC 1100-50X units — one per booth pair — eliminated pressure variation entirely. Each booth now receives exactly 6.0 bar regardless of what other booths are doing.

Why This Model — Not Another

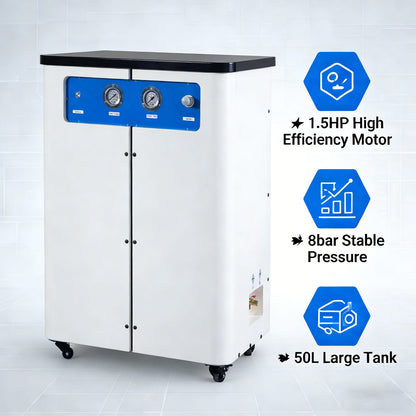

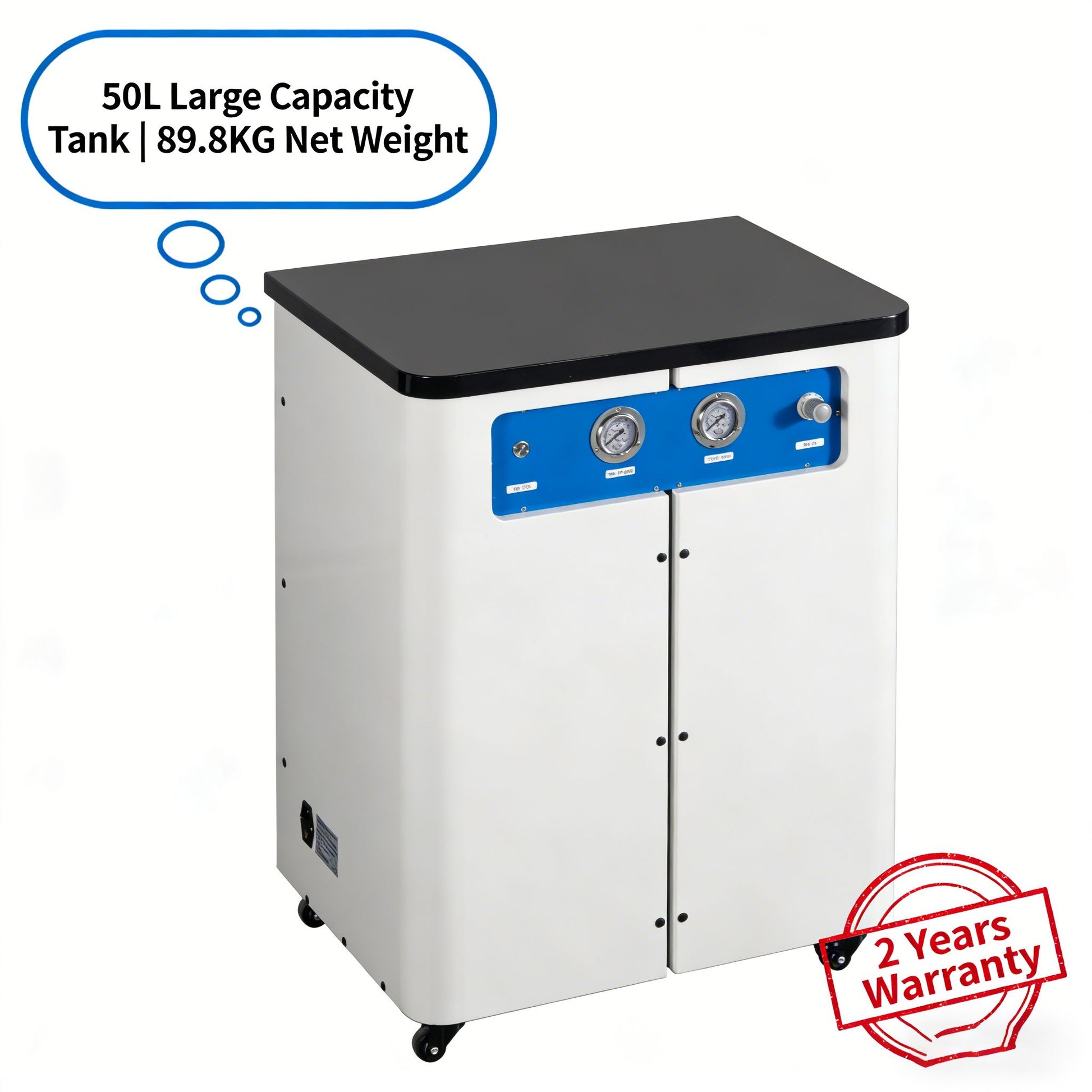

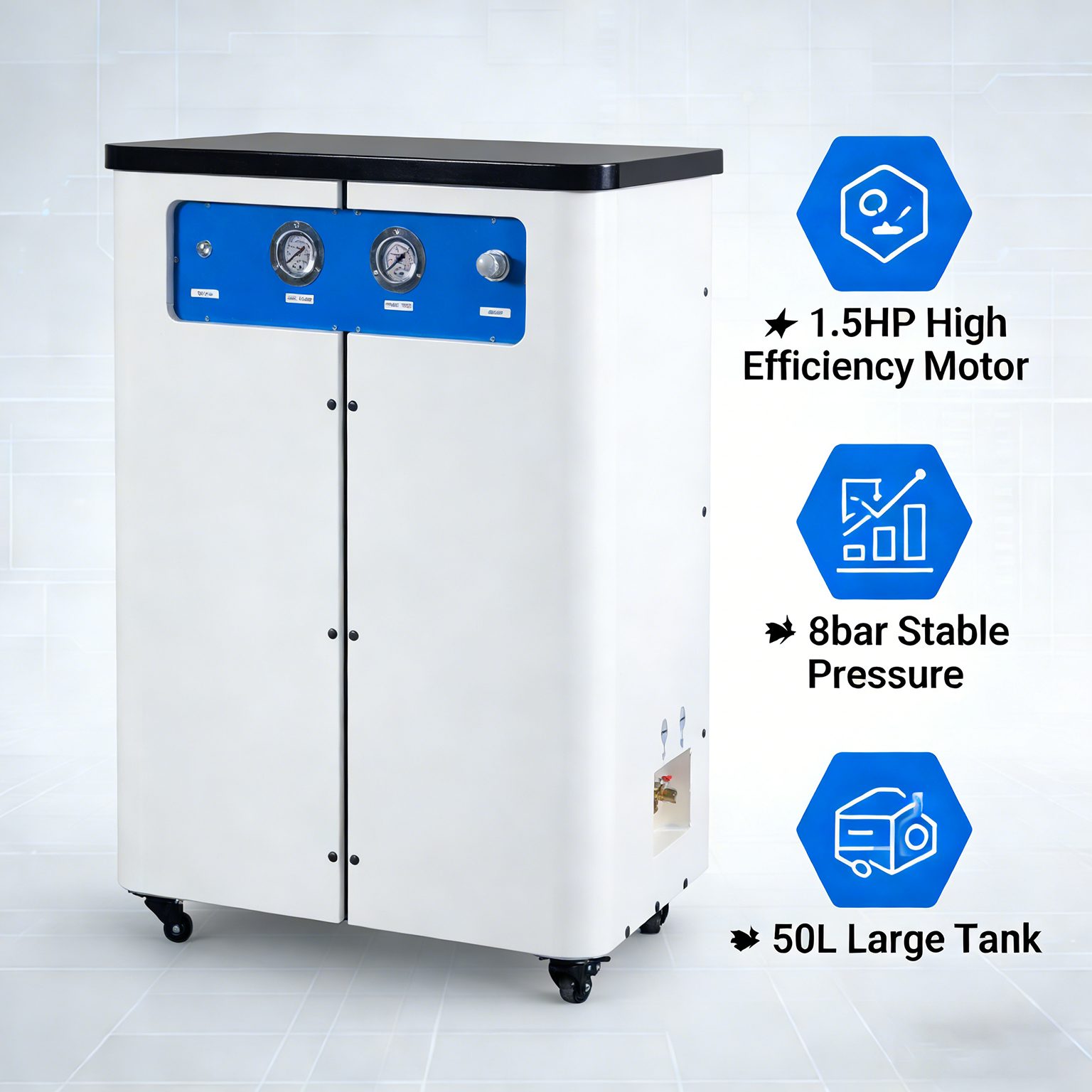

The 50-liter integrated tank on the HC 1100-50X serves a specific engineering purpose in spray applications: it acts as a pressure accumulator that absorbs the pulsating demand pattern of spray guns (trigger-on, trigger-off, 2-3 second bursts with 5-10 second pauses between passes). Without a tank, each trigger pull would cause a momentary pressure dip visible as a thin spot in the coating. The 50L volume at 8 bar stores 400 liters of free air — enough to sustain 15-20 seconds of continuous spraying at full gun flow without any pump contribution. This decouples spray quality from pump cycling entirely. The 1100W motor then refills the tank during the natural pauses between spray passes.

Frequently Asked Questions

Why 50L tank instead of direct-drive for spray painting?

Spray guns demand 200-350 L/min during trigger-on but zero during trigger-off. This pulsating load causes pressure oscillation in direct-drive systems (no tank buffer), visible as wet/dry banding in the finish. The 50L tank absorbs these demand pulses, maintaining constant nozzle pressure throughout the spray pass. The pump runs continuously at its efficient steady-state speed rather than surging to match instantaneous demand.

How many spray guns can one HC 1100-50X support?

One unit supports one HVLP gun operating continuously or two guns alternating (one spraying while the other reloads). For two simultaneous HVLP guns, pair two units on a common manifold or upgrade to the HC1500-50X with 1500W motor and faster recovery.

Is the 50L tank size adequate for water-based finishes?

Water-based lacquers and paints require higher atomization pressure (2.5-3.5 bar at the cap) and finer droplet size than solvent-based products. This means higher air consumption per square meter of coverage. The 50L tank provides adequate buffer for panels up to 1.2 x 2.4 meters (standard cabinet door size) in a single uninterrupted pass. For larger panels (table tops, wall panels), the continuous pump output sustains the spray without tank depletion.

Under normal operating conditions, the HC 1100-50X delivers 10,000 to 50,000 hours of service life depending on ambient conditions and duty cycle. The oil-free design eliminates carbon buildup that typically shortens the life of oiled compressors.
