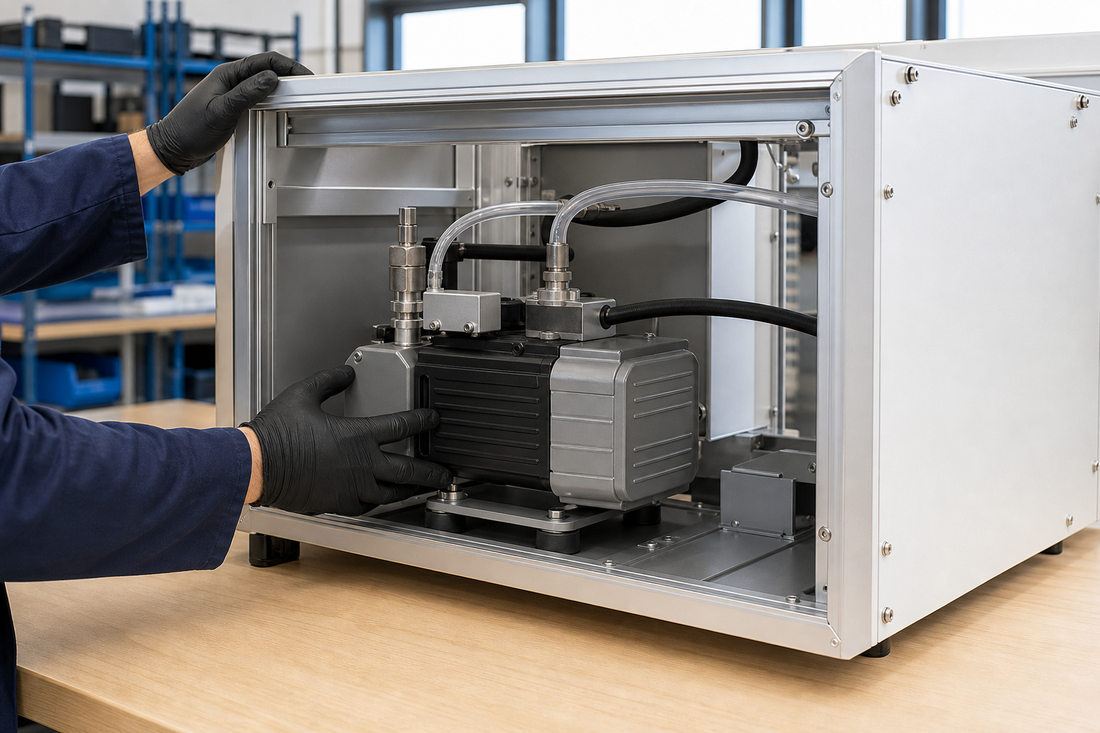

Vacuum Pump Maintenance Access: An OEM Design Review Checklist

Vacuum pump maintenance access should be reviewed before an OEM layout is frozen because poor access can turn normal inspection, connection checks, or pump replacement into a machine-level redesign. Buyers should request exact-model drawings, service instructions, connection details, operating limits, and configuration evidence before treating any pump as fit for a specific enclosure.

Quick Facts

• Primary review point: Can a technician reach, inspect, disconnect, and remove the pump without dismantling unrelated equipment?
• Catalog context: HCEM's current Shopify catalog includes a VACUUM PUMP collection.
• Listed product pages: The current catalog lists product pages titled HC580A Oilless Vacuum Pump and HC580D Oilless Vacuum Pump. These titles prove page existence only.
• Evidence to request: Current exact-model drawings, service instructions, connection details, operating limits, installation orientation limits, and configuration-specific documentation.
• Do not assume: Service intervals, clearances, component access, isolation methods, spare-part availability, duty cycle, performance, certifications, warranty, or current availability from a catalog title.

Why Maintenance Access Belongs in the Vacuum System Design

For OEM buyers, vacuum pump maintenance access is not a late packaging detail. It affects enclosure geometry, hose routing, electrical access, thermal management space, mounting hardware, inspection routines, and field service time. A pump can be technically compatible with a duty concept yet still create procurement risk if the machine builder cannot service it predictably after assembly.

This is especially important when the pump is embedded inside an analyzer, dental unit, laboratory instrument, packaging machine, medical-adjacent device, automation module, or compact industrial appliance. In those products, the pump is often only one subsystem. If a cover, bracket, control board, reservoir, acoustic foam, or wiring harness blocks the service path, the maintenance task becomes larger than the component.

Maintenance access should therefore be reviewed at the same stage as airflow, vacuum level requirements, noise targets, electrical input, mounting method, and environmental limits. The review does not need to start with a large document. It should start with a disciplined question: what exactly must be reached, by whom, with what tools, under what isolation condition, and with what evidence from the supplier?

For an OEM vacuum pump maintenance layout, the answer should be based on current drawings and instructions for the exact model and configuration under evaluation. A public product page can help identify a listing, but it is not a substitute for controlled documentation. If a buyer is evaluating a page in the HCEM catalog, the safer procurement action is to request the current drawing package and service information for the exact configuration being discussed.

Maintenance also intersects with safety. The UK Health and Safety Executive notes that maintenance can involve risk when equipment is not isolated, when access is poor, or when work is not planned and controlled. That general principle applies to vacuum systems: a layout that hides fasteners, forces awkward hand positions, or requires unclear disconnection steps can create avoidable maintenance exposure. The buyer's goal is not to claim compliance from a layout review. The goal is to gather evidence, identify restrictions, and make sure the machine design can support the required maintenance method.

How to Review Clearance, Isolation, and Connection Access

A useful review begins with the physical service envelope. Ask for the exact-model dimensional drawing and compare it with the real enclosure, not an idealized empty space. Include the pump body, mounting hardware, fittings, hose bend radius, wiring route, strain relief, vibration isolation components, labels that must remain visible, and any covers that need removal. If the drawing does not show a service envelope, ask the supplier what must remain reachable and what must not be obstructed.

Do not invent a universal vacuum pump service clearance. Clearance depends on the pump design, installation orientation, fittings, wiring, adjacent parts, service task, and tool path. A layout that works for visual inspection may fail for hose replacement. A layout that allows hose removal may still prevent pump extraction. Procurement teams should therefore separate access into several tasks rather than approving one generic clearance statement.

Isolation deserves its own line in the review. Before service, the equipment may need electrical isolation, pressure or vacuum equalization, thermal cool-down, condensate handling, or disconnection from a process line. The required method must come from the exact equipment design and current instructions. Buyers should not assume that a visible connector, switch, or valve provides an acceptable isolation method. They should request connection details and service instructions, then verify how the final machine builder will implement isolation, labeling, and access.

Connection access is often where compact OEM layouts fail. Vacuum tubing, mufflers, filters, wiring connectors, and mounting screws may all be individually reachable in CAD, but not reachable in the assembled product. A practical check is to review the sequence: remove outer cover, verify isolation, access the connector, release the hose, remove fasteners, lift the pump, inspect the mounting area, install the replacement or serviced unit, reconnect, and verify the system. If any step requires bending a hose beyond its documented limit or pulling wiring under tension, the layout needs revision or written acceptance based on proper evidence.

If a numerical clearance is used during concept teaching, label it clearly as a hypothetical assumption and not a product claim. For example, a team might model a hypothetical assumption of 50 mm around a fitting to test whether a hand and tool path could exist. That number is not an HCEM product claim, not a service instruction, and not a replacement for the exact-model drawing.

How to Document Service Tasks and Change Control

A vacuum system serviceability checklist is only useful if it is tied to controlled documents. Procurement, engineering, and production should agree which drawing revision, product configuration, and service instruction revision were reviewed. If the pump, fitting, cable, mount, enclosure, acoustic material, or filter changes later, the service review should be reopened.

For OEM procurement teams, this matters because samples, catalog pages, quotes, pilot builds, and production units may not all represent the same configuration. A buyer may review one layout using an early sample, while the final equipment uses a different fitting direction, connector position, mounting bracket, or wiring length. That does not mean the pump is unsuitable. It means the project needs a change-control step that reconnects purchasing information with engineering evidence.

Documentation should also separate supplier evidence from machine-builder decisions. The supplier can provide current exact-model drawings, product configuration information, connection details, and stated operating limits. The machine builder decides enclosure access, isolation devices, labels, service panels, work instructions, and final risk assessment for the complete product. A distributor or industrial procurement team should keep those responsibilities clear so that a catalog listing is not treated as proof of finished-machine serviceability.

Compliance-related questions require the same discipline. Never treat a product title, collection page, or general site section as proof of compliance for a specific market or configuration. If compliance is relevant, request current exact-model and configuration evidence, then verify the applicable market, document scope, issuer or lab, issue date, model identification, and whether the supplied configuration matches the machine design. This article does not claim that any HCEM product or configuration complies with any particular standard.

HCEM's site includes pages for ODM/OEM options, Application, SOLUTION, Resource Center, and Contact. Those page titles show that such pages exist; they do not prove engineering review, configuration suitability, service intervals, clearance values, spare-part availability, certifications, or warranty. Buyers should use those pages as navigation points and then request project-specific documentation through the proper sourcing channel.

Vacuum Pump Maintenance Access Checklist

Use the following checklist before approving an OEM vacuum pump maintenance layout. It is written for procurement managers, distributors, and technical buyers who need a practical gate between catalog review and design release.

1. Confirm the exact pump identity. Record the exact model name, configuration, voltage or electrical variant if applicable, fitting arrangement, and document revision. Do not rely on a shortened internal nickname.
2. Request controlled drawings. Ask for current exact-model dimensional drawings, mounting details, connection locations, and installation orientation limits. If the drawing does not answer a service question, record the open item.
3. Map service tasks. List the expected tasks: visual inspection, filter or accessory access where applicable, hose removal, wiring disconnection, fastener removal, pump extraction, reinstall, and post-service checks. Do not assign intervals unless they come from current instructions for the exact configuration.
4. Review the physical path. Check whether hands, tools, fittings, labels, and the pump body have a workable route in the fully assembled machine. Include covers, hinges, brackets, cable harnesses, insulation, tubing, and adjacent modules.
5. Check isolation steps. Identify how electrical energy, vacuum or pressure, heat, and process media will be controlled before service. Verify the method against machine-level safety requirements and current instructions.
6. Review connection stress. Confirm that tubing and wiring are not pulled, twisted, sharply bent, or trapped during service. Request connection details and operating limits instead of assuming that a similar connector behaves the same way.
7. Document replacement access. Confirm whether the pump can be removed without taking out unrelated assemblies. If not, decide whether that is acceptable for the equipment category and service model.
8. Control configuration changes. Recheck access if the pump, fitting, tubing, connector, mount, enclosure, or nearby part changes. Small packaging changes can remove the only practical service path.
9. Verify evidence for regulated markets. If the project requires compliance documentation, request current exact-model and configuration evidence and verify market, scope, issuer or lab, date, and model coverage. Do not infer compliance from website navigation or product-page existence.
10. Record unresolved assumptions. Any assumed clearance, service interval, duty condition, or accessory access should remain an open item until confirmed by current exact-model documentation.

A simple scoring method can help teams compare layouts without pretending to certify them. For each task, mark access as clear, restricted, or not verified. A layout with any not verified item should not be released for purchasing lock-in until the missing evidence is resolved. This scoring method is a project management aid, not a product claim.

For HCEM sourcing discussions, review the listed VACUUM PUMP collection and the relevant product page only as a starting point, then request the exact documentation needed for the target machine. To ask for current model drawings, service instructions, connection details, operating limits, and configuration evidence, contact HCEM with the pump page, intended application, installation orientation, enclosure constraints, and the documents your approval process requires.

FAQs

What is vacuum pump maintenance access?

Vacuum pump maintenance access is the physical and procedural ability to inspect, isolate, disconnect, remove, reinstall, and verify a pump in the final equipment layout. It includes tool paths, hose and wiring access, mounting points, labels, covers, and the documented service sequence.

Can I use a standard vacuum pump service clearance for every OEM design?

No. Service clearance depends on the exact pump model, configuration, fittings, wiring, enclosure, tool path, and service task. Buyers should request current exact-model drawings and service instructions instead of applying a universal clearance value.

Do HCEM product page titles prove service intervals or spare-part availability?

No. The current catalog lists product pages such as HC580A Oilless Vacuum Pump and HC580D Oilless Vacuum Pump, but those titles prove listing existence only. They do not prove service intervals, component access, spare-part availability, duty cycle, performance, warranty, or current availability.

What should distributors ask before quoting an OEM vacuum pump layout?

Distributors should ask for the target application, enclosure drawings, orientation, connection type, electrical requirements, service expectations, operating limits, and any market-specific documentation needs. They should also ask the buyer which exact evidence is required before design approval.

How should compliance questions be handled?

Do not infer compliance from catalog pages or general website sections. Request current exact-model and configuration evidence, then verify the applicable market, document scope, issuer or lab, issue date, model identification, and whether the supplied configuration matches the final machine.
