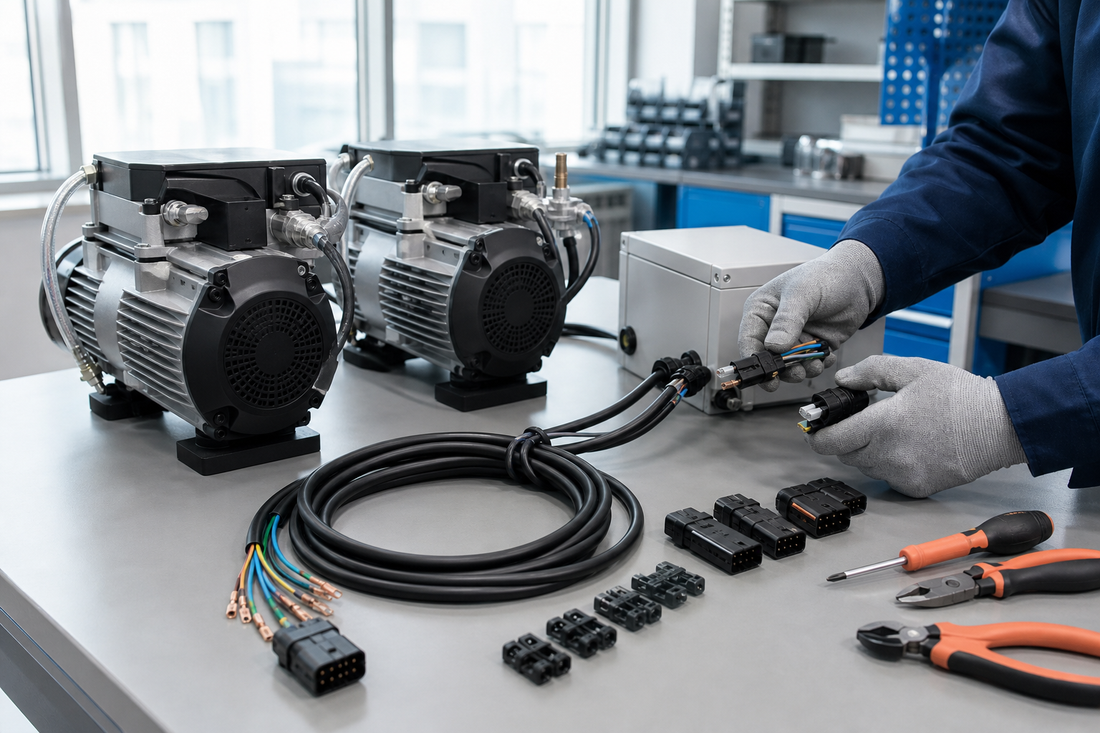

Vacuum Pump Electrical Integration: An OEM Buyer Guide
HCEM Pump TeamShare
Vacuum pump electrical integration is the process of matching an exact pump configuration to the buyer’s power supply, controls, protection devices, wiring method, and documentation requirements. OEM buyers should verify current exact-model electrical evidence before purchase, because a product listing alone does not prove voltage, current, control compatibility, certification, or availability.
Quick Facts
- HCEM’s current Shopify catalog includes a VACUUM PUMP collection.
- The catalog lists HC580A Oilless Vacuum Pump and HC580D Oilless Vacuum Pump product pages.
- Those titles prove that product pages exist; they do not prove electrical ratings, starting behavior, duty cycle, certification, stock status, or configuration.
- For any OEM vacuum pump power supply decision, request current exact-model drawings, curves, wiring information, labels, and configuration evidence.
- Procurement should treat electrical integration as a cross-functional review involving purchasing, engineering, quality, and the final equipment builder.
Which Electrical Inputs Define the Vacuum Pump Interface?
For an OEM buyer, the first integration question is not simply whether a pump can create vacuum. It is whether the exact pump configuration can be connected to the equipment platform without forcing late changes to the power architecture, enclosure, harness, controls, or approval file. Vacuum pump voltage and current are central to that review, but they are only part of the interface.
Start by separating catalog identity from electrical evidence. A product title can identify a listing, and a collection can organize product pages, but neither should be treated as proof of a specific voltage, current draw, start profile, insulation system, protection requirement, connector, control method, or market approval. For the current HCEM catalog, buyers may reference the listed vacuum pump pages during sourcing, but should request exact-model documentation before using any value in a design file, bill of materials, or supplier approval packet.
The electrical interface normally includes the supply type, rated voltage, frequency where relevant, phase arrangement where relevant, expected running current, starting current or inrush behavior, permitted voltage range, connection method, grounding or bonding provisions, thermal protection method, duty assumptions, and control input compatibility. Buyers should also ask whether the drawing applies to the precise configuration being quoted. Small changes in motor, lead wire, connector, enclosure, capacitor arrangement, control board, or protection method can change the integration requirements.
For procurement teams, the practical goal is to convert a general product interest into a document-controlled interface. The supplier’s quotation, drawing, and wiring information should identify the exact model and configuration. The equipment builder’s side should identify the available power supply, controller output type, protective device strategy, harness design rules, operating environment, and target market. Any mismatch between those two records is a purchasing risk, not only an engineering issue.
| Input to Verify | Why It Matters | Evidence to Request |
|---|---|---|
| Supply voltage and type | Determines whether the pump can be powered by the OEM platform without redesign. | Exact-model electrical drawing, nameplate draft, or approved specification sheet. |
| Running current | Supports conductor sizing, power budget, heat review, and protection coordination. | Current exact-model data under defined operating conditions. |
| Starting or inrush behavior | Affects power supply headroom, relay or driver selection, and nuisance trip risk. | Start profile, test condition statement, or application note tied to the configuration. |
| Control interface | Confirms whether the OEM controller can switch, enable, or monitor the pump correctly. | Wiring diagram and control compatibility statement for the selected configuration. |
| Protection and grounding | Influences safety design, service instructions, and enclosure layout. | Protection description, grounding instructions, and configuration-specific documentation. |
How to Review Starting, Running, and Control Loads
Electrical integration risk often appears at the point where a pump moves from a component quote into an OEM machine. A procurement manager may have a unit price and a product page, while the engineering team still needs to know whether the pump can start reliably under the available supply and whether the control circuit can handle the electrical load. That gap should be closed before the supplier is locked into the design.
Running current is used for steady-state power budgeting, heat assessment, protective device selection, and harness planning. Starting current or inrush behavior is different. It may be short in duration, but it can determine whether a power supply sags, a fuse opens, a relay welds, a driver faults, or another device on the same bus resets. The buyer should request a start profile or other current evidence that states the conditions under which it was measured. If the pump will start against residual vacuum, through a restriction, after a hot soak, or at a low line condition, those assumptions should be reviewed with the supplier and the equipment engineer.
Control loads deserve the same discipline. Some OEM designs switch pump power directly. Others use a relay, transistor output, contactor, solid-state switch, or control board. The phrase compatible with our controller is not precise enough for purchasing records. The review should identify whether the controller is switching the main load or only a signal input, whether suppression is needed, what the off-state leakage tolerance is, whether polarity matters, and whether the pump includes internal electronics that change the expected wiring practice.
A simple engineering relationship can help teams ask better questions without inventing product claims:
Power relationship for review: electrical power is commonly reviewed from voltage and current, using the applicable method for the supply type. The buyer should use supplier-provided exact-model values and the equipment designer’s approved calculation method. This statement is a planning formula, not a claim about any HCEM product rating.
For an OEM vacuum pump power supply review, purchasing should also ask how tolerances are handled. A nominal supply value is not enough if the equipment may see line variation, battery discharge, long cable runs, shared loads, or control outputs with voltage drop. The pump evidence should be compared against the lowest and highest supply conditions expected in the final equipment. If the final equipment will be sold into more than one region, verify the applicable voltage, frequency, plug, wiring, and approval assumptions for each market rather than treating one configuration as universal.
How to Match Protection, Wiring, and System Controls
Protection is where electrical integration becomes a system-level responsibility. A pump may have internal features, external protective devices may be required by the equipment design, and workplace service procedures may impose additional requirements. Buyers should avoid the shortcut of asking whether a component is compliant in general. Instead, request current exact-model and exact-configuration evidence, then verify the applicable market, document scope, issuer or lab, issue date, and configuration covered by the document.
Wiring review should cover conductor size, insulation temperature rating, routing, strain relief, connector retention, terminal type, grounding or bonding, separation from signal wiring, and service access. If the pump is installed inside a compact OEM enclosure, the buyer should ask whether the drawing assumes open mounting, a specified orientation, or defined cooling conditions. Electrical and thermal reviews are linked: current draw, operating duration, enclosure temperature, and airflow can affect the final equipment design even when the pump itself is oil-free.
Protection coordination should be documented between the supplier and OEM design team. The buyer may need to compare the pump’s expected behavior with fuses, breakers, power supplies, overload devices, thermal cutoffs, relays, and controller outputs. The correct answer depends on the final equipment architecture. HCEM’s current Shopify site includes ODM/OEM options, but the existence of that page should not be read as proof that a particular electrical customization, approval, or documentation package is available for every model. Treat it as a place to begin a configuration discussion.
For maintenance and service planning, buyers should also align with hazardous energy control expectations in the operating country and facility. OSHA’s control of hazardous energy standard is one relevant U.S. reference for service and maintenance programs, but it does not replace product-specific wiring instructions or the final equipment builder’s risk assessment. Procurement should make sure that service disconnects, labels, manuals, and replacement parts match the exact electrical configuration actually supplied.
Controls should be reviewed in normal and fault conditions. Ask what happens if the pump is commanded on during a low-voltage event, if a controller output chatters, if a connector is partially seated, if an overload trips, or if power returns after an interruption. The purpose is not to assign all design responsibility to the pump supplier; it is to prevent the component interface from being underspecified. For OEM buyers, the strongest purchasing file is one where the electrical drawing, control logic, protection plan, and supplier quote describe the same configuration.
Vacuum Pump Electrical Integration Checklist
This vacuum pump control wiring checklist is intended for RFQ review, supplier comparison, and design release. It does not replace the equipment builder’s engineering process, but it gives procurement a practical way to keep evidence tied to the quoted configuration.
- Confirm the exact product identity. Record the model, configuration, revision, and any options. If referencing HCEM’s current catalog, note that the listed pages prove listing existence only.
- Request current electrical drawings. Ask for drawings that show supply input, terminals or leads, grounding or bonding, connector details, and any control lines.
- Verify voltage and current evidence. Do not reuse values from unrelated models. Ask for exact-model running current, permitted supply range, and conditions for the data.
- Review starting behavior. Ask for inrush or start-load information and compare it with the OEM power supply, relay, fuse, breaker, and controller limits.
- Define the control method. State whether the pump is switched by main power, relay, solid-state output, signal input, or another method. Confirm polarity, leakage, suppression, and fault behavior where applicable.
- Check protection strategy. Identify internal and external protection assumptions. Verify that protective devices are coordinated with the final equipment design.
- Confirm wiring construction. Review conductor size, insulation, connector retention, strain relief, routing, service access, and separation from sensitive signal circuits.
- Validate documents for the target market. For any certification or compliance question, request current exact-model evidence and verify scope, issuer or lab, issue date, configuration, and applicable market.
- Align procurement and engineering records. Make sure the quote, drawing, BOM, inspection plan, and supplier approval file all refer to the same configuration.
- Plan change control. Define how the supplier will notify the buyer before changes to motor, winding, connector, lead wire, control board, label, protection method, or approved drawing.
For HCEM sourcing, procurement teams can review the current vacuum pump collection and listed product pages, then send the exact application requirements through HCEM’s contact page. The useful request is specific: ask for current exact-model drawings, curves, wiring information, configuration evidence, and any available documentation relevant to the intended market and equipment design.
FAQs
Does a vacuum pump product page prove the electrical rating?
No. A product page title proves that a listing exists. It does not prove voltage, current, starting behavior, control compatibility, protection method, certification, availability, or suitability for a specific OEM system. Request current exact-model documentation before design release.
What should procurement ask for before approving an OEM vacuum pump power supply?
Ask for the exact-model electrical drawing, supply requirements, running current evidence, starting or inrush information, wiring diagram, protection assumptions, control interface details, and configuration-specific documentation. The request should state the intended market and final equipment conditions.
How should buyers handle compliance questions?
Do not rely on broad verbal statements. Request current exact-model and exact-configuration evidence, then verify the applicable market, document scope, issuer or lab, issue date, and configuration. The final equipment builder should confirm how the component evidence fits the complete product file.
Why does starting current matter if the pump runs normally afterward?
Starting behavior can stress the power supply, relay, solid-state driver, fuse, breaker, or shared electrical bus. A pump that runs within the steady-state budget may still cause nuisance trips or voltage dips if start conditions are not reviewed.
Can one wiring checklist cover every vacuum pump installation?
No. A checklist helps structure the RFQ and design review, but the final answer depends on the exact pump configuration, power source, controller, enclosure, duty assumptions, target market, and service requirements.
