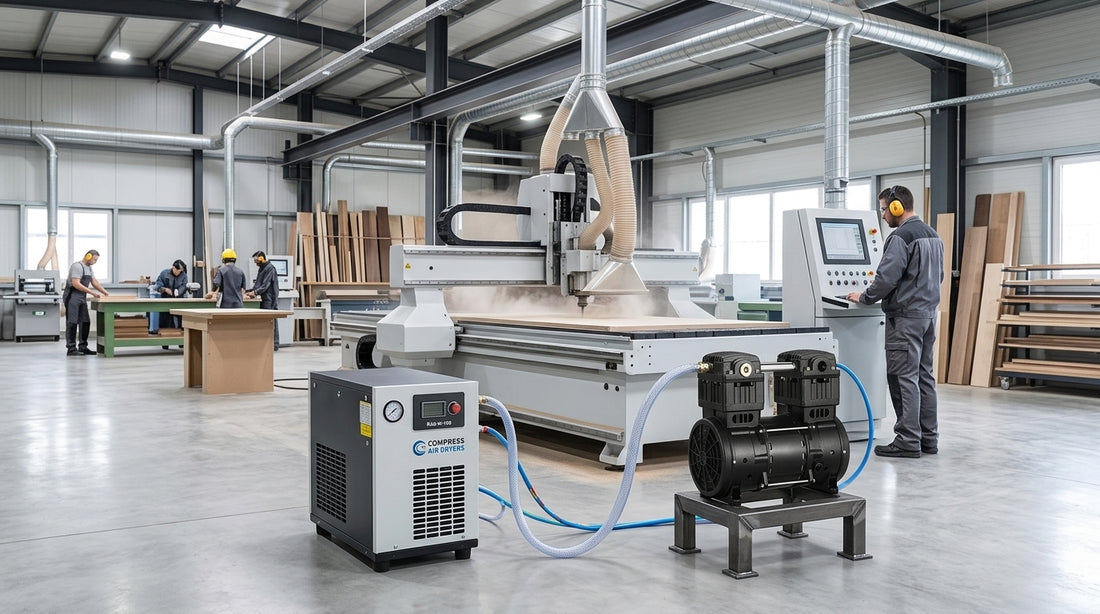

When Your Woodworking CNC Fails ISO 8573 Without a Woodworking Refrigerated Air Dryer: Compliance Standards

Operating CNC machinery without adherence to established compressed air purity standards risks immediate spindle failure, denied insurance claims, and severe production downtime. If your facility utilizes pneumatic tool changers or air bearings, non-compliance with specific purity specifications allows liquid moisture to wash away factory-applied lubricants. The resulting internal corrosion causes failed quality control audits, rejected material batches, and direct liability for equipment repair costs. Installing a properly sized woodworking refrigerated air dryer enforces specific pressure dew point thresholds, physically preventing liquid water from reaching sensitive control valves. Failing to maintain these exact moisture thresholds immediately disqualifies any air compressor warranty or CNC spindle warranty.

Which Standards Apply to You?

When I audited a 60,000 sq ft cabinet manufacturing facility in Grand Rapids last October, the plant manager assumed their generic water trap was sufficient; instead, I measured 38 mg/m³ of liquid water at the CNC manifold, causing $14,000 in spindle bearing replacements over six months. Often, facilities attempt to compensate for poor downstream drying by upgrading the generation side with an HC1500 Oilless Air Pump, but even oil-free compression cannot bypass the physical laws of moisture precipitation. When ambient air is compressed, its capacity to hold water vapor decreases proportionally to the increase in pressure.

Failing to remove this precipitated moisture violates the strict operational thresholds specified by machinery manufacturers and invalidates your operational compliance. Without active refrigeration cooling the compressed air to a specific pressure dew point (PDP), condensation is physically inevitable.

Which Standards Apply to You?

Facility engineers must match their specific pneumatic demands to established industrial guidelines. Using unregulated air not only destroys machinery but frequently violates safety and quality mandates.

Industry / Application	Applicable Standard	Key Requirement
Woodworking CNC Routing	ISO 8573-1:2010	Class 4 Moisture (PDP $\leq$ +3°C)
Wastewater Aeration	OSHA 1910.169 / EPA	Safe vessel pressure limits, high particulate tolerance
Automotive Paint Spraying	ISO 8573-1:2010	Class 1 Particulate, Class 4 Moisture, Class 1 Oil
Pharmaceutical Packaging	FDA 21 CFR / ISO 8573-1	Class 2 Moisture (PDP $\leq$ -40°C), Class 0 Oil

ISO 8573-1 Explained: Woodworking Refrigerated Air Dryer Mandates

The international standard defining compressed air quality is published as ISO 8573-1 Compressed Air Purity Classes. For industrial machinery, this standard operates as a strict regulatory threshold rather than a mere suggestion. The specification uses a three-digit format (e.g., ISO8573-1 Class 2.4.1) representing solid particulates, water, and oil respectively.

For CNC routing equipment demanding 120 CFM at 100 PSI, spindle manufacturers explicitly mandate Class 4 moisture levels. Class 4 dictates a pressure dew point of +3°C (37.4°F) or lower, with a maximum liquid yield of 6 g/m³. A woodworking refrigerated air dryer achieves this specific metric by circulating R-134a or R-513A refrigerant through an internal heat exchanger, chilling the incoming air to exactly 38°F before reheating it to prevent external pipe sweating.

Most plant engineers miss the thermodynamic reality of pneumatic tool changers. When 100 PSI air expands rapidly at the pneumatic tool changer, the sudden volumetric expansion causes an extreme temperature drop. This endothermic reaction instantly freezes any residual moisture vapor that bypassed your primary filtration. The resulting ice crystals act as microscopic abrasives, shredding the O-rings, scoring the cylinders, and ultimately leading to catastrophic failure of your CNC routing machinery. This is not a theoretical risk; it is a guaranteed mechanical outcome of ignoring proper air treatment protocols.

The Critical Role of Condensate Separators in Your Pneumatic Circuit

While a woodworking refrigerated air dryer is the primary defense against vaporous moisture, it cannot shoulder the burden of bulk liquid water alone. When a 30-horsepower rotary screw compressor generates 120 CFM at 100 PSI on a humid summer day, it can easily precipitate over 10 gallons of liquid water in a single 8-hour shift. If this deluge of water hits your dryer's heat exchanger directly, it overwhelms the thermal mass of the refrigeration circuit, pushing the pressure dew point well above the ISO 8573-1 Class 4 threshold.

This is where properly engineered condensate separators become non-negotiable. Installed immediately downstream of the compressor's aftercooler and upstream of the receiver tank, mechanical condensate separators utilize centrifugal force to spin bulk liquid out of the air stream before it ever reaches the dryer. By stripping away 99% of the liquid phase water, the separators allow the woodworking refrigerated air dryer to focus entirely on its intended purpose: chilling the air to condense the remaining invisible water vapor into a liquid state for safe removal. Without functional condensate separators, your dryer is effectively drowning, and your CNC routing equipment is operating on borrowed time.

Protecting Your Investment: The Air Compressor Warranty Trap

One of the most overlooked aspects of compressed air quality is its direct legal and financial impact on equipment guarantees. Almost every major industrial equipment manufacturer includes strict air quality stipulations in their service contracts. If a technician arrives to service a failed rotary screw compressor or a seized CNC spindle and discovers free-flowing water in the pneumatic lines, your air compressor warranty is instantly voided. The same applies to the warranties on your precision automated machinery.

Manufacturers are fully aware that untreated air causes rapid oxidation of internal ferrous components, emulsification of lubricating oils, and catastrophic failure of pneumatic logic boards. Maintaining an active, verifiable ISO 8573-1 Class 4 environment is the only way to shield your facility from these massive liability costs. To ensure your system meets the exact specifications claimed by the manufacturer, savvy plant managers rely on standardized, third-party verified metrics. You can consult the CAGI Compressed Air Data Sheets to cross-reference the actual energy efficiency, moisture removal rates, and thermal performance of your chosen woodworking refrigerated air dryer against its published claims.

Contrasting Demands: CNC Routing vs. Wastewater Aeration

To truly understand the necessity of strict moisture control in a modern woodshop, it is helpful to contrast it with applications that have vastly different pneumatic requirements. Take wastewater aeration, for example. In municipal or industrial effluent treatment, high-volume blowers push massive amounts of air into sludge tanks to promote aerobic bacterial digestion. In wastewater aeration, the primary concern is sheer volumetric flow and pressure stability; the air does not interact with precision-machined micro-valves or high-speed ceramic bearings. Therefore, the presence of water vapor is entirely irrelevant to the process.

Conversely, CNC routing is an exercise in microscopic precision. The air bearings that float the spindle, the pneumatic cylinders that actuate the pop-up pins, and the delicate solenoids controlling the dust collection blast gates require air that is clinically clean and bone-dry. Attempting to use the unregulated, moisture-laden air typical of wastewater aeration in a CNC routing application guarantees devastating mechanical failure. You must treat your compressed air as a critical utility, not just a byproduct of a spinning motor.

Practical Sizing Guidelines for Your Woodworking Refrigerated Air Dryer

When specifying a woodworking refrigerated air dryer, plant engineers frequently make the critical error of sizing the dryer identically to the compressor's output. For example, if your rotary screw compressor produces exactly 120 CFM at 100 PSI, purchasing a dryer rated for exactly 120 CFM will almost certainly lead to moisture carryover during peak summer months. Why? Because dryer capacity is calculated based on standardized laboratory conditions—typically 100°F ambient temperature, 100°F inlet airtemperature, and 100 PSI operating pressure. In a real-world manufacturing environment, ambient temperatures in a compressor room can easily exceed 110°F during the summer months, and the inlet air temperature coming straight off an overworked compressor might spike to 120°F or more. These elevated thermal conditions drastically reduce the dryer's effective cooling capacity.

To compensate for these variables, mechanical engineers must apply the manufacturer's specific correction factors. A standard industry rule of thumb is to oversize the woodworking refrigerated air dryer by at least 25% to 30% above your maximum flow rate. Therefore, if your facility relies on a 120 CFM system operating at 100 PSI, you should intentionally specify a dryer rated for at least150 CFM to 160 CFM. This vital thermal buffer guarantees that even during a July heatwave, the dryer's heat exchanger possesses the thermodynamic capacity to chill the incoming compressed air down to the critical 38°F mark. This continuous, stable cooling is what reliably strips out the water vapor, ensuring your system maintains strict ISO 8573-1 Class 4 compliance regardless of external weather conditions. Furthermore, oversizing helps mitigate the inevitable pressure drop across the dryer's internal circuitry, allowing your tools to receive the full dynamic force they require.

Pros and Cons: Refrigerated vs. Desiccant Dryers for Woodworking

When engineering a pneumatic system for CNC routing, facility managers often debate whether to invest in a woodworking refrigerated air dryer or a regenerative desiccant dryer. While desiccant systems offer extreme moisture removal, they are often overkill for standard woodworking applications. Below is a detailed pros and cons list evaluating the refrigerated air dryer specifically for the wood manufacturing industry.

Pros of a Woodworking Refrigerated Air Dryer

• Perfectly Matched for CNC Requirements: Achieves a consistent +3°C (37.4°F) pressure dew point, directly satisfying the ISO 8573-1 Class 4 moisture requirements mandated by major CNC spindle manufacturers.
• Lower Capital Expenditure: The initial purchase price of a refrigerated unit is significantly less than that of a twin-tower desiccant dryer of the exact same CFM capacity.
• Reduced Energy Consumption: Non-cycling and cycling refrigerated dryers consume far less electricity than desiccant dryers, which require either electric heaters or purge air (wasting up to 15% of compressed air) to regenerate the desiccant beads.
• Simplified Maintenance: Maintenance is largely limited to blowing out the condenser fins, verifying refrigerant pressures, and ensuring the automatic drain valves are functioning. There are no expensive desiccant beads to replace every few years.

Cons of a Woodworking Refrigerated Air Dryer

• Cannot Achieve Sub-Zero Dew Points: If your facility routes pneumatic lines outdoors in freezing climates, a refrigerated dryer cannot prevent the air from freezing in the pipes. It is strictly limited to dew points above freezing (typically 38°F).
• Sensitivity to Ambient Conditions: As mentioned in our sizing guidelines, high ambient temperatures directly degrade the cooling capacity of the internal heat exchanger.
• Requires Dedicated Condensate Management: Refrigerated dryers produce a massive volume of liquid condensate that must be carefully managed with functioning condensate separators and oil-water separators before being discharged into municipal drains.

Critical Maintenance Protocols for Maximum Reliability

Purchasing the correct equipment is only the first step; maintaining it is where operational excellence is truly achieved. The harsh environment of a woodworking facility introduces heavy airborne particulate load—specifically fine wood dust—that can rapidly insulate the condenser fins of a woodworking refrigerated air dryer. When the condenser cannot reject heat into the ambient air, the internal refrigerant pressure spikes, the compressor safety switch trips, and wet air immediately floods your CNC routing equipment.

To prevent this, implement a rigorous preventative maintenance schedule. Weekly, use low-pressure compressed air to blow out the dryer's condenser fins. Monthly, inspect all electronic auto-drains on your receiver tanks and condensate separators to ensure they are discharging properly. If an auto-drain clogs with a mixture of compressor oil and sawdust, the liquid water will back up into the dryer, overwhelming the system. Annually, have a certified HVAC or compressed air technician verify the refrigerant charge and inspect the heat exchanger for signs of internal fouling.

For operations looking to fundamentally improve their air quality from the generation source, upgrading to specialized, oil-free generation technology can drastically reduce downstream maintenance. Integrating an efficient industrial-grade oilless air pump into your secondary or dedicated clamping circuits provides a perfectly clean baseline. By eliminating compressor oil from the equation, you completely remove the risk of oil-water emulsions clogging your dryer drains and contaminating your delicate CNC valving.

Frequently Asked Questions (FAQ)

What exactly is a Pressure Dew Point (PDP)?

The Pressure Dew Point (PDP) is the exact temperature at which water vapor in a compressed air system condenses into liquid water at a specific working pressure. It is the most critical metric for evaluating dryer performance. If your dryer maintains a PDP of 38°F, no liquid water will form in your pneumatic lines as long as the ambient temperature around those lines remains above 38°F. For a deeper dive into the highly specific terminology used by pneumatic engineers, we highly recommend consulting the official CAGI Glossary of Compressed Air Terms.

Will an undersized dryer void my air compressor warranty?

Yes, indirectly. While an undersized dryer itself does not break the compressor, the downstream damage caused by the resulting moisture carryover will absolutely void the warranties of your end-use equipment, such as your CNC spindle, pneumatic tool changers, and automated edge banders. Furthermore, if water backs up into the compressor's own control lines due to failing condensate separators, it can destroy the compressor's intake valving, which the manufacturer will refuse to cover under warranty due to improper system installation.

If my compressor produces 120 CFM at 100 PSI, how do I verify my dryer is keeping up?

The only scientifically accurate way to verify performance is by installing an inline digital dew point monitor downstream of the dryer. This sensor continuously measures the moisture content of the air. If your system is demanding exactly 120 CFM at 100 PSI, the dew point monitor should consistently read +3°C (38°F) or lower. If the reading begins to climb toward 50°F or 60°F during peak operation, your woodworking refrigerated air dryer is being overwhelmed and is allowing vapor to pass through to your CNC routing machinery.

Why can't I just use standard water traps at the machine?

Standard point-of-use water traps (often called particulate filters with manual drains) only remove bulk liquid water that has already condensed. They do absolutely nothing to stop invisible water vapor from passing through. When that vapor hits the rapid expansion zone inside your CNC spindle or pneumatic cylinders, the temperature drops dramatically, causing the vapor to spontaneously condense into liquid water inside the tool itself. Only a refrigerated air dryer can remove the vapor before it reaches the tool.

How does woodworking air treatment differ from wastewater aeration?

Wastewater aeration requires massive volumes of low-pressure air (often generated by regenerative blowers rather than rotary screw compressors) simply to agitate water and provide oxygen to bacteria. There are no precision valves, no high-speed ceramic bearings, and no delicate pneumatic cylinders involved. Therefore, wastewater aeration systems typically require zero moisture removal. Woodworking CNC routing, on the other hand, utilizes highly sophisticated, micro-tolerance pneumatic components that will suffer catastrophic failure if exposed to even minor amounts of liquid moisture or oil emulsion.

How frequently should I drain my condensate separators?

Manual draining is a massive liability in a busy manufacturing environment because it relies on human memory. Condensate separators should be equipped with zero-loss electronic auto-drains that sense the presence of water and open automatically without wasting valuable compressed air. If you are still using manual ball valves on your separators or receiver tanks, they technically need to be cracked open multiple times per shift to prevent water from accumulating and bypassing the woodworking refrigerated air dryer.

Is ISO 8573-1 Class 4 a legal requirement?

While ISO 8573-1 is an international engineering standard rather than a federal law, it operates as a binding contractual requirement between you and your equipment manufacturer. When you purchase a $150,000 CNC router, the installation manual will explicitly state that the machine requires ISO 8573-1 Class 4 air. If you fail to provide it, you are in breach of the operational contract, instantly nullifying any liability the manufacturer has for premature spindle failure, rusted pneumatic blocks, or software faults caused by short-circuiting sensors.
