Vacuum Reservoir Sizing: An OEM Buffer Volume Review Guide

Vacuum reservoir sizing is not a fixed-volume lookup. For OEM equipment, the correct buffer volume depends on connected volume, pressure band, gas load, cycle timing, recovery time, controls, materials, cleanliness needs, and configuration-specific acceptance criteria. Buyers should treat the reservoir, pump, valves, sensors, and process volume as one system.

Quick Facts

• Primary decision: define the usable pressure band before comparing reservoir volumes.
• System view: reservoir volume changes cycling behavior, recovery time, pressure stability, and response to intermittent demand.
• Data needed: connected volume, leakage or process gas load, target pressure range, valve timing, duty expectations, and control logic.
• Procurement check: ask suppliers to state assumptions behind any vacuum buffer tank sizing recommendation.
• HCEM site context: HCEM has a VACUUM PUMP collection and pages for Application, SOLUTION, Resource Center, and contact. These page titles show that resources exist; they do not prove a specific reservoir option or performance value.

Why Buffer Volume Changes Vacuum-System Behavior

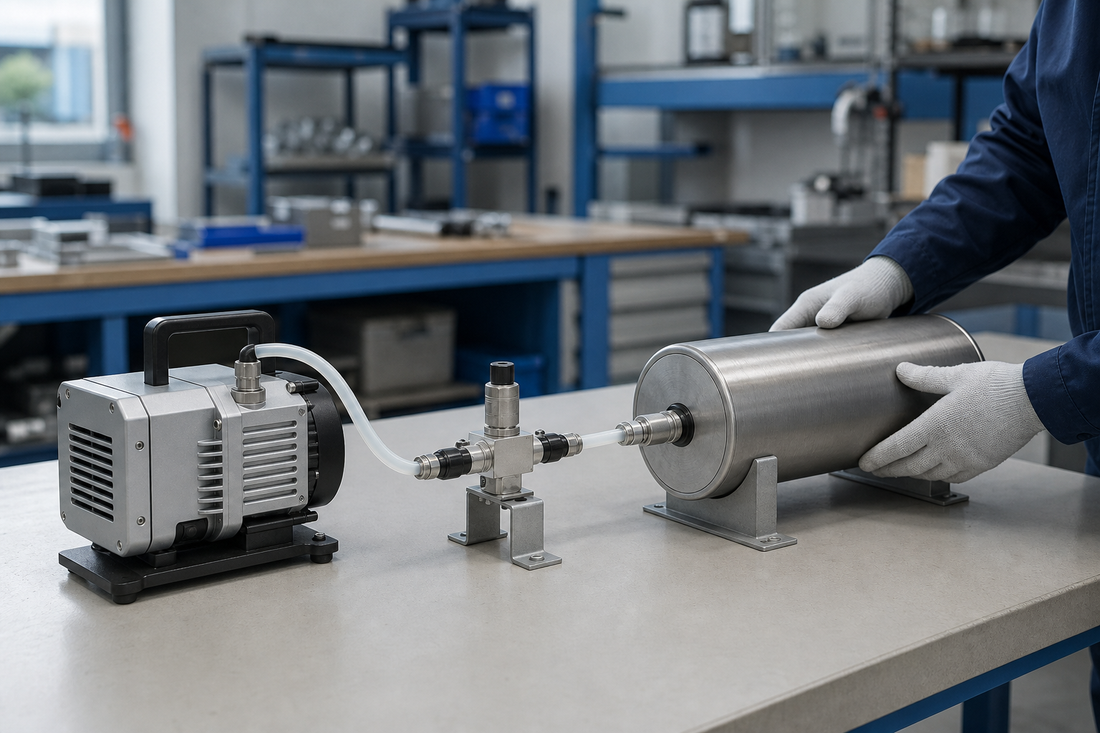

A vacuum reservoir, also called a buffer tank or accumulator, adds volume between the pump and the equipment being served. In a pressure or vacuum system, added volume changes how quickly pressure moves when gas enters, when a valve opens, or when a pump starts. That is why vacuum reservoir sizing belongs in the early design review, not only at the final packaging stage.

For an OEM buyer, the main question is usually practical: will the machine have enough stored vacuum capacity to bridge a short demand event without pushing the pump into excessive cycling or missing the process pressure band? The answer depends on the whole pneumatic path. A larger tank may reduce pressure swing during a short pulse, but it can also take longer to evacuate after startup or after a process disturbance. A smaller tank may recover faster, but it may not damp pressure changes enough for repeatable operation.

The term vacuum also needs precision. Teams may discuss absolute pressure, gauge vacuum, or percent vacuum. A sizing review should identify the pressure reference, units, sensor location, and allowable tolerances. For purchasing work, this prevents an apparent match on paper from becoming a mismatch during integration.

Oil-free pump selection adds another layer. Many OEMs use oil-free air and vacuum sources to reduce the risk of oil carryover into instruments, medical-adjacent assemblies, laboratory equipment, packaging paths, or clean industrial processes. However, a page or collection title does not establish suitability for a particular cleanliness requirement. The buyer still has to request configuration-specific evidence, drawings, materials information, and test conditions that match the intended use.

Define the Pressure Band, Gas Load, and Cycle

The pressure band is the range in which the system is allowed to operate. For example, an OEM may define a lower absolute pressure at which a controller stops the pump and a higher absolute pressure at which it restarts. The reservoir provides usable stored vacuum between those two points. A narrow band can improve process consistency, but it usually requires more pumping or more storage volume. A wide band gives more room for buffer action, but it may not suit the process.

Gas load is the amount of gas entering the vacuum side. It may come from leaks, permeation, intentional venting, valve dead volume, porous materials, product outgassing, or process flow. CERN vacuum technology notes discuss gas flow, conductance, pumping speed, and pressure relationships in vacuum systems. Those fundamentals matter because a reservoir only stores a pressure condition; it does not remove gas. The pump, conductance path, and controls determine how the system recovers after gas enters.

Cycle timing is equally important. A pick-and-place head that opens to atmosphere for fractions of a second is different from a chamber that must evacuate after a door closes. A suction hold function is different from a repeated evacuation and release operation. The expected number of cycles, dwell time, vent time, and recovery time should be written as operating requirements before vacuum accumulator selection begins.

When compliance or regulated-market language appears in a purchase requirement, the buyer should request current evidence for the exact model and configuration. Verify the applicable market, document scope, issuer or lab, issue date, and whether the configured pump, fittings, electrical parts, reservoir, and accessories are covered. A general certificate, old report, or different configuration should not be treated as proof for the current purchase.

Estimate Volume and Check Recovery Time

A first estimate can be useful, but it should be presented as a calculation based on assumptions, not as a product claim. For many low-vacuum buffer reviews, engineers start with the ideal gas relationship at constant temperature as a simplifying approximation. The result should then be checked against real pump curves, conductance losses, valve restrictions, gas load, temperature effects, and test data from the actual configuration.

Teaching example only, not a product claim: assume all of the following values are hypothetical: connected process volume is 2.0 liters, proposed reservoir volume is 8.0 liters, initial absolute pressure is 40 kPa, allowable upper pressure before pump restart is 60 kPa, ambient pressure is 101 kPa, and the event admits gas equivalent to 1.0 liter at ambient pressure. These numbers are invented only to show the method.

One simplified way to review a gas-admission event is to compare the added gas, expressed as pressure-volume, with the total vacuum-side volume. In a rough constant-temperature estimate, pressure rise may be approximated as: Delta P = Q / Vtotal, where Q is the hypothetical admitted gas in pressure-volume units and Vtotal is the hypothetical total connected vacuum volume. Every input must be stated, including units and pressure reference.

Using the hypothetical values above, the total volume would be 10.0 liters. The admitted gas would be 101 kPa-liter. The simplified pressure rise would be about 10.1 kPa, moving the system from the hypothetical 40 kPa absolute starting point to about 50.1 kPa absolute. In this teaching example, that would stay below the hypothetical 60 kPa restart point. It still would not prove a real machine will pass, because real systems have restrictions, valve timing, leaks, sensor delays, and pump behavior that the simple estimate does not capture.

Recovery time is the next check. A reservoir that protects the process during a demand pulse may still be too slow to re-evacuate between cycles. Pumping speed is pressure-dependent, and effective speed at the chamber can be lower than pump inlet speed because tubing, fittings, filters, and valves have conductance limits. NIST thermodynamic metrology resources are useful reminders that pressure measurement depends on traceable methods, uncertainty, and the physical meaning of the measured quantity. For procurement, this means pressure values should be tied to sensor type, calibration expectations, and location in the assembly.

OEM vacuum system design should also consider failure modes. What happens if the pump starts late, a valve sticks, a filter loads, or a seal ages? Does the machine alarm, continue operating at reduced performance, or risk process loss? The reservoir can buy time, but it can also hide a growing leak until the pump runs more often. Controls should make the behavior visible enough for production and service teams.

HCEM positions itself for oil-free air and vacuum pump sourcing conversations, and buyers can use the existing SOLUTION and Resource Center pages as starting points for narrowing project questions. Those pages do not establish any specific reservoir size, pump speed, ultimate pressure, duty cycle, delivery term, or warranty. Treat them as navigation resources, then ask for exact model and configuration information during RFQ review.

Vacuum Reservoir Sizing Review Checklist

Use this checklist before approving a vacuum buffer tank sizing recommendation. It is written for OEM buyers, distributors, and industrial procurement teams that need a traceable basis for supplier comparison.

1. Define pressure units: state absolute pressure, gauge vacuum, or another reference, and keep the same reference across drawings, specifications, and supplier quotes.
2. Map connected volume: include the reservoir, lines, manifolds, valves, filters, fittings, end effectors, cavities, and any volume isolated or opened during the cycle.
3. State the usable pressure band: identify the normal operating band, alarm limits, pump start and stop points, and acceptable overshoot or undershoot.
4. Quantify gas load: separate steady leakage from intentional process flow, valve admission, venting, outgassing, and product-related load.
5. Describe timing: document evacuation time, hold time, vent time, dwell time, cycle rate, expected restart frequency, and acceptable recovery time.
6. Review pump behavior: ask for the assumptions behind effective pumping speed at the point of use, not only nominal pump information.
7. Check controls: specify sensor location, sensor range, hysteresis, valve sequence, controller logic, alarm behavior, and response to power loss.
8. Review materials: confirm wetted materials, seals, tubing, tank material, cleaning expectations, and compatibility with the process environment.
9. Clarify evidence: for certifications, test reports, or declarations, request current exact-model and exact-configuration documents and verify market, scope, issuer or lab, issue date, and covered accessories.
10. Set acceptance criteria: define how the installed system will be tested, including starting pressure, cycle profile, ambient conditions, measurement point, allowable drift, and pass or fail limits.

A supplier recommendation is more useful when it shows the assumptions, not only the final tank size. Ask whether the proposed reservoir is sized for one disturbance, repeated cycling, startup evacuation, leak compensation, or another design case. If several cases matter, review each one separately and select the configuration that satisfies the controlling case without creating unacceptable packaging, noise, thermal, or service constraints.

For an OEM RFQ, include the checklist data with drawings or a short operating sequence. HCEM buyers can also review the Application page for context and then contact HCEM with the pressure band, connected volume, cycle timing, and configuration requirements that must be evaluated. Keep the request tied to measurable acceptance criteria rather than a target reservoir volume alone.

FAQs

Is there a universal vacuum reservoir sizing rule?

No. A universal reservoir volume would ignore connected volume, pressure band, gas load, pump behavior, controls, and recovery time. A rule of thumb may help with early screening, but procurement decisions should be based on the actual operating case and stated assumptions.

What is the difference between vacuum buffer tank sizing and vacuum accumulator selection?

The terms often overlap. Buffer tank sizing usually emphasizes pressure stability and cycling behavior, while vacuum accumulator selection may also include packaging, materials, ports, mounting, cleanliness, and control integration. In purchasing documents, define what the reservoir must do rather than relying on the label.

Can a larger reservoir solve slow vacuum recovery?

Not by itself. A larger reservoir can reduce pressure rise during a short gas load, but it also adds volume that must be evacuated. If recovery is slow because of pump capacity, conductance limits, leaks, or valve restrictions, increasing reservoir size may make startup or reset time longer.

What information should an OEM send with an RFQ?

Send the pressure reference and band, connected volume, gas load assumptions, cycle sequence, recovery-time target, control approach, materials requirements, installation constraints, and acceptance test method. If compliance evidence is needed, request current exact-model and configuration documents.

Does a VACUUM PUMP collection prove a specific reservoir or performance option is available?

No. A collection title shows that the site has a vacuum pump collection. It does not prove reservoir options, pumping speed, ultimate pressure, duty cycle, leak rate, control accuracy, delivery terms, warranty, or current availability for a specific configuration.
