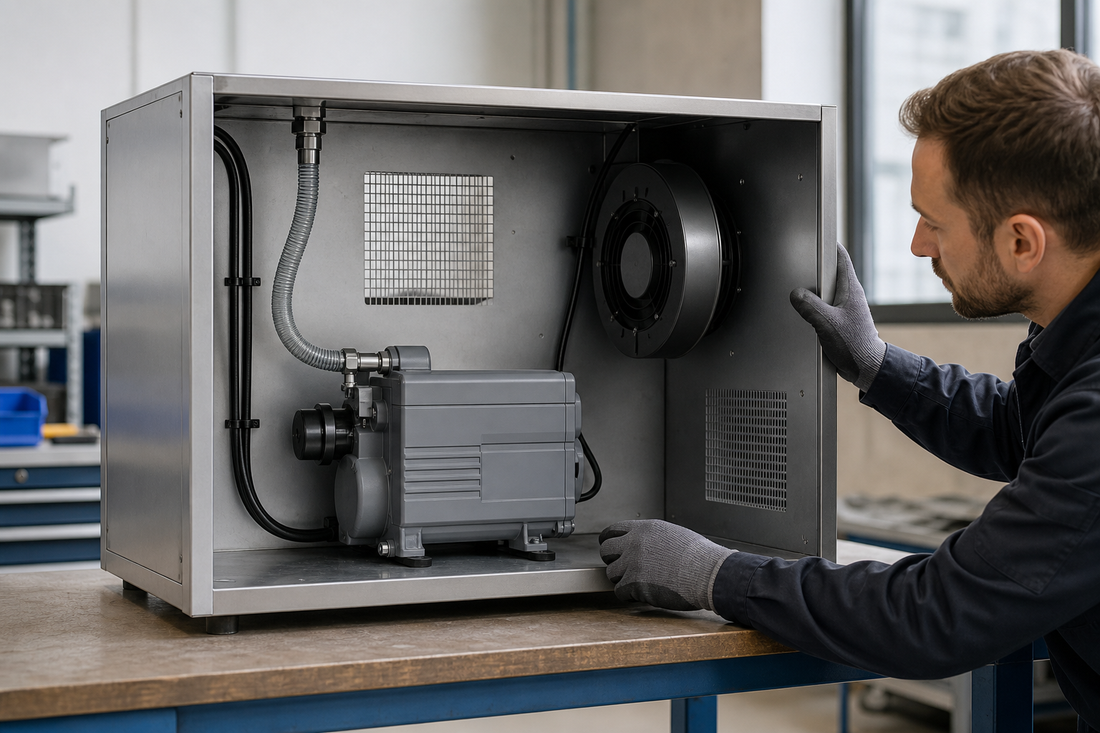

Vacuum Pump Thermal Management: An OEM Enclosure Review Guide
HCEM Pump TeamShare
Vacuum pump thermal management should be reviewed before an OEM enclosure is released, because heat, airflow restriction, duty pattern, ambient temperature, and protection settings can change pump behavior. Buyers should not rely on catalog titles alone; request current exact-model drawings, operating limits, duty information, protection details, and configuration-specific thermal evidence.
Quick Facts
- Catalog scope: HCEM's current Shopify catalog includes a VACUUM PUMP collection.
- Resource scope: The current Shopify site has Application, SOLUTION, ODM/OEM, Resource Center, and Contact pages.
- Evidence limit: Those page and collection titles prove that resources exist. They do not prove heat output, temperature rise, airflow, allowable ambient temperature, duty cycle, enclosure clearance, thermal protection, performance, certification, or warranty.
- Procurement action: Ask for the current documentation for the exact pump model, voltage, frequency, motor, duty cycle, inlet condition, accessories, and enclosure arrangement under review.
- Design action: Treat the enclosure, mounting plate, adjacent components, filters, wiring channels, sound treatment, and service clearances as part of the thermal boundary.
Why Thermal Conditions Change Vacuum Pump Integration
Vacuum pumps convert electrical input and mechanical work into useful vacuum performance and heat. In an open installation, heat may disperse into the surrounding room. In an OEM machine enclosure, the same pump can face warmer inlet air, recirculated exhaust heat, blocked cooling paths, acoustic lining, smaller clearances, or a different service duty. That is why vacuum pump thermal management is not only a pump selection topic; it is an integration review topic.
For procurement managers, the risk is usually not a single missing number. The risk is a purchase decision based on documents that do not match the actual configuration. A pump listed in a catalog may be suitable for one layout and inappropriate for another if the final assembly changes airflow, ambient temperature, duty cycle, or control behavior. A buyer should therefore separate product discovery from engineering evidence. The existence of a VACUUM PUMP collection helps identify a sourcing path, but it should not be treated as proof of thermal performance in a closed cabinet.
For technical buyers, the practical question is: under what exact conditions will the pump operate, and what evidence supports that use? Useful evidence may include dimensional drawings, installation notes, allowable ambient limits, motor data, operating duty definitions, thermal protection details, test conditions, derating information, and instructions for accessories. If any of those documents are missing, outdated, or not tied to the exact configuration, the review remains incomplete.
Thermal conditions can also affect neighboring parts. A pump installed near electronics, valves, plastic panels, tubing, adhesives, seals, or operator touch points may create secondary constraints. Even if the pump itself remains within its limits, the enclosure may not. A procurement specification should therefore define both pump limits and machine-level constraints, including service access and downstream heat rejection.
How to Define the Enclosure and Ventilation Boundary
A useful vacuum pump enclosure ventilation review starts by defining the boundary. The boundary is not just the sheet metal box around the pump. It includes every feature that changes heat flow or air movement: louvers, fan guards, filters, duct paths, acoustic foam, cable trays, partitions, removable panels, nearby drives, controller heat, exhaust routing, and the space available for maintenance. If the pump is mounted in a base frame, under a work deck, or behind a service door, that area should be reviewed as the actual operating environment.
Buyers should request an installation temperature review for the exact pump model and enclosure concept. The request should identify the expected ambient air around the machine, the maximum enclosure temperature allowed by the OEM design, the expected duty pattern, and whether the pump intake and exhaust are inside or outside the enclosure. It should also state whether other heat sources operate at the same time. Without those details, a supplier can only give general guidance.
The UK HSE ventilation guidance is not a vacuum pump product standard, but it is useful for disciplined thinking about air movement. It reinforces the idea that ventilation depends on a defined purpose, a known source, and a maintained path for air to enter, move, and leave. In an OEM pump compartment, that means the review should identify where cooling air enters, how it reaches the pump, where heated air exits, and whether service conditions could block that path.
The following table gives a procurement-oriented way to frame the boundary. It does not assign product values or acceptance limits. It shows what to request and what to verify before release.
| Review Item | Buyer Should Define | Supplier Evidence to Request |
|---|---|---|
| Exact pump configuration | Model, motor, voltage, frequency, accessories, inlet and exhaust arrangement | Current exact-model drawing and configuration bill of materials or equivalent identification |
| Enclosure condition | Open frame, partial cover, sealed cabinet, ventilated cabinet, or ducted compartment | Installation limits and clearance guidance tied to the pump configuration |
| Air path | Air inlet, outlet, filter location, fan direction, exhaust routing, and possible recirculation | Ventilation or cooling requirements, if specified for that model |
| Temperature basis | Room ambient, enclosure ambient, maximum expected local air temperature | Allowable ambient and any derating or duty limits stated for the exact model |
| Duty pattern | Continuous, intermittent, cyclic, standby, purge, peak load, and restart frequency | Duty information and protection behavior under the intended operating pattern |
| Protection and controls | Thermal switch, motor protection, controller logic, alarms, shutdown behavior | Protection details, wiring notes, reset behavior, and configuration-specific documentation |
For early sizing discussions, teams sometimes use a simple heat balance to understand sensitivity: heat to remove equals heat generated minus heat safely absorbed or conducted elsewhere. If a teaching example assumes a hypothetical 400 W heat load and a hypothetical allowed air temperature rise of 10 degrees Celsius, those numbers are assumptions only and are not HCEM product claims. The purpose of such a calculation is to show why exact heat output, actual airflow, and allowed temperature rise must be documented before design release.
How to Review Duty, Protection, and Configuration Evidence
OEM vacuum pump heat management depends heavily on duty. A pump used for short evacuation cycles may create a different thermal profile from a pump held near a steady operating condition. A pump that restarts frequently may create different motor heating concerns from one that runs continuously. A pump connected to a restrictive process may also behave differently from one operating under another inlet condition. Because of these variables, the phrase duty cycle should be defined in writing, not assumed from application language.
Procurement teams should ask suppliers to identify the document revision and the conditions behind any thermal guidance. A useful answer should connect the pump model, configuration, ambient basis, operating mode, and protection scheme. A weaker answer may only repeat a catalog phrase or provide a generic drawing. That does not mean the pump is unsuitable; it means the evidence is not yet specific enough for release.
Protection evidence needs the same discipline. A thermal protection feature, if present, should be reviewed for its sensing location, trip behavior, reset behavior, wiring requirements, and relationship to the OEM controller. Buyers should not assume that a motor protector, thermal switch, fuse, alarm output, or drive parameter protects every enclosure condition. They should request current details for the exact model and verify how those details apply to the intended market and machine configuration.
Compliance language should be handled carefully. Never treat a listing, page title, label, or generic statement as proof that the final assembly complies with a market requirement. When compliance matters, request current exact-model and configuration evidence, then verify the applicable market, document scope, issuer or lab, issue date, and configuration covered. The OEM remains responsible for confirming how component documentation applies to the finished machine.
HCEM's site includes pages for SOLUTION and ODM/OEM options. Those pages can help buyers find the right conversation path, but their existence should not be stretched into a claim about thermal testing, operating limits, certification, warranty, or availability. Treat them as navigation resources and ask for the current technical package for the exact pump under consideration.
Vacuum Pump Thermal Management Checklist
Use the following checklist before approving a pump inside an OEM enclosure. It is written for purchasing, engineering, quality, and supplier management teams that need a shared evidence trail.
- Identify the exact pump: Record the model, configuration, motor data, voltage, frequency, accessories, and any changes requested for the OEM build.
- Define the thermal boundary: Document whether the pump is open, partially enclosed, fully enclosed, ducted, filtered, acoustically treated, or installed near other heat sources.
- Map airflow: Mark where air enters, where it reaches the pump, where heated air exits, and whether exhaust air can return to the inlet side.
- State operating temperature assumptions: Separate room ambient, enclosure ambient, local pump inlet air temperature, and maximum expected operating condition.
- Define duty: Specify continuous operation, intermittent cycles, starts per period, standby time, expected load range, and worst-case production use.
- Request exact-model limits: Ask for current operating limits, allowable ambient information, clearance guidance, duty information, and any configuration-specific restrictions.
- Review protection behavior: Confirm what protection exists, what it senses, how it trips, how it resets, and how the OEM controller should respond.
- Check adjacent components: Review nearby electronics, tubing, seals, panels, labels, adhesives, filters, and operator-accessible surfaces for temperature sensitivity.
- Control document revision: Record issue dates, drawing numbers, document scope, and whether the evidence matches the purchased configuration.
- Plan verification: Define how the OEM will validate enclosure temperature, pump operation, alarms, shutdown behavior, and service conditions in the finished machine.
For sourcing discussions, start from the VACUUM PUMP collection and use the Application page to frame the use case. For an enclosure-specific review, contact HCEM with the pump model under consideration, duty description, enclosure layout, ambient assumptions, and the documents you need through the contact HCEM page.
FAQs
Does a vacuum pump collection page prove the pump is suitable for my enclosure?
No. A collection page proves that a catalog resource exists. It does not prove heat output, allowable ambient temperature, airflow requirement, duty cycle suitability, enclosure clearance, protection behavior, certification, warranty, or availability. Request current exact-model evidence for the proposed configuration.
What should I ask for before approving vacuum pump enclosure ventilation?
Ask for the exact-model drawing, operating limits, duty information, clearance or installation guidance, protection details, and any configuration-specific thermal evidence. Also give the supplier your enclosure layout, expected ambient conditions, duty pattern, and nearby heat sources.
Can I use a simple airflow calculation for early design work?
Yes, for sensitivity screening, if every number is clearly labeled as a hypothetical assumption or as verified data. Do not turn an early calculation into a product claim. Final release should be based on current pump documentation and OEM validation in the intended enclosure.
How should procurement handle compliance statements?
Request current exact-model and configuration evidence. Verify the applicable market, document scope, issuer or lab, issue date, and configuration covered. Do not claim compliance from a page title, catalog category, or generic statement.
Who owns final enclosure validation?
The OEM should validate the finished machine because the enclosure, controls, duty, ambient conditions, and nearby components are part of the final system. Supplier documents support the review, but they do not replace machine-level verification.
