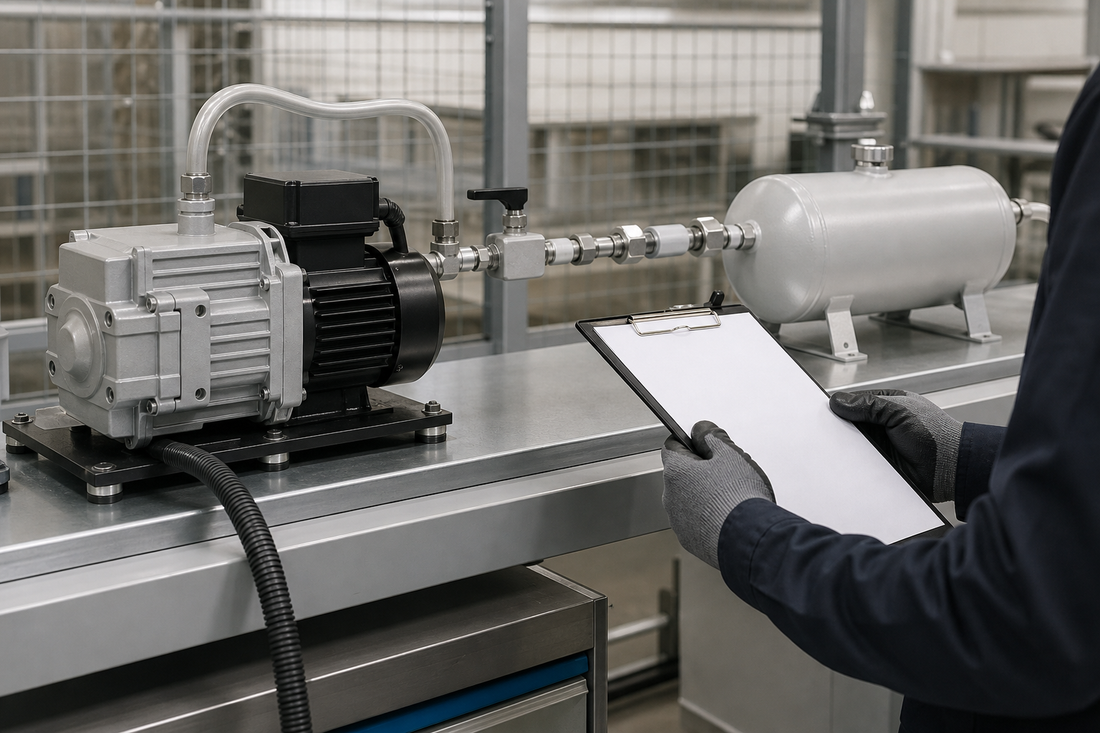

Vacuum Pump Startup and Commissioning: An OEM Acceptance Checklist
HCEM Pump TeamShare
A vacuum pump commissioning checklist should not be a universal startup script. For OEM acceptance, it should define the exact model documents, approved system configuration, pre-start conditions, interlocks, gas-path readiness, observation points, stop criteria, and records that prove the installed vacuum package was accepted under agreed conditions.
Quick Facts
- Purpose: Convert startup from an informal power-on event into documented OEM vacuum system commissioning.
- Audience: OEM buyers, distributors, industrial procurement teams, and technical approvers comparing oil-free air and vacuum pump suppliers.
- Scope: The checklist below is a procurement and acceptance framework, not a substitute for the exact pump manual or approved system drawings.
- HCEM site context: HCEM's Shopify catalog includes a VACUUM PUMP collection, and the site also includes Application, SOLUTION, Resource Center, ODM/OEM, and contact pages.
- Evidence rule: Do not infer performance, certification, warranty, availability, or operating limits from a page title. Request current exact-model and configuration-specific documents.
Why Commissioning Criteria Belong in the RFQ
Vacuum pump acceptance often fails because the purchase specification says what to buy but not how acceptance will be judged. A model number, rated voltage, port size, or requested pressure range may be necessary, but it is not enough to define a controlled startup. The RFQ should state which documents govern the acceptance test, who provides them, and how deviations will be handled before the pump is installed into a customer machine.
For OEM procurement, the buyer is usually not purchasing a loose pump in isolation. The pump becomes part of a tool, analyzer, packaging machine, medical device subassembly, environmental chamber, laboratory instrument, or industrial process unit. That system may add valves, filters, tubing, silencers, purge gas, sensors, software logic, electrical panels, and enclosure constraints. Each addition can change startup risk and acceptance evidence. A practical vacuum pump commissioning checklist therefore belongs in the RFQ, not only in the service file.
The RFQ should require the supplier and buyer to agree on the exact configuration being evaluated. That includes pump model and revision, motor or drive arrangement, electrical supply, control method, inlet and exhaust connections, accessories, mounting orientation if restricted by the manual, ambient assumptions, duty expectation, and any customer-specific interface. If a distributor is involved, the same packet should travel with the order so that acceptance criteria do not become detached from the final delivered configuration.
Procurement teams should also separate three types of evidence. First, there is product literature that describes a product family or catalog listing. Second, there are exact-model documents such as manuals, drawings, wiring details, approved accessories, and maintenance instructions. Third, there are configuration-specific acceptance records generated during startup or test. Only the second and third categories should drive commissioning acceptance. HCEM's SOLUTION page and Application page can help buyers frame the use case, but acceptance should still be tied to current documents for the specific model and system.
Where compliance is relevant, the RFQ should not ask for a broad assurance. It should request current evidence for the exact model and configuration, then verify the applicable market, document scope, issuer or laboratory, issue date, and configuration covered. A certificate, declaration, report, or label may have limits that matter to the final machine builder. Commissioning is the wrong time to discover that a document applies to a different configuration or excludes an accessory used in the build.
Define Preconditions, Startup Sequence, and Stop Logic
A controlled vacuum pump startup procedure begins before the start command. Preconditions define what must be true before power is applied or the drive is enabled. These conditions should be taken from the exact model manual, approved electrical drawings, process requirements, and the buyer's safety logic. The goal is not to create a universal startup procedure. The goal is to prevent vague signoffs such as pump started normally, which are difficult to defend during later quality reviews.
Preconditions commonly cover document control, mechanical installation, electrical readiness, control readiness, and gas-path readiness. Mechanical checks may include mounting, vibration isolation where specified, inlet protection, exhaust routing, and confirmation that shipping restraints or protective caps have been addressed according to the manual. Electrical checks may include supply identity, grounding, protective devices, connector assignment, signal wiring, drive parameters where applicable, and lockout status. Control checks may include emergency stop behavior, permissives, alarms, and remote start authorization.
Rotation or polarity checks should be handled where applicable. Some vacuum pump designs, motors, or drive configurations may require a rotation direction check, while some DC systems may require polarity confirmation. The checklist should not assume that every pump uses the same method. It should state the applicable check from the exact manual and approved wiring documents, the person responsible, the expected indication, and the stop action if the check fails.
Gas-path readiness deserves its own line items because vacuum performance depends on more than the pump. Confirm that the inlet path is clean, correctly connected, and protected from debris. Confirm that isolation valves, vent valves, filters, traps, condensate management, purge connections, silencers, and exhaust paths are installed as approved. If the process gas is not clean dry air, the buyer should require review of material compatibility, contamination risk, condensables, backstreaming concerns, and exhaust handling in the configuration documents. No blog article can responsibly replace that review.
Stop logic should be as explicit as start logic. The commissioning plan should state when the test must be paused or stopped: abnormal sound, unexpected vibration, smell, smoke, overheating indication, unstable current draw, unexpected pressure trend, alarm activation, leakage, failed interlock, blocked exhaust, incorrect valve state, or any deviation from approved documents. These are categories, not universal limits. Numeric limits must come from the exact model manual, system control specification, or approved test protocol.
One useful way to write the sequence is to separate command, expected response, evidence, and stop rule. For example, enabling a controller is not merely a step. It should produce a defined status indication, a logged timestamp, and no active fault. Opening an inlet valve should have an expected valve feedback state and a pressure trend that matches the approved test plan. That structure helps procurement and engineering teams compare supplier responses without pretending that one generic sequence fits every vacuum design.
Record Operating Observations and Acceptance Evidence
Vacuum pump acceptance testing should produce records that can be reviewed later by quality, engineering, procurement, and the OEM customer. The acceptance record should identify the pump, system configuration, serial or traceability identifiers where available, firmware or parameter set where applicable, test location, instruments used, instrument calibration status where applicable, test date, personnel roles, and document revisions used during the test.
Operating observations should be defined before testing starts. Typical categories include pressure trend, inlet condition, exhaust condition, current or power indication where available, temperature indication where applicable, vibration or sound observations, alarms, interlocks, valve states, controller status, leaks, and abnormal events. The record should not invent claims such as ultimate pressure or pumping speed unless the supplier has provided a valid exact-model basis and the test setup is designed to verify that value.
A simple acceptance table can prevent misunderstandings between commercial and technical teams. The example below is a structure, not a product claim.
| Acceptance item | Evidence to record | Pass basis | Owner |
|---|---|---|---|
| Document match | Manual revision, drawing revision, approved accessories, configuration identifier | Matches PO or approved deviation record | Buyer and supplier |
| Pre-start readiness | Mechanical, electrical, control, and gas-path checks signed off | All required checks complete before start command | Commissioning lead |
| Interlock response | Defined permissives, alarms, and stop signals observed or simulated as approved | Behavior matches approved control logic | Controls owner |
| Startup observation | Timestamped pressure trend, controller state, current or power indication where available, abnormal observations | No stop criteria triggered; trend matches approved protocol | Test owner |
| Acceptance record | Completed checklist, deviations, corrective actions, final signoff | Accepted by named buyer authority | Procurement or quality |
If the buyer uses a calculated pump-down expectation, it should be treated as an engineering estimate and labeled accordingly. For a simple teaching example only, a common idealized relationship is t = V / S x ln(P1 / P2), where t is time, V is system volume, S is effective pumping speed at the chamber, P1 is starting pressure, and P2 is target pressure. Hypothetical assumption: if V is 100 liters, S is 10 liters per second, P1 is 1000 mbar, and P2 is 100 mbar, the idealized result is about 23 seconds. Those numbers are hypothetical assumptions for illustrating the formula and are not a product claim for any HCEM pump, catalog item, or configuration. Real systems include conductance limits, leaks, valves, gas load, temperature effects, sensor location, and pump curve behavior.
The most useful record is often the deviation log. It should capture what happened, when it happened, who approved the response, whether the test was repeated, and whether the final machine record was updated. For OEM supply chains, this protects both sides. A distributor can show what was delivered and accepted. A buyer can show why the pump was released into production. An engineer can find the actual configuration instead of relying on memory.
Vacuum Pump Commissioning Checklist
The checklist below is intended for RFQ, factory acceptance, site acceptance, or incoming inspection planning. It should be adapted to the exact model manual, approved system documents, local safety rules, and the buyer's quality process. It is not a universal vacuum pump startup procedure.
- Define the acceptance package. List the exact pump model, configuration, accessories, control interface, electrical supply, gas path, test location, and document revisions. Separate catalog information from exact-model documents and configuration-specific records.
- Confirm document authority. Obtain the model manual, approved drawings, wiring information, control description, maintenance instructions, and any evidence required for the buyer's market. For compliance-related evidence, verify market, scope, issuer or laboratory, issue date, and configuration coverage.
- Set pre-start mechanical conditions. Check installation, mounting, inlet and exhaust connections, protective components, caps or shipping restraints, accessibility, and any orientation or clearance requirement stated in the exact documents.
- Set pre-start electrical and control conditions. Confirm supply identity, grounding, protective devices, signals, controller status, parameter set where applicable, emergency stop function, remote commands, and start permissives.
- Check rotation or polarity where applicable. Use the exact manual and approved wiring documents to define how the check is performed, what indication is acceptable, and what action stops the test.
- Confirm gas-path readiness. Verify inlet cleanliness, filtration or trap installation where approved, valve positions, vent path, purge path where used, exhaust route, condensate handling, and process gas assumptions.
- Define observation points. Record pressure trend, controller state, current or power indication where available, temperature indication where applicable, valve feedback, alarms, abnormal sound, vibration, smell, leaks, and exhaust condition.
- Define stop criteria. Stop or pause the test for any condition outside the approved documents, failed interlock, unexpected alarm, abnormal observation, blocked flow path, unsafe condition, or unexplained pressure trend.
- Run the approved startup sequence. Follow the exact model manual and system procedure. Record each command, response, timestamp, instrument reference, and deviation.
- Close the acceptance record. Attach logs, checklist signoff, deviations, corrective actions, photos where useful, and final approval by the buyer's named authority.
OEM buyers can use HCEM's Resource Center while preparing document requests and acceptance questions, and can review the current VACUUM PUMP collection for catalog context. For configuration-specific questions or RFQ document alignment, contact HCEM with the intended application, operating environment, and acceptance evidence required by your purchasing process.
FAQs
Is this a complete startup procedure for every vacuum pump?
No. It is a commissioning and acceptance framework. The actual startup procedure must come from the exact model manual, approved system drawings, control documents, and safety requirements for the installed configuration.
What should procurement ask for before placing an OEM order?
Ask for the exact model identification, approved configuration, applicable manuals, drawings, control interface details, accessory list, and the evidence needed for your market and quality process. Avoid accepting broad statements that are not tied to the delivered configuration.
How should acceptance criteria be written?
Write them as observable conditions: pre-start checks complete, required interlocks verified, startup sequence performed, stop criteria not triggered, operating observations recorded, deviations closed, and buyer approval documented. Numeric limits should come from approved documents, not from a generic checklist.
Can catalog pages prove pump performance or certification?
No. A catalog or page title can show that a listing or resource exists, but it does not prove startup sequence, operating limits, sound level, temperature, ultimate pressure, pumping speed, duty cycle, controls, certification, test result, warranty, or availability.
What is the difference between startup and commissioning?
Startup is the act of bringing equipment into operation. Commissioning is broader: it confirms documents, installation, controls, interlocks, gas-path readiness, observations, deviations, and acceptance records for the intended configuration.
