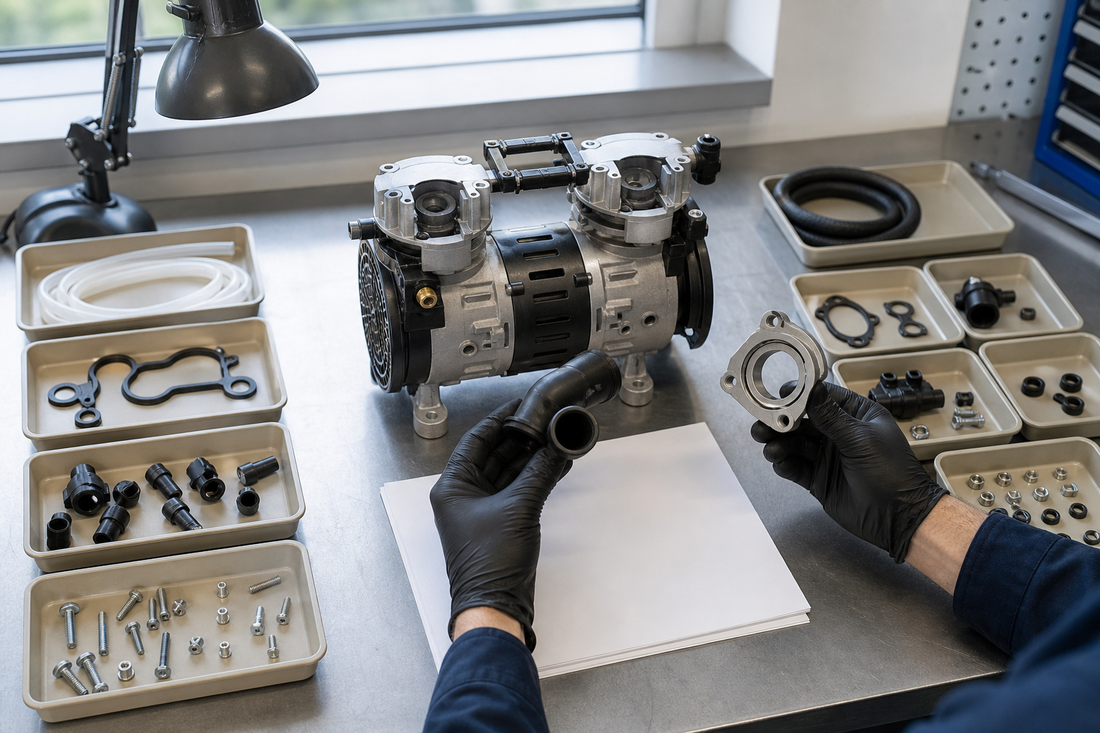

Vacuum Pump Replacement Parts and Configuration Control: An OEM Buyer Checklist

For OEM buyers, vacuum pump replacement parts should be approved by configuration, not by part name alone. Before purchasing, confirm the exact pump model, serial or build reference, duty profile, medium, operating conditions, current bill-of-material or drawing revision, and service documentation needed to prove the proposed replacement is correct for that build.

Quick Facts

• Catalog context: HCEM's current Shopify catalog includes a VACUUM PUMP collection.
• Listed product pages: The current catalog lists the HC580D Oilless Vacuum Pump and HC280D Oilless Vacuum Pump, as well as an HC30M Oilless Air Pump product page.
• Evidence limit: A product or page title proves that a listing exists. It does not prove parts interchangeability, current revision, material equivalence, service interval, operating life, stock, lead time, warranty, or process compatibility.
• Buyer action: Treat every request for vacuum pump replacement parts OEM supply as a controlled technical purchase, not a simple catalog match.
• Minimum approval data: Identify the exact model, serial or build reference, configuration, duty profile, medium, operating conditions, and current bill-of-material or drawing revision before approving a replacement.

Why a Part Name Is Not Enough

A part name such as diaphragm, valve plate, gasket, bearing, seal, filter, muffler, fastener, or head assembly is useful for conversation, but it is not enough for procurement approval. In an OEM supply chain, the same plain-language name can describe items that differ by geometry, material, surface finish, hardness, coating, tolerance, torque method, cleanliness level, packaging requirement, or drawing revision. Those differences may matter in an oil-free air or vacuum pump because the part is not working alone. It is part of a pressure boundary, a motion system, a sealing interface, a heat path, and sometimes a customer-controlled service kit.

This is why vacuum pump configuration control should begin before the RFQ. The buyer should not ask only, "Do you have this part?" A stronger question is, "Which controlled configuration is this part intended to support, and what evidence identifies that configuration?" That question separates general spare-parts sourcing from repeatable OEM purchasing. It also reduces the risk of approving a technically plausible component that is wrong for the pump revision, the installed environment, or the service instruction used by the buyer's maintenance network.

Vacuum technology references show that pump behavior depends on the interaction of conductance, pressure regime, gas load, surfaces, materials, and operating conditions. CERN's vacuum technology notes, for example, discuss vacuum systems as engineered assemblies where conductance, pumping speed, gas flow, and materials all affect system behavior. For a procurement team, the practical lesson is simple: a replacement item should be judged in the context of the pump and the system, not as an isolated noun on a purchase order.

HCEM's listed pump pages can help buyers identify that relevant pump listings exist, but the titles themselves should not be treated as fitment evidence. A page title for an oilless vacuum pump does not establish that a requested diaphragm, valve, gasket, or other replacement part fits any model or revision. The buyer still needs the controlled identifiers and service documentation that connect the requested item to the specific build.

Build a Configuration-Control Record

A configuration-control record is the purchasing file that tells a buyer, supplier, quality team, and service organization exactly what is being replaced. It should be more specific than an email thread and more durable than a screenshot. For OEM vacuum pump spare parts, the record should link the physical pump, the replacement item, the revision source, and the operating assumptions used for approval.

Start with the pump identity. Capture the exact pump model, serial number or build reference, nameplate data, customer part number if one exists, installation location, and machine or product platform where the pump is used. If the buyer has a controlled drawing, bill of material, service manual, work instruction, or approved vendor list, record the document number and revision. If the pump was supplied under a private-label, custom connector, harness, mounting, port, material, or packaging arrangement, that should be explicit. ODM or OEM context can change the approval path even when the external pump family name appears familiar.

Next, capture the service event. The same replacement part request can mean scheduled preventive maintenance, failure recovery, qualification of a second source, redesign of a service kit, warranty investigation, or obsolescence planning. Each scenario has a different evidence burden. A scheduled service kit may require traceability to a maintenance interval in the buyer's own documentation. A failure investigation may require inspection findings before the replacement is approved. A second-source review may require dimensional comparison, material evidence, process change review, and a controlled sample plan. None of those requirements is proven by a product title.

A practical record can be compact. The table below gives a procurement-oriented structure that can be copied into an RFQ worksheet or supplier questionnaire.

For repeat purchases, the record should also note who approved the part, what evidence was reviewed, and whether the approval is limited to a specific model, revision, customer platform, or market. That limitation matters. A part approved for one configuration should not be assumed to fit another configuration unless the buyer has current evidence showing that the same item is valid for both.

Review Materials, Interfaces, and Service Conditions

Oil-free pumps are often selected where oil carryover, routine service, cleanliness, or compact integration matters to the buyer's product. That does not make every oil-free pump part interchangeable. It makes material and interface review more important. A replacement item may appear dimensionally similar and still be wrong if its elastomer, polymer, metal treatment, adhesive, lubricant absence, cleanliness, porosity, or surface condition is different from the controlled requirement.

Materials should be reviewed in relation to the pumped medium and operating environment. Dry air, humid air, process gases, vapor exposure, particulates, cleaning agents, sterilization-adjacent environments, high ambient temperature, and enclosure heat can create different risks. The NASA Outgassing Database is a useful public reference for understanding that materials can release volatile content under vacuum-related conditions. It should not be used as automatic approval for a commercial pump part. Instead, it supports the procurement discipline of asking for current, exact-material evidence when material behavior matters to the buyer's application.

Interfaces deserve equal attention. A valve plate may depend on flatness and surface finish. A diaphragm may depend on clamp geometry, flex life assumptions, fastener preload, and stroke. A gasket may depend on compression set and surface condition. A fitting may depend on thread standard, port orientation, sealing method, and clearance in the buyer's enclosure. A small dimensional change can affect assembly, leakage, vibration, acoustics, heat transfer, or service access. Procurement teams should therefore ask for the interface evidence that matches the risk: drawings, controlled dimensions, approved photos, installation notes, torque requirements, and revision history where available.

Service conditions should be written plainly. For example, if a buyer uses a hypothetical teaching estimate to plan review effort, it should be labeled as such: Hypothetical assumption, not a product claim: if a pump operates 12 hours per day for 250 days per year, planned annual runtime equals 12 x 250 = 3,000 hours. That arithmetic may help a buyer discuss inspection intervals, but it does not establish the service life of any HCEM pump or replacement part. Actual maintenance decisions require the buyer's approved service documentation, operating conditions, and current configuration evidence.

Compliance language needs the same caution. Do not treat a certificate, catalog phrase, or prior approval as universal. When compliance is relevant, request current exact-model and exact-configuration evidence, then verify the applicable market, document scope, issuer or lab, issue date, tested or declared configuration, and whether the evidence applies to the replacement part, the pump assembly, or the buyer's finished equipment. Avoid broad wording such as "compliant replacement" unless the documentation actually supports that exact statement for the current configuration.

Replacement-Part RFQ and Approval Checklist

A disciplined RFQ for vacuum pump replacement parts OEM purchasing should make the supplier's response easier to verify. The goal is not to collect excessive paperwork. The goal is to prevent a purchase order from hiding unresolved technical assumptions. Use the checklist below before releasing an RFQ or approving a first order.

1. Identify the exact pump model and serial or build reference.
2. Attach photos of the pump nameplate, installed assembly, ports, connectors, and the removed part if available.
3. State the current BOM, drawing, service manual, or work instruction revision used by the buyer.
4. Describe the duty profile, including operating pattern, start-stop frequency, ambient conditions, and expected service context.
5. Describe the pumped medium and any moisture, vapor, particulate, chemical, or cleanliness concerns.
6. State whether the request is for maintenance, repair, qualification, redesign, obsolescence planning, or stocking under an existing approval.
7. Ask the supplier to identify the exact replacement item and the configuration to which it applies.
8. Request evidence for material, dimensional, interface, packaging, labeling, and service-documentation requirements that matter to the application.
9. Ask whether the proposed item is limited to specific models, serial ranges, revisions, or customer configurations.
10. Record the buyer's approval decision, evidence reviewed, date, approver, and any limits on use.

The RFQ should also separate commercial questions from technical approval. Price, shipment, and order quantity discussions should not substitute for configuration evidence. A procurement team can ask for commercial terms only after it has defined the technical item clearly enough that both sides know what is being quoted. If the supplier cannot confirm fit, revision, or compatibility from the information provided, the correct next step is to improve the data package, not to infer compatibility from a similar name.

HCEM's current site includes ODM/OEM, Resource Center, and Contact pages. Buyers can use the Resource Center as a starting point for available public information, while recognizing that public page titles do not prove private configuration details. For model-specific or build-specific replacement-part discussions, send the controlled pump identifiers, application notes, and service documentation questions through contact HCEM so the request can be tied to the exact configuration under review.

A final approval record should be short enough to use and strict enough to audit. It should say what was approved, for which pump configuration, based on which documents, and with what limitations. If a later engineering change, supplier change, customer platform change, or service instruction change occurs, the record should be reviewed again. Configuration control is not a one-time formality; it is how OEM buyers keep replacement parts aligned with the product they actually build, ship, and service.

FAQs

Can a buyer approve a vacuum pump replacement part by model name alone?

No. A model name is only a starting point. The buyer should confirm the exact pump model, serial or build reference, configuration, duty profile, medium, operating conditions, and current BOM or drawing revision before approval.

Do HCEM product pages prove spare-parts compatibility?

No. HCEM product and collection page titles prove that listings exist in the current Shopify catalog. They do not prove that any replacement part fits any model, revision, serial range, or buyer process.

What should be included in vacuum pump service documentation for procurement?

Useful vacuum pump service documentation should identify the pump configuration, replacement item, approved service action, inspection criteria, installation method, torque or handling notes where applicable, and the document revision used for approval.

How should buyers handle compliance claims for replacement parts?

Buyers should request current exact-model and exact-configuration evidence. They should verify the applicable market, document scope, issuer or lab, issue date, and whether the evidence applies to the part, pump assembly, or finished equipment.

What if the existing part has no readable part number?

Use the pump model, serial or build reference, photos, dimensions, assembly location, service records, and current drawings or BOMs to define the request. Do not assume that a visually similar part is equivalent.

Sources

• CERN Accelerator School vacuum technology notes
• NASA Outgassing Database
