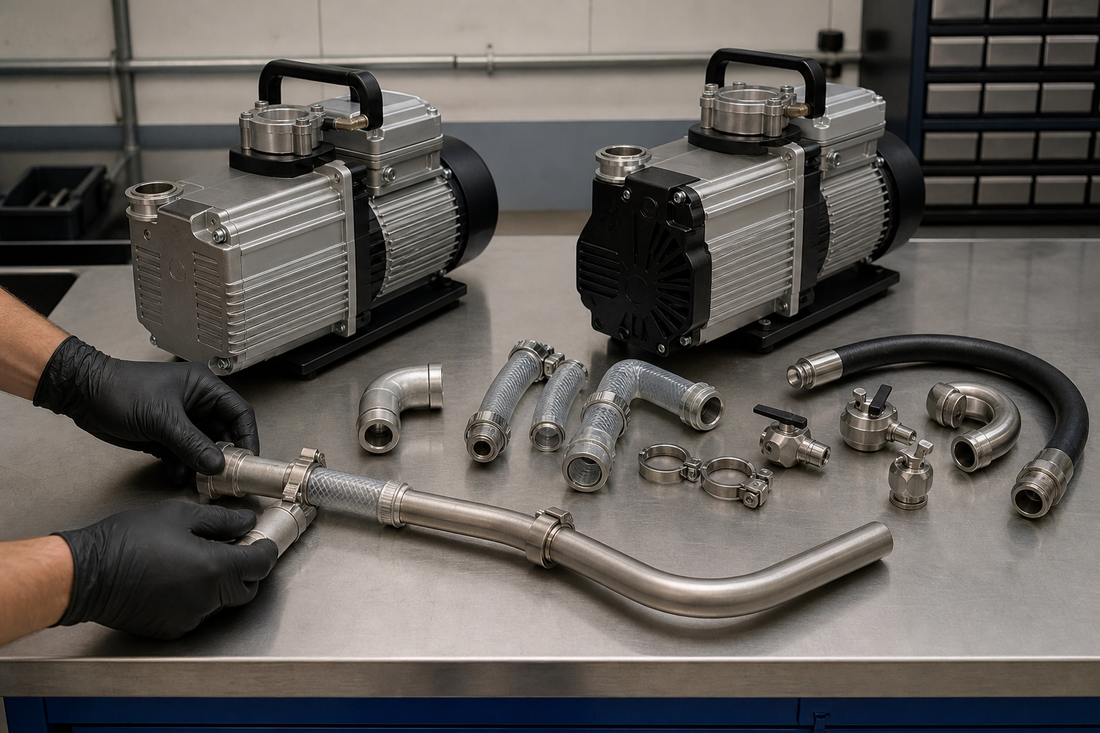

Vacuum Pump Inlet Piping: An OEM Pressure-Loss Review Guide
HCEM Pump TeamShare
Vacuum pump inlet piping should be reviewed as part of the pump selection, not after purchase. Diameter, line length, bends, fittings, isolation devices, contamination control, and maintenance access can change the pressure seen at the pump inlet, so OEM buyers should request exact-model drawings, curves, inlet details, and configuration evidence before approval.
Quick Facts
- Main risk: inlet piping can create vacuum line pressure loss between the process connection and the pump inlet.
- Best review point: before purchase order release, while layout, skid space, connection orientation, and service access can still be changed.
- Evidence to request: current exact-model dimensional drawings, pump performance curves, inlet connection details, installation notes, and configuration-specific documentation.
- What catalog pages prove: HCEM currently has a VACUUM PUMP collection and related site resources. Page titles prove those resources exist; they do not prove pipe sizes, vacuum levels, flow, materials, duty cycle, certification, or availability.
- Procurement action: keep piping assumptions, operating conditions, and document versions in the RFQ package so technical and commercial teams review the same basis.
Why Vacuum Pump Inlet Piping Changes the Operating Point
Vacuum pump inlet piping matters because the pump does not operate at the pressure shown at a remote process chamber, receiver, tooling port, or header. It operates at the pressure present at its own inlet connection. Any restriction between the process and the inlet can create a pressure difference. For OEM projects, that difference can affect evacuation time, stable operating pressure, repeatability, energy use, noise exposure, heat management, and maintenance behavior.
The mechanism is straightforward. Gas must move through a conductance path from the process side to the pump side. That path includes straight pipe, elbows, reducers, valves, filters, traps, flexible connectors, manifolds, and inlet adapters. In many layouts, the visible pipe size is only part of the issue. A compact valve body, a sharp reducer, an undersized hose barb, or a filter element with unknown condition can be the more restrictive part of the inlet path.
Vacuum line pressure loss is especially important when an OEM buyer is comparing pumps from different suppliers. A curve may describe a pump under defined test or inlet conditions, while the machine installation has a different layout. A pump that appears suitable on a standalone curve may not deliver the same process result if the installed inlet path is restrictive. Conversely, changing the piping layout may solve a process issue without changing the pump model. The evidence has to connect the pump curve, the inlet connection, and the actual installation.
For HCEM procurement discussions, buyers can use the Application page as a starting point for application context and the SOLUTION page as a current site resource. Those pages do not, by themselves, verify a specific pump model, configuration, pipe standard, or operating envelope. Treat them as navigation points, then request the current exact-model documents needed for engineering release.
A useful review question is: where is the pressure being measured? If a specification says that the process needs a certain vacuum level, the buyer should identify whether the value is required at the chamber, receiver, tool inlet, header, pump flange, or downstream of a filter. Without that location, a purchase specification can appear complete while leaving a major source of disagreement open.
How to Review Diameter, Length, Bends, and Connections
An OEM vacuum pump piping review should start with a layout drawing rather than a pump model number. The drawing should show the process connection, proposed pump location, elevation changes, line length, valve positions, flexible sections, filters, drains, and expected maintenance clearances. If the drawing is still preliminary, mark it as preliminary and list which dimensions are not yet frozen.
Diameter is the first visible check, but it should not be reviewed in isolation. A nominal pipe size can hide different internal diameters depending on pipe type, wall thickness, hose construction, sanitary fitting type, or adapter design. Buyers should ask suppliers and integrators to identify the minimum internal passage in the full inlet route, not only the nominal size of the longest pipe section.
Length matters because every additional section adds flow resistance. Bends matter because they change the gas path and can add local loss. Connections matter because reducers, tees, elbows, valves, and flexible connectors can introduce abrupt geometry changes. In vacuum service, the best installation is often the simplest acceptable installation: short, direct, adequately supported, and accessible for inspection.
The following table gives a practical review structure. It does not assign product values or pass/fail thresholds, because those depend on the exact pump model, gas load, pressure range, process media, and installation standard.
| Review item | Why it matters | Evidence to request |
|---|---|---|
| Minimum internal diameter | The smallest passage can dominate restriction even if most of the line is larger. | Exact-model inlet drawing, fitting drawings, hose data, and adapter dimensions. |
| Total inlet length | Longer runs can increase pressure difference between process and pump inlet. | Machine layout with measured or controlled routing dimensions. |
| Bends and tees | Directional changes and branch fittings can add local losses and dead zones. | Piping isometric or marked layout showing bend count, radius, and branch purpose. |
| Valves and isolation devices | A valve may have a smaller internal passage than the line it is installed in. | Valve datasheets, port dimensions, flow direction notes, and maintenance position. |
| Filters, traps, or silencers on the inlet | Elements can add restriction, especially if contaminated or incorrectly sized. | Element datasheets, replacement interval basis, differential pressure monitoring plan, and access clearance. |
| Flexible connectors | Hoses can collapse, kink, or have smaller bores than expected. | Hose construction data, bend radius, vacuum rating evidence, and support method. |
A simple engineering relationship is often enough to keep the review disciplined: process-side pressure minus pump-inlet pressure equals inlet path pressure difference. In deeper vacuum discussions, teams may use conductance methods and pump speed relationships instead of ordinary pressure-drop language. Either way, the procurement question is the same: what pressure is required at the process, and what pressure can the selected pump reach at its inlet under the proposed piping arrangement?
If an example is needed for training, label it clearly. For example, hypothetical assumption only, not a product claim: a team may compare two draft layouts with the same pump, one with a short direct inlet and one with a longer route containing several elbows and a filter. The point of the exercise is not the invented numbers; it is to prove that layout choices can change the operating point and should be reviewed before the order is released.
How to Document Materials, Isolation, and Maintenance Access
Materials should be documented by exact wetted or exposed components, not by a broad phrase such as suitable piping. The process gas, condensate risk, cleaning method, ambient temperature, and expected contamination should determine what materials are acceptable. If oil-free operation is part of the purchasing basis, the buyer should still verify all inlet-side components, because upstream contamination, process carryover, or maintenance practices can compromise the installation even when the pump technology is oil-free.
Isolation is both an operational and maintenance issue. A pump may need to be isolated for service, cleaning, filter change, or safe shutdown. The inlet valve location should let maintenance personnel protect the process and the pump without creating an inaccessible or unsafe work point. The U.S. Department of Energy’s motor systems resources provide a useful reference point for organizing system-level operating and maintenance questions, but buyers should not treat a supplier catalog statement as proof that a specific installation is suitable. Request current, configuration-specific documentation and have the responsible safety team verify the applicable market, document scope, issuer or authority, issue date, and exact configuration.
Maintenance access should be reviewed on the physical machine layout. Can a technician remove a filter bowl without moving the pump? Can a flexible connector be inspected for collapse or cracking? Can a valve handle be reached when guards, panels, or nearby equipment are installed? Can the inlet connection be checked for leaks after shipment, installation, or routine service? These questions are small compared with the purchase price, but they often determine whether the installation remains stable after commissioning.
For OEM programs, documentation control is as important as the first technical answer. A distributor, procurement manager, and machine builder may each hold a different revision of a drawing. The RFQ package should name the required operating conditions, the drawing revision under review, the preferred pump orientation, and any constraints from the machine frame. When the design changes, update the piping review rather than assuming the old approval still applies.
Buyers considering private-label, integration, or configuration discussions can reference HCEM’s ODM/OEM options page as a current site resource. That page title proves the resource exists; it does not prove a specific customization, certification, compatibility, lead time, test result, or availability. Ask for exact-model evidence tied to the intended configuration.
Vacuum Pump Inlet Piping Review Checklist
Use this vacuum pump inlet connection checklist before supplier selection, before drawing release, and again before shipment if the machine layout changes. The goal is not to create paperwork for its own sake. The goal is to prevent a pump decision from being separated from the inlet path that determines how the pump will actually see the process.
- Define the required pressure location. State whether the required vacuum condition is at the chamber, receiver, tooling port, header, pump inlet, or another defined point.
- List the operating conditions. Include gas type, expected gas load, duty pattern, ambient conditions, contamination risk, condensate risk, and cleaning exposure where applicable.
- Request exact-model pump curves. Ask for current curves or performance evidence for the exact model and configuration being quoted, including the assumptions behind the data.
- Request inlet connection details. Obtain dimensional drawings, connection orientation, flange or thread details, allowable mounting information, and any installation notes for the quoted configuration.
- Map the full inlet path. Show every pipe section, hose, bend, reducer, tee, valve, filter, trap, adapter, and instrument connection between the process and the pump.
- Identify the minimum internal passage. Do not rely only on nominal pipe size. Check the smallest internal diameter in valves, fittings, adapters, and flexible sections.
- Review service access. Confirm that filters, traps, valves, drain points, connectors, and fasteners can be reached with the machine installed as intended.
- Confirm isolation and safety documentation. Ask for the documents needed by the buyer’s safety process and verify the applicable scope, market, date, issuer, and configuration.
- Control revisions. Keep pump drawings, piping layouts, and supplier documents under revision control so changes to one document trigger review of the others.
- Record open assumptions. If any value is estimated during supplier comparison, mark it as an assumption and replace it with current exact-model evidence before final approval.
For procurement teams comparing HCEM vacuum pump options, the next practical step is to send the proposed duty conditions, layout constraints, and document requirements through contact HCEM. Ask for current exact-model drawings, curves, inlet details, operating-condition assumptions, and configuration evidence before using any selection in an OEM release package.
FAQs
Does a larger pump always solve vacuum line pressure loss?
No. A larger pump may still be limited by a restrictive inlet path. Review the piping, valves, filters, reducers, and measurement location before assuming that pump size is the root cause.
Can an OEM use catalog page titles as technical proof?
No. A collection or page title proves that the resource exists on the current site. It does not prove pipe size, inlet standard, vacuum level, flow, material, duty cycle, certification, compatibility, stock status, or availability.
What should be requested before approving an inlet connection?
Request current exact-model dimensional drawings, inlet connection details, performance curves, installation notes, and configuration-specific evidence. The documents should match the model, orientation, accessories, and operating conditions under review.
How should compliance-related claims be handled?
Do not assume compliance from general catalog language. Request current evidence for the exact model and configuration, then verify the applicable market, document scope, issuer or lab, issue date, and configuration with the responsible compliance team.
When should the piping review be repeated?
Repeat the review whenever the pump model, inlet accessories, machine frame, valve choice, filter choice, hose route, process duty, or measurement location changes. A small layout change can alter the inlet path.
