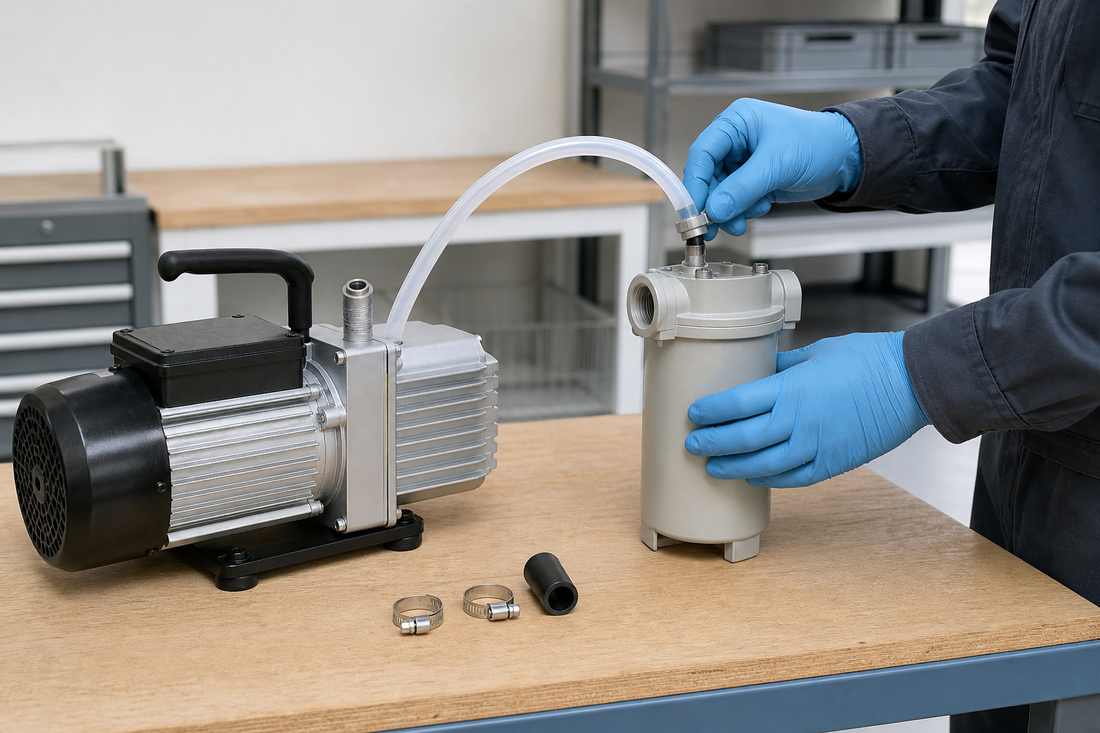

Vacuum Pump Inlet Filtration and Media Compatibility: An OEM Review Guide

Vacuum pump inlet filtration should be specified from the contaminant, duty, media, and evidence package backward, not selected as an accessory after pump choice. For OEM buyers, the practical task is to define the inlet boundary, request exact-model drawings and approved materials, and verify configuration-specific operating limits before releasing a vacuum pump design.

Quick Facts

• Primary procurement issue: inlet contamination can affect pump reliability, process stability, service intervals, and warranty interpretation, but filter performance must be proven for the exact configuration under review.
• Catalog fact: HCEM's Shopify catalog includes a VACUUM PUMP collection. That page proves the collection exists; it does not prove filtration rating, allowable particle loading, moisture tolerance, vacuum level, flow, duty cycle, or chemical compatibility.
• Useful site resources: HCEM also has Application, SOLUTION, and ODM/OEM pages. Treat these as starting points for discussion, not as substitutes for exact-model evidence.
• RFQ requirement: request current inlet drawings, approved materials, operating limits, filter configuration details, and any configuration-specific evidence before approving a design.
• Compliance note: do not assume compliance from page titles, product category names, or generic statements. Verify applicable market, document scope, issuer or lab, issue date, and the exact pump and filter configuration.

Why Inlet Filtration and Media Compatibility Belong in the RFQ

Vacuum pump inlet filtration is a boundary-condition decision. It controls what the pump is asked to ingest before the first internal surface sees the process stream. In OEM sourcing, that boundary is often more important than a generic pump description because the same pump family can face clean air, packaging dust, vapor carryover, fine powders, condensable moisture, cleaning residues, or process gases in different machines.

For oil-free vacuum pump applications, buyers often focus on the absence of oil in the pumping mechanism. That is relevant, but it does not remove the inlet risk. An oil-free vacuum pump inlet filter may still need to protect against particles, prevent foreign-object entry during assembly, reduce downstream service claims, or help keep the inlet path consistent across many installed machines. The exact requirement depends on the contaminant and the acceptable pressure drop, not on the label alone.

Inlet filtration also affects commercial risk. If the RFQ does not define expected contamination, the supplier may quote a pump without enough information to judge filter media, housing material, seal compatibility, drain orientation, maintenance access, or pressure-drop margin. Later, when field behavior differs from bench behavior, both sides may have a documentation problem rather than a simple product problem.

Procurement teams should therefore ask for evidence in the same package as price and mechanical fit. The useful evidence is specific: exact-model inlet drawings, approved wetted and exposed materials, orientation constraints, operating limits, service guidance, and filter configuration details. Broad claims about dust resistance, chemical resistance, or long life are not enough unless they are tied to the model, filter option, media, and operating envelope being purchased.

How to Define the Contaminant and Inlet Boundary

The first engineering step is to describe the material entering the inlet. A buyer does not need to become a vacuum physicist to make a better RFQ, but the team does need enough detail to prevent ambiguous selection. CERN's vacuum technology notes are a useful reminder that vacuum behavior depends on gas load, conductance, pressure regime, surfaces, and contamination sources. In procurement terms, this means the inlet is part of the system, not a neutral pipe connection.

Start by separating contaminants into practical groups. Dry particles behave differently from sticky powders. Liquid droplets behave differently from vapor that may condense when temperature changes. Fibers, flakes, and chips may bridge or clog differently from spherical dust. Cleaning chemicals may affect seals, plastics, adhesives, filter media, or metal surfaces even when the pump can move air at the required pressure.

The inlet boundary should also include everything upstream of the pump port. That includes the hose, manifold, check valve, trap, silencer, filter bowl, seals, clamps, threaded adapters, and any enclosure ventilation path that can admit dust during machine operation. A filter specified without this boundary may solve the wrong problem. For example, a well-chosen element cannot protect against debris introduced downstream of the element during assembly.

A useful RFQ description is short but concrete. It should state the process media, expected contaminants, operating pattern, ambient environment, cleaning exposure, installation orientation, maintenance access, and evidence needed. If the duty cycle or flow varies by machine recipe, say so. If the pump is used in a product that may ship globally, ask what documents are available for each target market and what configuration they actually cover.

How to Match Materials, Filters, and Operating Evidence

OEM vacuum media compatibility is not a single yes-or-no property. It is a relationship among material, concentration, temperature, exposure time, mechanical stress, cleaning method, and replacement interval. A plastic bowl, elastomer seal, adhesive, filter media, coating, or metal fitting may each have different compatibility limits. The buyer should ask which parts are wetted by the process stream and which parts are only exposed externally.

Filter selection should be treated as an operating compromise. Finer media may capture smaller particles, but it can increase restriction as loading occurs. A larger housing may add volume and mounting burden. A drainable or cleanable arrangement may help one process but be inappropriate for another. These are design decisions, not generic advantages. Do not infer a numeric filtration rating or allowable loading unless the supplier provides current configuration-specific data.

Pressure drop is one area where a simple calculation can keep teams disciplined. The equation below is for RFQ thinking only, not an HCEM product claim:

Available inlet margin = allowable inlet pressure loss minus expected clean-filter pressure loss minus expected loaded-filter pressure loss.

As a hypothetical teaching assumption, if an OEM allowed 8 kPa inlet pressure loss, assumed 2 kPa clean-filter loss, and assumed 3 kPa loaded-filter loss, the remaining hypothetical margin would be 3 kPa. Every number in that example is invented for illustration and is not a product specification, rating, or performance claim for any HCEM pump or filter. Buyers should replace the assumptions with exact-model data supplied for the chosen configuration.

Evidence should be current and configuration-specific. Ask for drawings that show port position, flow direction, installation orientation, service clearance, and any bypass or drain feature. Ask for approved materials, not just a material family name. Ask whether the evidence applies to the pump alone, the filter alone, or the assembled pump-and-filter configuration. If a document mentions a standard or certificate, verify the market, scope, issuer or lab, issue date, model number, and options covered.

Energy and motor-system context also matters, especially for industrial procurement teams comparing pump packages. The U.S. Department of Energy's motor systems resources emphasize that motor-driven systems should be evaluated at the system level. For vacuum procurement, that supports a practical conclusion: inlet protection, restriction, duty cycle, and maintenance condition can all affect the real operating system. It is not enough to compare nameplate information without asking how the inlet arrangement will be maintained in service.

Vacuum Pump Inlet Protection Checklist

Use this checklist when reviewing vacuum pump contamination control for an OEM program, distributor opportunity, or industrial procurement package. It is intentionally evidence-focused because the cost of a wrong assumption may appear later as unstable vacuum, blocked elements, chemical damage, assembly rework, or disagreement about whether the pump was operated inside its intended limits.

1. Define the process stream: name the gas or air stream, expected contaminants, cleaning exposure, temperature range, and whether liquid or condensable vapor may be present.
2. Map the inlet boundary: identify every component between the process and the pump port, including filters, traps, adapters, valves, hoses, seals, and service access points.
3. Request exact drawings: ask for current exact-model inlet drawings and installation notes for the pump and any inlet filter or accessory configuration being quoted.
4. Request approved materials: confirm wetted and exposed materials for filter media, seals, housings, adhesives, coatings, fittings, and pump inlet surfaces.
5. Confirm operating limits: request allowable operating limits for vacuum level, flow condition, duty, ambient exposure, temperature, moisture, and inlet restriction for the exact configuration.
6. Review media compatibility: compare supplier-approved materials against the buyer's real gas, vapor, liquid, cleaning agent, and particle exposure. Escalate any unknown or mixed exposure.
7. Check service design: verify element access, orientation, replacement method, inspection interval guidance, drain handling if applicable, and how blocked-filter conditions are detected.
8. Verify document scope: for any compliance, test, or approval document, check the applicable market, document scope, issuer or lab, issue date, model number, options, and configuration.
9. Control changes: require notice before changes to filter media, housing material, seal material, port geometry, supplier source, or drawing revision are accepted into the OEM build.
10. Record assumptions: keep RFQ assumptions and supplier responses in the sourcing file so engineering, quality, and purchasing work from the same boundary conditions.

For HCEM discussions, buyers can start with the existing ODM/OEM and SOLUTION pages, then request exact-model inlet drawings, approved materials, operating limits, and configuration-specific evidence through HCEM contact. Treat the request as a technical evidence package, not as a request for a generic catalog statement.

FAQs

Is an inlet filter always required on an oil-free vacuum pump?

Not always. The need depends on the process stream, upstream cleanliness, particle or liquid exposure, service expectations, and pump configuration. Buyers should ask the supplier to recommend inlet protection for the exact contaminant description and duty, then verify the evidence behind that recommendation.

Can a catalog collection prove filter rating or chemical compatibility?

No. A catalog collection title proves that a collection exists. It does not prove filter rating, allowable particle loading, chemical compatibility, moisture tolerance, vacuum level, flow, duty cycle, warranty coverage, or current availability. Request current exact-model and configuration-specific documentation.

What should procurement ask for before approving an oil-free vacuum pump inlet filter?

Ask for inlet drawings, filter configuration details, approved materials, operating limits, service guidance, and any relevant evidence tied to the exact pump, filter, media, orientation, and operating conditions. If compliance is relevant, verify scope, market, issuer or lab, issue date, and covered configuration.

How should mixed dust and moisture exposure be handled?

Describe the mixture clearly and avoid assuming that a dry-particle filter is suitable. Moisture can change loading behavior, pressure drop, corrosion risk, and media condition. Ask the supplier for approved materials and operating limits for the exact mixed exposure.

Who should own vacuum pump contamination control in an OEM project?

Engineering should define the inlet boundary and duty, procurement should require evidence in the RFQ, and quality should control drawing and material changes. Distributor and supplier input can help, but the approval file should state the assumptions and documents used for release.
