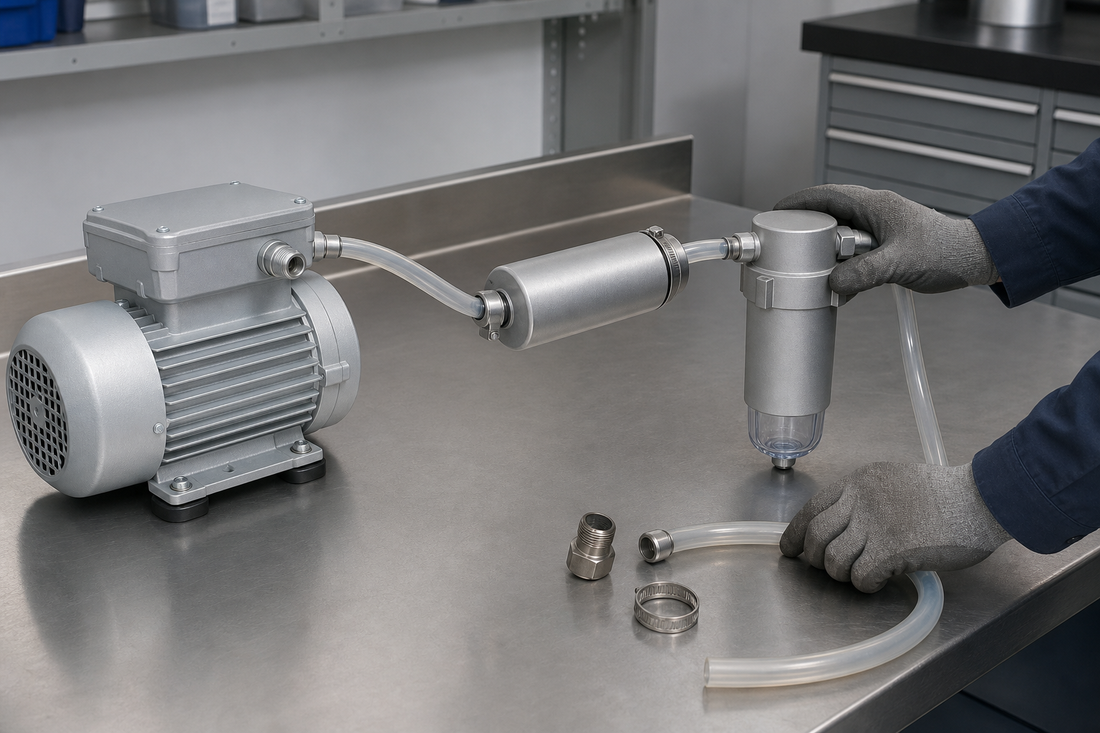

Vacuum Pump Exhaust Routing and Silencing: An OEM Integration Checklist
HCEM Pump TeamShare
Vacuum pump exhaust routing should be specified before an OEM build is priced because discharge piping, silencing, drainage, and ventilation can change backpressure, heat management, maintenance access, and acceptance checks. Buyers should define the handled gas, discharge destination, allowable limits, materials, and inspection method in the RFQ.
Quick Facts
- Primary buying issue: exhaust integration is part of the vacuum system, not an afterthought attached to the pump outlet.
- RFQ priority: state the handled gas, discharge destination, allowable backpressure, piping route, drainage points, ventilation assumptions, and expected silencer or separator arrangement.
- Evidence discipline: a catalog collection proves that a product category exists; it does not prove a specific model's exhaust temperature, sound level, connection size, allowable backpressure, condensate behavior, duty cycle, or warranty.
- Internal planning resources: buyers can start from HCEM's VACUUM PUMP collection, then align the operating context with the Application page and SOLUTION page.
- Acceptance rule: require configuration-specific checks on the assembled installation, including the selected pump, discharge piping, vacuum pump exhaust silencer, separators, drains, and ventilation path.
Why Exhaust Routing Belongs in the Vacuum RFQ
For OEM vacuum pump installation work, the inlet side often receives most of the early attention: target vacuum level, evacuation time, process connection, and duty pattern. The exhaust side can look simpler, yet it is where several practical integration risks collect. Vacuum pump discharge piping may add restriction, carry heat into a cabinet, transmit noise to an operator position, or create low points where liquid accumulates. These are not minor layout details when the pump is being built into a machine, skid, enclosure, or production cell.
Procurement teams should treat vacuum pump exhaust routing as an RFQ requirement because it affects what a supplier can responsibly quote. A pump sold as a component is not automatically validated in every downstream discharge arrangement. A short open discharge, a long piped run, a silencer mounted directly on the outlet, a separator upstream of the silencer, and a duct routed outside the room can all present different conditions. The buyer should not assume that one arrangement is standard unless the exact model documentation and supplier confirmation say so.
This is especially important for oil-free air and vacuum equipment purchased by OEM buyers, distributors, and industrial procurement teams. Oil-free does not remove the need to manage discharge gas, heat, liquid carryover from the process, particulates, chemicals, or acoustic exposure. It only describes the absence of oil in the compression or pumping path as represented for a given design. The actual exhaust stream still depends on the application and upstream process.
When reviewing an HCEM inquiry, use the store information carefully. The Shopify catalog includes a VACUUM PUMP collection, and the site includes Application, SOLUTION, ODM/OEM, Resource Center, and Contact pages. Those pages show that relevant product and support categories exist. They should not be read as proof of a particular pump's exhaust temperature, sound level, allowable backpressure, discharge connection, condensate behavior, duty cycle, certification status, warranty condition, or availability. Ask for exact-model and configuration evidence when those details matter.
Define Gas, Backpressure, Drainage, and Discharge Location
The first exhaust-routing decision is the handled gas. A vacuum pump moving clean dry air has a different integration profile from a pump connected to humid gas, solvent vapor, acidic vapor, particulate-laden air, or a process that may entrain liquid. The buyer should describe the gas composition, expected temperature range at the pump inlet if known, moisture content, particle loading, and whether the stream can condense after discharge. If composition is uncertain, state that uncertainty and request a review of material compatibility and separator needs.
Backpressure deserves a named line item in the RFQ. Any restriction after the discharge connection can increase load on the pump. Sources such as vacuum technology notes from CERN explain that pumping performance is connected to conductance and gas flow through the system, and restrictions can become material to the final operating condition. For procurement purposes, the key action is simple: do not let the exhaust route be designed only after the pump is selected. Ask the supplier to state the allowable discharge pressure or backpressure basis for the exact configuration, and ask whether the proposed silencer, separator, duct, hose, valves, and outlet termination are included in that basis.
Drainage is equally practical. Exhaust piping can create condensate collection points when warm gas cools in a pipe, duct, or silencer. Liquids trapped in a low point may increase restriction, corrode unsuitable materials, create odor or hygiene concerns, or be pulled back toward equipment during shutdown depending on the layout. The RFQ should ask where drains are required, how they are accessed, what liquid is expected, and whether the drain must be manual, automatic, trapped, neutralized, or connected to a plant collection system. Do not rely on a generic silencer drawing to answer those questions.
The discharge destination should be written in plain operational language. Examples include discharge into the machine enclosure, discharge into the production room, discharge to an exterior wall penetration, discharge into an exhaust duct, or discharge to a treatment device supplied by another party. Each choice changes responsibilities. If the plant or machine builder will provide downstream ducting, the interface limit should be defined: flange, hose barb, threaded connection, clamp connection, or open outlet. If any compliance topic applies, request current evidence for the exact model and configuration and verify market, document scope, issuer or lab, issue date, and configuration covered.
| RFQ Item | Buyer Should Define | Why It Matters |
|---|---|---|
| Handled gas | Air, vapor, moisture, particles, chemicals, temperature assumptions | Influences materials, separation, drainage, and discharge destination |
| Allowable backpressure | Exact limit or supplier-confirmed basis for the proposed route | Excess restriction can affect pump load and operating result |
| Discharge piping | Length, diameter, bends, valves, flexible sections, outlet termination | Determines restriction, support needs, heat transfer, and access |
| Drainage | Low points, drain type, liquid handling, service interval assumption | Reduces risk of liquid accumulation and blocked exhaust paths |
| Interface boundary | What HCEM supplies and what the OEM or site supplies | Prevents gaps between component scope and installed system scope |
A simple teaching formula can help buyers see why the issue belongs in the RFQ, but it must not be mistaken for a product claim. Hypothetical assumption: if a proposed discharge route contains 4 meters of pipe, 3 elbows, 1 silencer, and 1 exterior outlet, each element may add pressure loss depending on gas flow and geometry. Hypothetical expression: total discharge pressure loss equals pipe loss plus elbow losses plus silencer loss plus outlet loss. These numbers are hypothetical assumptions only and are not HCEM performance data.
Review Silencing, Ventilation, and Service Access
A vacuum pump exhaust silencer is a useful component only when it is selected for the gas, flow, temperature, pressure, and maintenance conditions of the installation. The RFQ should ask whether the silencer is mounted directly to the pump or remotely, whether it needs support independent of the pump outlet, whether it can collect condensate, and whether it must be cleaned or replaced. If a separator is needed, specify the sequence: separator before silencer, silencer before separator, combined unit, or a plant-provided device. The correct arrangement depends on the actual exhaust stream and supplier documentation.
Noise should be handled with the same discipline. The CDC/NIOSH noise prevention resource explains that occupational noise exposure can damage hearing and should be controlled through prevention measures. For a purchasing specification, that does not mean claiming a pump or silencer is compliant. It means defining the measurement location, operating condition, enclosure state, background noise treatment, and acceptance method. A sound value without distance, load condition, installation state, and instrumentation basis is weak evidence for an OEM decision.
Ventilation is often linked to both heat and gas safety. If the pump is mounted in an enclosure, exhaust discharge inside that enclosure may raise internal temperature or recirculate gas toward the inlet or cooling path. If the exhaust is routed outside the enclosure, the pipe may still radiate heat into the cabinet, and penetrations may require guards, insulation, labels, or clearance. The buyer should ask how the chosen discharge route affects cooling air intake, service panels, electrical devices, and nearby operator positions.
Service access should be visible on the layout, not buried in a maintenance assumption. A silencer that cannot be removed without lifting the pump, a drain that cannot be reached with a container, or a pipe route that blocks belt, filter, or electrical access can raise lifecycle cost even if the first installation works. For distributor and OEM programs, repeatability matters: the same exhaust route should be buildable, inspectable, and serviceable across production units unless the RFQ states that site-specific routing is expected.
For internal alignment before supplier discussion, procurement teams can review HCEM's Resource Center for available site resources, then capture the final operating context in one RFQ package. The resource page's existence should be treated as a navigation aid, not as evidence of model-specific performance.
Vacuum Pump Exhaust Integration Checklist
The checklist below is designed for RFQs, supplier clarification rounds, and drawing reviews. It is intentionally configuration-specific because vacuum pump exhaust routing cannot be reduced to one standard layout without knowing the gas, pump model, duty pattern, and discharge destination.
- Identify the pump selection boundary. State whether the purchase is for the pump only, pump with vacuum pump exhaust silencer, pump with discharge piping, or a larger OEM vacuum pump installation package.
- Describe the gas stream. Include clean air, moisture, vapor, solvent, dust, process carryover, odor, and any known chemical compatibility concerns.
- State the discharge destination. Define whether exhaust enters the room, enclosure, duct, treatment device, outdoor discharge, or customer-supplied header.
- Request allowable backpressure evidence. Ask for the exact-model basis and whether the quoted accessories and proposed vacuum pump discharge piping are included in that basis.
- List piping geometry. Provide available length, bend count, vertical rises, low points, pipe or hose material, connection type, supports, and outlet termination.
- Define silencer needs. Ask about silencer type, mounting position, pressure loss, drainage behavior, maintenance access, and whether a separator is required upstream.
- Define condensate handling. Mark low points, drain ports, expected liquid, collection method, and responsibility for treatment or disposal.
- Check ventilation and heat. Confirm enclosure airflow, cooling-air separation, operator contact risks, insulation needs, and whether hot exhaust can recirculate.
- Plan acoustic verification. Define measurement distance, operating condition, load state, background noise treatment, and whether the machine enclosure is open or closed.
- Confirm service access. Verify that silencers, drains, pipe supports, guards, and nearby service parts can be reached without dismantling unrelated equipment.
- Define acceptance checks. Include visual inspection, leak check where applicable, drain function, measured discharge restriction if required, noise measurement if required, and temperature or ventilation checks if required.
- Request exact evidence for regulated claims. If a compliance or certification topic is relevant, verify the applicable market, document scope, issuer or lab, issue date, and configuration covered.
For the RFQ cover note, keep the request direct: identify the application, state the preferred discharge route, attach a sketch if available, and ask the supplier to confirm any limits before quotation. To align the final checklist with an HCEM inquiry, send the defined operating context through contact HCEM with the pump category, gas description, discharge destination, and acceptance checks included.
FAQs
Can an OEM use one exhaust layout for every vacuum pump?
Not without evidence for the exact pump and configuration. Exhaust layout depends on gas stream, discharge destination, allowable backpressure, silencer or separator selection, drainage, ventilation, and service access. Treat any shared layout as a design to be verified, not as a universal rule.
Does an oil-free vacuum pump eliminate exhaust treatment concerns?
No. Oil-free construction does not define the full exhaust stream. Moisture, process vapor, particles, heat, odor, or condensate may still require material review, separation, drainage, ducting, or plant-level controls.
Where should a vacuum pump exhaust silencer be installed?
The RFQ should ask the supplier to confirm the correct arrangement for the selected configuration. Direct-mounted and remote silencers can create different support, drainage, backpressure, and access conditions. Include the proposed position in the drawing review.
What should buyers ask about vacuum pump discharge piping?
Ask for allowable backpressure, connection type, pipe or hose material, length, bend count, supports, low-point drainage, outlet termination, and whether the piping is included in the supplier's stated operating basis.
Can a catalog page prove sound level, temperature, or warranty for an installed exhaust route?
No. A catalog or page title proves that a listing or resource exists. It does not prove installed sound level, exhaust temperature, discharge connection, allowable backpressure, condensate behavior, duty cycle, warranty, or acceptance result for a particular configuration.
