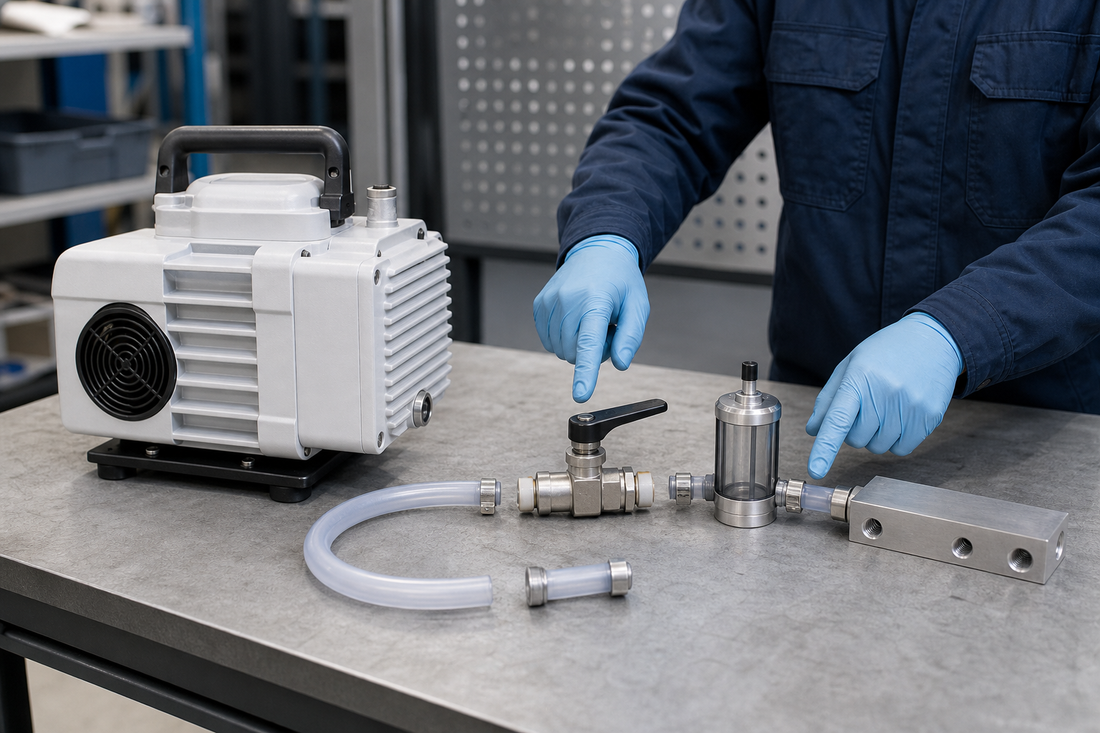

Vacuum Pump Backflow Prevention: An OEM Design Review Checklist
HCEM Pump TeamShare
Vacuum pump backflow prevention is not a single part choice. In OEM design review, treat it as a documented sequence covering gas path, media, pressure states, isolation, venting, power loss, restart logic, and configuration-specific acceptance testing before the pump is released into production purchasing.
Quick Facts
- Best RFQ question: Ask for the exact gas path, valve arrangement, fail position, venting method, shutdown sequence, restart logic, and acceptance test for the quoted configuration.
- Useful buying distinction: A vacuum pump isolation valve may reduce reverse flow risk only when its location, actuation, response behavior, and failure mode match the system sequence.
- Evidence limit: HCEM has a VACUUM PUMP collection and supporting site resources, but page titles alone do not prove valve type, backflow performance, ultimate pressure, pumping speed, duty cycle, shutdown behavior, warranty, or current availability.
- Procurement risk: Backflow questions should be closed before tooling, panel design, PLC programming, or distributor stocking decisions.
- Compliance handling: Do not accept broad compliance language. Request current exact-model and exact-configuration evidence, then verify applicable market, document scope, issuer or lab, issue date, and configuration.
Why Backflow Risk Belongs in OEM Design Review
Backflow risk belongs in the OEM design review because vacuum equipment is part of a system, not a standalone catalog item. Gas can move because of pressure differences, trapped volume, valve timing, condensable vapor, process media, thermal change, or stored energy in connected chambers and lines. A pump that is suitable in one arrangement may need different isolation, venting, or control logic in another.
For procurement managers, the practical problem is that many RFQs describe the target vacuum level and flow requirement but leave the abnormal sequence vague. A supplier can see the requested pump family, motor voltage, and mounting preference, yet still lack the information needed to understand what happens when power drops, an emergency stop is pressed, an upstream chamber is opened, a downstream exhaust restriction appears, or a restart command is issued while the line is still under partial vacuum.
Evidence discipline matters here. The existence of HCEM resources such as the Application page or SOLUTION page shows that buyers can find application and solution-oriented website areas. It does not prove a particular anti-backflow arrangement for a specific pump or machine. The RFQ must carry the machine-specific facts, and the response should tie any proposed protection method to those facts.
Backflow prevention is also a contamination control topic. Depending on the process, reverse movement may carry ambient air, moisture, particles, process vapor, lubricant from another device in the line, cleaning fluid, or previously pumped gas toward a chamber, sensor, fixture, or product-contact area. Oil-free pump selection may remove one contamination concern, but it does not by itself define the entire reverse-flow behavior of the vacuum system.
The design review should separate three questions. First, what can flow backward? Second, what component or sequence is intended to stop or limit it? Third, how will the OEM prove that the chosen configuration behaves correctly during normal stop, emergency stop, power loss, and restart? Treating those questions as sourcing requirements makes quotation comparison more objective.
Map the Shutdown and Restart Sequence
A clear vacuum system shutdown sequence is the backbone of vacuum pump backflow prevention. The sequence should be written as events, not just as a control philosophy. Procurement teams can ask the OEM engineering group or equipment integrator to provide a step table that includes the controller command, valve state, pump state, vent state, chamber pressure, line pressure, and permitted restart condition.
The first useful boundary is normal stop versus abnormal stop. A normal stop may allow the controller to close an isolation valve, vent a pump inlet or line, then stop the motor after a defined delay. An abnormal stop may remove power before a powered valve can move. A power-loss sequence should therefore state whether any valve is spring-return, gravity-assisted, mechanically biased, held open by power, or dependent on stored electrical or pneumatic energy.
Restart logic needs equal attention. If a pump restarts against a trapped pressure condition or with a valve in an unexpected state, the first seconds of operation can create transient flow paths that were absent in steady operation. The RFQ should specify whether restart is allowed automatically, requires a pressure check, requires valve-position confirmation, or requires operator acknowledgement. These are system-control choices; they should not be assumed from a pump title or product category.
The table below is a practical format for OEM review. The example numbers are hypothetical assumptions for teaching only and are not product claims.
| Event | Required RFQ Detail | Reason for Backflow Review |
|---|---|---|
| Normal stop command | Hypothetical assumption: isolation closes within 1 second, then pump stops after 2 seconds. | Shows whether gas path is isolated before pump speed decays. |
| Emergency stop | State whether control power remains available to valves. | Identifies whether the intended sequence can still occur. |
| Power loss | Document valve fail position, vent path, and trapped volumes. | Reveals reverse-flow paths when powered components cannot actuate. |
| Restart request | Define pressure check, valve-position check, and lockout logic. | Prevents restart into an unknown pressure state. |
| Maintenance opening | Define manual isolation, venting, and verification steps. | Limits unintended migration during service or filter changes. |
A useful RFQ will also identify the process media. Dry air, humid air, solvent vapor, reactive gas, powder-laden gas, and condensable vapor do not present the same risk profile. If the media changes by product recipe or operating mode, the backflow review should cover each mode that the OEM intends to support.
Review Isolation Valves, Traps, and Venting
A vacuum pump isolation valve is often part of the conversation, but it should never be treated as a universal answer. Its value depends on where it sits in the gas path, what pressure difference it sees, how it is actuated, how it fails, and whether leakage, response time, materials, and cycling behavior are appropriate for the equipment. Buyers should request the exact valve type and position for the quoted configuration, not a generic statement that a valve is included.
Fail position is central. A normally closed valve may support isolation during power loss, but only if its actuator and installation match the actual failure condition. A normally open valve may support pumping efficiency in some layouts but can be unsuitable where loss of power must isolate the chamber. A check valve may restrict reverse flow in one direction, but cracking pressure, contamination, orientation, sealing behavior, and maintenance exposure must be reviewed. These are design facts to document, not assumptions to infer.
Traps, filters, separators, and silencers also need careful language. They may be included for particle, condensate, vapor, or acoustic reasons, but those purposes are not the same as verified backflow prevention. If a component is expected to protect the chamber or product area during shutdown, the RFQ should state the mechanism, the media it addresses, the saturation or service condition considered, and the acceptance test used to confirm performance in the machine.
Venting can reduce reverse-flow risk by controlling where gas enters the system as pressure equalizes. The vent path should be defined with the same care as the pump path: vent location, vent gas, valve actuation, filter requirement, timing, allowed pressure rise, and interaction with isolation. In clean or process-sensitive systems, venting to ambient air may not be acceptable without filtration or process review. In other systems, a controlled vent may be a practical way to avoid drawing gas backward from an unwanted location.
Procurement teams should also ask how the proposed layout behaves after long idle periods, repeated cycling, and maintenance. A valve that works in a clean drawing can behave differently after exposure to powder, moisture, condensate, or deposits. No broad statement should replace configuration evidence. If compliance or regulated use is relevant, request current exact-model and exact-configuration documentation, then verify the market, document scope, issuer or lab, issue date, and whether the tested configuration matches the one being purchased.
Vacuum Pump Backflow Prevention Checklist
An OEM vacuum design checklist should convert backflow concerns into RFQ lines that can be answered, compared, and verified. The checklist below is written for buyers, distributors, and procurement teams who need enough technical structure to avoid vague quotations while staying focused on purchasing evidence.
- Define the gas path: Include chamber, fixtures, manifolds, sensors, filters, traps, pump inlet, pump exhaust, vents, bypasses, and service ports. Mark any branch that can hold pressure after shutdown.
- State the process media: List gas, vapor, moisture, particles, condensable material, cleaning residue, and any operating mode that changes the media profile.
- Record pressure states: Define pressure during start, normal running, normal stop, emergency stop, power loss, idle, maintenance opening, and restart.
- Specify the isolation method: Identify each valve by type, location, actuation source, normal position, fail position, leakage expectation, material consideration, and maintenance access.
- Define venting: State whether venting occurs, where gas enters, whether it is filtered or controlled, and how it is sequenced against isolation and pump stop.
- Document power-loss behavior: Explain what happens if electrical power, control signal, pneumatic supply, or communication is lost at the least favorable point in the cycle.
- Define restart logic: State which pressure, valve, and controller conditions must be true before restart is allowed.
- Require an acceptance test: Ask for a configuration-specific test method with setup, media condition, pressure points, timing, pass criteria, and documentation format.
- Control changes: Require notice and review if valve supplier, valve position, pump configuration, firmware, sensor placement, or vent arrangement changes.
For a simple teaching calculation, an OEM might estimate the amount of gas in a trapped line using the ideal gas relationship n = PV / RT. If all numbers are hypothetical assumptions, a 2 liter trapped volume at 100 kPa and 293 K contains about 0.082 mol of gas. This is not a product claim and does not predict contamination. It simply shows why trapped volume, pressure, and temperature belong in the design record.
When comparing quotations, ask each supplier to answer the same checklist in writing. Do not score a quote higher because it uses confident language around anti-backflow protection. Score it higher only when the response identifies the gas path, pressure states, component positions, fail behavior, venting method, restart logic, and the acceptance evidence for the configuration that will ship or be integrated.
HCEM’s site includes an ODM/OEM options page for buyers reviewing sourcing routes. Use that resource as a starting point for conversation, while keeping the RFQ specific enough to avoid assumptions. To discuss a pump inquiry with the required sequence details attached, contact HCEM with the gas path, media, pressure states, valve fail positions, venting method, power-loss sequence, restart logic, and proposed acceptance test.
FAQs
Is an oil-free vacuum pump enough to prevent backflow contamination?
No. Oil-free construction can be relevant to contamination control, but backflow prevention depends on the full system arrangement. The RFQ should still define gas path, isolation, venting, pressure states, shutdown behavior, and restart logic.
Should every OEM vacuum system include an isolation valve?
Do not assume a universal arrangement. Ask for the exact vacuum pump isolation valve type, location, actuation source, fail position, and acceptance test for the machine configuration. Some designs may need additional venting, traps, sensors, or control logic.
What is the most important part of a shutdown sequence?
The most important part is proving what happens when control is lost or interrupted. Normal shutdown can look orderly, while emergency stop or power loss may leave valves, vents, and trapped volumes in different states.
How should procurement handle compliance claims?
Request current evidence for the exact model and configuration. Verify the applicable market, document scope, issuer or lab, issue date, and whether the evidence covers the configuration being purchased. Do not rely on broad compliance wording.
What should be included in an RFQ for backflow prevention?
Include the gas path, process media, pressure states, valve fail position, venting method, power-loss sequence, restart logic, and configuration-specific acceptance test. These details make supplier responses easier to compare.
