Two-Stage Air Compressor Sizing: A Complete Buying Guide and CFM Calculator

As an applications engineer with over two decades on the plant floor, I frequently encounter facilities suffering from chronic pressure drops and astronomical utility bills. Often, maintenance teams attempt to compensate by indiscriminately cranking up the discharge pressure, which only exacerbates the energy waste. The root cause is almost always inadequate two-stage air compressor sizing. Properly matching your compressed air generation to your pneumatic demand is critical. In this guide, we will examine the technical parameters of two-stage air compressor sizing, ensuring you achieve optimal efficiency, meet stringent air quality standards, and maintain stable header pressure across your entire pneumatic network.

The Engineering Fundamentals of Two-Stage Air Compressor Sizing

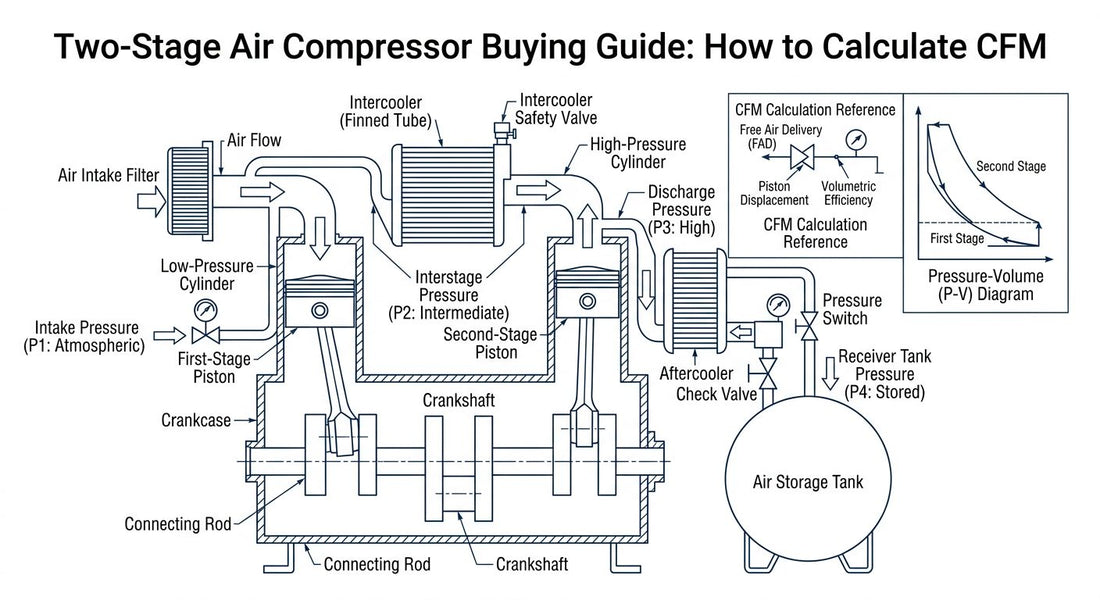

Mastering two-stage air compressor sizing requires understanding the thermodynamic advantage of intercooling. By compressing air in two steps and routing it through an intercooler between stages, we reduce the total mechanical work required. This thermal management is essential when your facility demands higher pressures, typically operating at or around 175 PSI.

We base our pneumatic demand on Free Air Delivery (FAD), measured in cubic feet per minute (CFM). A common error in two-stage air compressor sizing is confusing theoretical piston displacement with actual FAD. To calculate the required capacity, you must sum the consumption of all pneumatic actuators and apply a simultaneous load factor.

The fundamental gas laws govern this behavior. Boyle's Law, expressed mathematically as $P_1V_1 = P_2V_2$ (assuming constant temperature), helps us understand the relationship between volume and pressure. However, in real-world polytropic compression, the work done is a function of both the pressure ratio and the temperature rise. To ensure accurate two-stage air compressor sizing, we must account for the specific volume of ambient air at the local inlet conditions.

Calculating Demand for 100 CFM and Beyond

If your plant requires a baseline of 100 CFM at 175 PSI, your two-stage air compressor sizing calculation must include an allowance for artificial demand, transient spikes, and potential system leaks. A properly sized system operates efficiently within its designated duty cycle. Overtaxing a compressor beyond its rated duty cycle leads to premature thermal degradation of the lubricating oil and accelerated wear on the airend bearings. For a deeper understanding of these standard definitions, consult the CAGI Glossary of Compressed Air Terms.

ISO 8573-1 Classes and Compressor Selection

Accurate two-stage air compressor sizing must align with the required ISO 8573-1 air purity class. Industrial environments have varying tolerances for oil aerosols, moisture, and particulate matter. For Class 0 or Class 1 applications, such as pharmaceuticals, food processing, or semiconductor manufacturing, oil-free compression is absolutely mandatory. Incorporating an oilless setup like the HC1500 Oilless Air Pump ensures zero risk of downstream hydrocarbon contamination, protecting your sensitive end products.

Feature	Oil-Injected Two-Stage	Oil-Free (Oilless) Two-Stage
ISO 8573-1 Compliance	Typically Class 2-4 (requires heavy filtration)	Class 0 or Class 1
Thermal Management	Injected fluid acts as a coolant	Requires robust intercooling/water-jackets
Maintenance Interval	4,000 - 8,000 hours (fluid and separator changes)	8,000+ hours (teflon/coating wear replacement)
Specific Power (kW/100 cfm)	Lower (more efficient compression seal)	Slightly higher (clearance volume losses)
Acoustic Profile	68-75 dB(A)	72-80 dB(A)

Energy Metrics: Brake Horsepower and Full Load kW

When executing two-stage air compressor sizing, energy consumption metrics are just as vital as volumetric output. We measure the mechanical power at the compressor shaft as brake horsepower (BHP). However, electrical power consumption, which dictates your utility bill, is measured in kilowatts (kW).

The most critical efficiency metric in two-stage air compressor sizing is specific power, expressed as kW/100 cfm. This value tells you exactly how much electrical energy is required to produce a specific volume of compressed air. When evaluating full load kW, you must consider the motor's efficiency, the drive losses, and the airend's isentropic efficiency.

NOTE: Always verify specific power at your actual operating pressure. A compressor rated at 18.0 kW/100 cfm at 100 psi may require 22.5 kW/100 cfm at 175 PSI. Accurately plotting this performance curve is a non-negotiable step in two-stage air compressor sizing.

To optimize your plant's energy profile, the U.S. DOE Compressed Air Challenge provides excellent engineering guidelines on reducing system lifecycle costs through proper auditing and precise equipment sizing.

Duty Cycle and Reliability in Two-Stage Air Compressor Sizing

The duty cycle dictates how long a compressor can run fully loaded before it needs to rest or unload to dissipate heat. In heavy industrial applications, we aim for a 100% duty cycle, meaning the unit is engineered for continuous operation. When performing two-stage air compressor sizing, selecting a machine with an inadequate duty cycle will cause localized overheating. A robust two-stage air compressor sizing strategy ensures the equipment operates safely within its thermal limits, preventing nuisance electrical trips and catastrophic airend failure.

Mini Case Study: Resolving Pressure Drop in Metal Fabrication

Problem: A heavy metal fabrication plant experienced severe pressure drops at the end of their piping header, falling from a generated 150 PSI down to 85 PSI at the point of use. Their existing single-stage unit ran constantly, consuming excessive full load kW while failing to meet the pneumatic demand of their CNC plasma cutters.

Technical Solution: We conducted a comprehensive air audit and initiated a new two-stage air compressor sizing protocol. The audit revealed a peak demand of 340 CFM. We specified a 100 HP two-stage rotary screw compressor capable of delivering 420 CFM at a stable 175 PSI, operating at a highly efficient 18.5 kW/100 cfm. We also installed a 1,000-gallon wet receiver tank to manage peak transients and reduce the compressor's load/unload cycling.

Outcome: The facility stabilized their header pressure at a constant 125 PSI (regulated down from 175 PSI at the receiver). By relying on precise two-stage air compressor sizing, the plant reduced their specific energy consumption by 22%, saving roughly $14,000 annually in electrical costs while drastically extending the mechanical equipment's operational lifespan.

Advanced Considerations for Two-Stage Air Compressor Sizing

When finalizing your two-stage air compressor sizing, you must reference verified performance data. I highly recommend consulting the CAGI Compressed Air Data Sheets to compare different models objectively. These sheets provide standardized testing data, including full load kW, specific power, and FAD, ensuring your two-stage air compressor sizing calculations are based on empirical reality rather than marketing claims.

Furthermore, consider the impact of variable speed drives (VSD). While a fixed-speed compressor is excellent for constant baseload operations, a VSD unit excels at trimming fluctuating demand. Integrating both machine types into your two-stage air compressor sizing plan allows for superior energy management across all production shifts.

NOTE: When calculating pressure drop across the entire pneumatic network, assume a $0.1$ bar ($1.45$ psi) drop for every major filtration component (coalescing filters, desiccant dryers). This parasitic loss must be factored into your baseline two-stage air compressor sizing to guarantee sufficient pressure at the most remote pneumatic actuator.

Final Thoughts on System Design

To wrap up, executing accurate two-stage air compressor sizing is the foundation of a reliable, energy-efficient pneumatic system. By meticulously calculating your FAD requirement, understanding the relationship between brake horsepower and full load kW, and accounting for the necessary duty cycle at target pressures like 175 PSI, you protect your facility from unexpected downtime. Remember to design your system with a strict focus on specific power (kW/100 cfm) to minimize operational utility costs over the equipment's lifespan.

Whether you are upgrading an aging distribution system or designing a completely new plant layout, rigorous two-stage air compressor sizing is critical for long-term mechanical success. For engineers looking to implement high-purity, oil-free solutions in their network, explore technical specifications to find the exact performance metrics required for your next critical installation.

Frequently Asked Questions About Sizing

Q1: How does altitude affect two-stage air compressor sizing? Altitude significantly impacts two-stage air compressor sizing because the density of ambient air decreases as elevation increases. A compressor's volumetric flow is based on standard inlet conditions at sea level. At higher altitudes, the mass flow of air entering the intake valve is reduced, meaning the compressor delivers less FAD. When performing two-stage air compressor sizing for facilities above 3,000 feet, you must apply an altitude derating factor to both the motor's cooling capacity and the airend's volumetric efficiency. Failure to account for altitude in your two-stage air compressor sizing will result in a machine that cannot meet your required 100 CFM.

Q2: What is the difference between ACFM and SCFM in two-stage air compressor sizing? Understanding the distinction between Actual CFM (ACFM) and Standard CFM (SCFM) is essential for accurate two-stage air compressor sizing. SCFM measures air flow at standard reference conditions (typically 14.5 psia, 68°F, and 0% relative humidity). ACFM measures the actual volume of air flowing at the specific local inlet conditions. Because industrial environments fluctuate in temperature and barometric pressure, utilizing ACFM ensures your two-stage air compressor sizing reflects physical reality. If you rely solely on SCFM without converting to ACFM based on your plant's specific thermodynamics, your two-stage air compressor sizing calculations will undersize the system.

Q3: Why is specific power (kW/100 cfm) the most important metric in two-stage air compressor sizing? Specific power, denoted as kW/100 cfm, represents the true electrical efficiency of the compressor. During two-stage air compressor sizing, this metric allows you to directly compare the operating costs of different machines regardless of their total brake horsepower. A lower kW/100 cfm value indicates that the compressor requires less full load kW to generate the same volume of air. Because electricity accounts for roughly 75% of a compressor's lifecycle cost, prioritizing specific power in your two-stage air compressor sizing strategy yields the highest return on investment. Always evaluate this metric at your required discharge pressure.

**Q4: How does duty cycle influence the lifespan of
