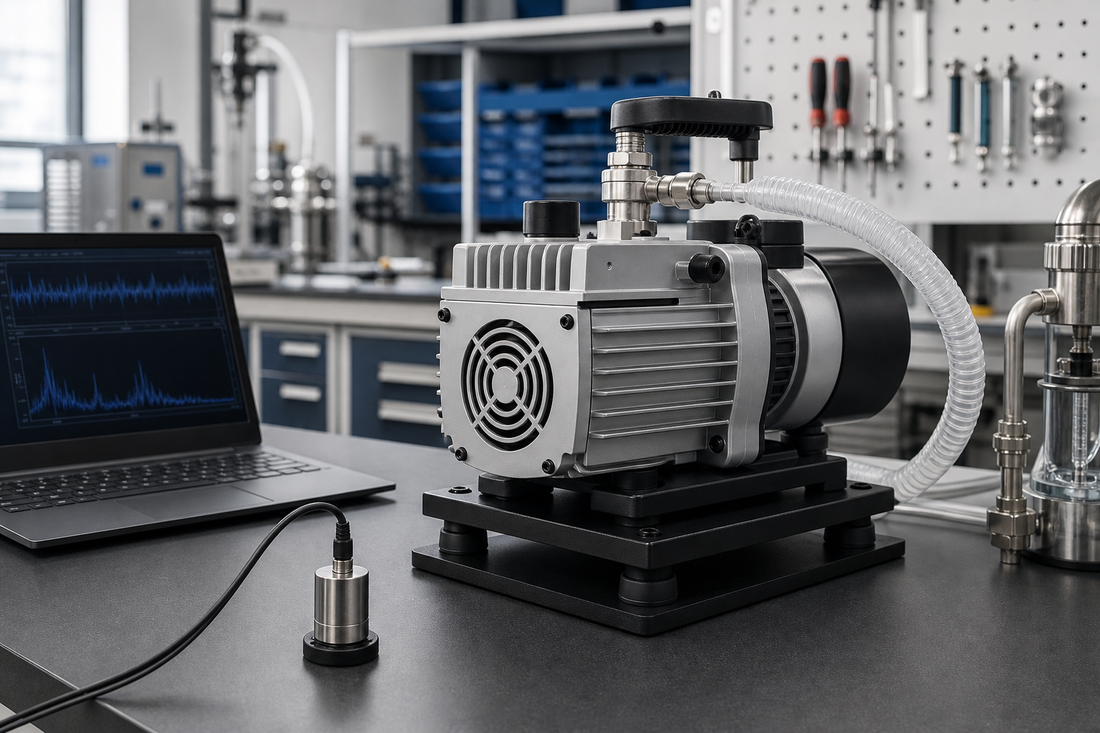

How to Specify Vacuum Pump Noise and Vibration for OEM Equipment
HCEM Pump TeamShare
To specify vacuum pump noise and vibration for OEM equipment, define the exact operating point, measurement method, mounting condition, air-path configuration, duty cycle, and evidence required for the specific model and configuration. Treat noise and vibration as integration variables, not catalog adjectives, especially when sourcing oil-free vacuum pumps for enclosed equipment.
Quick Facts
- Best starting point: ask for noise and vibration data tied to the exact pump model, voltage, mounting, fittings, mufflers, and operating point under review.
- Do not compare loose numbers: a sound level without distance, load, background noise, and test condition is weak purchasing evidence.
- Noise and vibration interact: the quietest bench result can change after the pump is hard-mounted to a metal chassis or connected to restrictive tubing.
- For HCEM buyers: the current Shopify catalog includes a VACUUM PUMP collection, and the current catalog lists HC280AX Oilless Vacuum Pump and HC30 Oilless Vacuum Pump product pages with noise information in their titles.
- Evidence rule: product titles prove that listings exist; buyers should request current exact-model and exact-configuration evidence before using any figure in a formal specification.
Why Noise and Vibration Belong in the OEM Specification
Vacuum pump noise and vibration affect more than user comfort. They influence enclosure design, mounting hardware, perceived equipment quality, service access, installation guidance, and the probability of field complaints. For OEM buyers, distributors, and industrial procurement teams, the practical question is not whether a pump is described as quiet. The question is whether the evidence is specific enough to survive integration into the finished machine.
A pump that appears acceptable on a supplier bench may behave differently inside an analyzer, packaging module, sampling device, print system, or compact industrial cabinet. Thin sheet metal can amplify structure-borne vibration. A rigid bracket can transfer motor motion into the frame. A short discharge path can create tonal noise. A small intake filter can add flow restriction and change the acoustic signature. These effects are normal engineering concerns, but they are often missed when purchasing documents use broad language.
For a quiet vacuum pump OEM project, the specification should separate source noise from installed noise. Source noise describes what the pump produces under a defined condition. Installed noise describes what the equipment emits after the pump, enclosure, tubing, filters, valves, and mounting system are combined. The supplier can usually support the first category with model-specific data when available. The OEM owns much of the second category because the final equipment layout determines how energy travels and radiates.
Oil-free vacuum pump integration adds another reason to be precise. Oil-free designs are often selected to reduce oil handling, contamination concerns, or maintenance steps associated with lubricated mechanisms. Those are integration goals, not automatic acoustic outcomes. Buyers should keep the acoustic requirement independent from the lubrication choice: define the sound and vibration condition directly, then ask suppliers for evidence that applies to the exact configuration being evaluated.
Compliance discussions require the same discipline. Occupational noise guidance from OSHA is relevant when equipment contributes to worker exposure, but a component listing or supplier statement should not be treated as a compliance conclusion for the finished system. Request current evidence for the exact model and configuration, then verify the applicable market, document scope, issuer or lab, issue date, and tested configuration before using it in a compliance file.
How to Define the Measurement Condition
A useful pump noise requirement begins with the measurement condition. Without that condition, a number can be misleading even when it was measured honestly. Sound level changes with distance, load, mounting surface, background noise, room acoustics, inlet condition, discharge condition, and the weighting scale used by the meter. Vibration readings also depend on sensor location, axis, mounting stiffness, operating point, and whether the pump is measured alone or installed in the equipment.
For many purchasing teams, the most practical approach is to build a short measurement table into the request for quotation. It does not need to be complex, but it should force every bidder to answer the same questions. That makes comparison possible and reduces later disagreement about what a published or supplied value means.
| Specification item | What to define | Why it matters |
|---|---|---|
| Operating point | Vacuum level, flow condition, supply voltage, frequency if relevant, duty cycle, and warm-up state | Noise and vibration can shift when load and electrical condition change. |
| Acoustic method | Sound pressure or sound power, weighting scale, distance, microphone position, background level, and room condition | Values measured under different acoustic setups are not directly comparable. |
| Mounting condition | Free-standing, supplier bracket, elastomer mounts, OEM bracket, or installed chassis | Structure-borne vibration can dominate the user perception of noise. |
| Air path | Intake filter, muffler, hose length, fitting size, valves, exhaust path, and restrictions | Airflow restriction and pulsation can change both noise and pump behavior. |
| Evidence package | Model, configuration, date, test scope, instrument or lab basis, and revision control | Procurement needs traceable information, not isolated figures without context. |
If a numeric teaching example is needed during internal planning, label it clearly as hypothetical. For example, assume a hypothetical equipment target of 55 dBA at the operator position, a hypothetical enclosure contribution allowance of 3 dB, and a hypothetical measurement uncertainty allowance of 2 dB. A buyer might create a planning limit such as: pump-related contribution target = 55 dBA - 3 dB - 2 dB = 50 dBA. These numbers are hypothetical assumptions for planning only and are not product claims for any HCEM model.
Standards can help teams structure the conversation. ISO 3744 is commonly referenced for determining sound power levels of noise sources using sound pressure methods in an essentially free field over a reflecting plane. That does not mean every supplier data point follows ISO 3744, and it does not mean a finished machine is automatically suitable for a workplace. It means buyers can use recognized methods as a vocabulary for requesting clearer evidence.
For vibration, specify whether the requirement is displacement, velocity, acceleration, or a qualitative integration target such as no visible fastener loosening, no contact with adjacent components, and no unacceptable enclosure resonance during defined operation. Quantitative vibration limits are useful only when the sensor axis, mounting point, bandwidth, and operating condition are stated. A vague request for low vibration gives procurement little leverage and gives engineering little diagnostic value.
Mounting, Isolation, and Air-Path Contributors
Vacuum pump vibration isolation should be designed as part of the equipment structure. The simplest error is to select a pump, hard-mount it to a thin panel, and then try to solve the resulting noise with foam after the layout is already fixed. Foam may reduce some airborne noise, but it does not stop vibration from entering the frame. Once the frame radiates sound, the installed equipment can seem louder than the pump data suggested.
Mount stiffness matters. Very rigid mounts can transmit motor and mechanism vibration directly into the chassis. Very soft mounts can allow movement that stresses tubing, fittings, wires, or nearby components. The right approach depends on pump mass, orientation, center of gravity, expected acceleration during shipment or use, and the frequency range causing concern. Procurement should not specify an isolator material blindly; it should ask how the pump is intended to be mounted and what evidence exists for the proposed arrangement.
The air path is just as important. Intake and exhaust fittings can create hiss, pulsation, or tonal components. A restrictive filter can alter load. A short rigid tube can transfer vibration to a panel. A muffler can reduce one noise path while adding pressure drop. Long hoses can help placement flexibility but may create routing and service problems. The buying specification should require suppliers and internal engineers to document the tubing, filter, muffler, and valve assumptions used when reviewing acoustic data.
Enclosures add another layer. A pump installed near a flat, unsupported metal surface can excite panel radiation. A bracket that shares fasteners with a user-facing cover can transmit vibration into the part the operator touches. A cooling fan can mask pump noise during one test and reveal it during another operating mode. For equipment that runs in offices, labs, clinics, workshops, or operator stations, the perceived character of noise may matter as much as the single dBA value.
During supplier comparison, separate the issues that belong to the pump from the issues that belong to the system. Ask whether the supplier can identify recommended mounting orientation, permissible mount points, and any restrictions that affect acoustic or vibration behavior for the exact model under consideration. Then validate the final assembly under the OEM operating condition. That validation should include the finished enclosure, normal filters, normal tubing, normal power supply, and representative duty cycle.
HCEM's current site includes ODM/OEM options, which may be relevant when a buyer is defining pump fit, connection, or configuration questions. The existence of that page should be treated as a route for discussion, not as proof of a specific customization, test result, availability, or lead time. Exact-model evidence still needs to be requested and reviewed for the project configuration.
Vacuum Pump Noise and Vibration Checklist
The following checklist is intended for OEM sourcing files, distributor technical review, and industrial procurement documentation. It keeps the conversation anchored to evidence and reduces the risk of comparing unlike data.
- Define the equipment acoustic target. State whether the target applies at an operator position, bystander position, enclosure surface, service mode, or component bench condition.
- State the pump operating point. Include vacuum level, open or restricted flow, duty cycle, electrical supply, ambient condition if relevant, and warm-up status.
- Separate source and installed requirements. Ask for pump-level evidence where available, then plan a finished-equipment check after integration.
- Document the mounting condition. Record bracket material, fastener pattern, isolators, orientation, adjacent panels, and whether the test used the same parts as production intent.
- Document the air path. Include intake filter, muffler, tube length, tube material, fitting size, exhaust routing, valves, and any expected restrictions.
- Request traceable evidence. For any claimed value, ask for the exact model, configuration, measurement method, date, document scope, issuer or lab where applicable, and revision.
- Check vibration at the right locations. Measure or inspect at the pump, bracket, enclosure panel, tubing supports, and user-touch surfaces when those locations matter to the equipment.
- Review compliance documents carefully. Do not infer compliance from a product title, catalog phrase, or unrelated test. Verify market, scope, issuer or lab, issue date, configuration, and whether the evidence applies to the finished equipment or only a component.
- Control changes after approval. A new fitting, filter, mount, enclosure panel, or supplier configuration can change noise and vibration behavior. Tie approvals to revision-controlled parts.
For HCEM sourcing research, buyers can start with the VACUUM PUMP collection and review the listed product pages that match the application category. The HC280AX and HC30 product pages are current examples of listings with noise information in their titles, but the titles should not be extended into claims about other models or configurations.
When a project reaches the specification stage, send HCEM the intended operating point, mounting concept, tubing layout, target market, and evidence requirements through Contact HCEM. Keep the request specific: ask for current information for the exact model and configuration under review, and identify any documents that procurement, quality, or regulatory teams must evaluate before approval.
FAQs
What is the difference between pump noise and installed equipment noise?
Pump noise is measured at the component or subassembly under a defined condition. Installed equipment noise is the sound emitted by the finished product after the pump is mounted, enclosed, connected to tubing, and operated in the real duty cycle. OEM specifications should address both because the final assembly can amplify or change the sound.
Can a product title be used as a formal noise specification?
No. A product title can show that a listing exists and may indicate that noise information is associated with that page, but it is not enough for a controlled purchasing specification. Request current evidence for the exact model, voltage, configuration, measurement condition, and document scope before approval.
How should buyers compare a quiet vacuum pump OEM option from two suppliers?
Use the same operating point, mounting condition, air path, and acoustic method for both. If one supplier provides a number without distance, load, background condition, or configuration details, treat it as incomplete. Comparable evidence is more useful than a lower number with unclear assumptions.
Does oil-free vacuum pump integration guarantee lower noise?
No. Oil-free design describes the lubrication approach, not an automatic acoustic result. Noise and vibration still depend on mechanism, speed, load, mounting, fittings, filters, enclosure design, and measurement condition. Specify the required noise and vibration evidence directly.
What documents should procurement request before approving a pump?
Request exact-model and exact-configuration data, measurement conditions, revision-controlled drawings or configuration descriptions where available, and any applicable declarations or reports needed for the target market. For compliance-related documents, verify scope, issuer or lab, issue date, configuration, and whether the document applies to the component or finished equipment.
